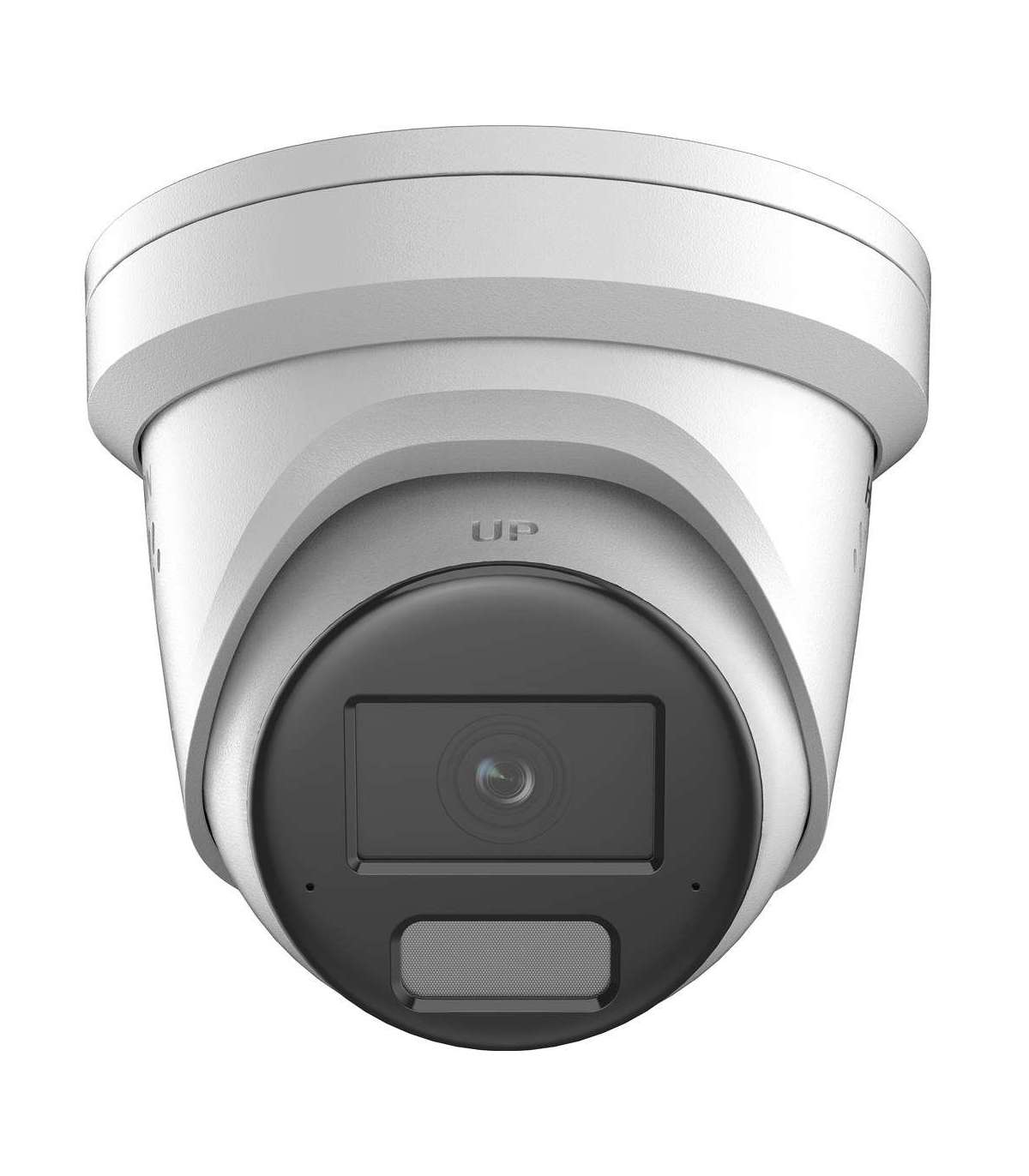

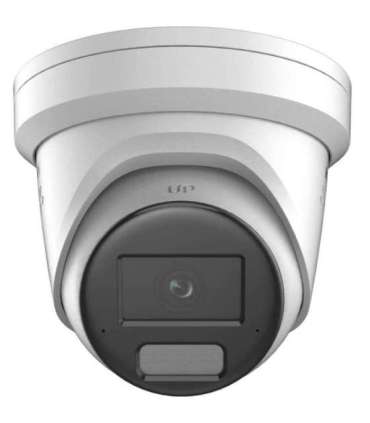

Hikvision Pro Series DS-2CD2366G2H-IS2U/SL(2.8MM) industrial camera Turret IP security camera Indoor and outdoor 3200 x

Характеристики

Weight

780 g

Height

115.4 mm

Package weight

1.21 kg

Product colour

White

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS
TLS

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Networking standards

IEEE 802.1x
IEEE 802.3at

Package width

170 mm

Package depth

170 mm

Package height

160 mm

Compliance certificates

CB
CE
Electromagnetic Compatibility (EMC)
KC
Low Voltage Directive (LVD)
RCM
REACH
RoHS
WEEE

Housing material

Metal

Power consumption (max)

16 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Turret

Password protection

Yes

Bluetooth

No

Number of microphones

2

Built-in microphone

Yes

Audio system

2-way

DC output voltage

12

Audio formats supported

AAC-LC
G.711
G.722.1
G.726
MP2L2
MP3
PCM

Maximum memory card size

512 GB

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3200 x 1800 pixels

Audio output

1

Noise reduction

Yes

Type

IP security camera

Diameter

13.8 cm

Number of cameras

1

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800

Audio input

1

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Face detection
Human detection
Intrusion
Line crossing detection
Region entrance detection
Region exiting detection
Scene change
Vehicle detection

Lens viewing angle, vertical

60°

Lens viewing angle, diagonal

144°

Lens viewing angle, horizontal

115°

Pan range

0 - 360°

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

18 W

Digital watermark

Yes

Heartbeat

Yes

HTTPS encryption

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0 lx

Highlight Compensation (HLC)

Yes

Lens mount interface

M12

Bit rate range

16 - 320 Kbit/s

Alarm input channels

1

Alarm output channels

1

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Flash log

Yes

Pixel counter

Yes

Sample rates

8 - 48 kHz

Human and vehicle targets classification

Yes
