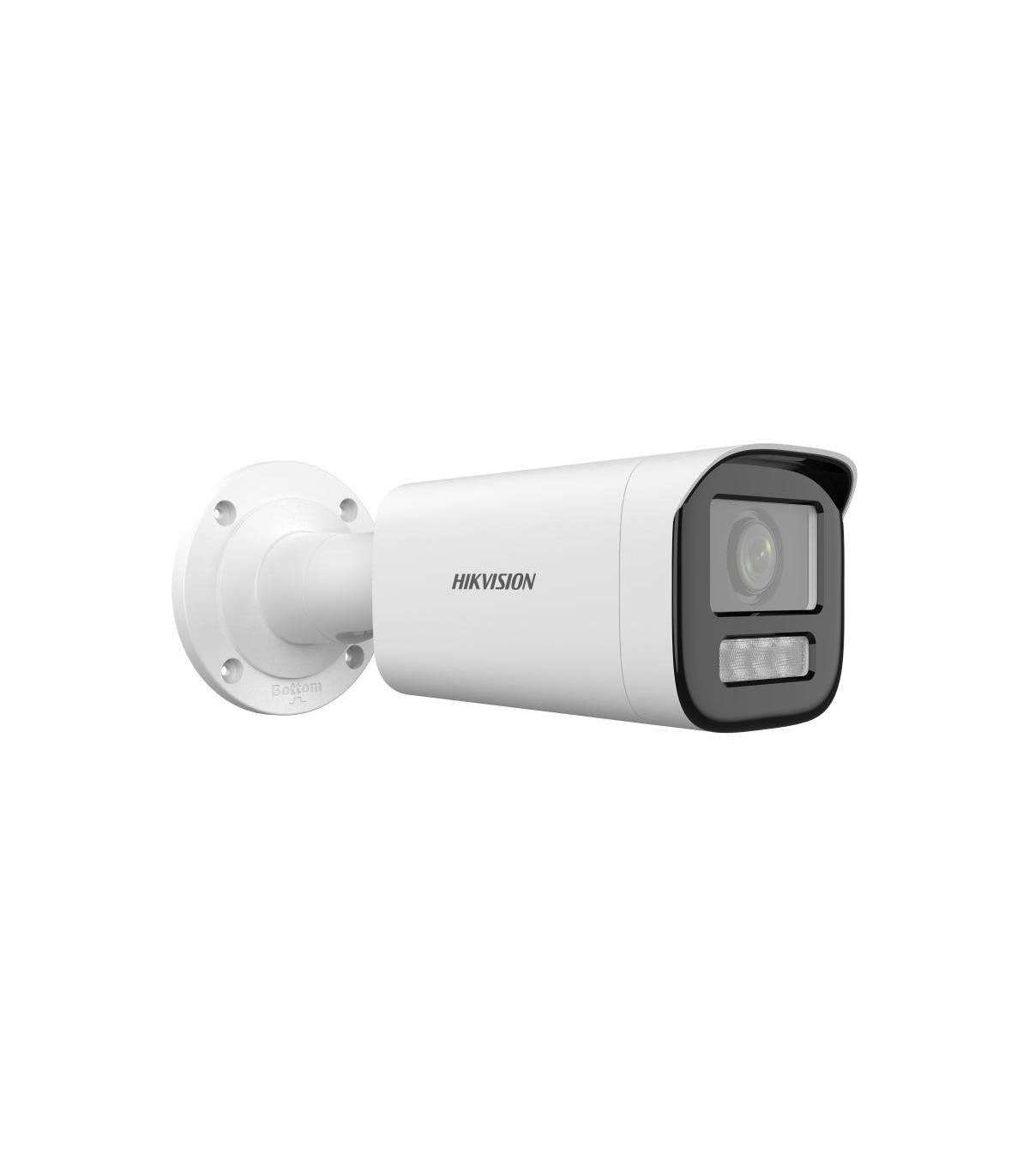

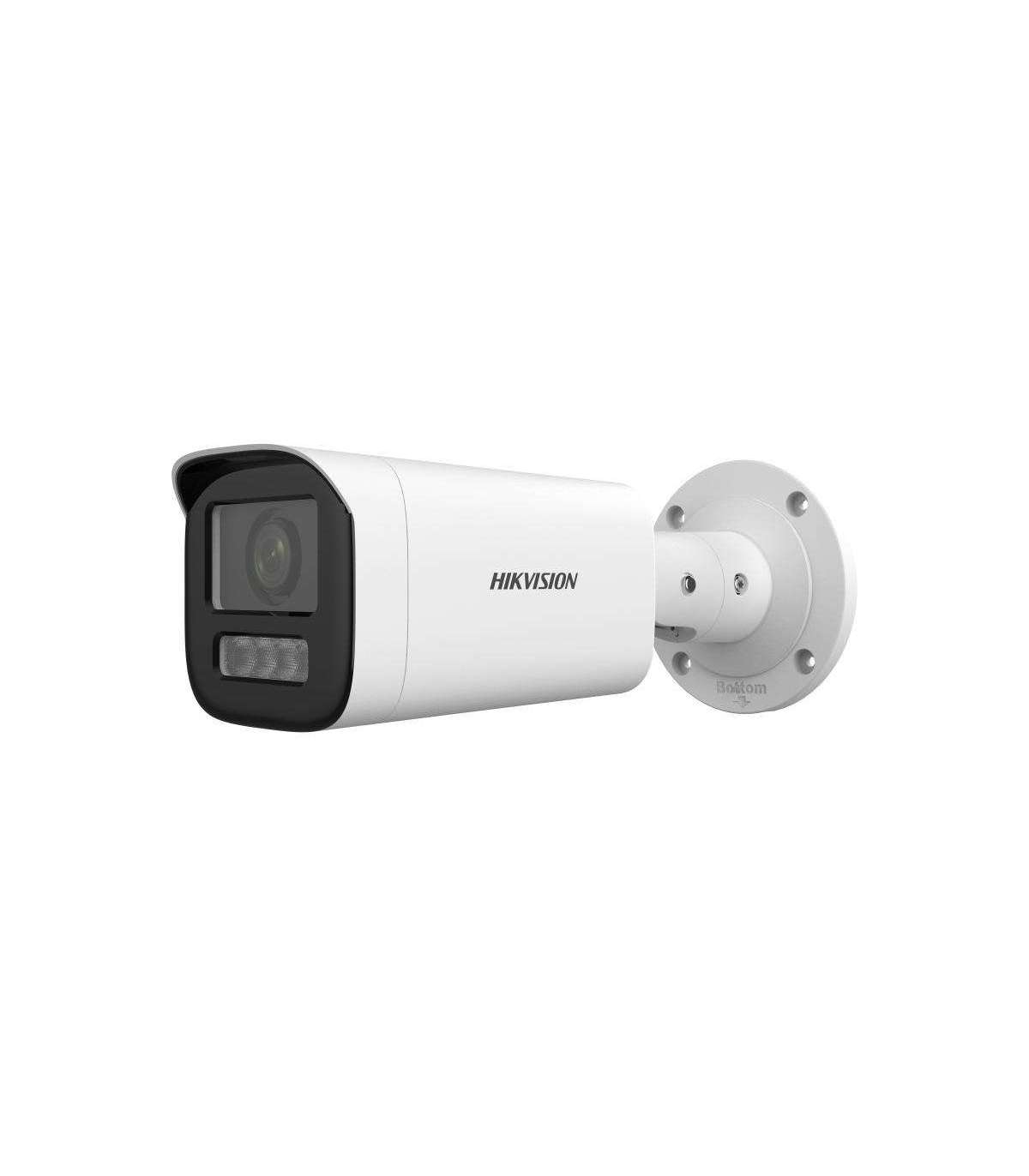

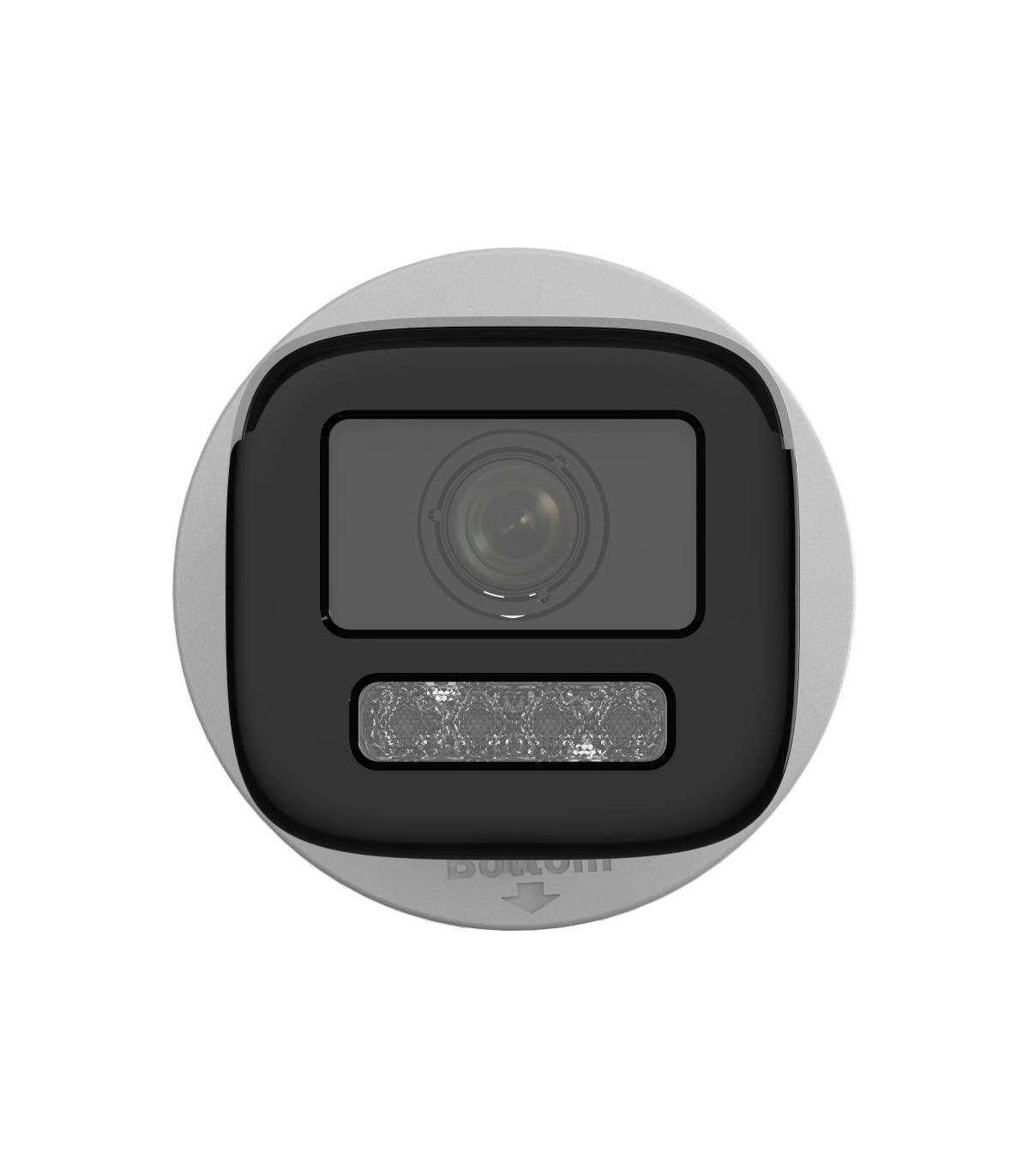

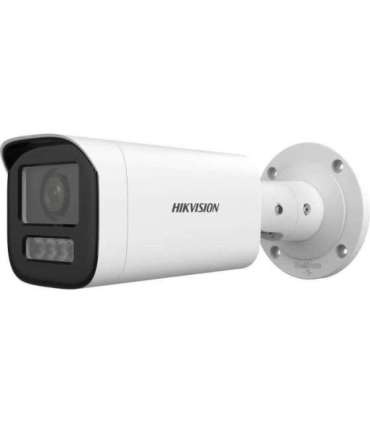

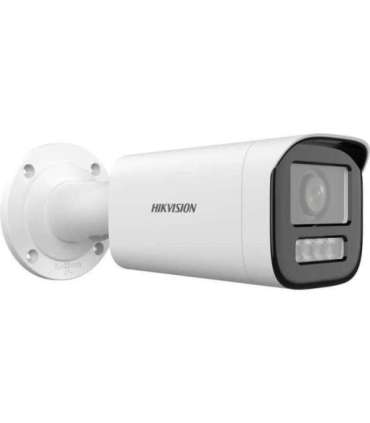

Hikvision Value Series DS-2CD1643G2-LIZU(2.8-12mm)EN Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Характеристики

Weight

585 g

Package weight

910 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.3af

Package width

315 mm

Package depth

137 mm

Package height

141 mm

Compliance certificates

BIS
CB
CE
Electromagnetic Compatibility (EMC)
Federal Communications Commission (FCC)
Industry Canada (IC)
Low Voltage Directive (LVD)
RCM
REACH
RoHS
UL
WEEE

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Manual

Yes

Housing material

Metal
Plastic

Power consumption (max)

10.5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

English
Ukrainian

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Video formats supported

H.264
H.264+
H.265
H.265+

Audio formats supported

AAC-LC
G.711 A-law
G.711 μ-law
G.722.1
G.726
MP2L2
PCM

Maximum memory card size

512 GB

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 3 mm (1 / 3")

Supported video modes

360p
480p
720p
1080p
1440p

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Length

252 mm

Diameter

10.5 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Wall

Mirror

Yes

Video recording

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

0.88 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Infra-red wavelength

850 nm

Night vision distance

50 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

51.7 - 16.7°

Lens viewing angle, diagonal

114.3 - 34°

Lens viewing angle, horizontal

96.7 - 29.7°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Sharpness

Back Light Compensation (BLC)

Yes

Focal length range

2.8 - 12 mm

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

12 W

Digital watermark

Yes

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

2

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Minimum illumination

0 lx

Number of Privacy masking areas

4

Observe distance (wide)

25.4 m

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6.4 m

Recognize distance (wide)

12.8 m

Detect distance (wide)

64 m

Bit rate range

16 - 160 Kbit/s

Client interoperability

iVMS-4200, Hik-Connect

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Focus

Motorized

Recognize distance (tele)

39.6 m

Detect distance (tele)

198 m

Identify distance (tele)

19.8 m

Observe distance (tele)

78.6 m

Sample rates

8 - 16 kHz
