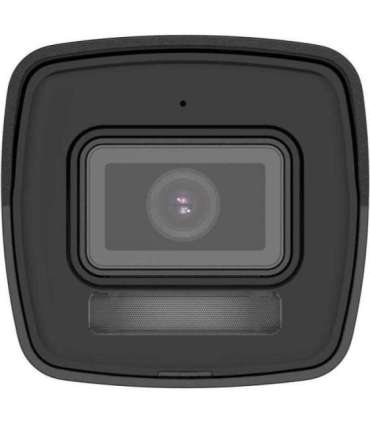

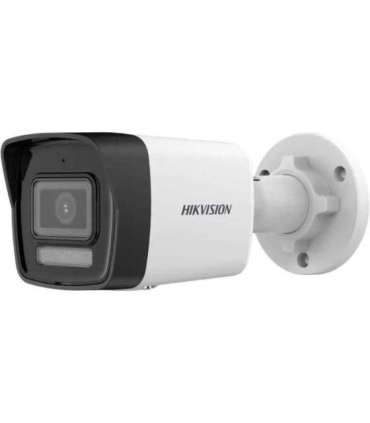

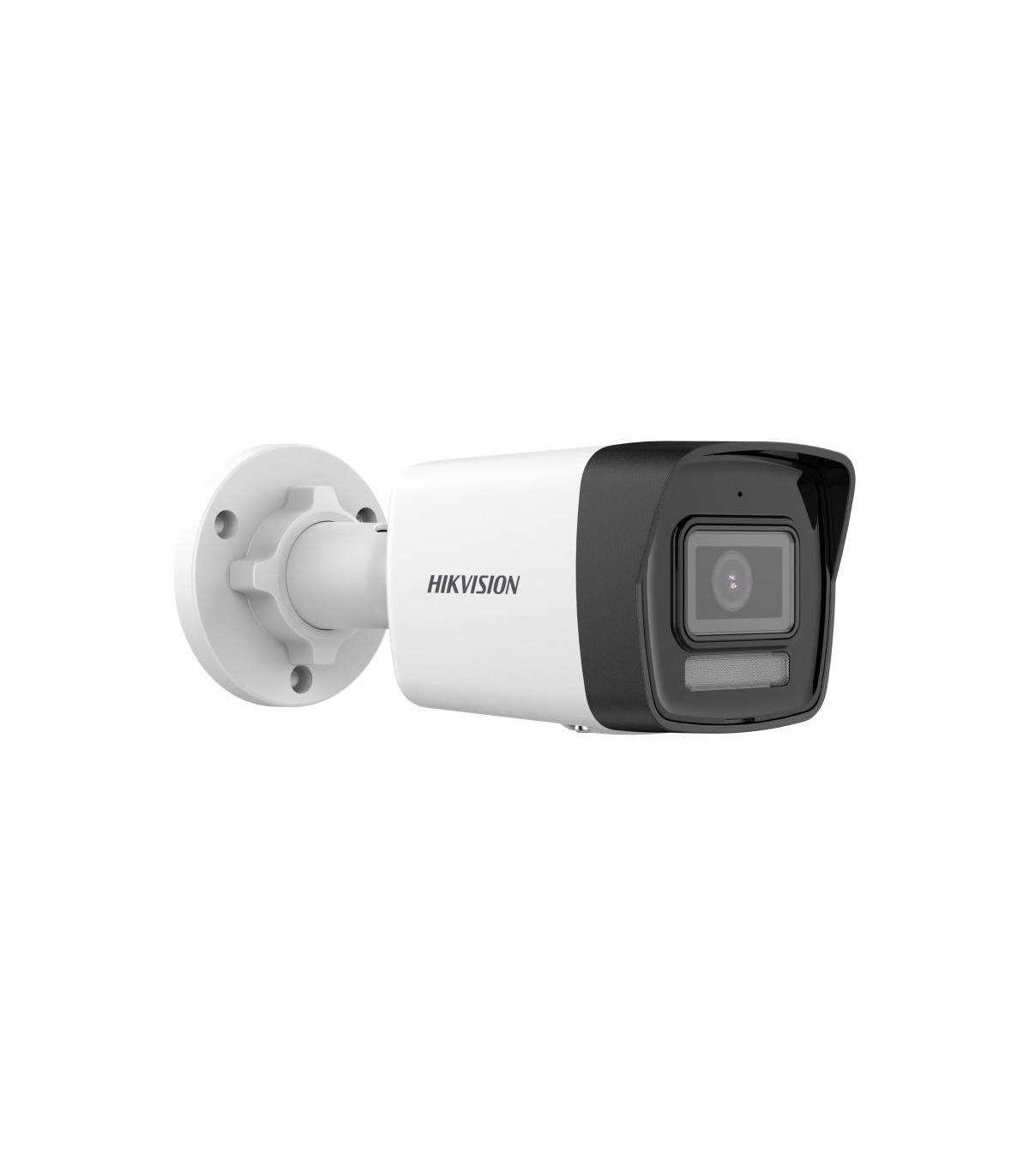

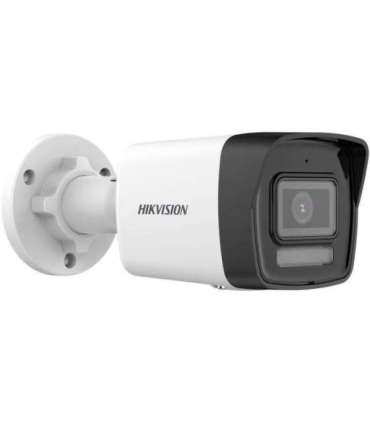

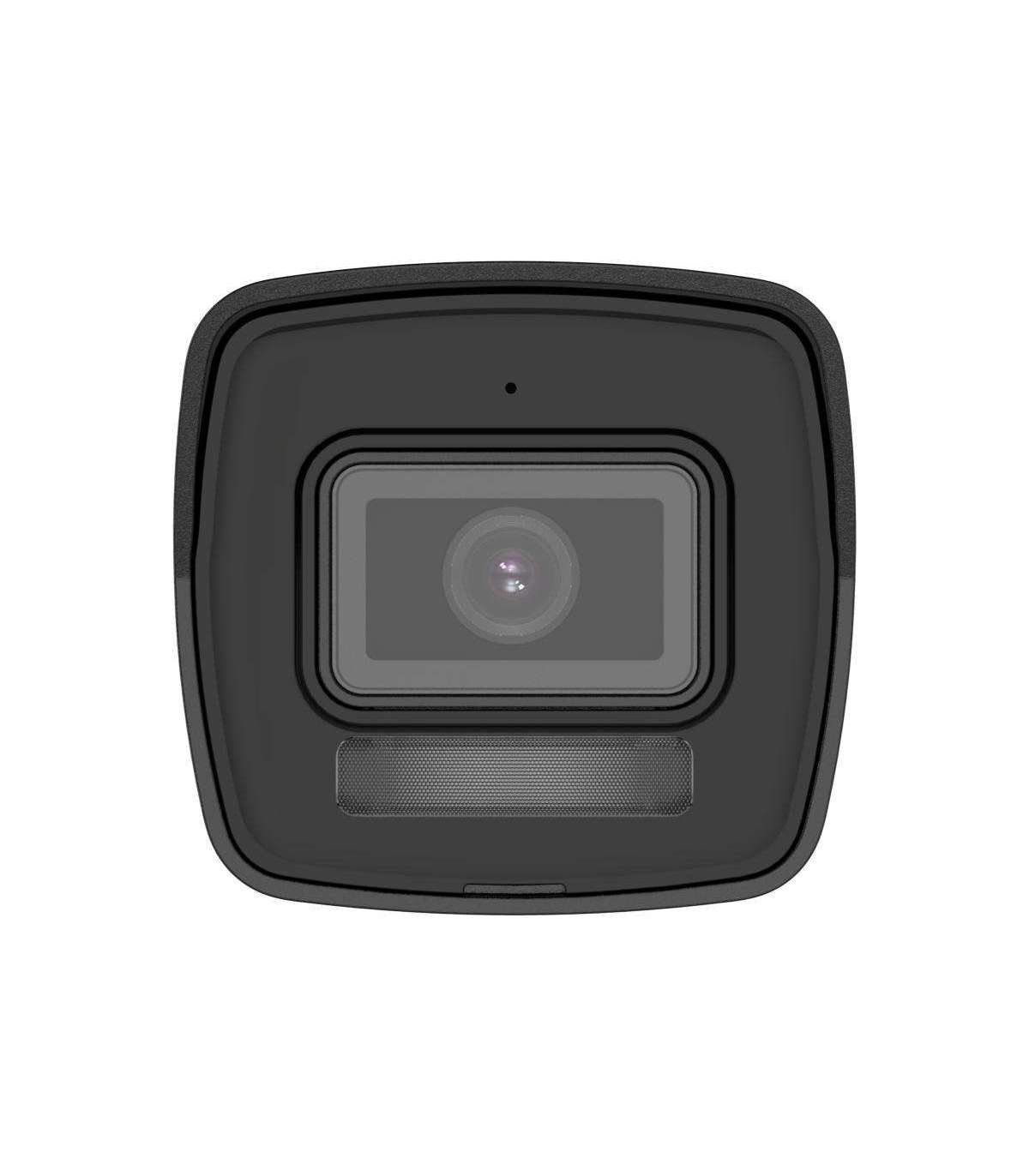

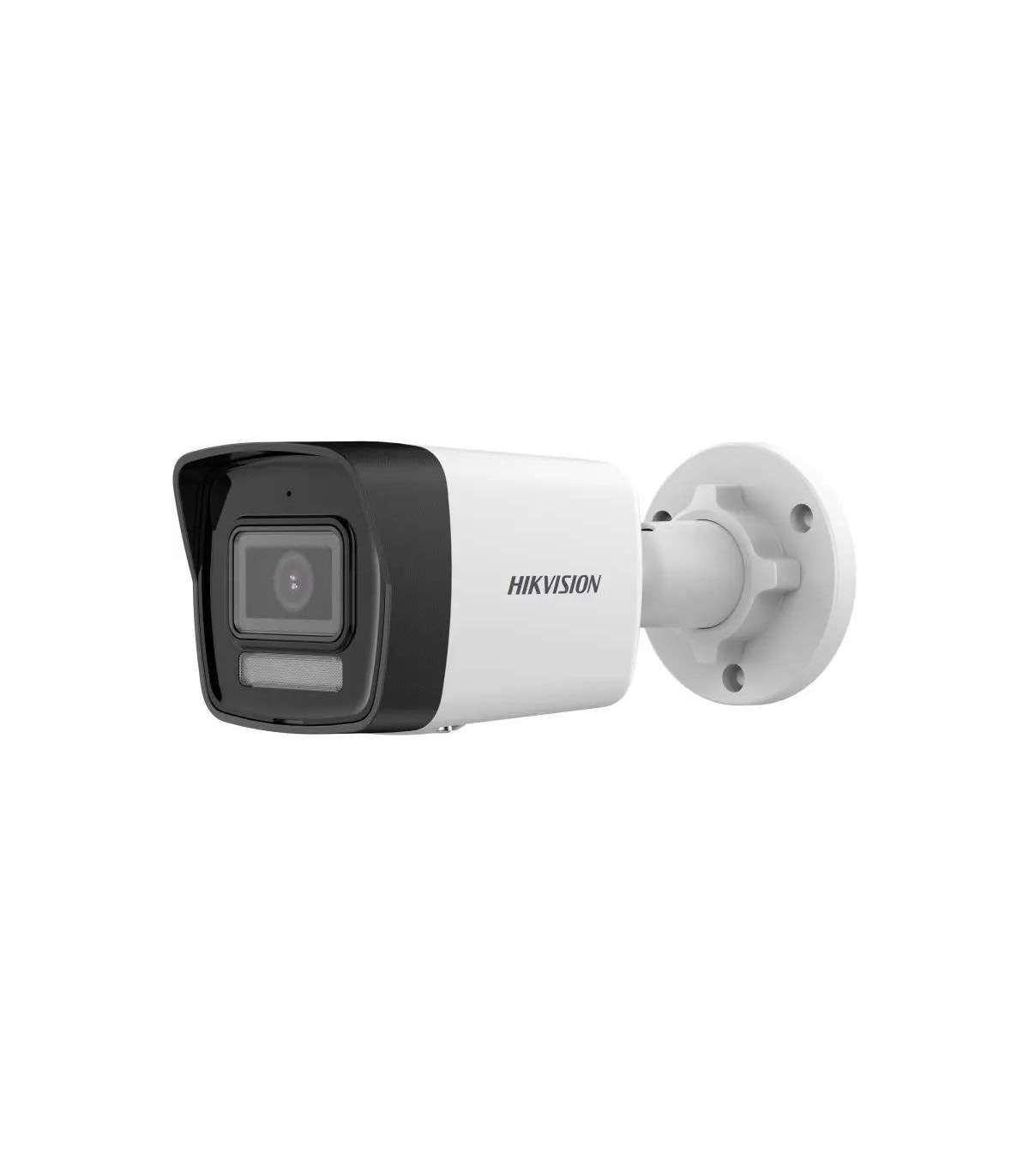

Hikvision Value Series DS-2CD1083G2-LIUF(2.8MM)PL security camera Bullet IP security camera Outdoor 3840 x 2160 pixels

Характеристики

Weight

285 g

Height

66 mm

Width

69.1 mm

Package weight

481 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Package width

216 mm

Package depth

121 mm

Package height

118 mm

Compliance certificates

CB
CE
REACH
RoHS
WEEE

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

Housing material

Metal
Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

English
Ukrainian

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Audio formats supported

AAC-LC

Maximum memory card size

512 GB

Protection features

Waterproof

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Length

170.8 mm

Number of cameras

1

Live view

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800
3840 x 2160

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

0.41 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

15 fps

Total megapixels

8 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

62°

Lens viewing angle, diagonal

134°

Lens viewing angle, horizontal

113°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

6.5 W

Digital watermark

Yes

Heartbeat

Yes

Number of languages

2

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

31 m

Recognize distance

15 m

Detect distance

79 m

Identify distance

7 m

Minimum illumination

0 lx

Voice codecs

G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

B/W night vision distance

30 m

Bit rate range

16 - 160 Kbit/s

Client interoperability

iVMS-4200, Hik-Connect

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Sample rates

8 - 16 kHz
