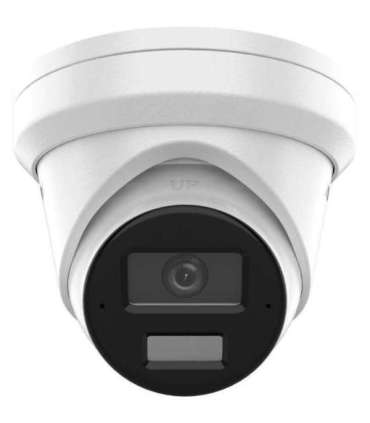

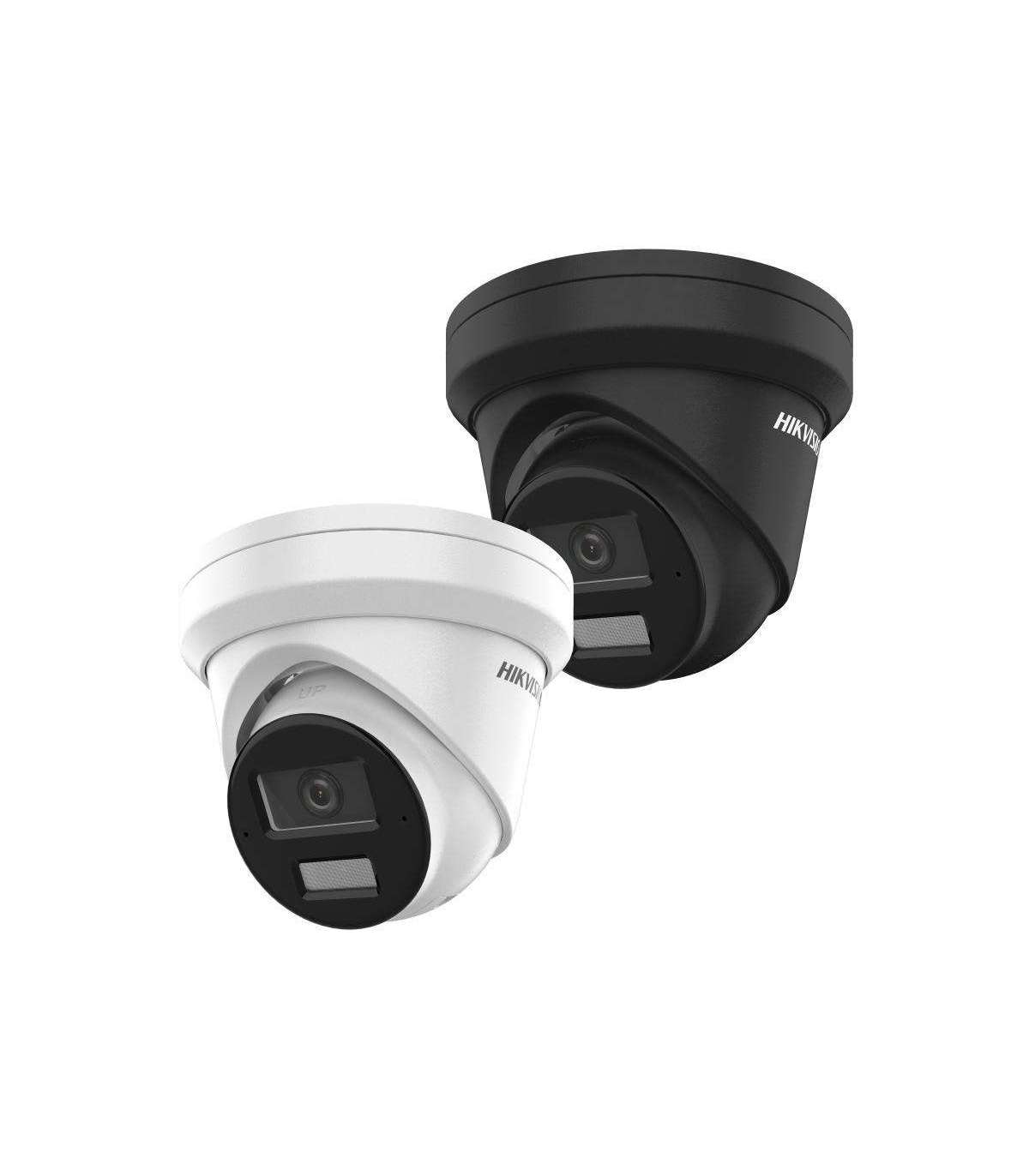

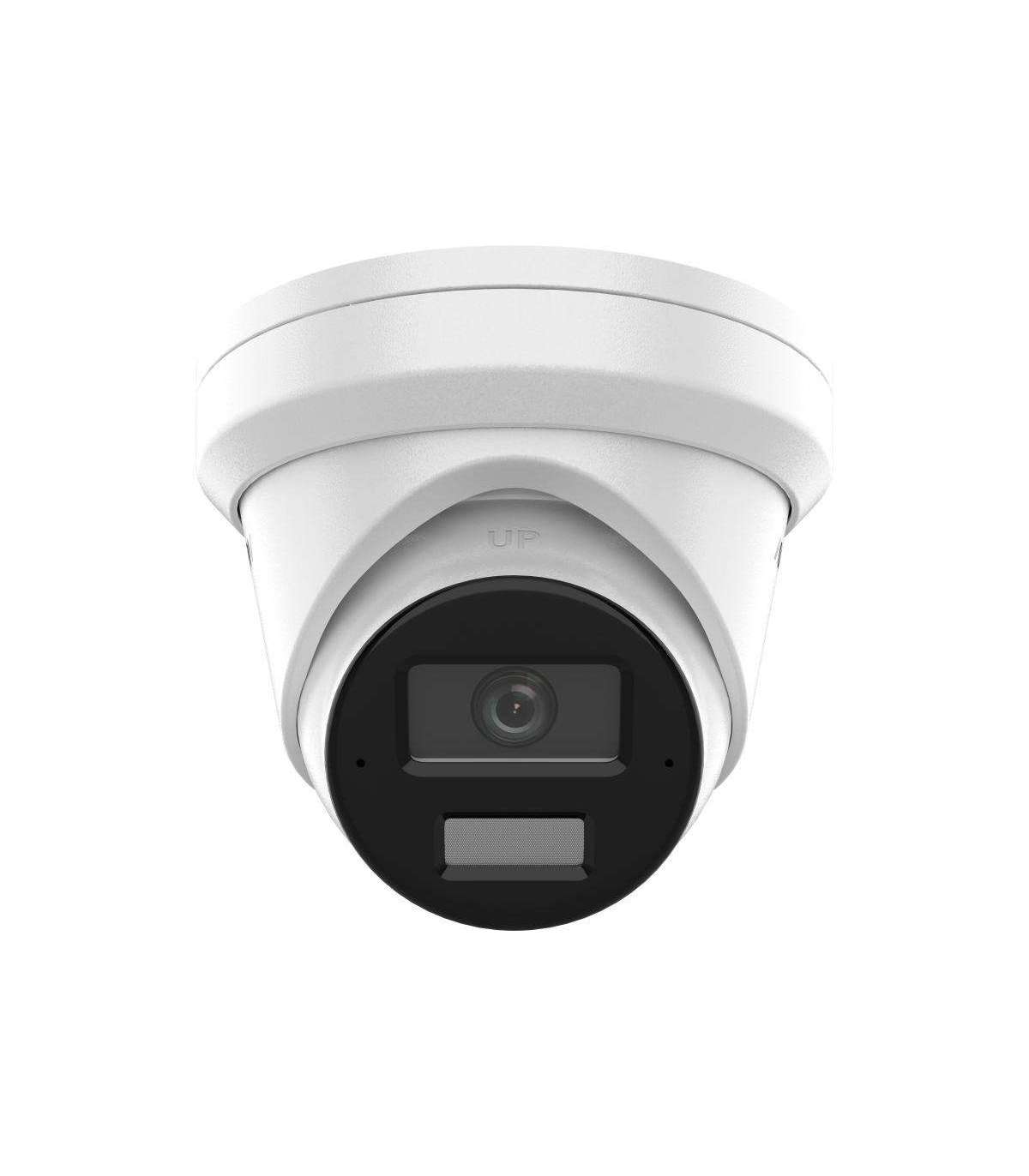

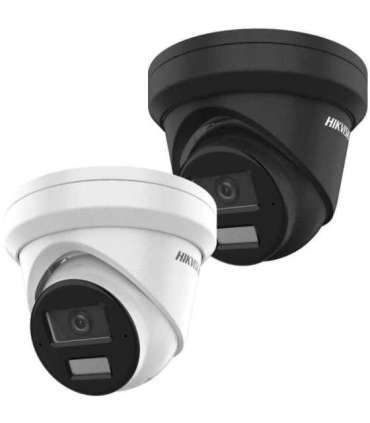

Hikvision Pro Series with AcuSense DS-2CD2343G2-LI(2.8MM) security camera Dome IP security camera Outdoor 2688 x 1520

Характеристики

Weight

515 g

Height

96.3 mm

Package weight

755 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.2x
IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Compliance certificates

BIS
CB
CE
Industry Canada (IC)
KC
Low Voltage Directive (LVD)
RCM
REACH
RoHS
WEEE

Sustainability compliance

Yes

Housing material

Metal

Power consumption (max)

7 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Maximum memory card size

512 GB

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Supported video modes

360p
480p
720p
1080p
1520p

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.7 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.58 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

122°

Lens viewing angle, horizontal

104°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Mirror
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

9 W

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

25 m

Recognize distance

12 m

Detect distance

63 m

Identify distance

6 m

Minimum illumination

0 lx

Number of Privacy masking areas

8

Highlight Compensation (HLC)

Yes

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Fixed focus

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Network access storage (NAS)

Yes

Flash log

Yes

Pixel counter

Yes

Human and vehicle targets classification

Yes

Automatic Network Replenishment (ANR)

Yes

Software reset

Yes
