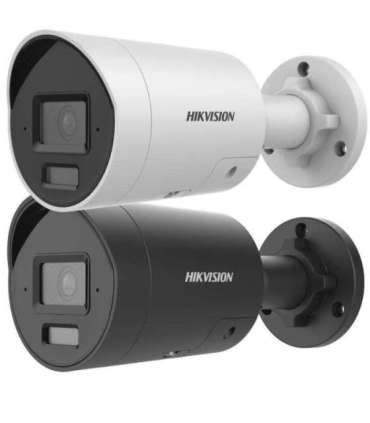

Hikvision Pro Series with AcuSense DS-2CD2046G2H-I2U/SL(2.8MM) security camera Bullet IP security camera Outdoor 2688 x

Характеристики

Weight

515 g

Package weight

840 g

Product colour

Black
White

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS
HTTPS
TLS

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3at

Package width

234 mm

Package depth

120 mm

Package height

117 mm

Compliance certificates

CB
CE
Low Voltage Directive (LVD)
RoHS
UL

Housing material

Metal

Browser supported

IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Power consumption (max)

12 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Maximum memory card size

512 GB

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Noise reduction

Yes

Type

IP security camera

Length

176.3 mm

Diameter

7.44 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

1 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

40 m

LED type

IR

Night vision

Yes

Number of lenses

1

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

120°

Lens viewing angle, horizontal

100°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

16 W

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8192 Kbps

Active tampering alarm

Yes

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Smart IR

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

25 m

Recognize distance

12 m

Detect distance

63 m

Identify distance

6 m

Minimum illumination

0 lx

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Lens mount interface

M12

Bit rate range

8 - 320 Kbit/s

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Behavior analysis

Intrusion detection, Line crossing detection

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Network access storage (NAS)

Yes

Flash log

Yes

Pixel counter

Yes

Sample rates

8 - 48 kHz

Human and vehicle targets classification

Yes

Automatic Network Replenishment (ANR)

Yes
