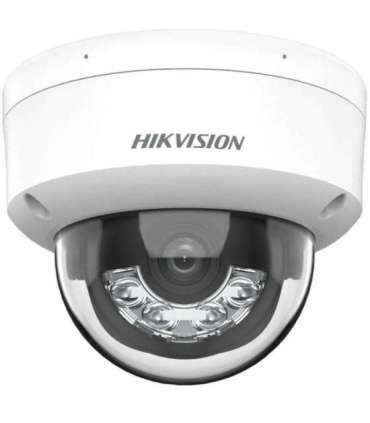

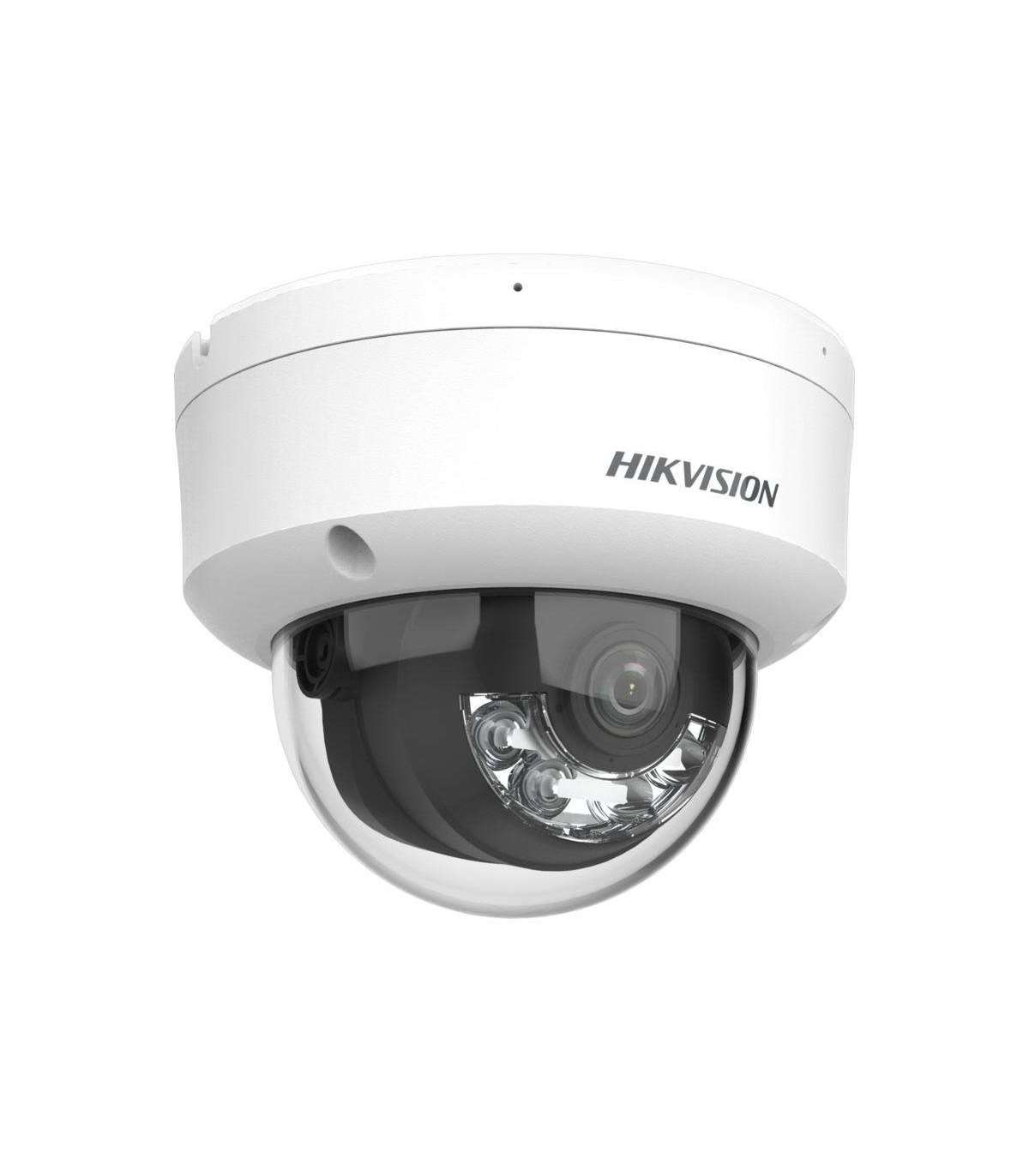

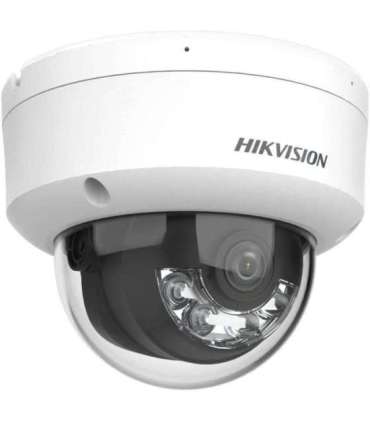

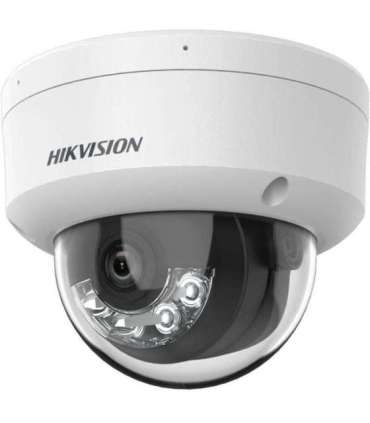

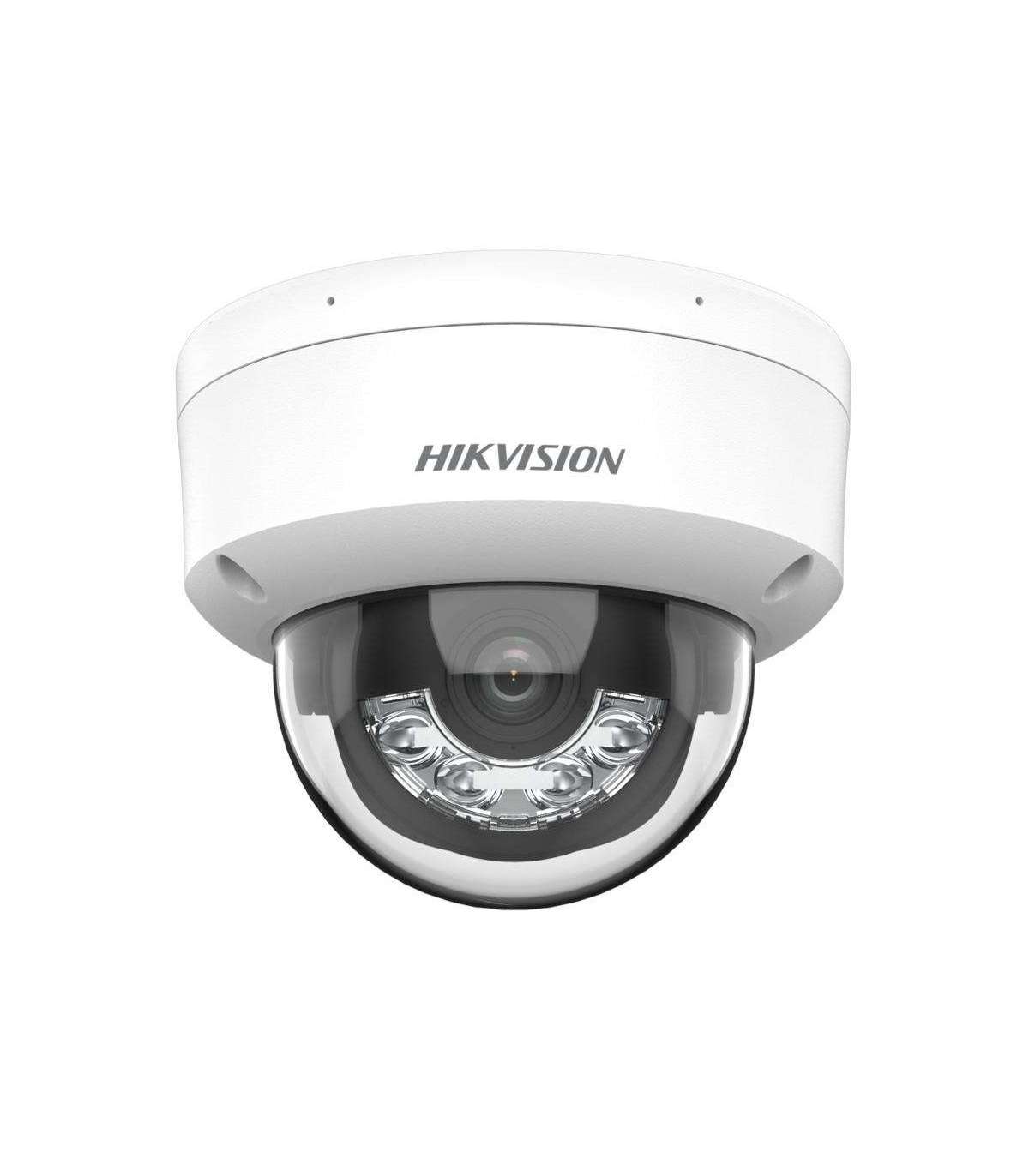

Hikvision Value Series DS-2CD1163G2-LIU(2.8MM) Dome IP security camera Indoor & outdoor 3200 x 1800 pixels Ceiling

Характеристики

Weight

550 g

Height

97.6 mm

Package weight

800 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Compliance certificates

BIS
CB
CE
REACH
RoHS
UL
WEEE

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Sustainability compliance

Yes

Manual

Yes

Housing material

Metal
Plastic

Power consumption (max)

6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Mounting kit

Yes

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Polish

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Video formats supported

H.264
H.264+
H.265
H.265+

Audio formats supported

AAC-LC
G.711 A-law
G.711 μ-law
G.722.1
MP2L2
PCM

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Supported video modes

360p
480p
720p
1080p
1440p

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+

Maximum resolution

3200 x 1800 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.1 cm

Number of cameras

1

Live view

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440
3200 x 1800

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Video recording

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

0.5 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

20 fps

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

127°

Lens viewing angle, horizontal

105°

Pan range

0 - 355°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

355°

Power consumption (Power over Ethernet (PoE))

7.5 W

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

1

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/100000 - 1/3 s

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Privacy masking

Yes

Observe distance

30 m

Recognize distance

15 m

Detect distance

76 m

Identify distance

7 m

Minimum illumination

0 lx

IK code

IK08

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Bit rate range

16 - 160 Kbit/s

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Sample rates

8 - 16 kHz
