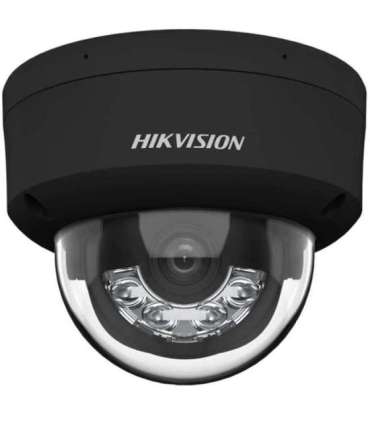

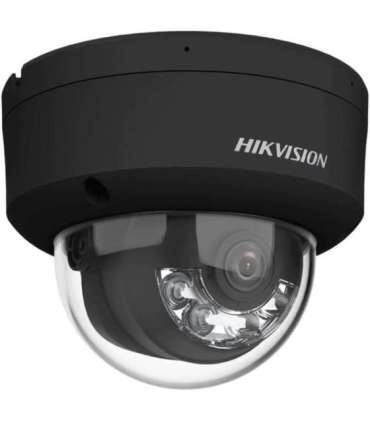

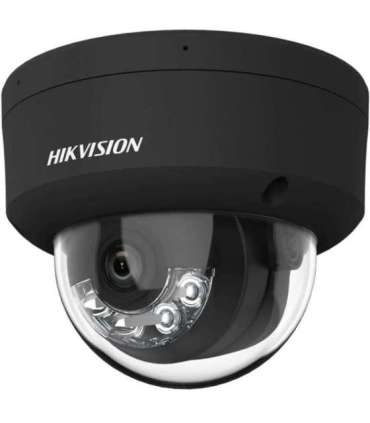

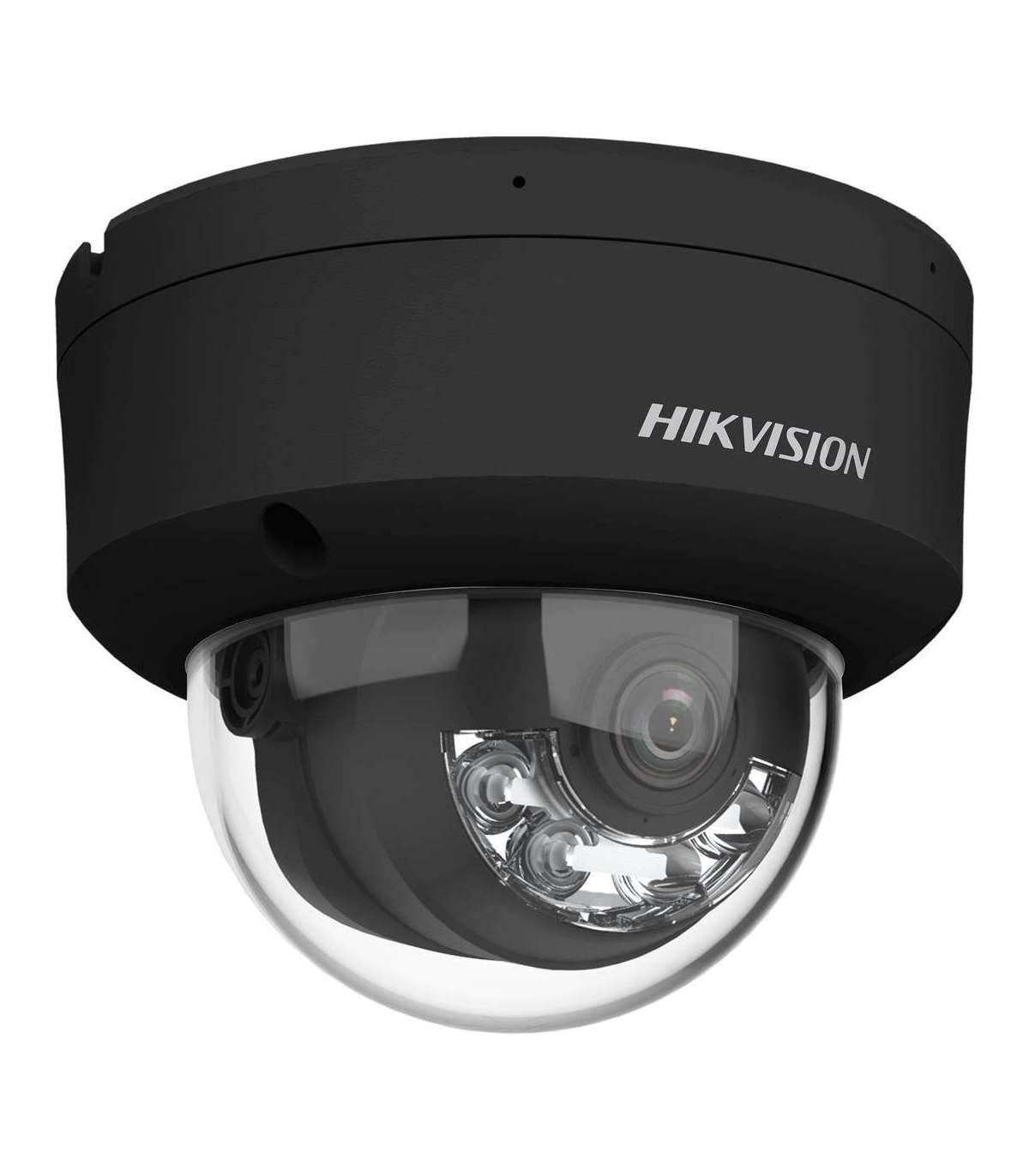

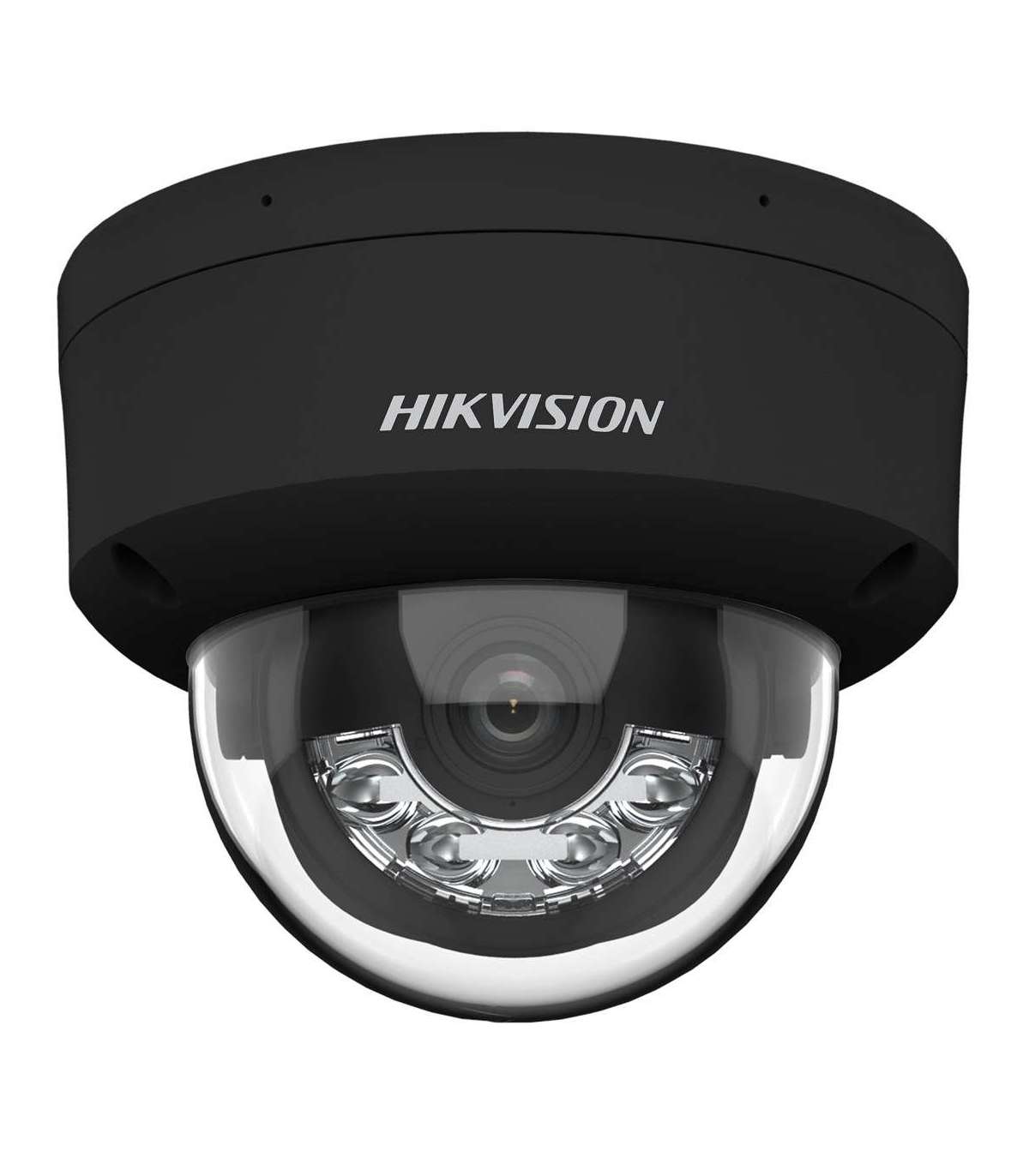

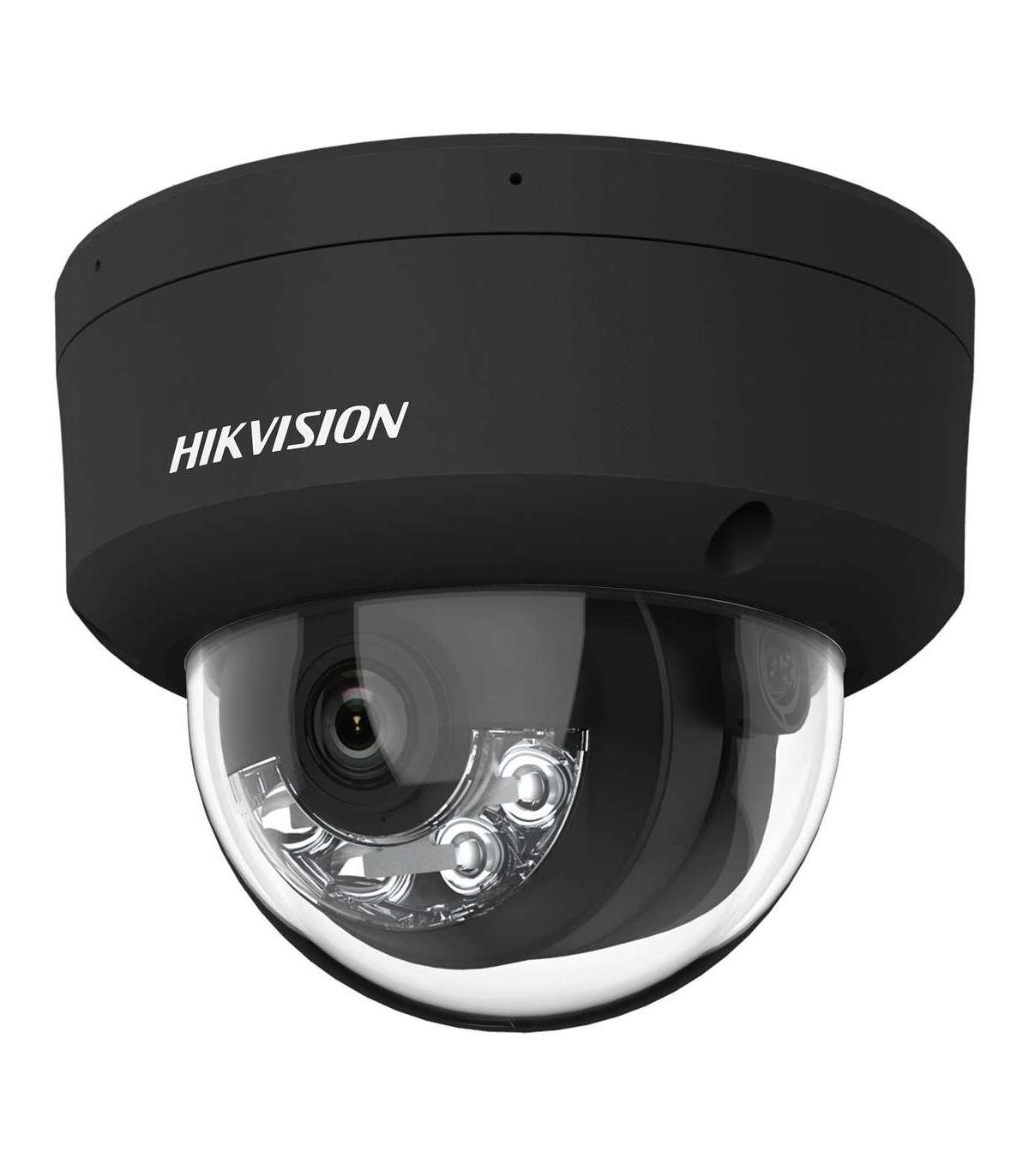

Hikvision DS-2CD2143G2-LIS2U(2.8MM)(BLACK) security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels

Характеристики

Weight

600 g

Height

97.6 mm

Package weight

830 g

Product colour

Black

Power source type

DC, PoE

Security algorithms

TLS

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Housing material

Aluminium

Power consumption (max)

7.2 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Maximum memory card size

512 GB

Protection features

Dust resistant
Vandal proof
Water resistant

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+

Audio output channels

1.0 channels

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.2 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

0.6 A

Video motion detection

Yes

Alarm input/output

Yes

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

112°

Lens viewing angle, horizontal

104°

Pan range

0 - 355°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

355°

Power consumption (Power over Ethernet (PoE))

8.5 W

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Bit rate

32 Kbps - 8 Mbps

Active tampering alarm

Yes

Web browser

Yes

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

25 m

Recognize distance

12 m

Detect distance

63 m

Identify distance

6 m

Minimum illumination

0 lx

IK code

IK10

Number of Privacy masking areas

8

Highlight Compensation (HLC)

Yes

Bit rate range

32 - 320 Kbit/s

Behavior analysis

Line crossing detection

Audio input channels

1.0 channels

Alarm input channels

1

Alarm output channels

1

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Pixel counter

Yes

Sample rates

8 - 48 kHz
