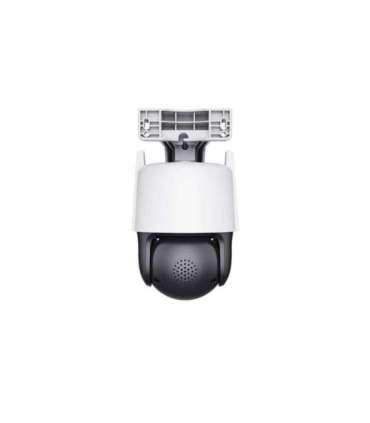

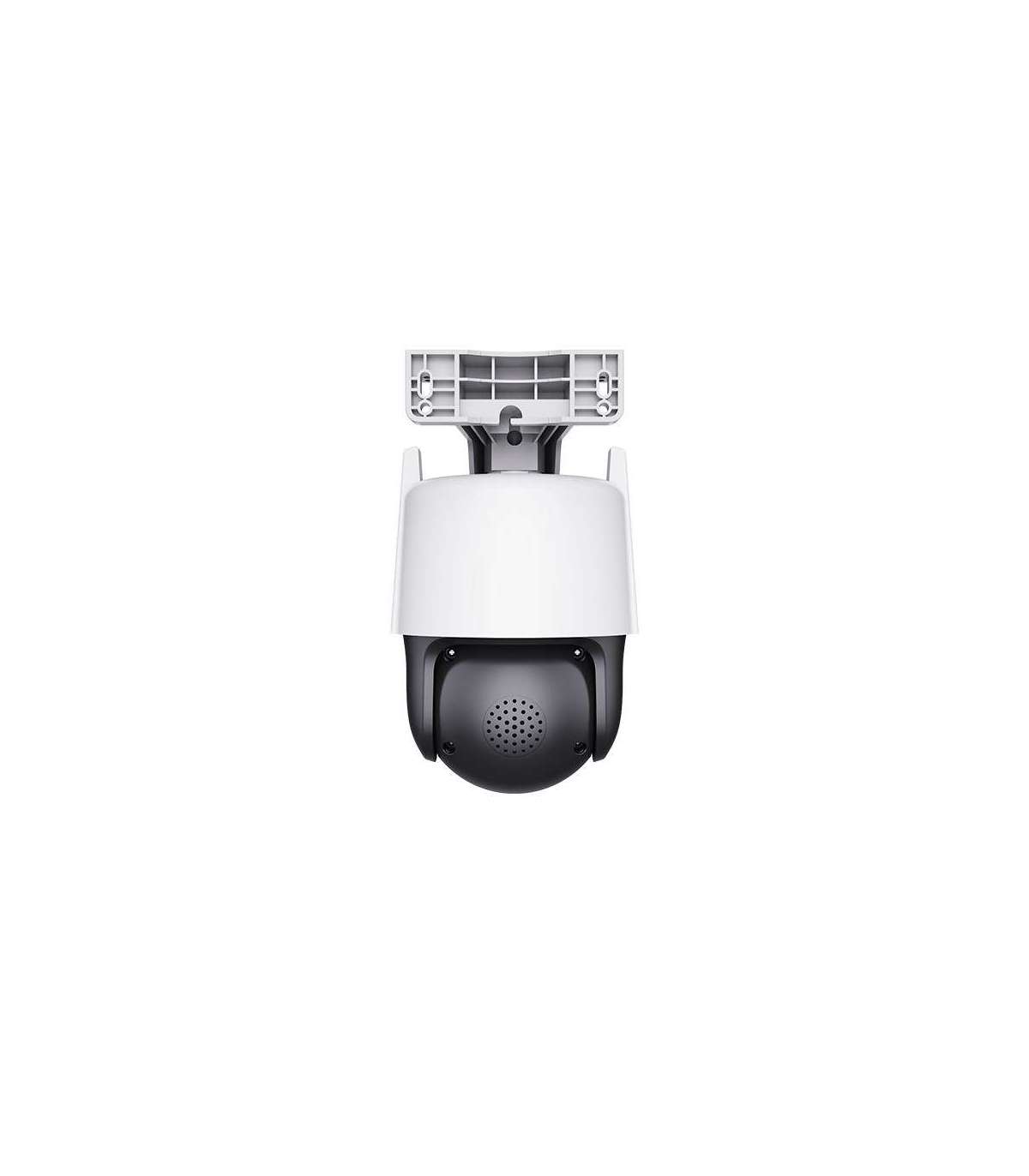

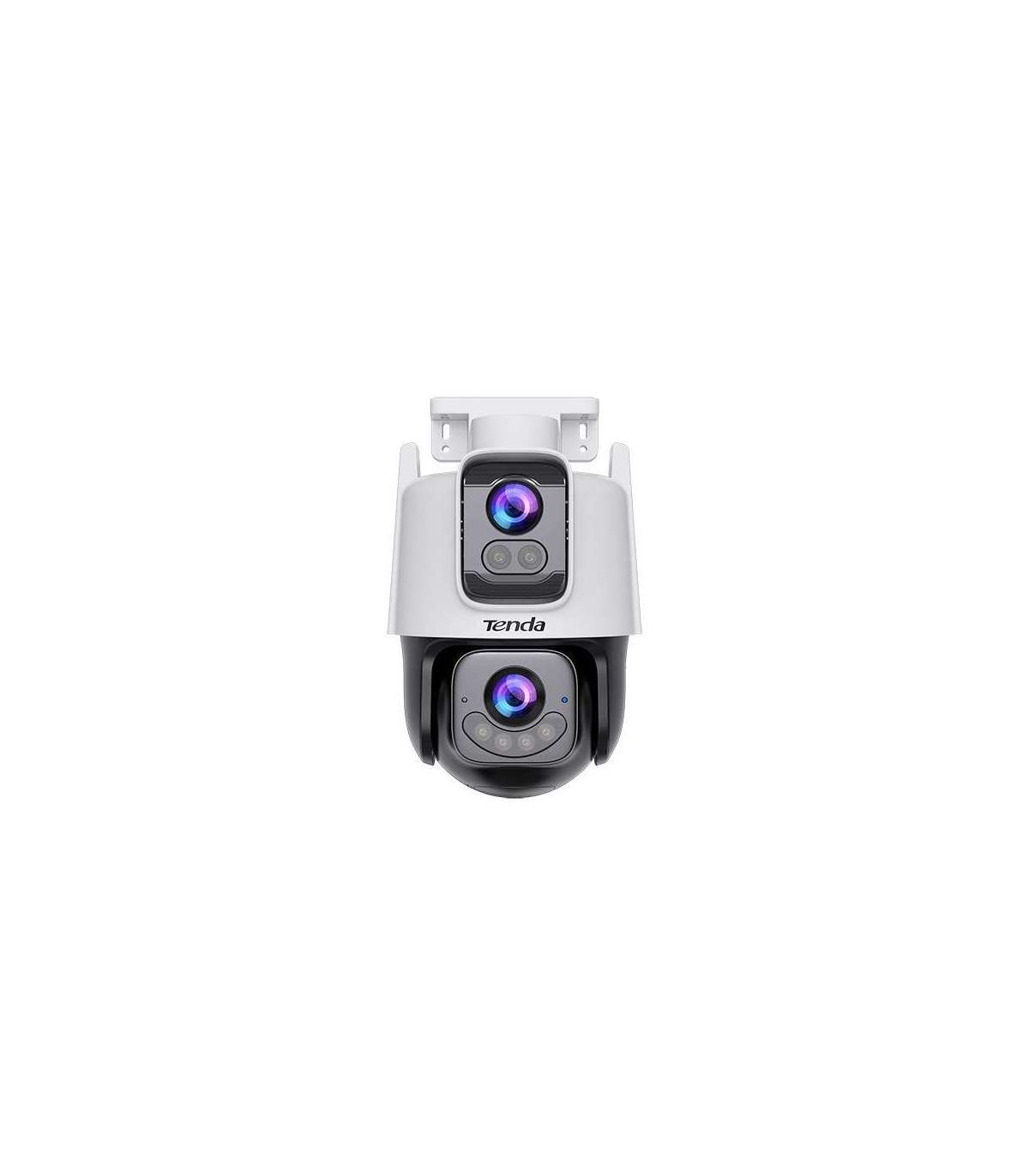

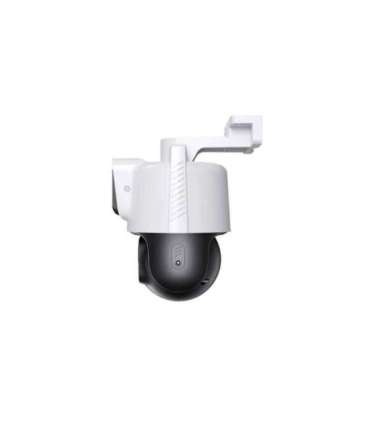

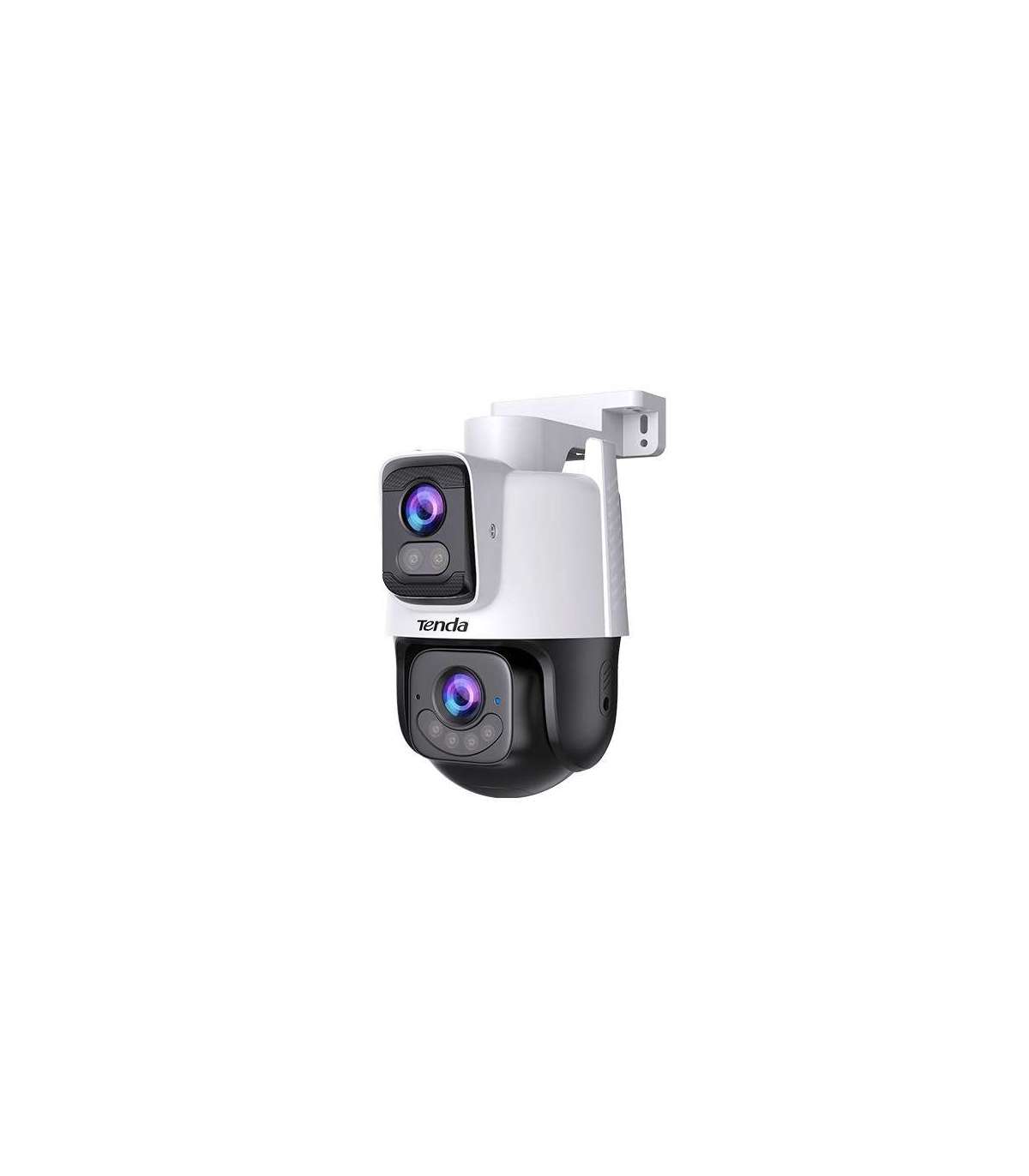

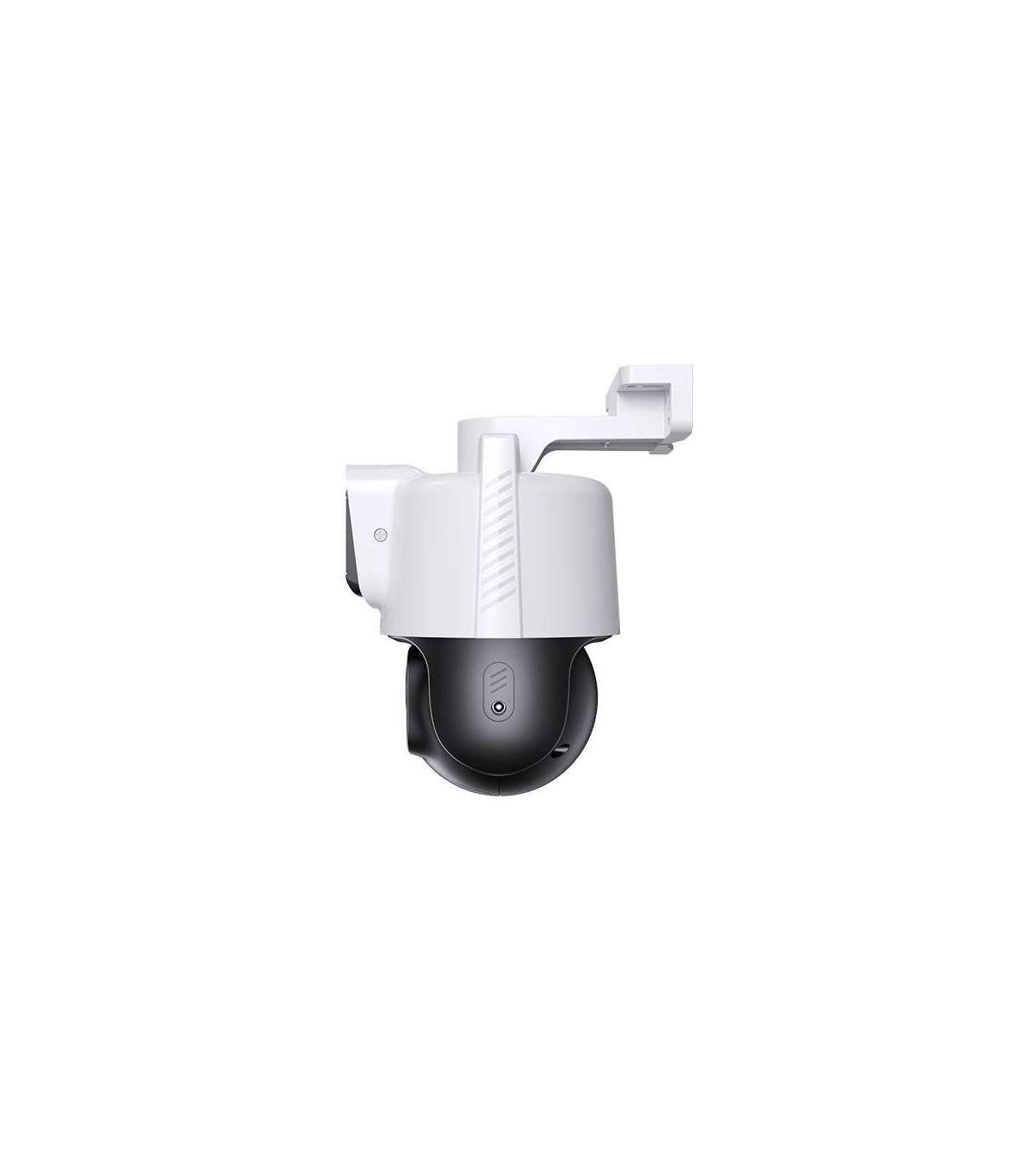

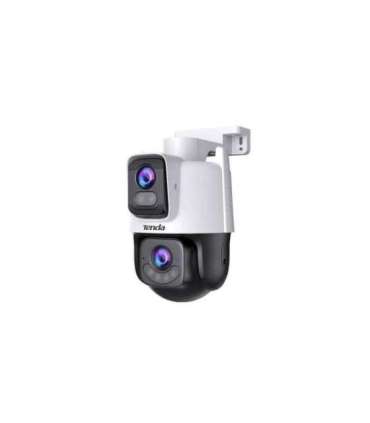

Tenda RH9-WCA security camera Turret IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole

Характеристики

Depth

62 mm

Weight

527 g

Height

203 mm

Width

122 mm

Package weight

802 g

Product colour

White

Power source type

DC

Security algorithms

64-bit WEP
128-bit WEP
WPA
WPA-PSK
WPA2
WPA2-PSK
WPA3-SAE

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

3 - 95%

Reset button

Yes

Ethernet LAN

Yes

Wi-Fi standards

802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Package width

240 mm

Package depth

145 mm

Package height

193 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RCM
RoHS
UKCA

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

Housing material

Plastic

Antenna type

Internal

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

International Protection (IP) code

IP65

Mounting kit

Yes

Ethernet interface type

Fast Ethernet

Compatible memory cards

MicroSD (TransFlash)

Form factor

Turret

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

DC output voltage

12

Maximum memory card size

512 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Maximum resolution

2304 x 1296 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Fixed focal length

4 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2304 x 1296

Placement supported

Outdoor

Mounting type

Ceiling/Wall/Pole

Mounting brackets included

Yes

Built-in HDD

No

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

2

Camera pan control

Yes

Camera tilt control

Yes

Pan range

0 - 355°

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Web browser

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Voice codecs

AAC
G.711a
G.711u

Number of Privacy masking areas

4

PTZ control

Yes

Highlight Compensation (HLC)

Yes

Fixed focal length (panoramic camera)

6 mm

Viewing angle, vertical (4mm lens)

44.7°

Viewing angle, diagonal (4mm lens)

97.4°

Viewing angle, horizontal (4mm lens)

82.3°

Viewing angle, horizontal (6mm lens)

51.8°

Viewing angle, diagonal (6mm lens)

60.4°

Viewing angle, vertical (6mm lens)

28.2°
