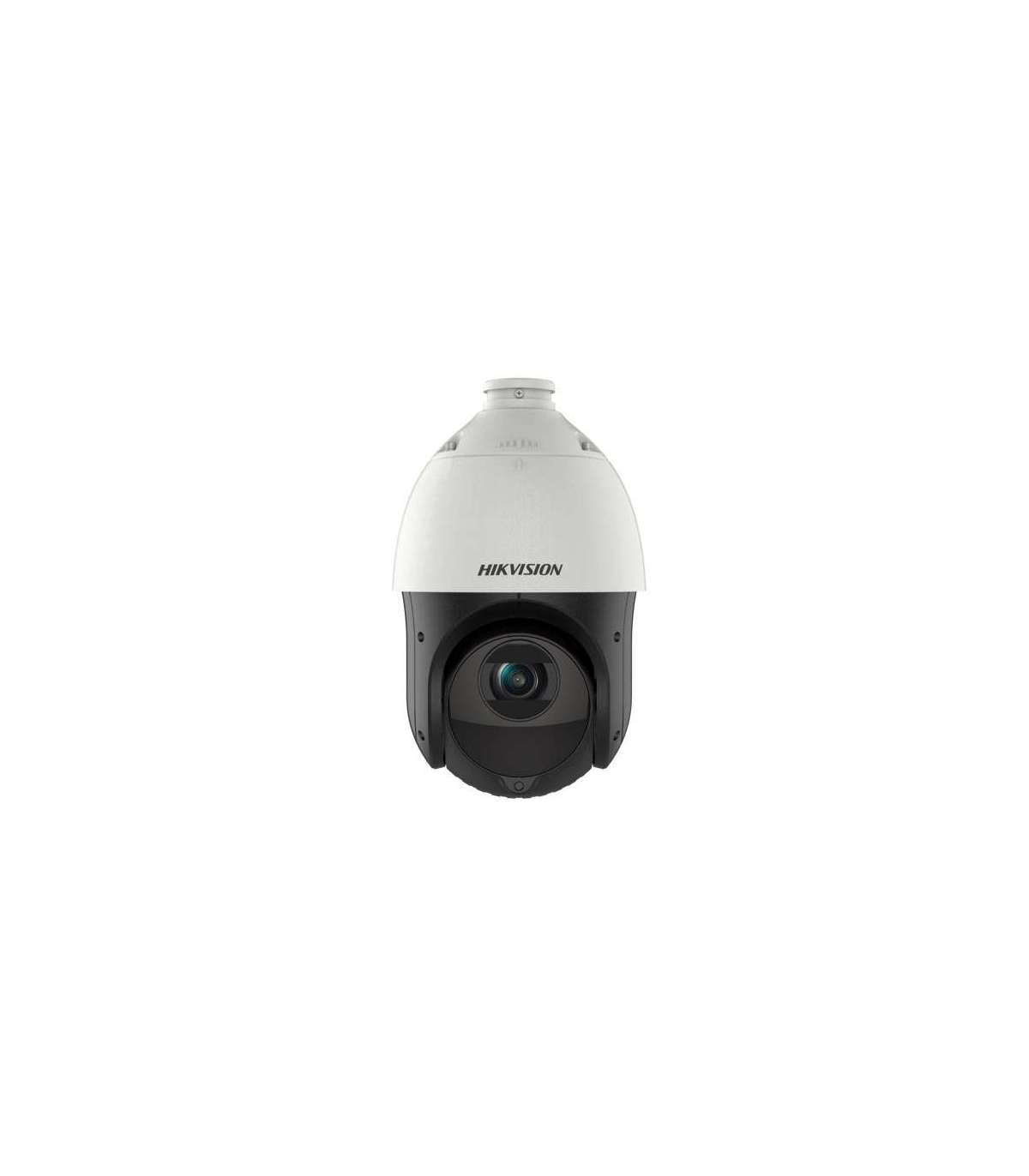

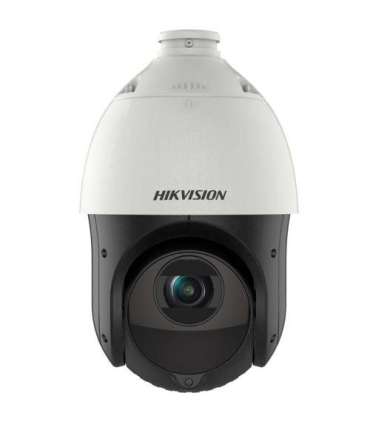

Hikvision DS-2DE4215IW-DE(T5) security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Характеристики

Weight

2 kg

Height

290 mm

Product colour

White

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

0 - 90%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3at

Manual

Yes

Browser supported

Chrome 57.0+, Firefox 52.0+, Safari 11+, IE1

Power consumption (max)

24 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Maximum memory card size

256 GB

Digital zoom

16x

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Auto focus

Yes

Optical zoom

15x

Sensor type

CMOS

Video compression formats

H.264
H.265

Audio output channels

1.0 channels

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

16.4 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Tilt angle range

-15 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)

Placement supported

Outdoor

Mounting type

Ceiling/wall

Signal-to-Noise Ratio (SNR)

52 dB

Motion sensor

Yes

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Night vision distance

100 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

34.4 - 2.2°

Lens viewing angle, diagonal

64.5 - 4.6°

Lens viewing angle, horizontal

57.6 - 4°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Focal length range

5 - 75 mm

Maximum aperture number

1.6

Zoom capability

Yes

Digital watermark

Yes

HTTPS encryption

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32kbps - 16384kbps

Active tampering alarm

Yes

Web browser

Yes

White balance

ATW
Auto
Fluorescent
Indoor
MWB
Outdoor
Sodium lamp

Observe distance

523.8 m

Recognize distance

264 m

Detect distance

1320 m

Identify distance

132 m

Minimum illumination

0 lx

Voice codecs

G.711
G.722.1
G.726
MP2L2
PCM

PTZ control

Yes

PTZ modes

4 Pattern
Auto scan

Pan speed

80 °/sec

Tilt speed

80 °/sec

Pan preset speed

80 °/sec

Highlight Compensation (HLC)

Yes

Bit rate range

16 - 192 Kbit/s

Client interoperability

iVMS-4200, HikCentral Pro, Hik-Connect

Sample rate

48 kHz

Audio input channels

1.0 channels

Alarm input channels

1

Alarm output channels

1

User access level

Administrator, Operator, User

Number of simultaneous live view channels

20 channels

Dynamic range

120 dB

Preset points

Yes

Focus

Motorized/Manual

Sample rates

8 - 48 kHz

Preset programs quantity

300
