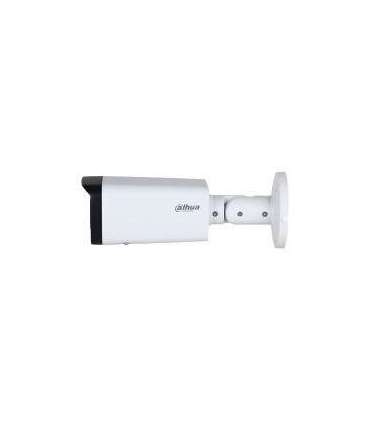

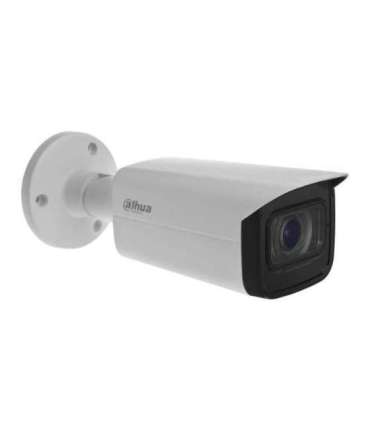

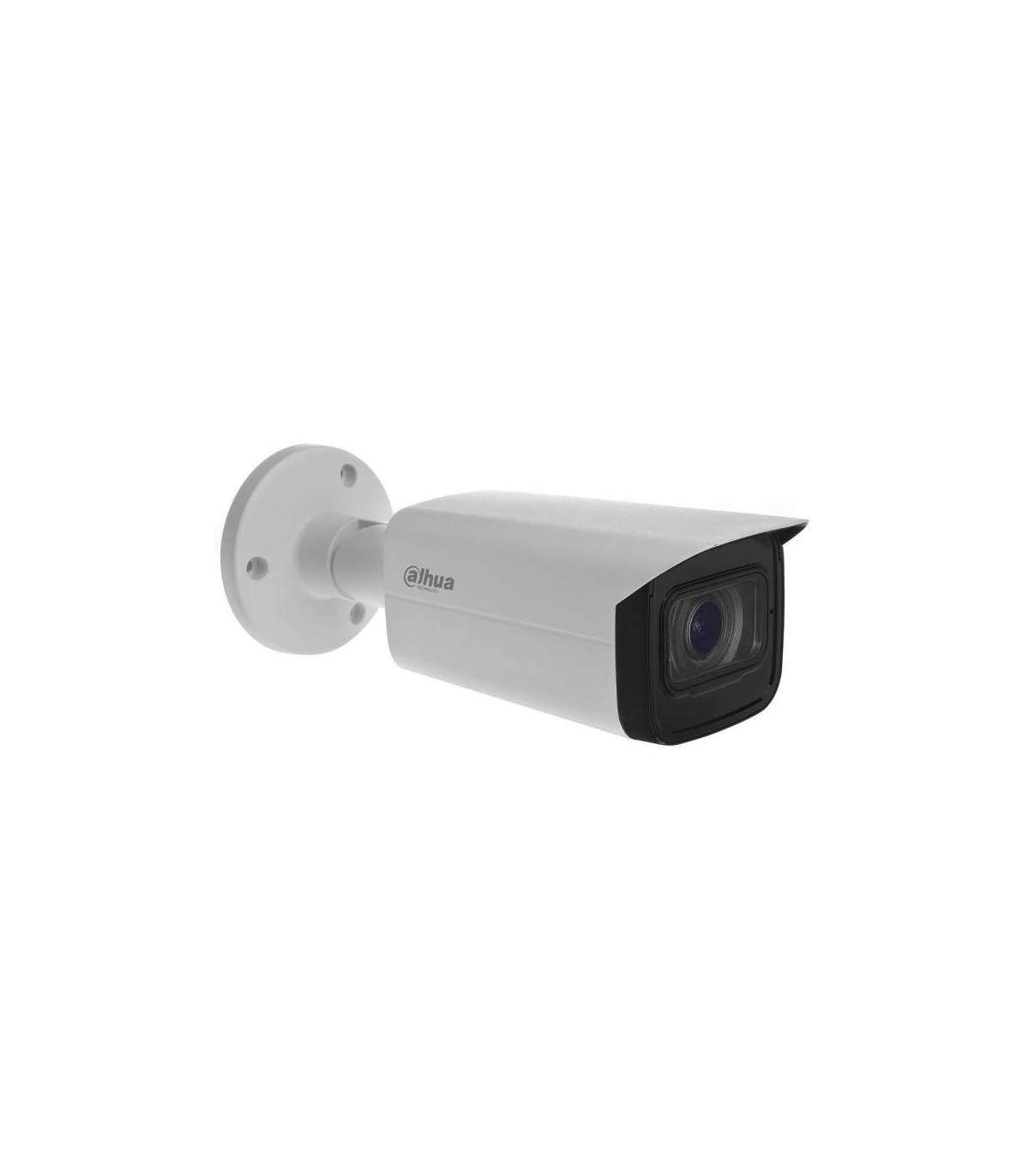

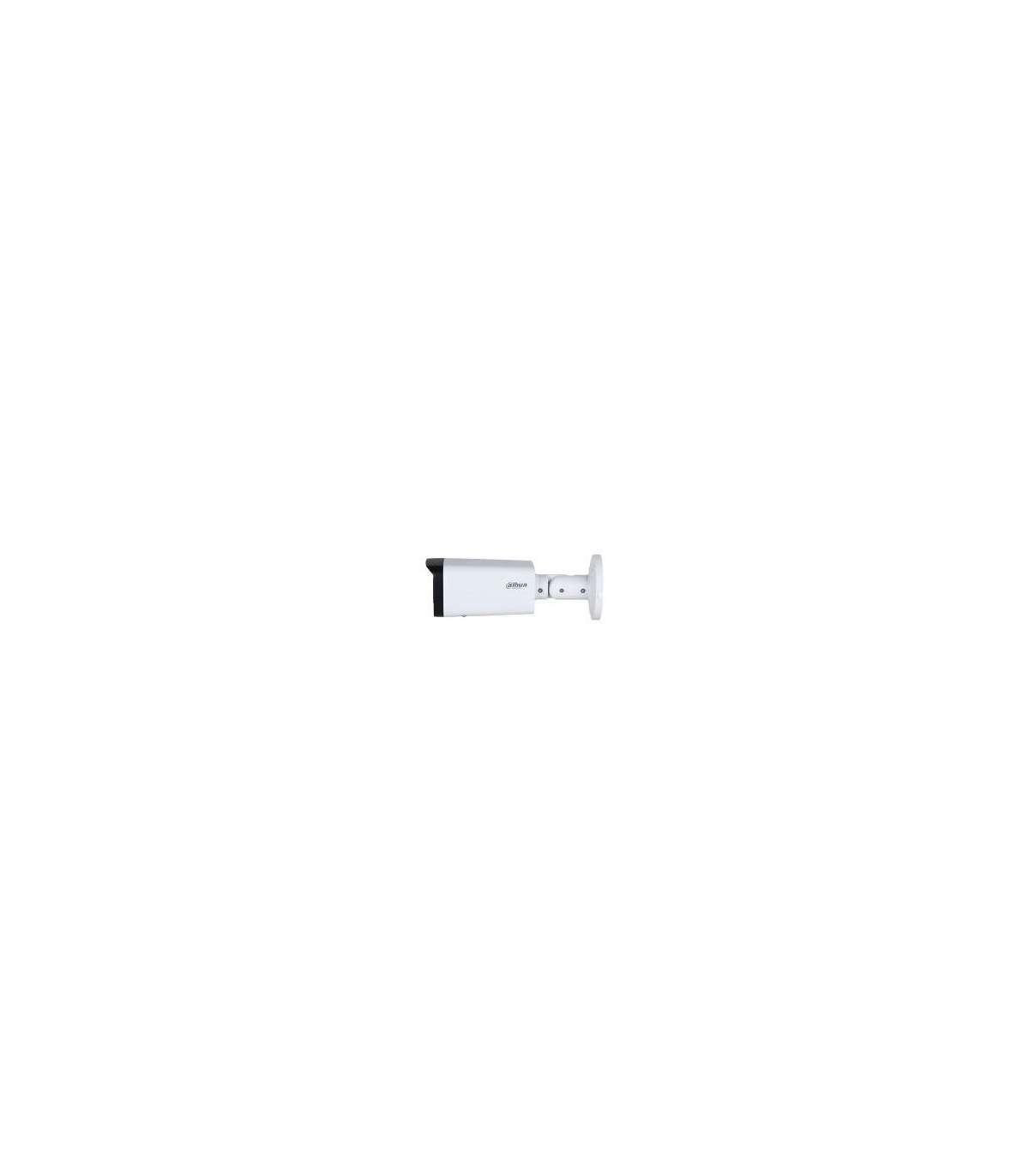

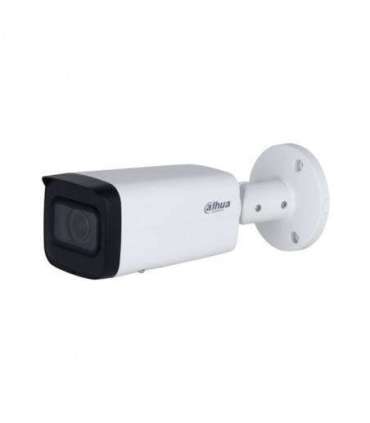

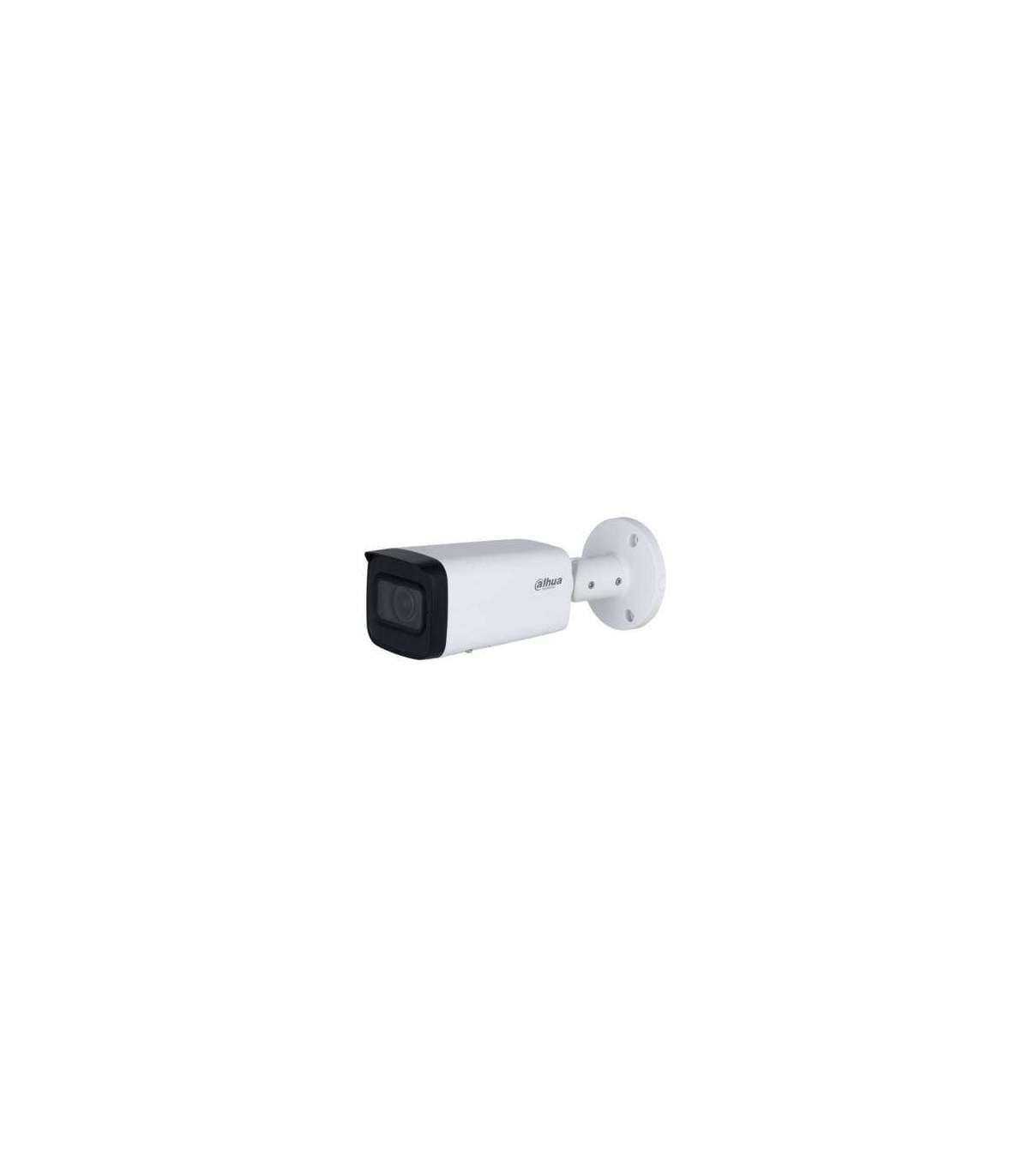

DAHUA IPC-HFW2541T-ZAS-27135-S2 5MPX DOME CAMERA

Характеристики

Depth

90.7 mm

Weight

770 g

Height

90.7 mm

Width

238.5 mm

Product colour

White

Power source type

DC

Security algorithms

HTTPS

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

MAC address filtering

Yes

Networking standards

IEEE 802.1x

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Power over Ethernet (PoE)

Yes

Power consumption (typical)

2.4 W

Power consumption (max)

7 W

Connectivity technology

Wired

International Protection (IP) code

IP67

Mobile operating systems supported

Android
iOS

RAM capacity

0.256 GB

Compatible memory cards

MicroSD (TransFlash)

Built-in microphone

Yes

DC output voltage

12

Maximum memory card size

256 GB

Maximum frame rate

30 fps

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

2960 x 1668 pixels

Audio output

1 RCA

Noise reduction

Yes

Type

IP security camera

Field of view (FOV) angle

106°

Number of cameras

1

Tilt angle range

0 - 75°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080
2048 x 1536 (QXGA)
2304 x 1296
2560 x 1440
2688 x 1520
2880 x 1620
2960 x 1668

Audio input

1 RCA

Placement supported

Indoor & outdoor

Video mirroring

Yes

Video motion detection

Yes

Number of sensors

1

Total megapixels

5 MP

Night vision distance

60 m

LED type

IR

Night vision

Yes

Lens viewing angle, vertical

58°

Lens viewing angle, horizontal

113°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.5

Angle of rotation

360°

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 s–1/100,000

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D NR

Gain control type

Auto/Manual

Privacy masking

Yes

Web browser

Yes

Management software

Smart PSS; DSS; DMSS

Audio codecs

G.711a, G.711Mu, G.726, PCM

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor
Street lamp

Camera shutter type

Electronic

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

4

Observe distance

25.6 m

Recognize distance

12.8 m

Detect distance

64 m

Identify distance

6.4 m

Closest focusing distance

0.8 m

Minimum illumination

0.007 lx

Adjustment shutter speed

Auto/Manual

Bitrate

3Kbps ~ 8192Kbps (H.264) 3Kbps ~ 8192Kbps (H.265)

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Client interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

Signal-to-Noise Ratio (SNR) (panoramic camera)

56 dB
