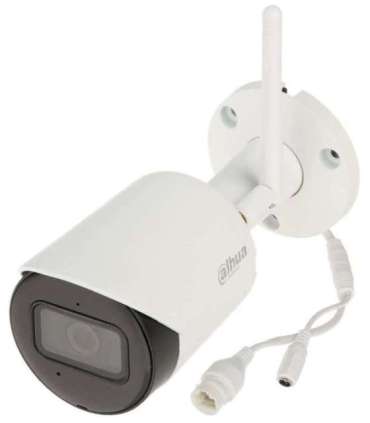

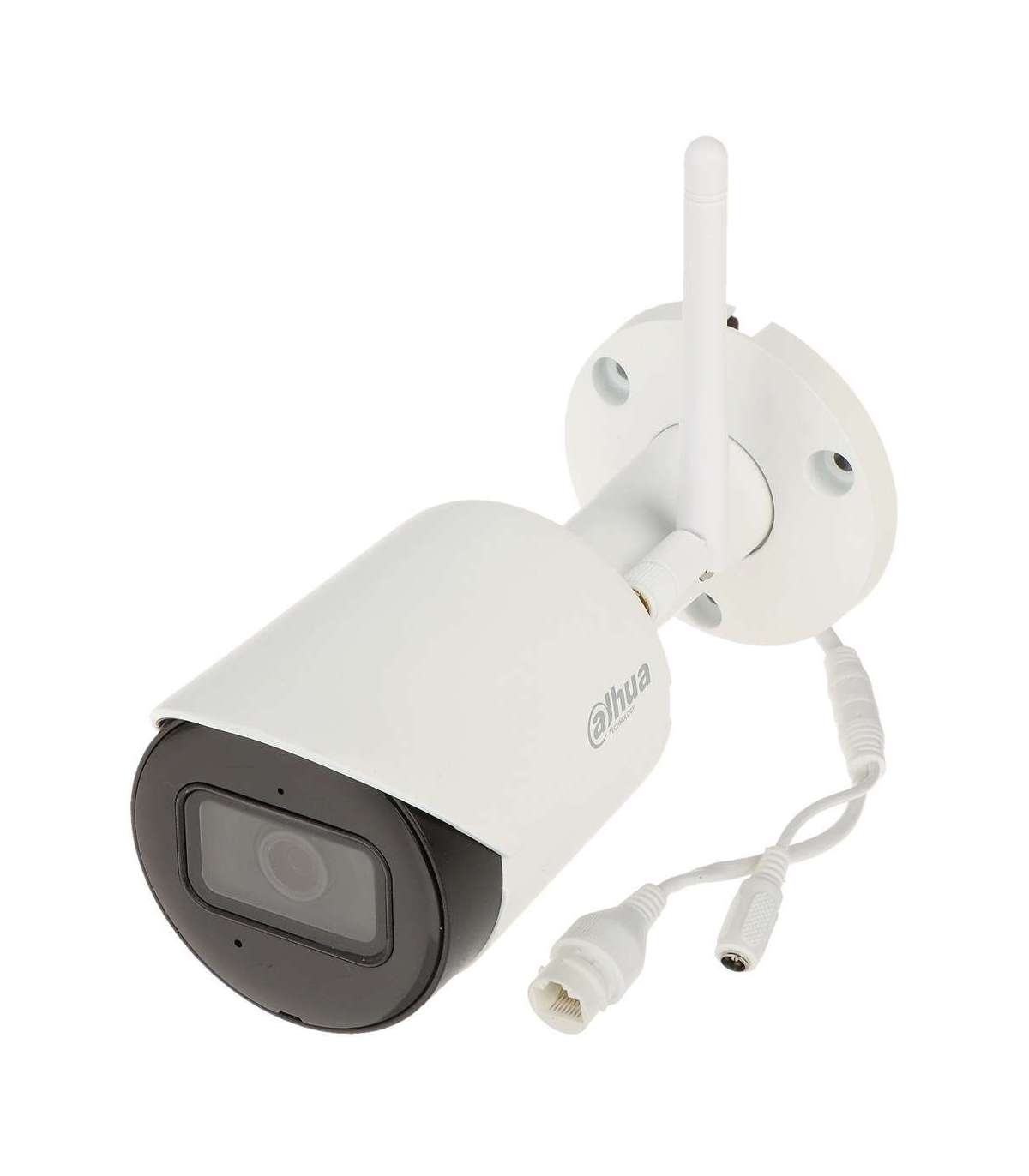

IP Camera DAHUA IPC-HFW1230DS-SAW-0280B White

Характеристики

Depth

166.2 mm

Weight

477.9 g

Height

128.6 mm

Width

70 mm

Product colour

White

Power source type

DC

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Wi-Fi band

Single-band (2.4 GHz)

Web-based management

Yes

Networking standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal, Plastic

Power consumption (typical)

2 W

Power consumption (max)

4.1 W

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Mobile operating systems supported

Android
iOS

RAM capacity

64 MB

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Tube/dome

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Built-in loudspeaker

No

Number of memory card slots

1

4G LTE

No

Maximum memory card size

256 GB

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

HD CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Placement supported

Outdoor

Mounting type

Wall/ceiling

Signal-to-Noise Ratio (SNR)

56 dB

Alarm input/output

No

Number of sensors

1

Frame rate

25 / 30 fps

Total megapixels

2 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

53°

Lens viewing angle, horizontal

100°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

2

Wide Dynamic Range (WDR)

DWDR

Camera shutter speed

1/3 - 1/100000 s

Web browser

Yes

ROM capacity

16 MB

Number of illumination LEDs

1

Closest focusing distance

0.6 m

Minimum illumination

0.025 lx

Two-way talk

N

Viewing angle, diagonal

120°

Motion detection

Yes

Horizontal rotation angle

0 - 360°

People detection

Yes

Vertical rotation angle

0 - 90°

Lens type

Fixed focal length lens

Adjustment shutter speed

Auto/Manual

Aperture type

Permanent

Maximum range

80 m
