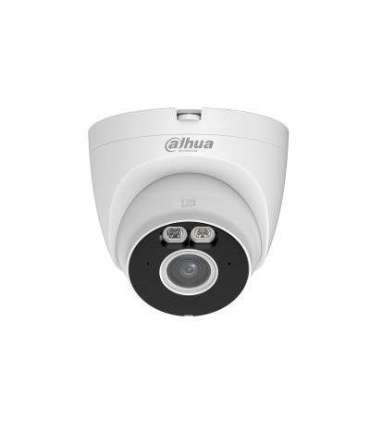

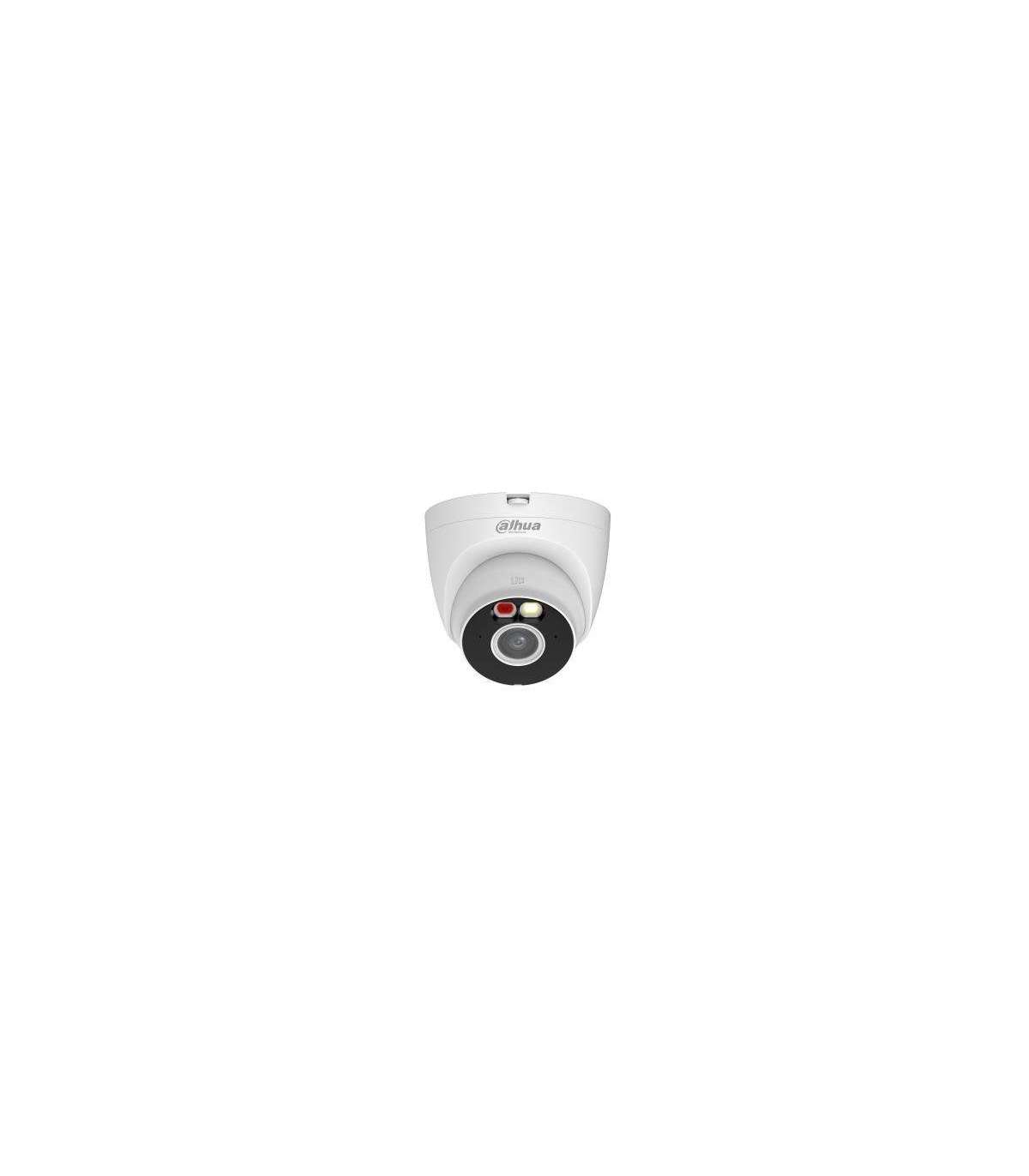

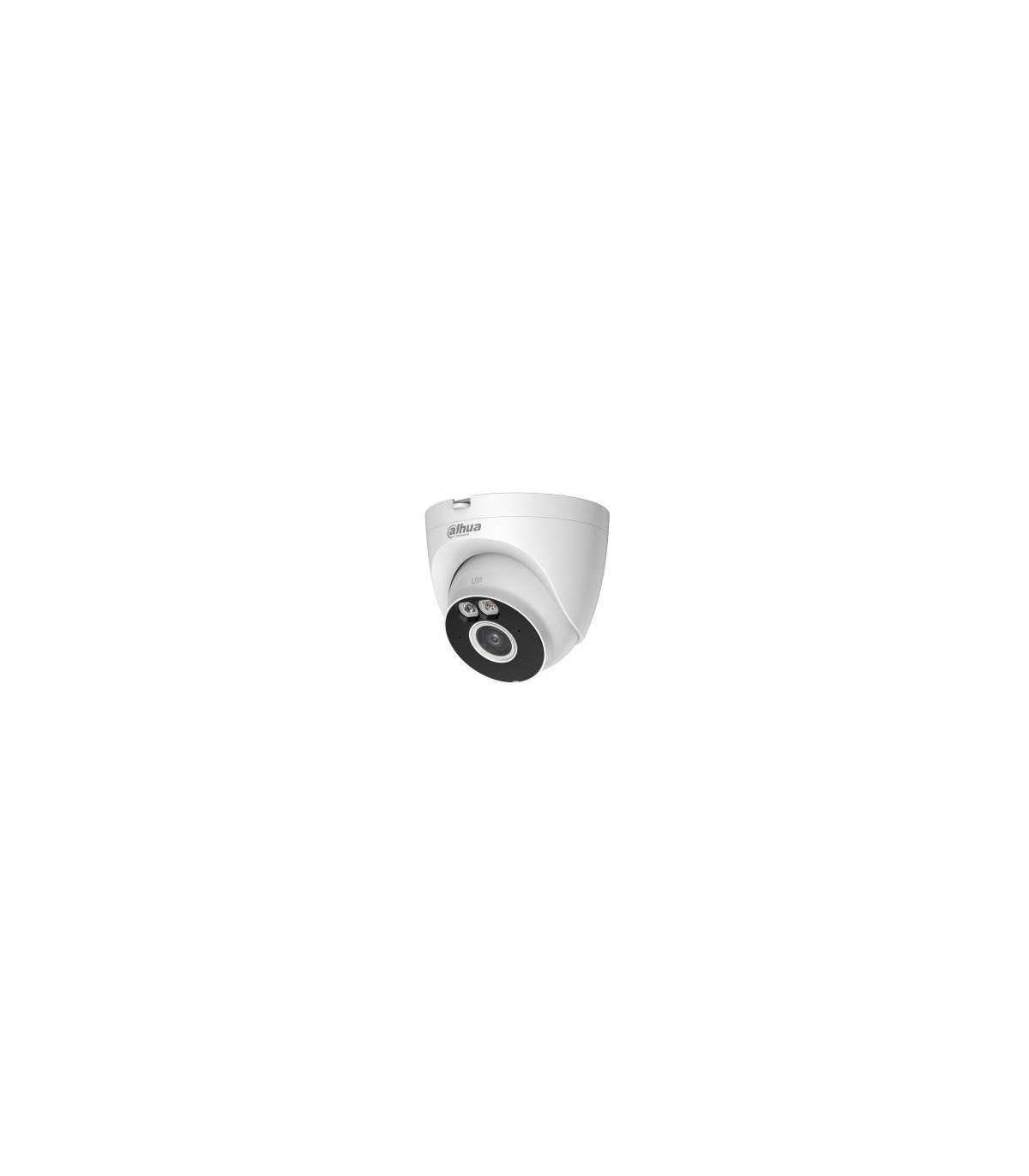

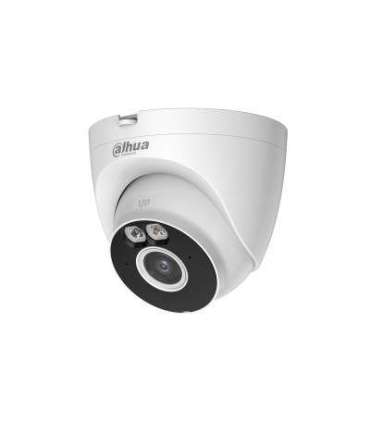

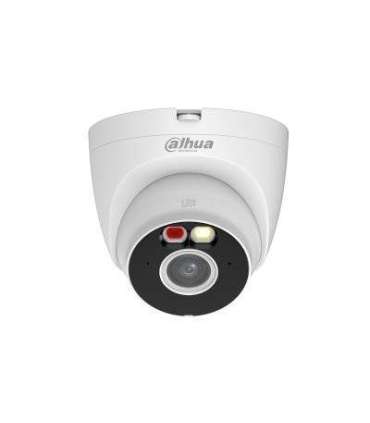

DAHUA T4A-PV IP CAMERA

Характеристики

Weight

353 g

Height

102.2 mm

Product colour

White

Power source type

DC

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Networking standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Warnings

Avoid direct contact with water to prevent electrical damage.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU

Housing material

Metal, Plastic

Dedicated application

DMSS (Android, iOS)

Power consumption (typical)

2.2 W

Power consumption (max)

7.1 W

Wi-Fi

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Mobile operating systems supported

Android
iOS

Compatible memory cards

MicroSD (TransFlash)

Form factor

Dome

Built-in microphone

Yes

DC output voltage

12

Built-in loudspeaker

Yes

Audio formats supported

G.711Mu
G.711a
G.726
PCM

Maximum memory card size

256 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264B
H.264H
H.265
H.265+

Maximum resolution

2560 x 1440 pixels

Type

IP security camera

Diameter

109,9 mm

Number of cameras

1

Video streaming

Yes

Supported graphics resolutions

640 × 480
1280 x 720
1280 x 960
1920 x 1080
2304 x 1296
2560 x 1440

Placement supported

External / Internal

Mounting type

Ceiling

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Lens viewing angle, vertical

41°

Lens viewing angle, horizontal

78°

Focal length range

2.8 - 3.6 mm

Maximum aperture number

1.6

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

H.264: 32 - 4096Kbps; H.265: 12 - 4096Kbps

Number of illumination LEDs

2

Viewing angle, diagonal

94°

Adjustment shutter speed

Auto/Manual

Human detection

Yes

Audible alarm

Yes

Viewing angle, horizontal (2.8mm lens)

98°

Viewing angle, vertical (2.8mm lens)

55°

Viewing angle, diagonal (2.8mm lens)

115°

Light alarm

Yes
