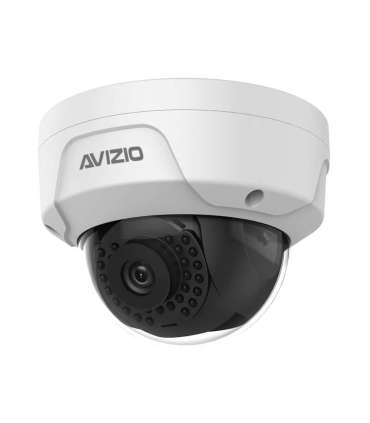

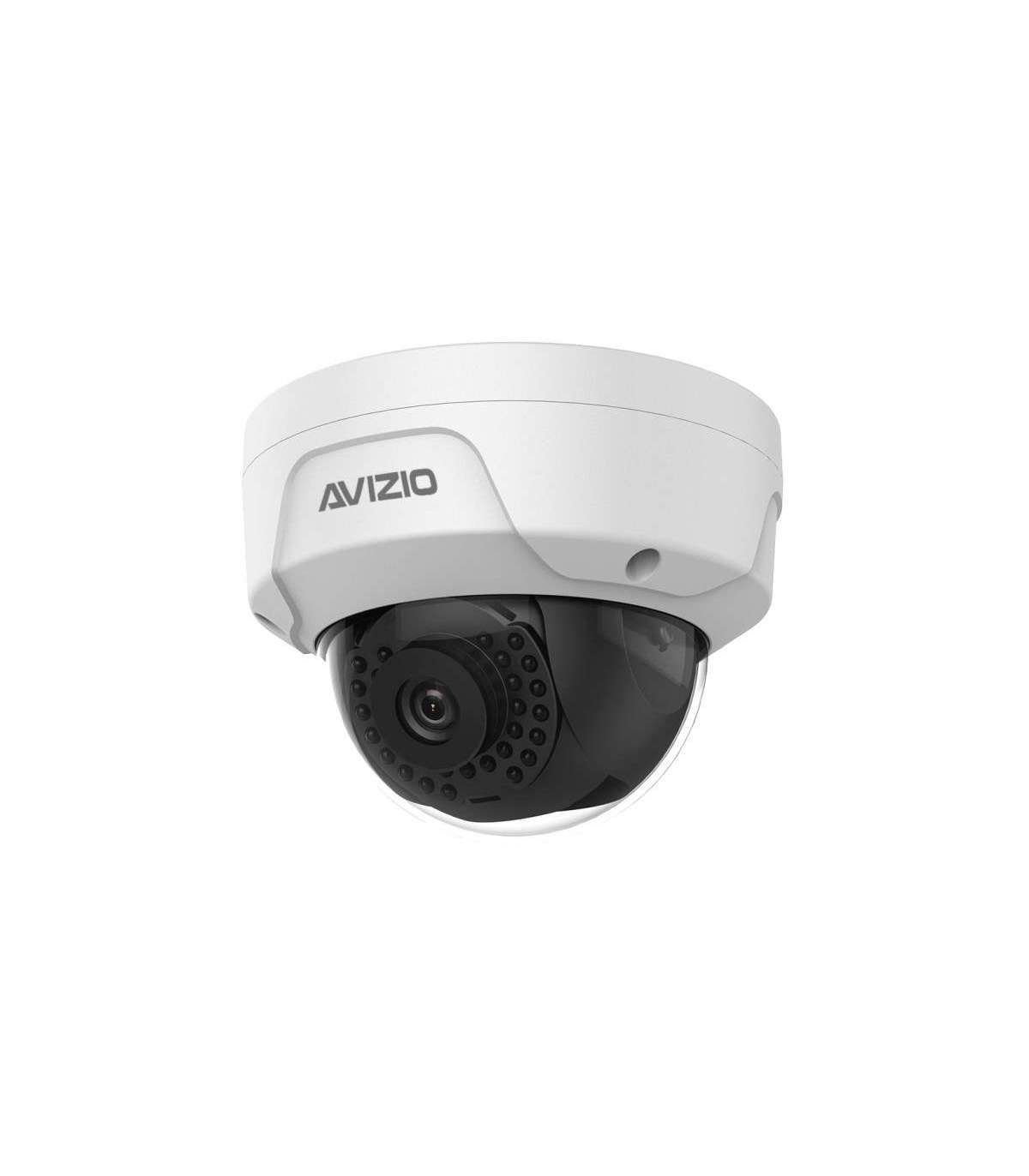

AVIZIO AV-IPMK20S security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Характеристики

Weight

410 g

Height

82.4 mm

Product colour

White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.3af

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Housing material

Metal
Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Protection features

Vandal proof

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

11.1 cm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 70°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.4 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Weatherproof

Yes

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, vertical

62°

Lens viewing angle, diagonal

135°

Lens viewing angle, horizontal

114°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.2

Angle of rotation

355°

Power consumption (Power over Ethernet (PoE))

7 W

Digital watermark

Yes

Anti-flicker

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Digital Wide Dynamic Range (DWDR)

Yes

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Active tampering alarm

Yes

Web browser

Yes

Streaming method

Multicast

Minimum illumination

0.01 lx

IK code

IK10

Remote viewing

Yes
