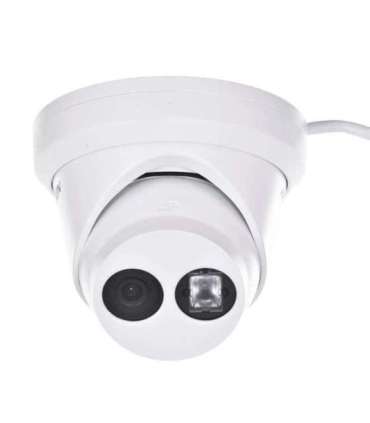

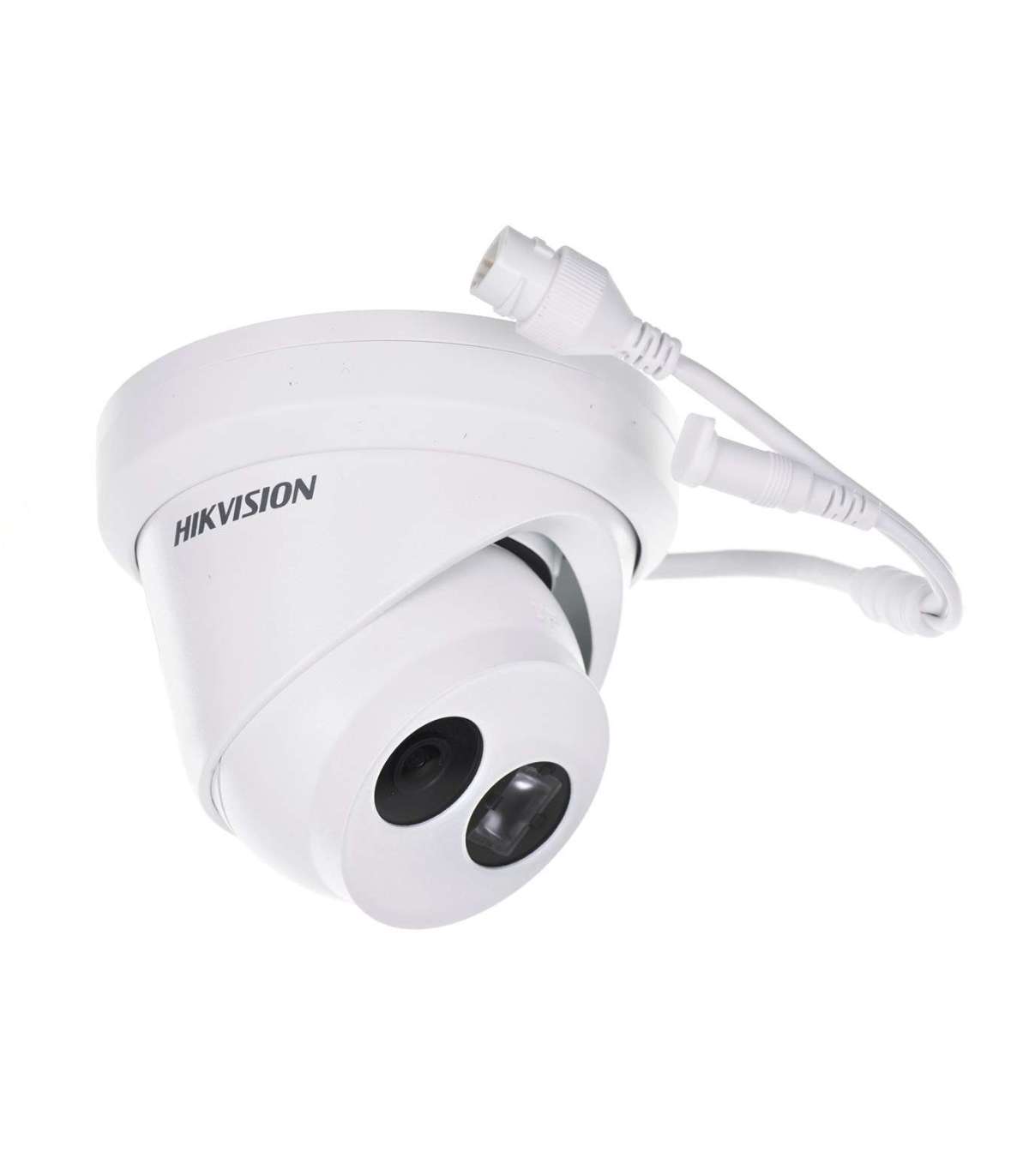

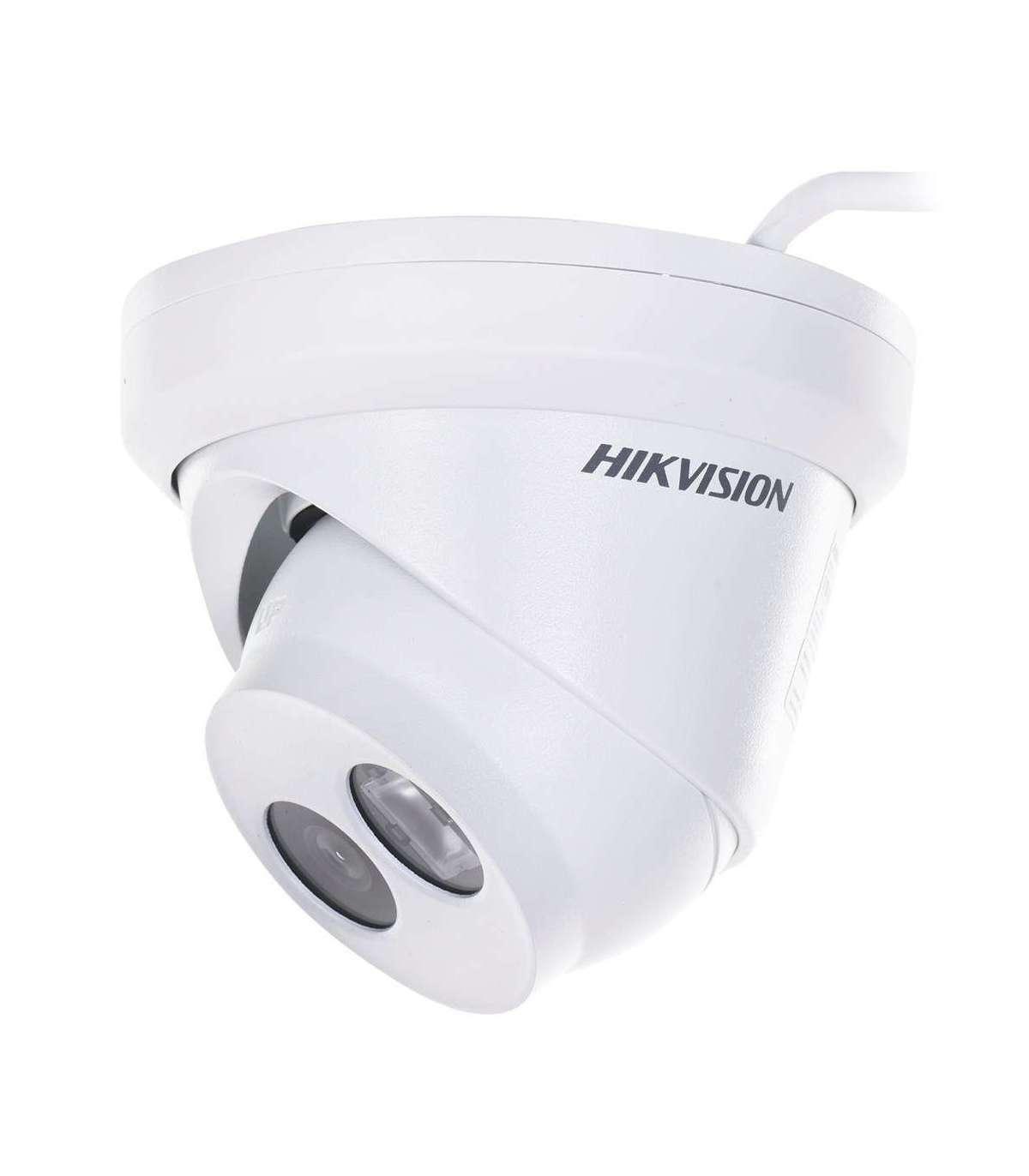

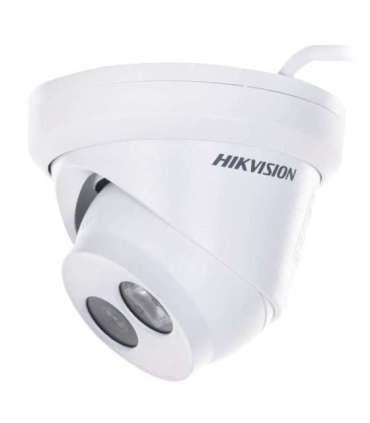

Hikvision Digital Technology DS-2CD2383G0-I IP security camera Indoor & outdoor Dome 3840 x 2160 pixels Ceiling

Характеристики

Weight

620 g

Product colour

White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

DC-in jack

Yes

Housing material

Metal

Power consumption (max)

6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Maximum memory card size

128 GB

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Length

9.59 cm

Diameter

12.7 cm

Number of cameras

1

Video streaming

Yes

Viewing angle, vertical

53°

Viewing angle, horizontal

102°

Tilt angle range

0 - 75°

Supported graphics resolutions

320 x 240
352 x 240
352 x 288
640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440
3072 x 1728
3840 x 2160

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Full HD

Yes

DC output current

0.5 A

Video motion detection

Yes

Built-in HDD

No

Frame rate

30 fps

Total megapixels

8 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Weatherproof

Yes

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

7.5 W

Digital watermark

Yes

Heartbeat

Yes

Anti-flicker

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Bit rate

256 Kbps - 16 Mbps

Active tampering alarm

Yes

Web browser

Yes

Minimum illumination

0.01 lx

Viewing angle, diagonal

124°

Highlight Compensation (HLC)

Yes

Lens diameter

2.8 mm

Fixed focus

Yes

Behavior analysis

Intrusion detection, Line crossing detection

3D NR (Noise Reduction)

Yes

Number of simultaneous users

6 user(s)

Analog signal format system

NTSC
PAL
