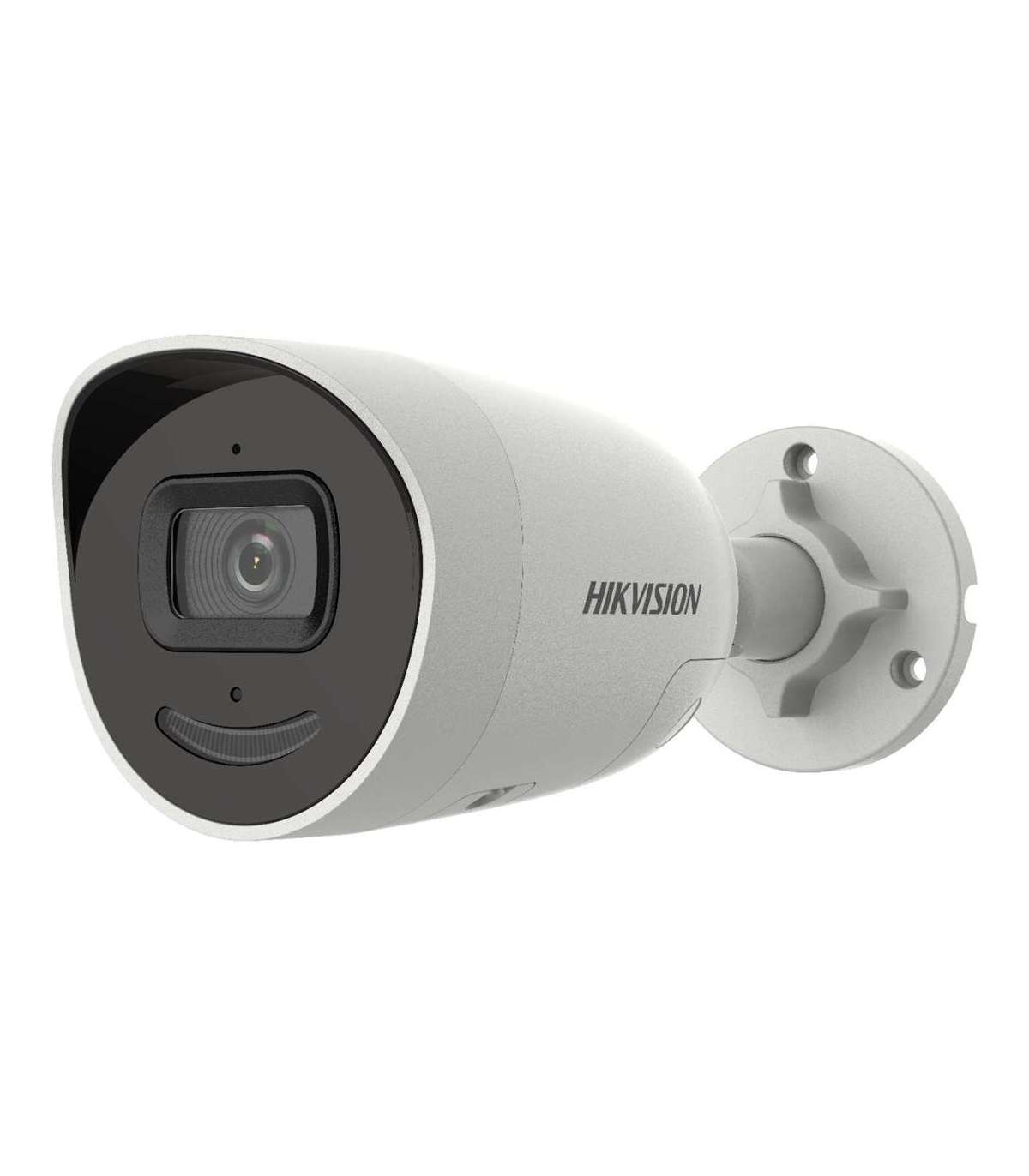

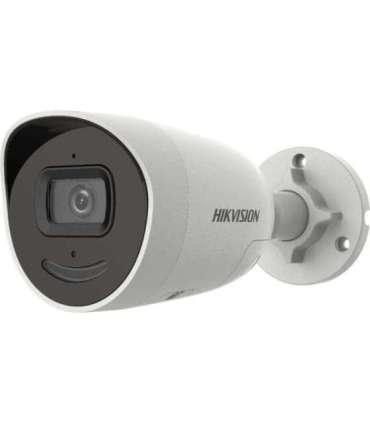

KAMERA IP HIKVISION DS-2CD2086G2-IU/SL(2.8mm)(C)

Характеристики

Depth

73.3 mm

Weight

595 g

Width

72.9 mm

Package weight

810 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Package width

234 mm

Package depth

120 mm

Package height

117 mm

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Power consumption (max)

6.5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

MP3

Maximum memory card size

256 GB

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800
3840 x 2160

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

8 MP

Infra-red wavelength

850 nm

Night vision distance

40 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Scene change

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

134°

Lens viewing angle, horizontal

110°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

8 W

Heartbeat

Yes

Anti-flicker

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Voice codecs

AAC
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM

Highlight Compensation (HLC)

Yes

Identify distance (wide)

9 m

Recognize distance (wide)

18 m

Sample rate

48 kHz

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
