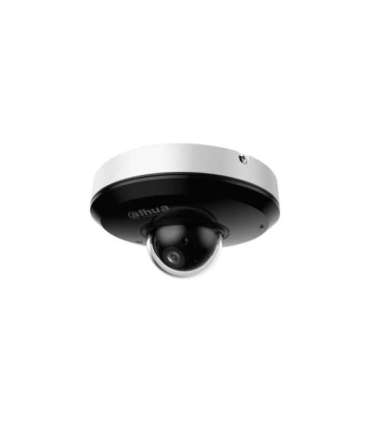

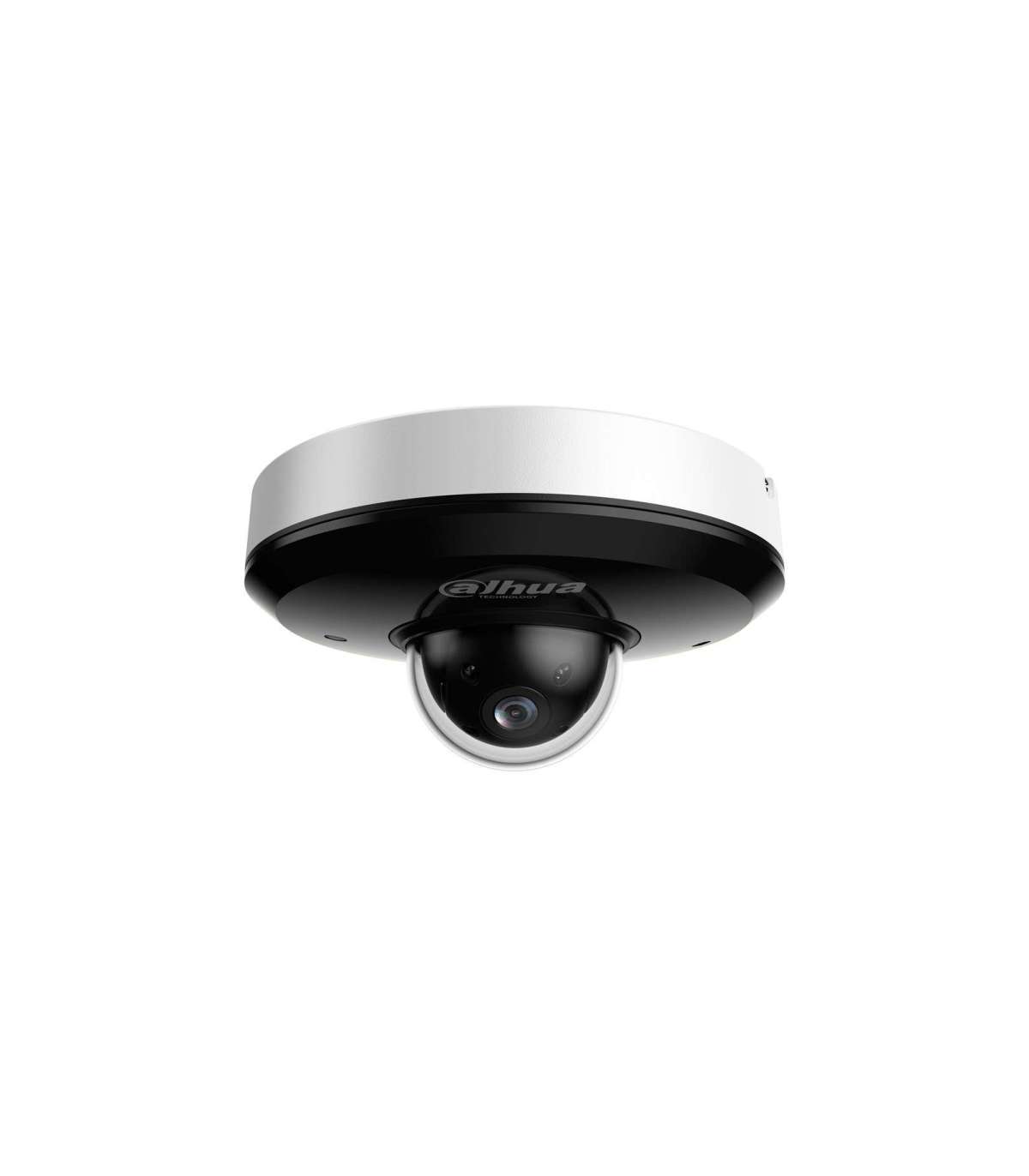

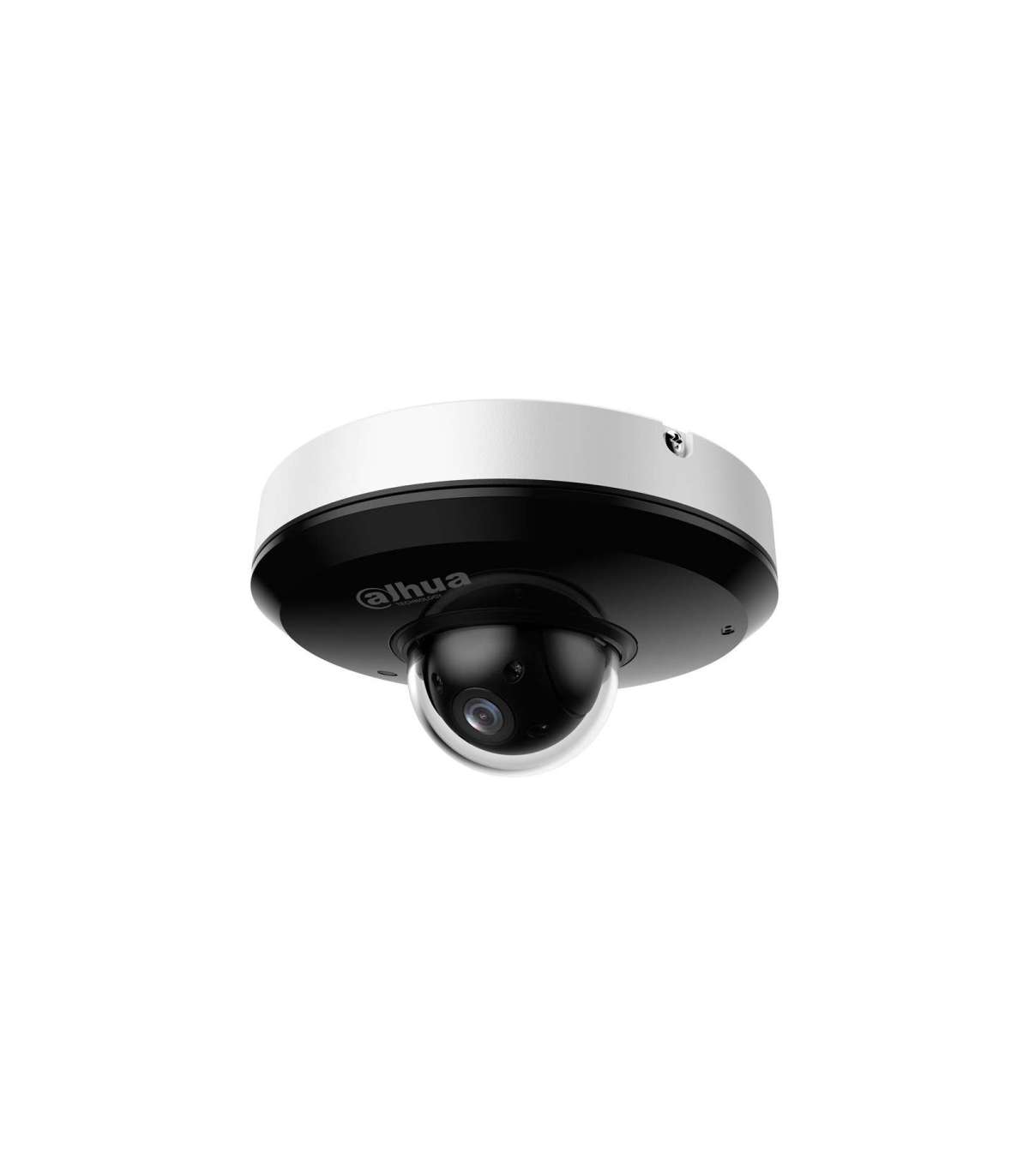

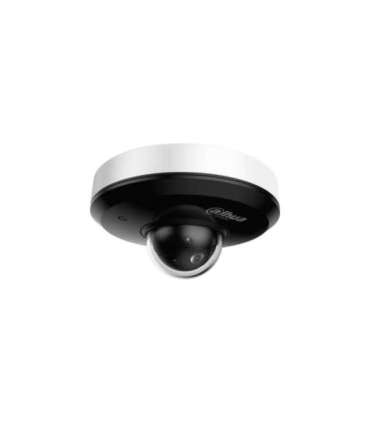

Dahua Technology SD1A404DB-GNY Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Характеристики

Weight

500 g

Height

65.7 mm

Package weight

700 g

Product colour

Black
White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

LED indicators

Yes

Web-based management

Yes

Certification

CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Power consumption (typical)

4 W

Power consumption (max)

13 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

RAM capacity

512 MB

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Dome

Bluetooth

No

Maximum memory card size

512 GB

Digital zoom

16x

Image stabilizer

Yes

Optical sensor size

25.4 / 28 mm (1 / 28")

Auto focus

Yes

Optical zoom

4x

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Audio output channels

1.0 channels

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.8 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

5 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2304 x 1296
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

20 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Abandoned object
Crossing line
Face detection
Missing object
Tripwire

Pan range

0 - 355°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Focal length range

2.8 - 12 mm

Maximum aperture number

2.7

Minimum aperture number

1.8

Wide Dynamic Range (WDR)

Yes

Camera shutter speed

1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

2D noise reduction, 3D noise reduction

Gain control type

Auto/Manual

Management software

DMSS; DSS Pro

ROM capacity

256 MB

White balance

Indoor
Manual
Natural
Outdoor
Sodium lamp
Street lamp

Camera shutter type

Electronic

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Closest focusing distance

0.2 m

Minimum illumination

0.0005 lx

IK code

IK08

Audio detection

Yes

Observe distance (wide)

94.8 m

PTZ control

Yes

PTZ modes

8 Tour
Preset point

Tilt preset speed

0.1 °/sec

Pan preset speed

0.1 °/sec

Highlight Compensation (HLC)

Yes

Identify distance (wide)

24 m

Recognize distance (wide)

48 m

Detect distance (wide)

240 m

Audio input channels

1.0 channels

Alarm input channels

1

Alarm output channels

1

Preset points

Yes

Focus

Motorized/Manual

Signal-to-Noise Ratio (SNR) (panoramic camera)

55 dB

PTZ protocols

DH-SD

Tilt manual speed

0.1 - 30 °/sec

Pan manual speed

0.1 - 70 °/sec

Infra-red LEDs life

3 h
