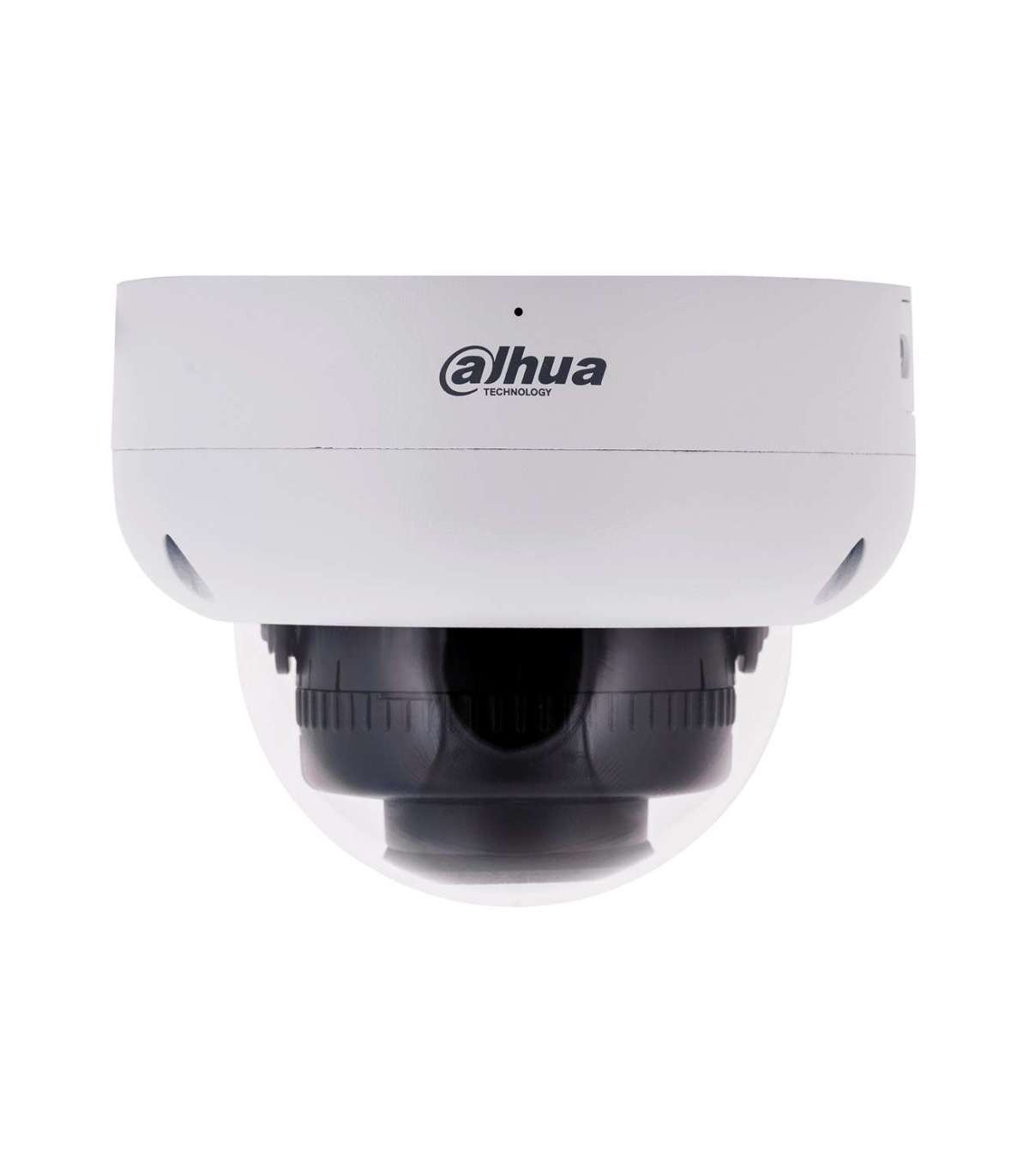

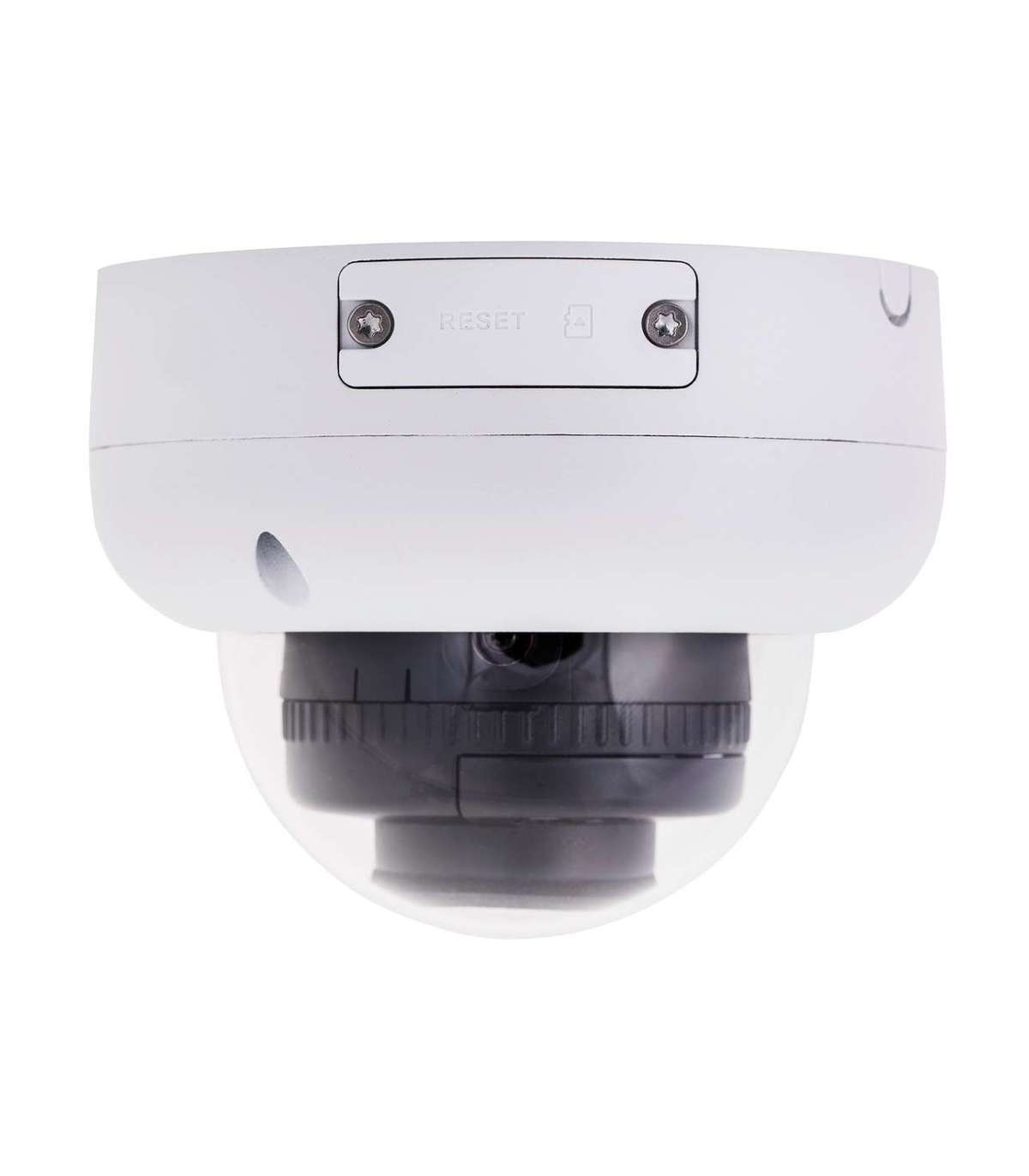

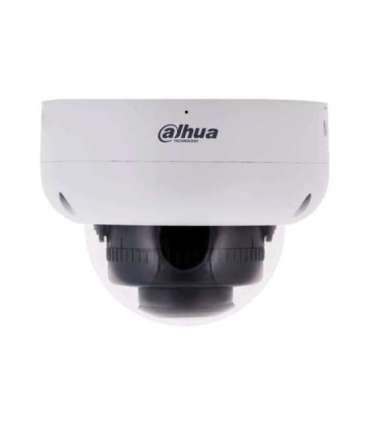

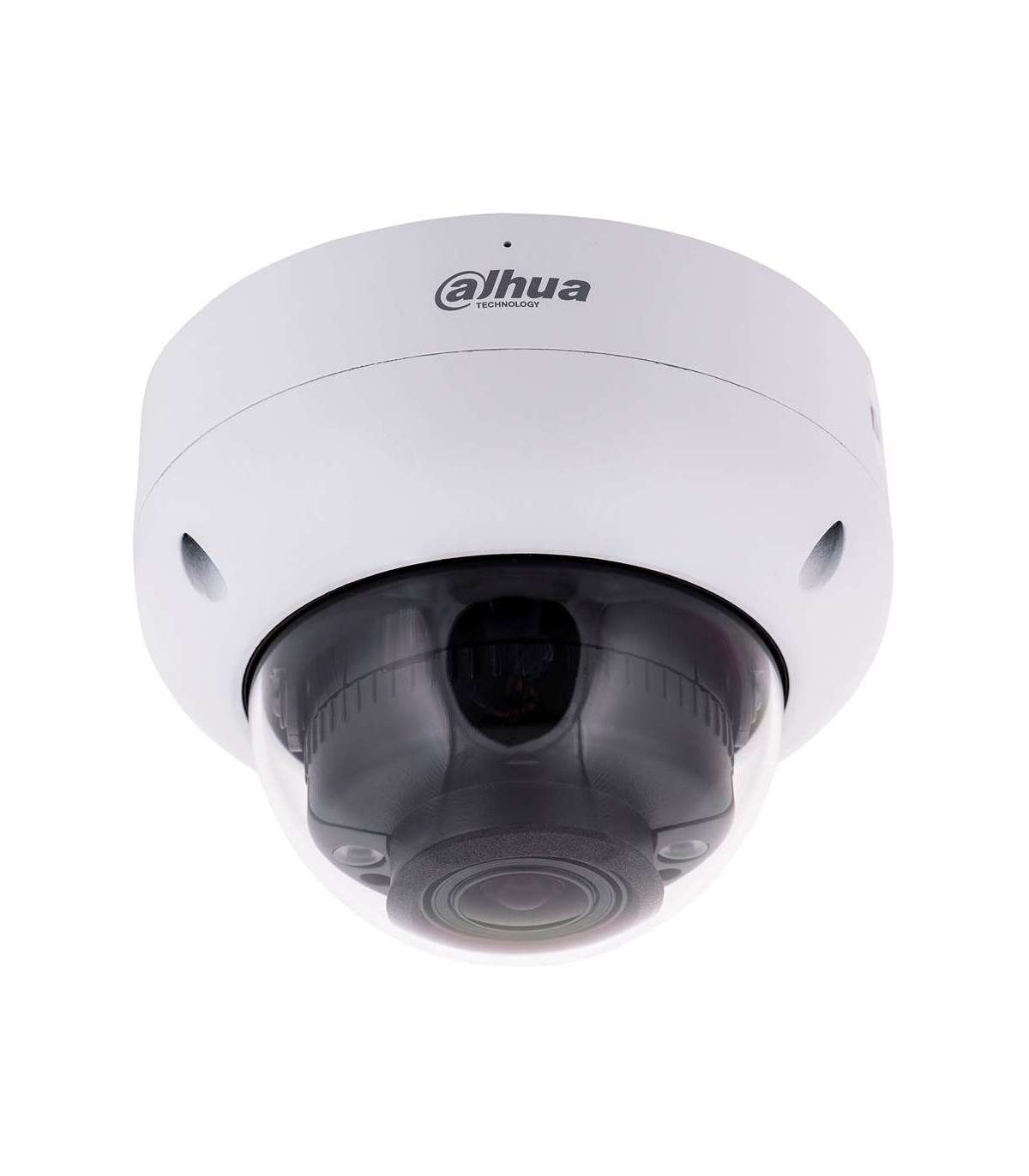

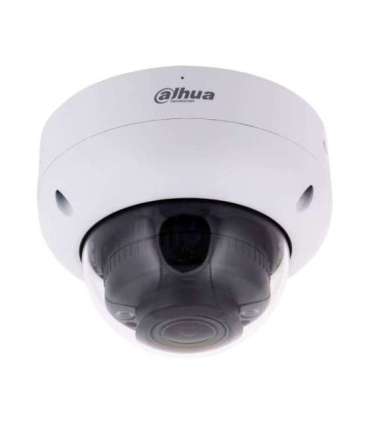

Dahua IP Camera IPC-HDBW3842R-ZAS-2712

Характеристики

Weight

713 g

Height

94 mm

Product colour

White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Cabling technology

10/100Base-T

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Power over Ethernet (PoE)

Yes

Power consumption (typical)

3.6 W

Power consumption (max)

7.2 W

Interface

RJ-45

Connectivity technology

Wired

International Protection (IP) code

IP67

Input voltage

12 V

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

RAM capacity

1 GB

Regulatory Approvals

CE-LVD: EN62368-1; CE-EMC: Dyrektywa Kompatybilności Elektromagnetycznej 2014/30/EU

Form factor

Dome

Display resolution

3840 x 2160 pixels

Built-in microphone

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Noise reduction

Yes

Type

IP security camera

Diameter

12.2 cm

Fixed focal length

3.6 mm

Tilt angle range

0 - 80°

Placement supported

External / Internal

Video mirroring

Yes

Lighting

Yes

Signal-to-Noise Ratio (SNR)

56 dB

Frame rate

25 / 30 fps

LED type

IR

Night vision

Yes

Lens viewing angle, vertical

60°

Lens viewing angle, horizontal

113°

Progressive scan

Yes

Focal length range

2.7 - 12 mm

Maximum aperture number

1.5

Angle of rotation

355°

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

3 kbps - 16384 kbps

Management software

DMSS
Smart PSS, Smart PSS Lite, DSS, DMSS, P2P

Audio codecs

G.711a; G.711Mu; PCM; G.726; G.723

ROM capacity

128 MB

White balance

Auto
Lamp
Manual
Natural
Outdoor
Regional custom

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Number of illumination LEDs

3

Minimum illumination

0.003 lx

Viewing angle, diagonal

133°

Motion detection

Yes

Lens type

Varifocal moto zoom

Number of Privacy masking areas

4

Adjustment shutter speed

Auto/Manual

Audio RCA outputs

1

RCA input

1

Card reader slot

1

Client interoperability

ONVIF (Profile S / (Profile T / (Profile G), CGI, P2P

Protection class impact resistance

IK10

Perimeter protection

Yes

Software development kit (SDK) support

Yes

3D NR (Noise Reduction)

Yes

Maximum resolution of supported cameras

8 Mpx

Fixed aperture

Y
