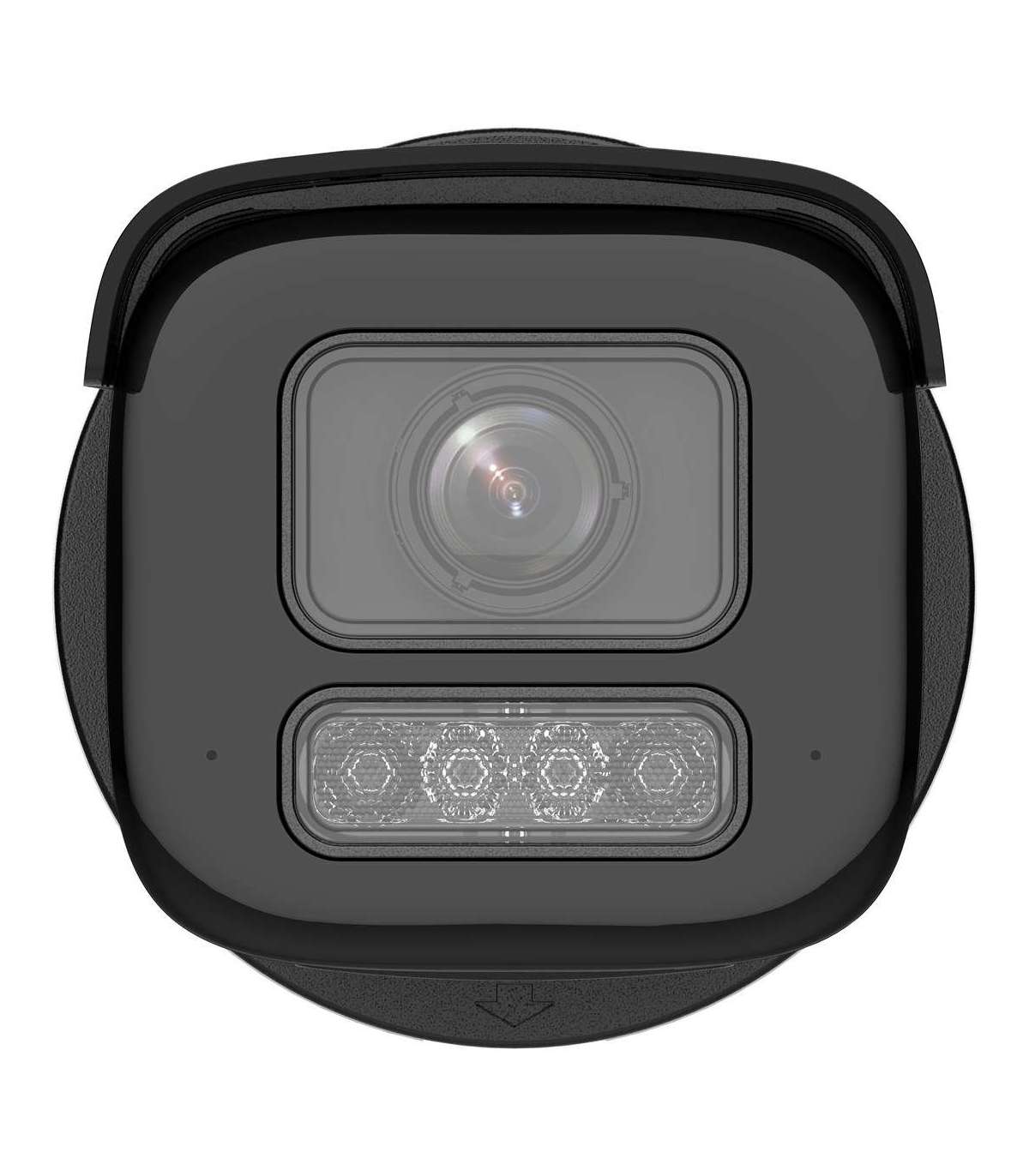

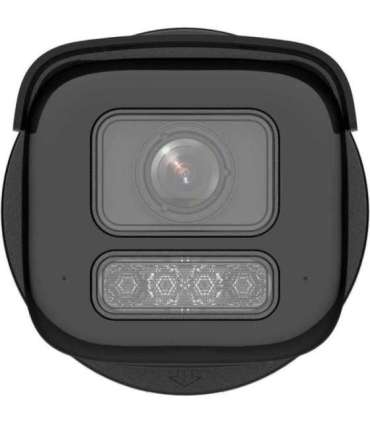

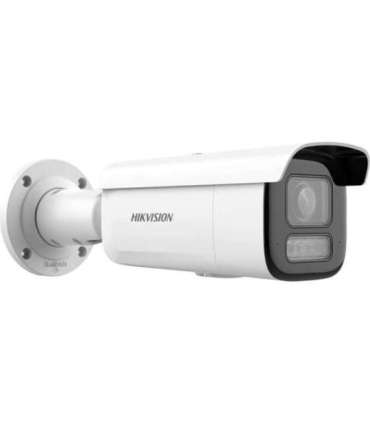

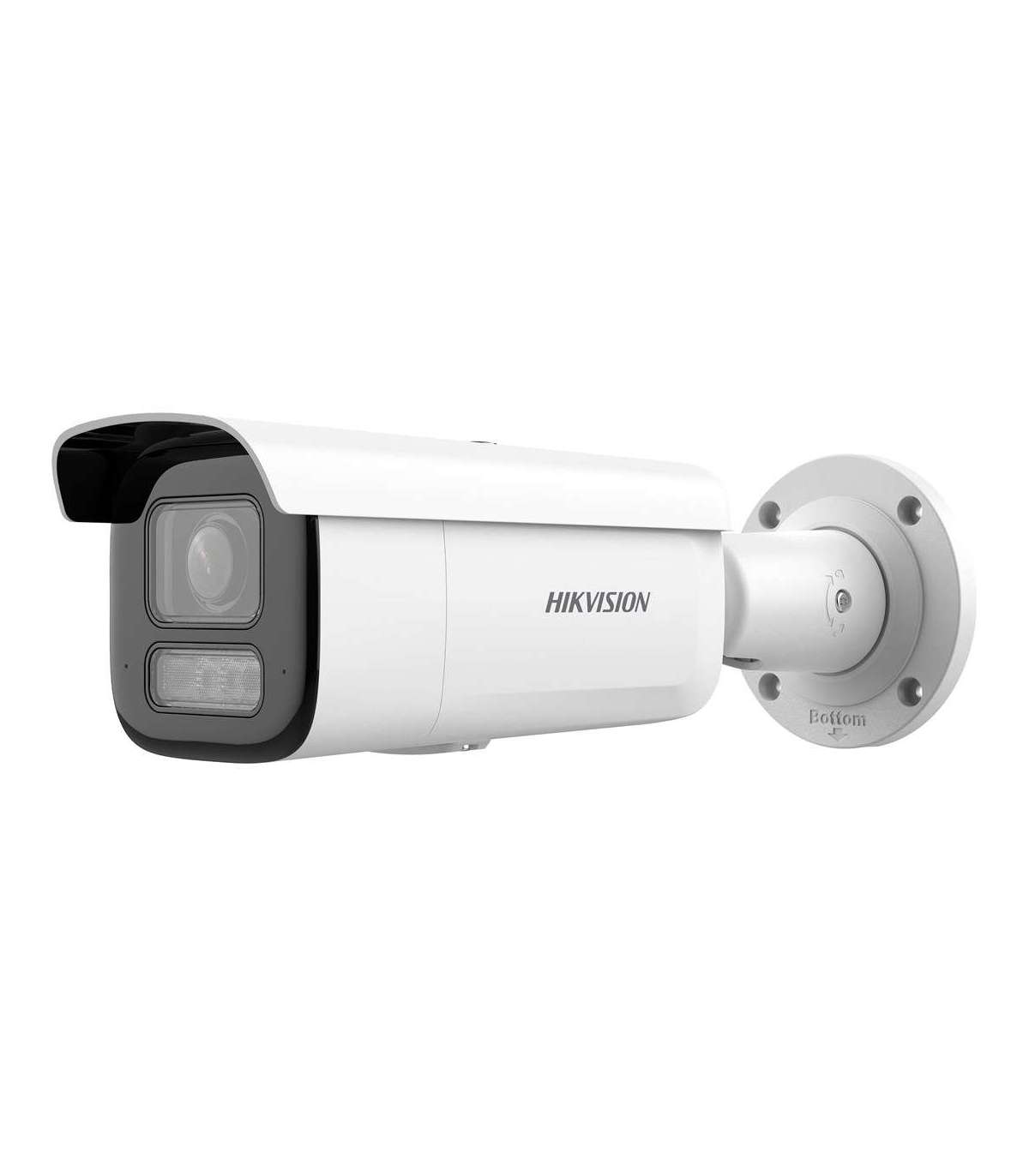

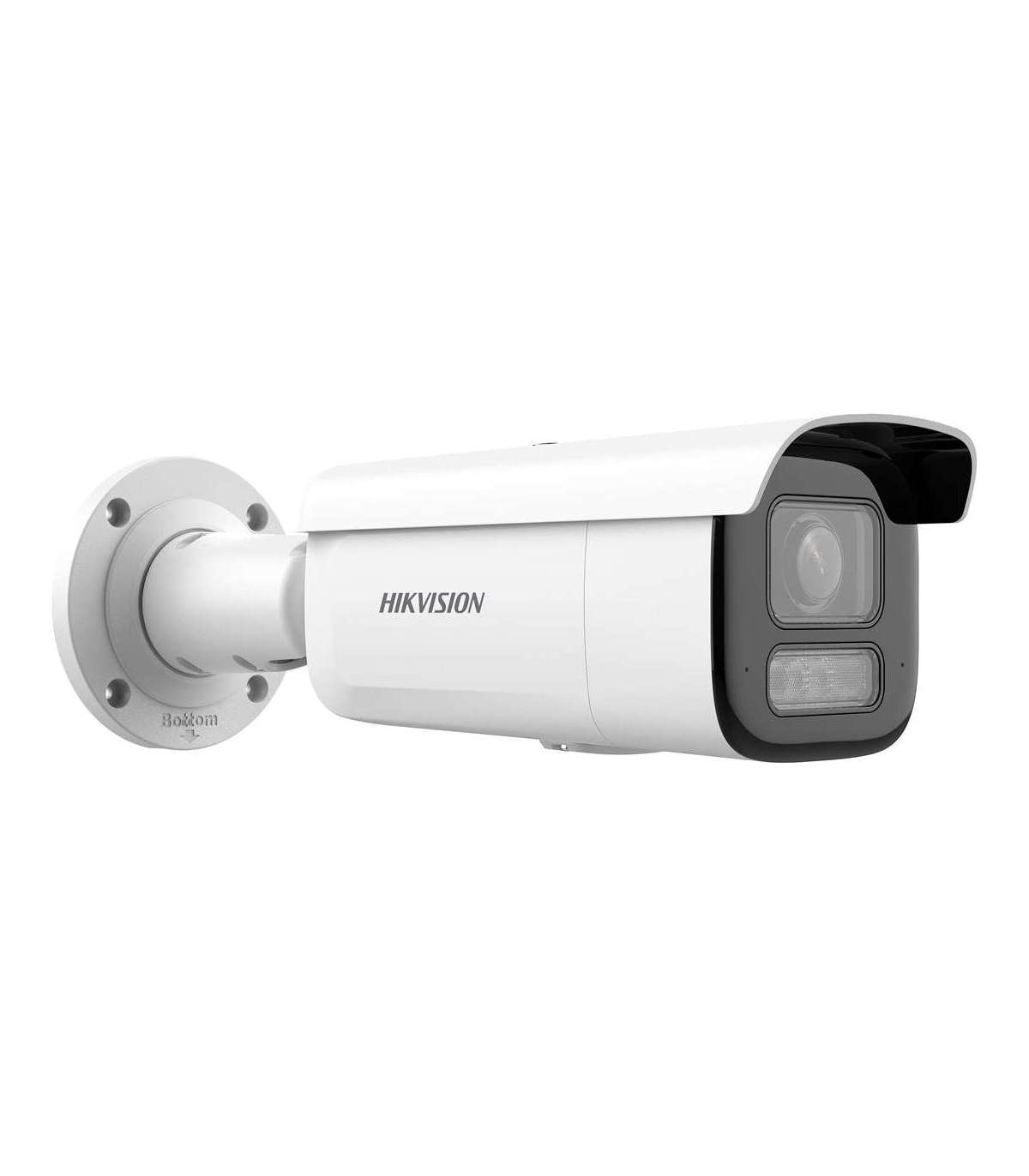

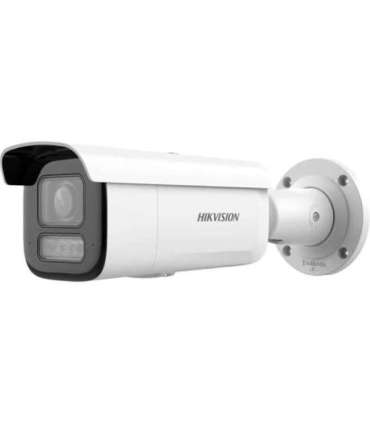

KAMERA IP HIKVISION DS-2CD2663G2-LIZS2U(2.8-12mm)

Характеристики

Depth

385 mm

Weight

1.53 kg

Height

180 mm

Width

190 mm

Package weight

2 kg

Product colour

White

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

298 mm

Package depth

98 mm

Package height

96 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

REACH
RoHS
WEEE

Housing material

Aluminium

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Password protection

Yes

Built-in microphone

Yes

Camera card reader integrated

Yes

Maximum memory card size

512 GB

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Type

IP security camera

Maximum power

13 W

Number of cameras

1

Tilt angle range

0 - 90°

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Video motion detection

Yes

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

60 m

LED type

IR

Night vision

Yes

Lens viewing angle, vertical

53.8°

Lens viewing angle, diagonal

123°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

355°

Heartbeat

Yes

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.005 lx

IK code

IK10

Observe distance (wide)

29.9 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

7.5 m

Detect distance (wide)

74.7 m

Client interoperability

ONVIF (Profile S / Profile G / Profile T), ISAPI, SDK, ISUP

Sample rate

8 kHz /16 kHz /32 kHz / 48 kHz

Noise filter

Y
