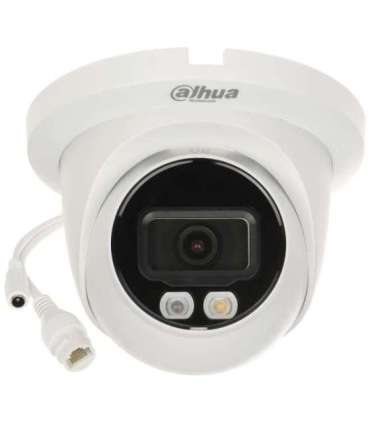

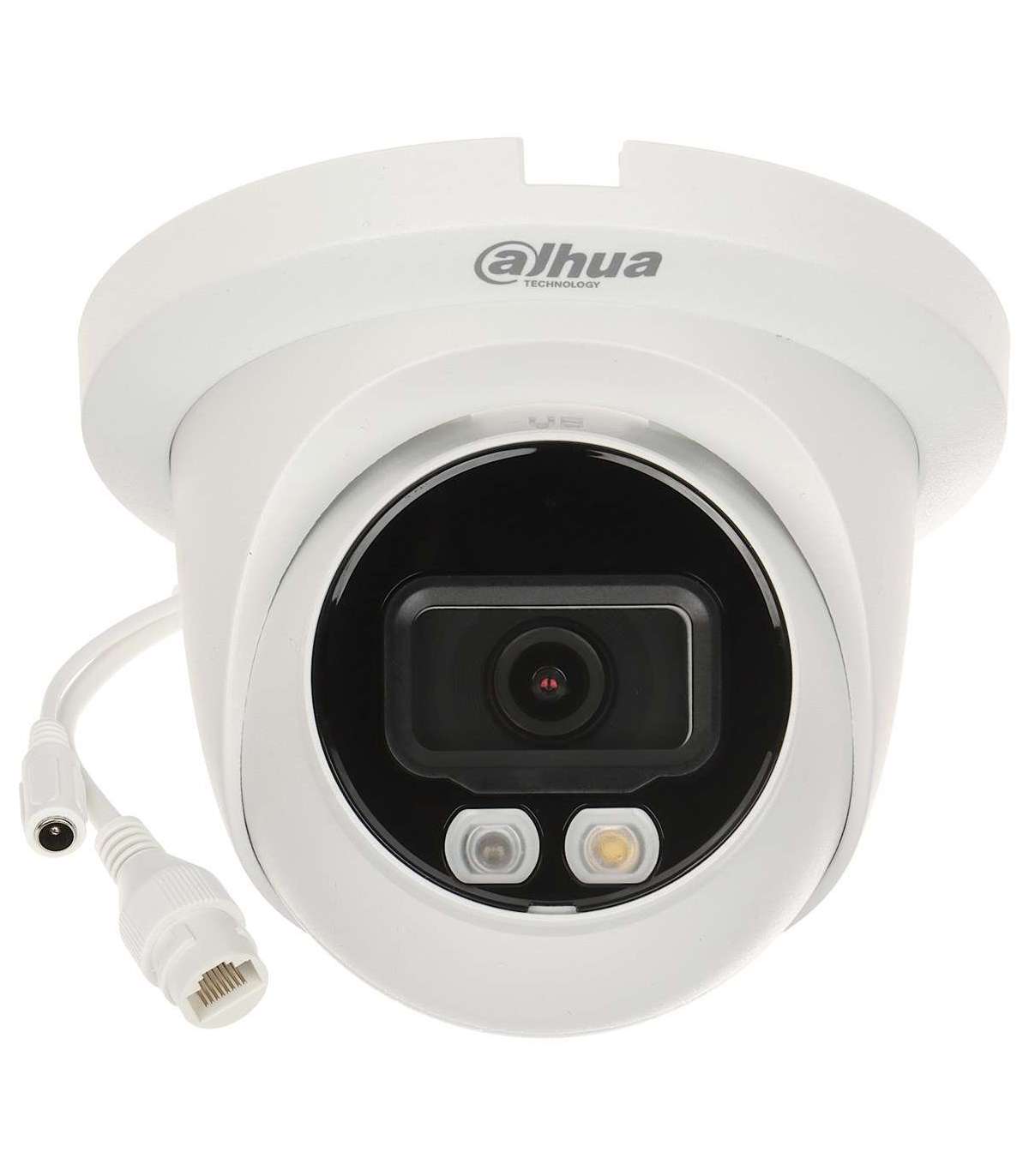

IP CAMERA DAHUA IPC-HDW2549TM-S-IL-0280B

Характеристики

Weight

480 g

Height

99.1 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

LVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 2023-04-10

Housing material

Metal, Plastic

Internal memory

256 MB

Power consumption (max)

4.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

Form factor

Dome

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

G.711Mu
G.711a
G.726
PCM

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

2960 x 1668 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.2 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 78°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2688 x 1520
2880 x 1620
2960 x 1668

Placement supported

External / Internal

Mounting type

Ceiling

Signal-to-Noise Ratio (SNR)

56 dB

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

5 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

58°

Lens viewing angle, diagonal

132°

Lens viewing angle, horizontal

111°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

5.4 W

Wide Dynamic Range (WDR)

120 dB

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto/Manual

Bit rate

H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps

Web browser

Yes

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor
Street lamp

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

2

Closest focusing distance

1.1 m

Minimum illumination

0.007 lx

Lens type

Fixed focal length lens

Adjustment shutter speed

Auto/Manual

Highlight Compensation (HLC)

Yes

Mirror function

Yes
