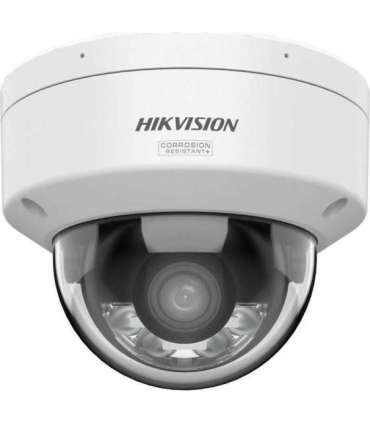

Hikvision DS-2CD2147G3-LIS2UY 2.8mm

Характеристики

Weight

600 g

Height

97.6 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Package width

234 mm

Package depth

120 mm

Package height

117 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

CB
CE
Federal Communications Commission (FCC)
REACH
RoHS
WEEE

Housing material

Metal

Power consumption (max)

7.2 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Number of microphones

2

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Maximum memory card size

512 GB

Protection features

Water resistant

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Line-in

Yes

Line-out

Yes

Type

IP security camera

Diameter

12.1 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520

Placement supported

External / Internal

Mounting type

Ceiling

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

0.6 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Night vision

Yes

Number of lenses

1

Pan range

0 - 355°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1

Angle of rotation

355°

Power consumption (Power over Ethernet (PoE))

9 W

Heartbeat

Yes

Anti-flicker

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Camera shutter speed

1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Web browser

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

24 m

Recognize distance

12 m

Detect distance

61 m

Minimum illumination

0.0001 lx

IK code

IK10

Highlight Compensation (HLC)

Yes

Lens mount interface

M16

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

130 dB

Flash log

Yes

Pixel counter

Yes

Automatic Network Replenishment (ANR)

Yes
