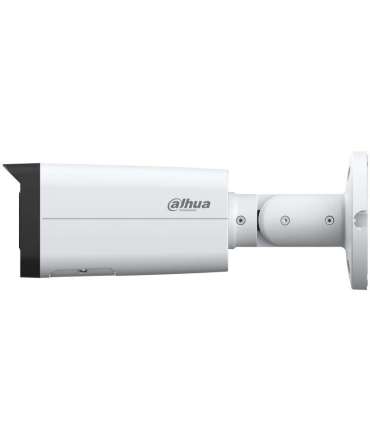

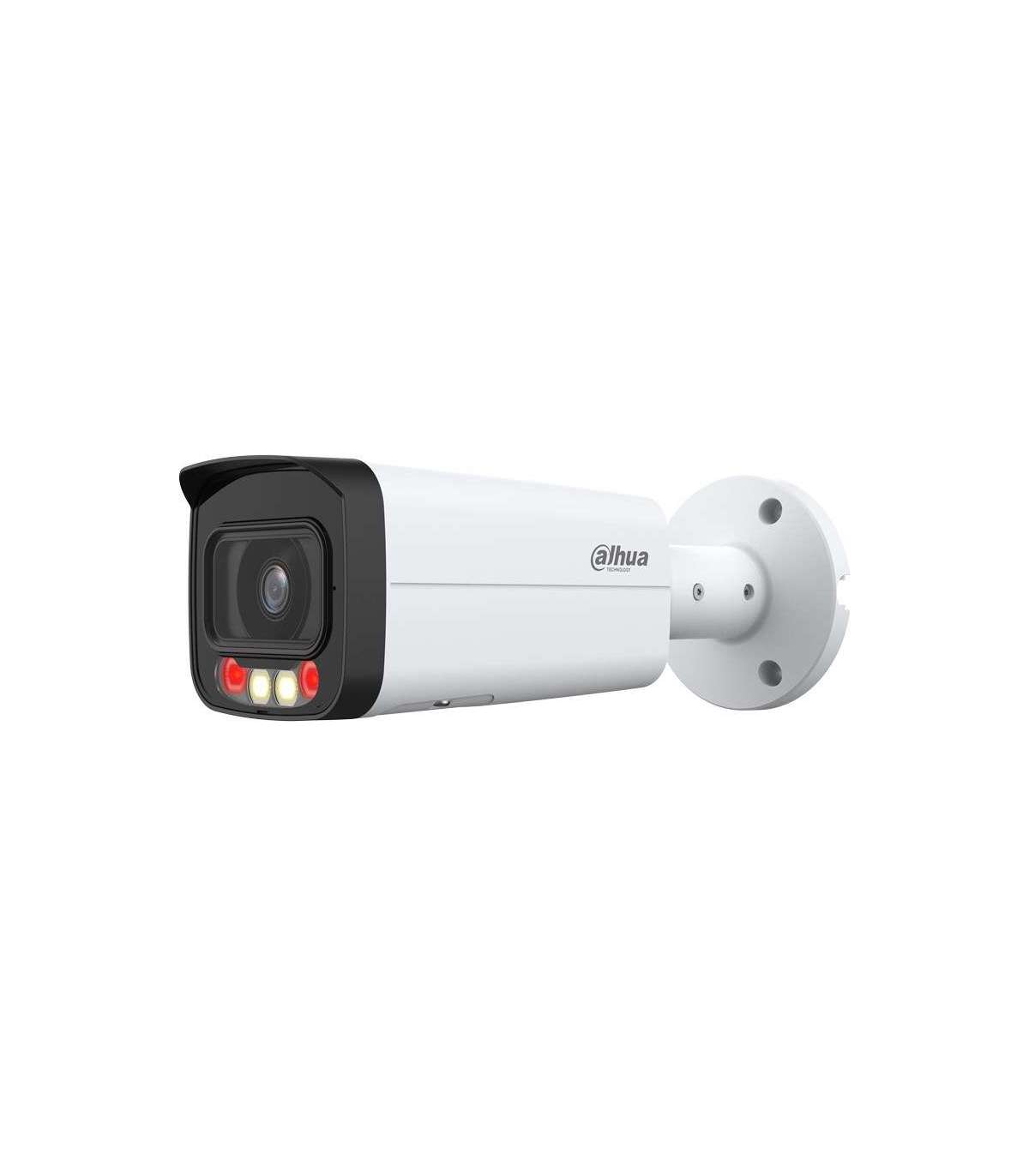

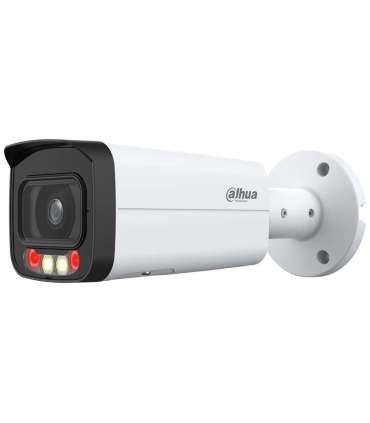

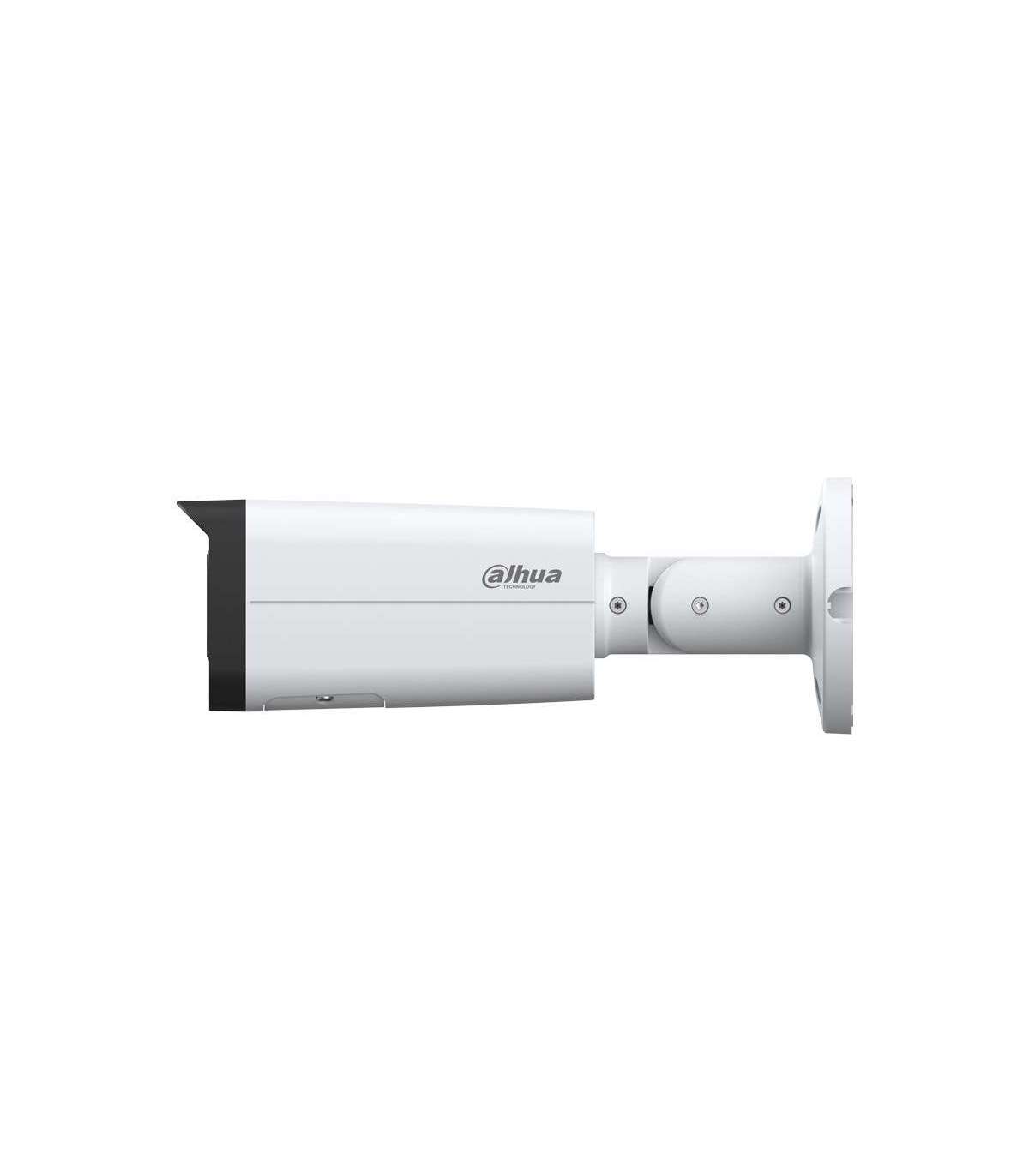

IP CAMERA DAHUA IPC-HFW2449T-AS-IL-0360B

Характеристики

Weight

720 g

Height

71.6 mm

Width

75.8 mm

Product colour

Black
White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.3af

Housing material

Metal

Browser supported

IE: IE8, IE9, IE11 Chrome Firefox, Safari

Power consumption (typical)

2.6 W

Power consumption (max)

7 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

6 user(s)

RAM capacity

128 MB

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Bullet

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Maximum memory card size

256 GB

Protection features

Waterproof

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Audio output channels

1.0 channels

Maximum resolution

2688 x 1520 pixels

Noise reduction

Yes

Type

IP security camera

Length

238.5 mm

Number of cameras

1

Video streaming

Yes

Fixed focal length

3.6 mm

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080
2304 x 1296
2560 x 1440
2688 x 1520

Placement supported

Indoor & outdoor

Mounting type

Wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

56 dB

Built-in light

Yes

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Frame rate

30 fps

Total megapixels

4 MP

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

84°

Lens viewing angle, diagonal

101°

Lens viewing angle, horizontal

42°

Progressive scan

Yes

Maximum aperture number

1.7

Power consumption (Power over Ethernet (PoE))

8.3 W

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D NR

Gain control type

Auto/Manual

Privacy masking

Yes

Bit rate

H.264: 32 - 6144Kbps; H.265: 12 - 6144Kbps

Web browser

Yes

Management software

Smart PSS, DSS, DMSS

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor
Regional custom
Street lamp

Camera shutter type

Auto

Smart IR

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

4

Observe distance

34.2 m

Recognize distance

17.1 m

Detect distance

85.4 m

Minimum illumination

0 lx

Voice codecs

G.711Mu
G.711a
G.726
PCM

Number of Privacy masking areas

4

Adjustment shutter speed

Auto/Manual

Lens mount interface

M12

Audio input channels

1.0 channels

Alarm input channels

1

Alarm output channels

1

Network access storage (NAS)

Yes
