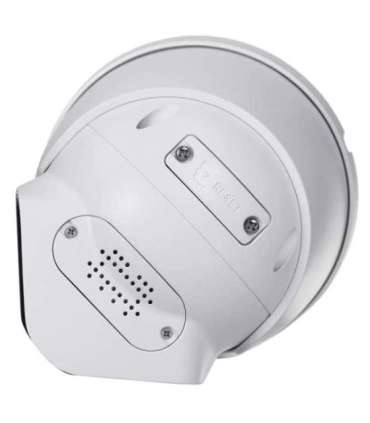

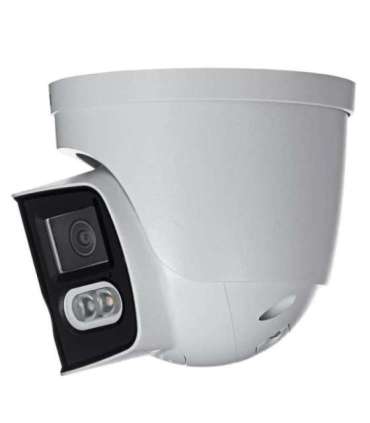

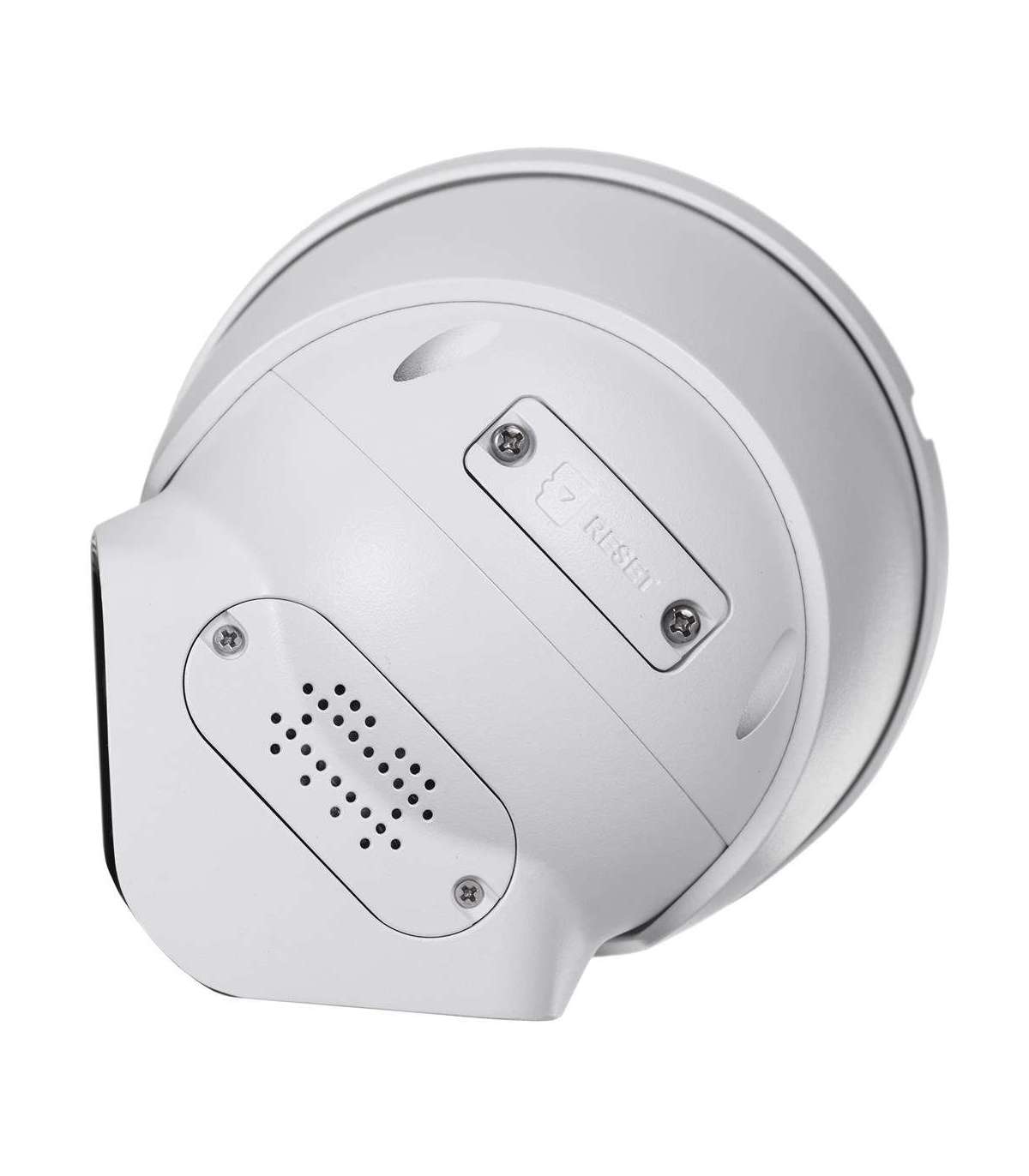

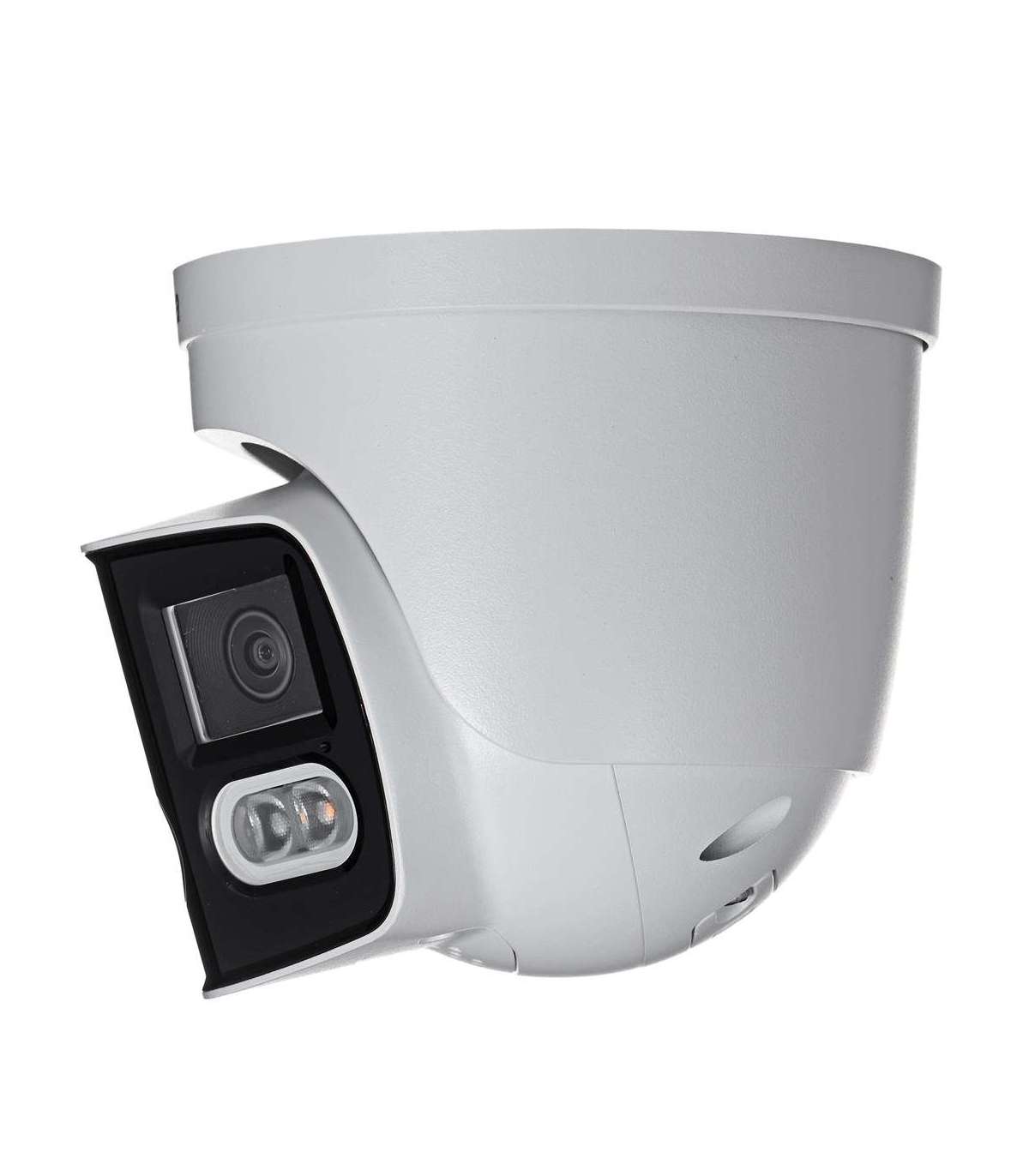

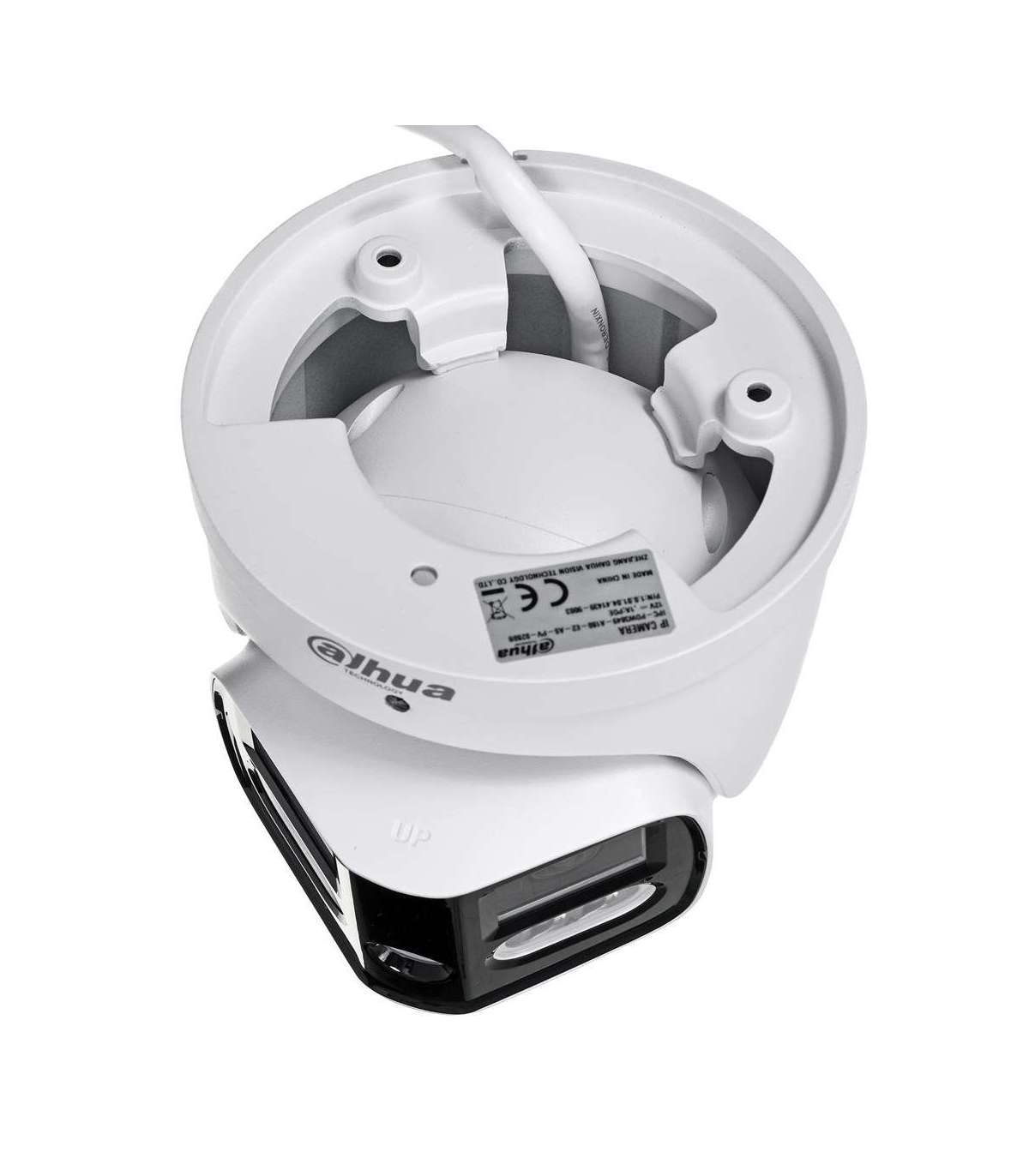

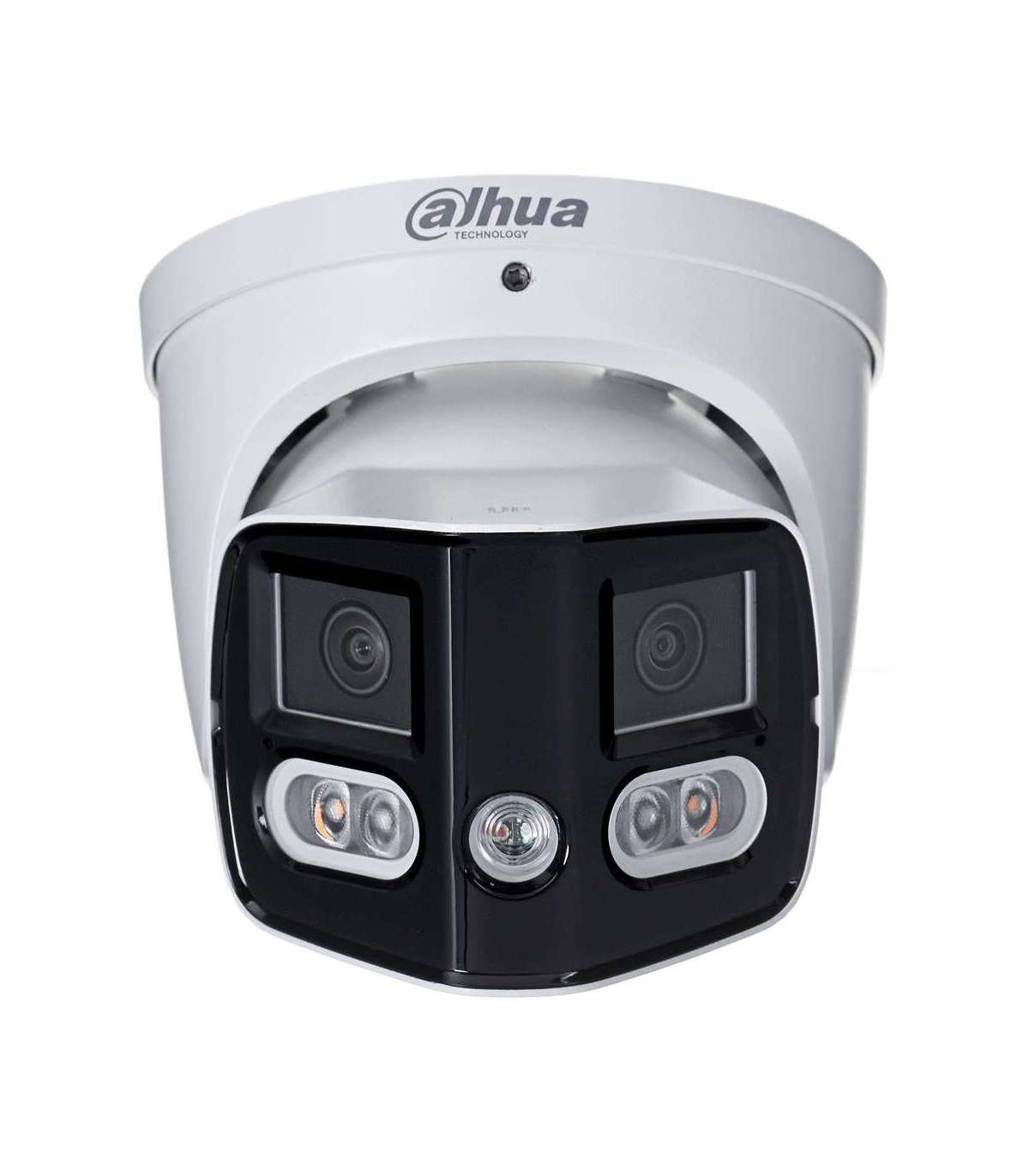

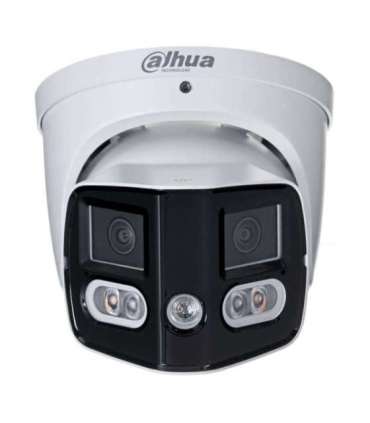

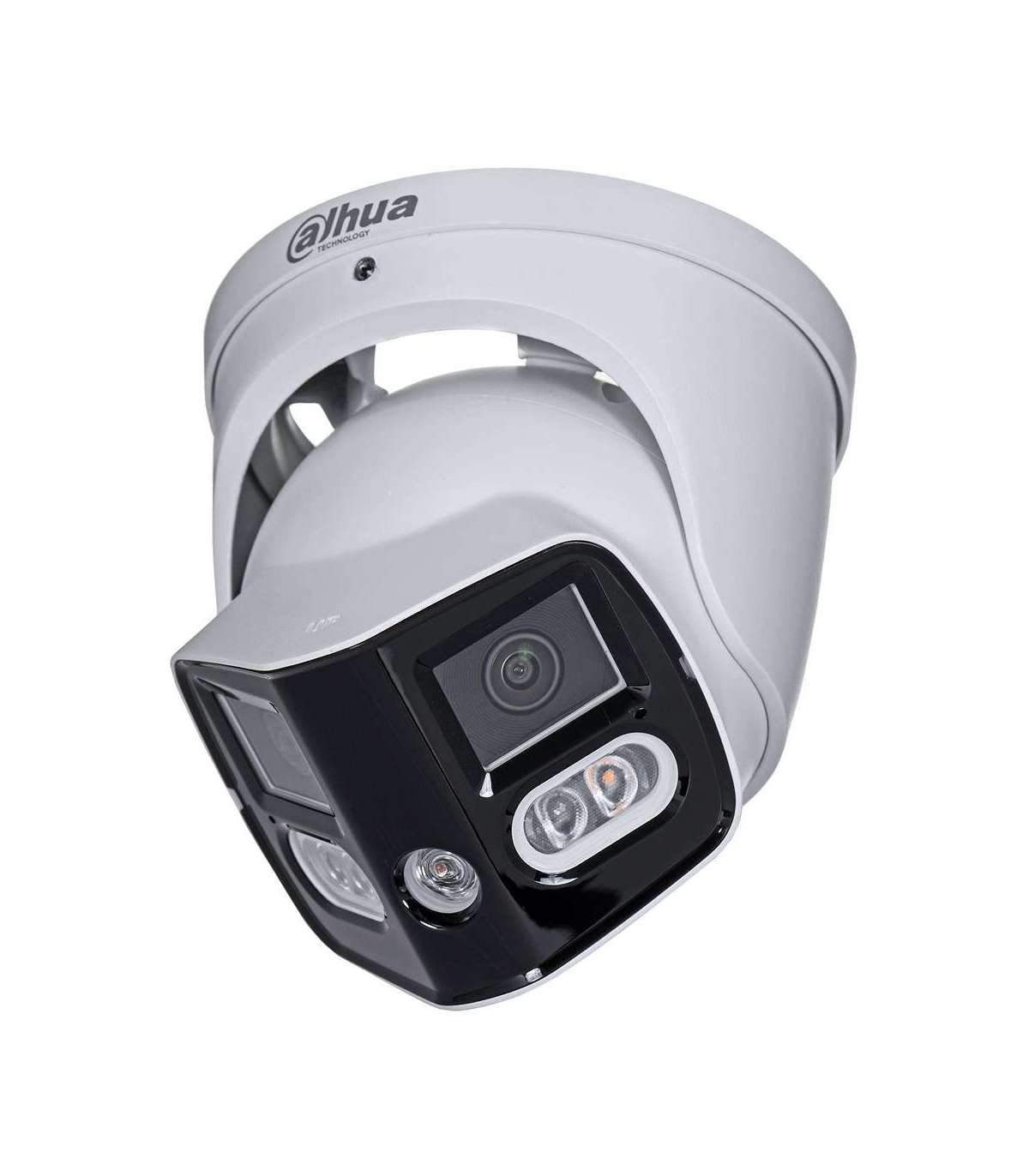

Dahua Technology IPC-PDW3849-A180-E2-AS-PV-0280B security camera Turret IP security camera Outdoor 4096 x 1860 pixels

Характеристики

Weight

990 g

Height

135.2 mm

Package weight

1.15 kg

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

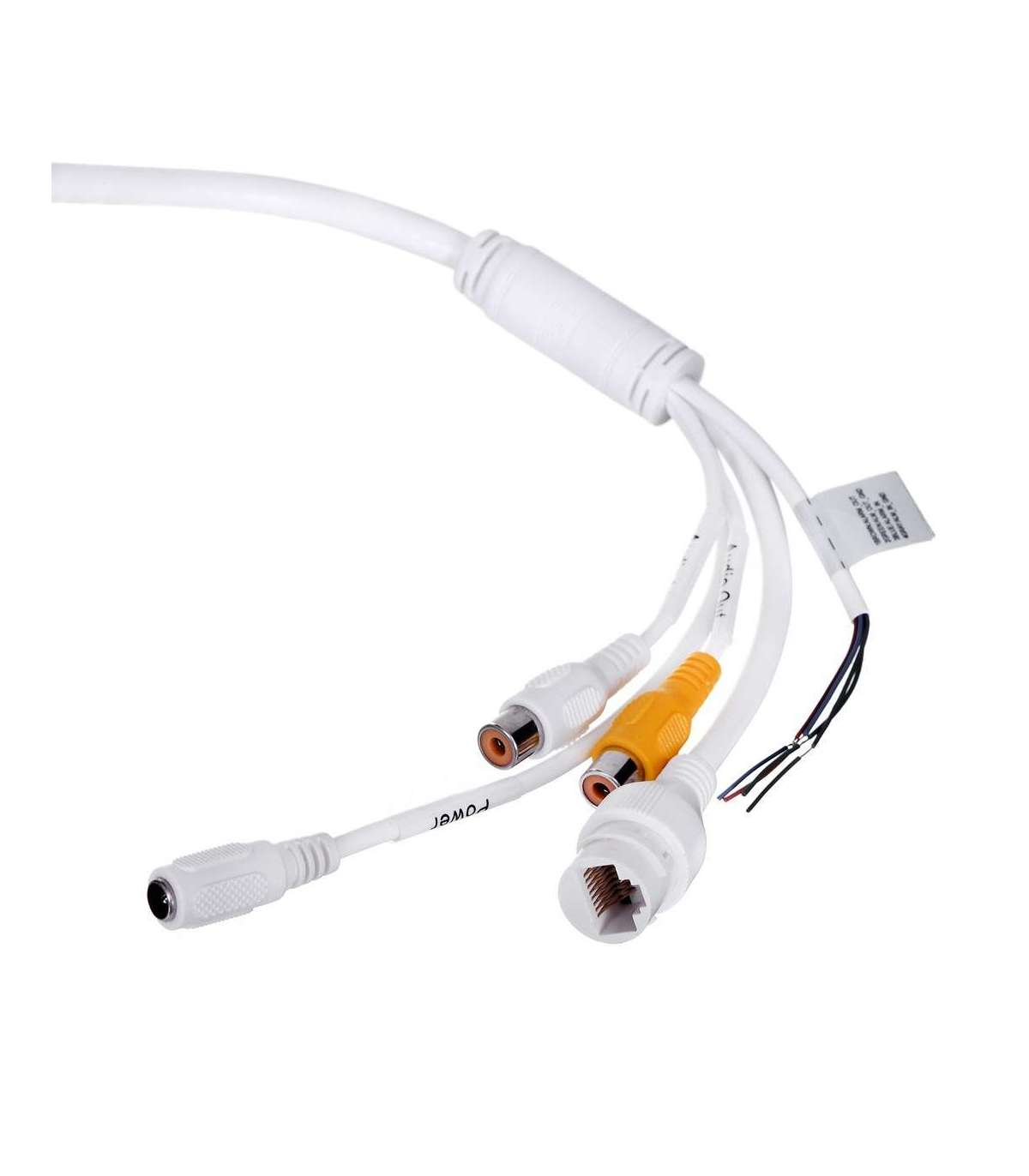

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Internal memory

1000 MB

Power consumption (typical)

3.95 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

20 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Turret

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

G.711 A-law
G.723
G.726
PCM

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

HD CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+

Audio output channels

1 channels

Maximum resolution

4096 x 1860 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.2 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 77°

Supported graphics resolutions

960 x 432
1200 x 536
3040 x 1368
3632 x 1632

Placement supported

Outdoor

Mounting type

Ceiling

Alarm input/output

Yes

Built-in HDD

No

Frame rate

20 fps

Total megapixels

8 MP

Night vision distance

25 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

2

Lens viewing angle, vertical

86°

Lens viewing angle, horizontal

180°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.4

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

4.95 W

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 – 1/100,000

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Bit rate

6 kbps –16384 kbps

ROM capacity

128 MB

White balance

Auto
Custom modes
Manual
Natural
Outdoor
Street lamp

Camera shutter type

Electronic

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

2 / 2

Observe distance

20.2 m

Recognize distance

10.1 m

Detect distance

50.6 m

Identify distance

5.1 m

Minimum illumination

0.0005 lx

Number of Privacy masking areas

4

Adjustment shutter speed

Auto/Manual

Highlight Compensation (HLC)

Yes

Lens diameter

2.8 mm

Audio input channels

1 channels

Dynamic range

120 dB
