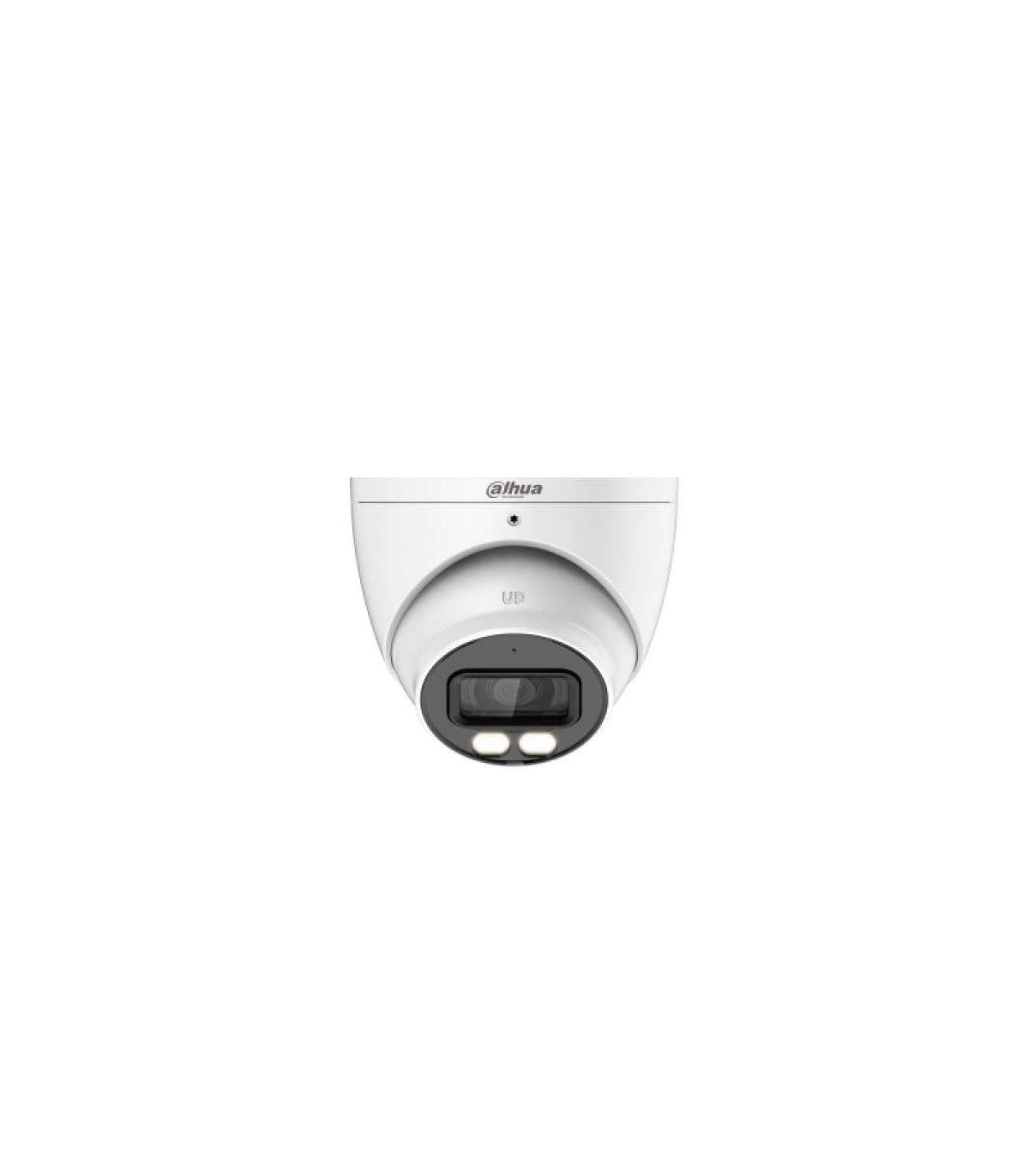

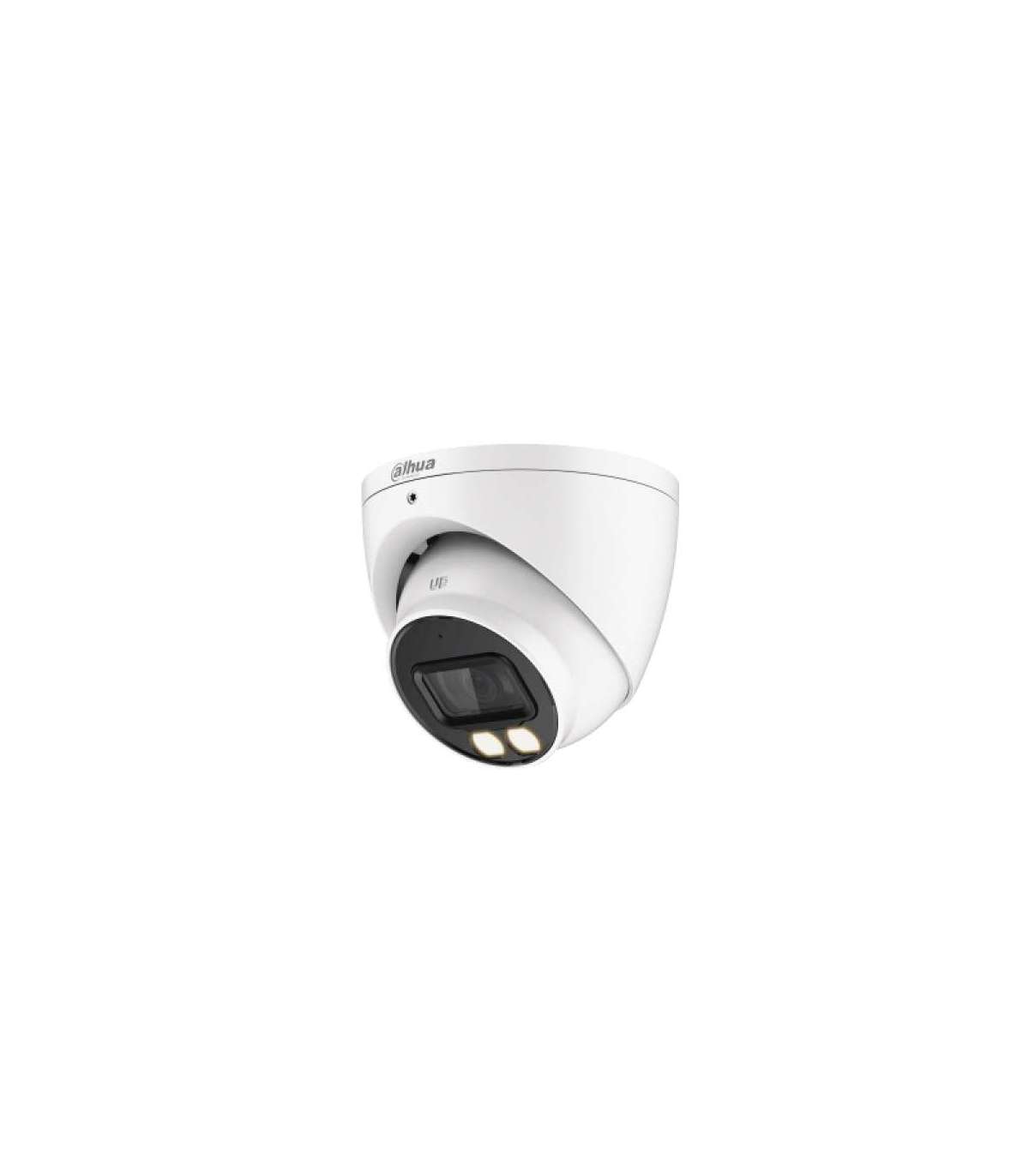

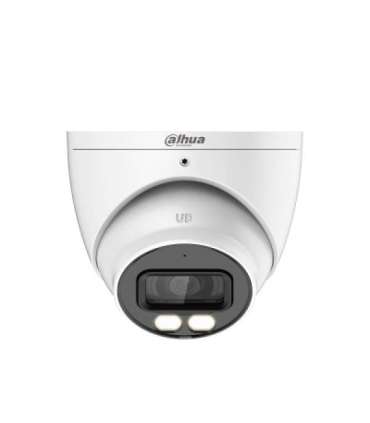

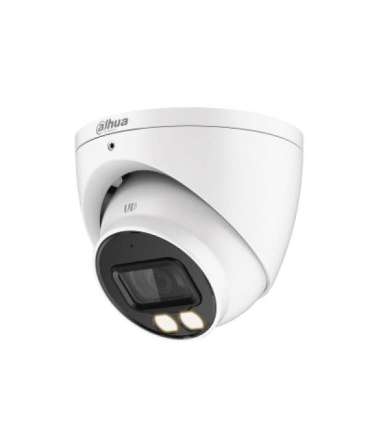

IP CAMERA DAHUA IPC-HDW1239V-A-IL-0280B

Характеристики

Weight

330 g

Height

100.9 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE-LVD: EN62368-1 CE-EMC:: Electromagnetic Compatibility Directive 2014/30/EU 2023-08-02

Housing material

Metal, Plastic

Internal memory

128 MB

Power consumption (max)

5.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

6 user(s)

Form factor

Dome

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

G.711Mu
G.711a
G.726
PCM

Sensor type

CMOS

Video compression formats

H.264
H.264B
H.264H
H.265
M-JPEG

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 78°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080

Placement supported

External / Internal

Mounting type

M12

Signal-to-Noise Ratio (SNR)

56 dB

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

124°

Lens viewing angle, horizontal

104°

Pan range

0 - 360°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

2.3 W

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D NR

Gain control type

Auto/Manual

Bit rate

H.264: 32kbps ~ 4096kbps H.265: 12kbps ~ 4096kbps

Web browser

Yes

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor
Regional custom
Street lamp

Number of illumination LEDs

2

Closest focusing distance

1.5 m

Lens type

Fixed focal length lens

Adjustment shutter speed

Auto/Manual

Mirror function

Yes
