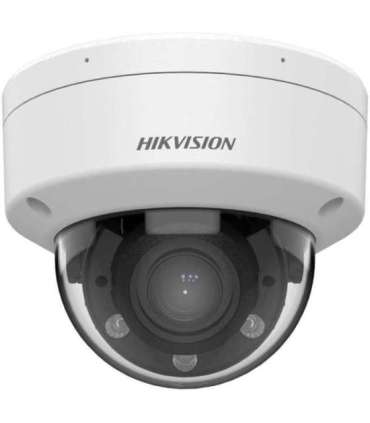

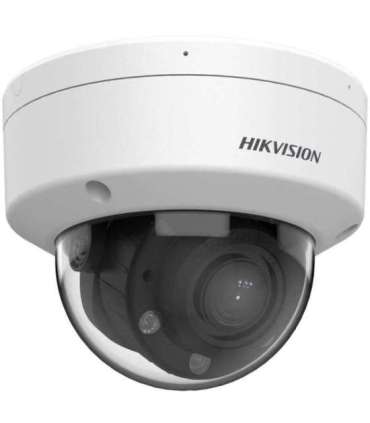

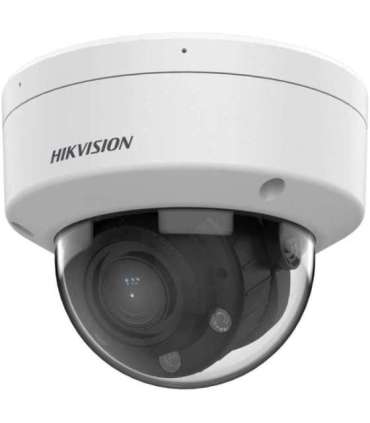

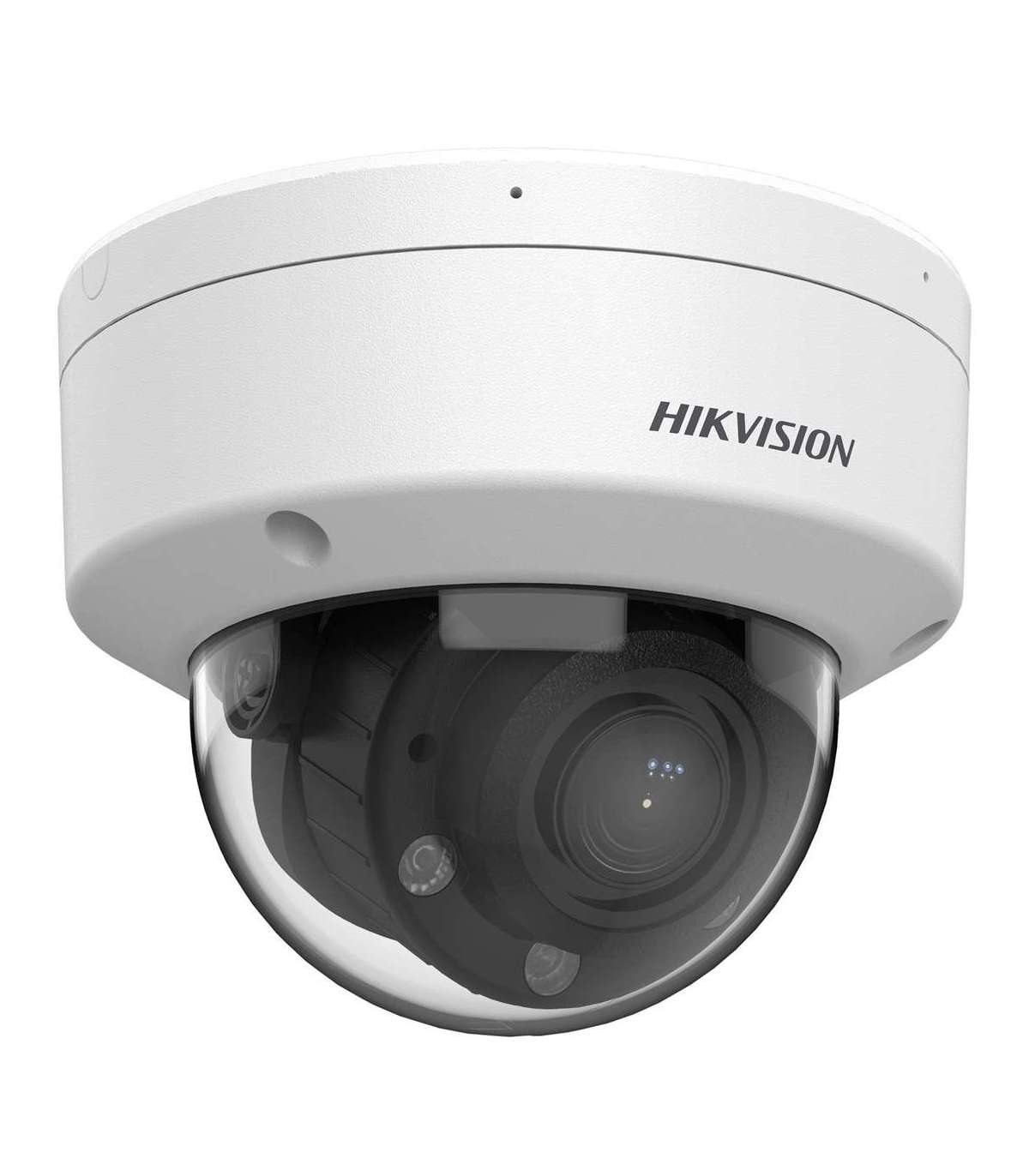

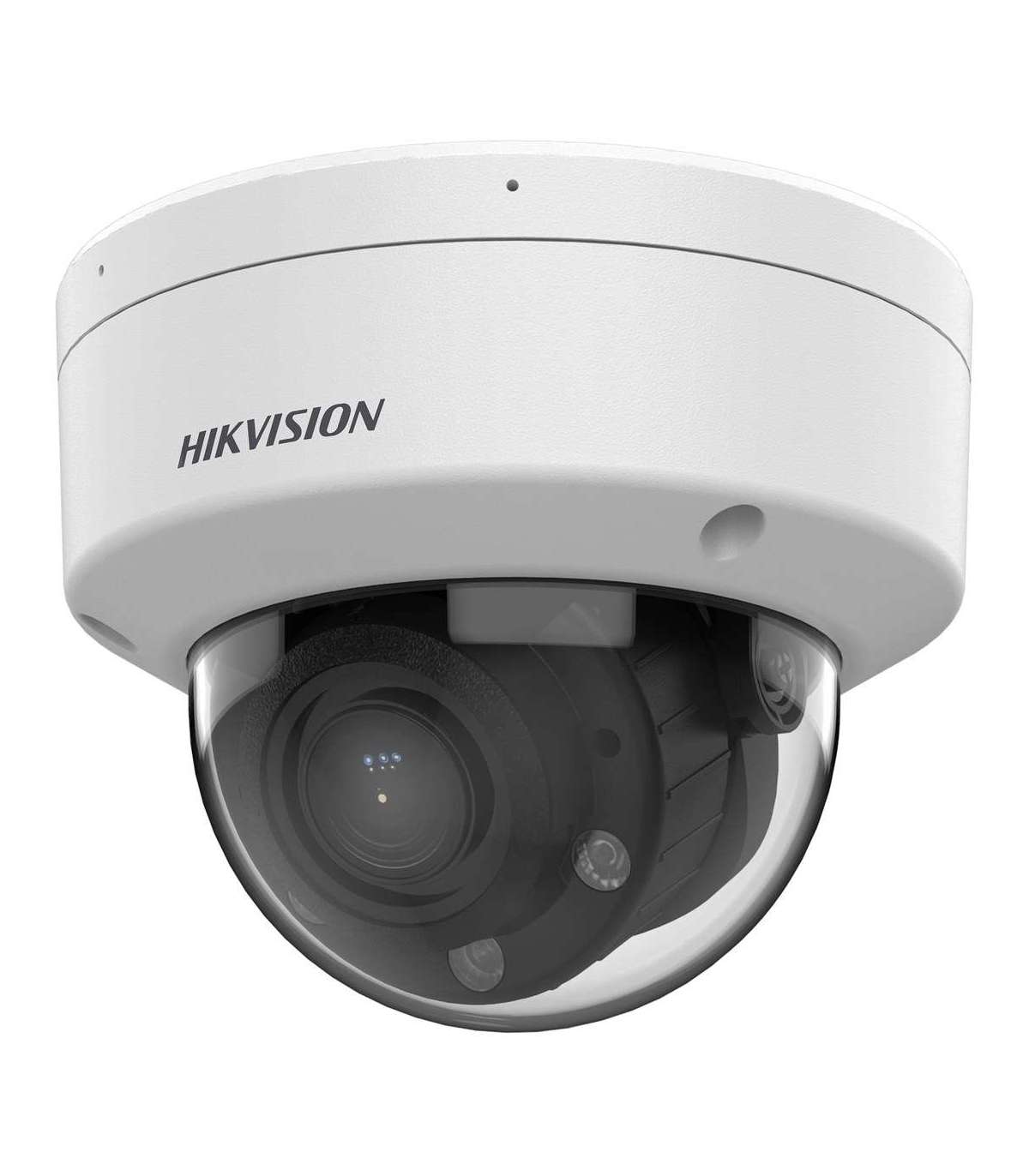

HIKVISION DS-2CD1763G2-LIZU 2.8-12mm

Характеристики

Height

97.6 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN (RJ-45) ports

1

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Dome

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12V

Number of memory card slots

1

4G LTE

No

Maximum memory card size

512 GB

Sensor type

1/2.4" Progressive Scan CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3200 x 1800 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2560 x 1440
2592 x 1944
2688 x 1520
3072 x 1728
3072 x 2048

Placement supported

External / Internal

Mounting type

Ceiling

Signal-to-Noise Ratio (SNR)

52 dB

Frame rate

25 / 30 fps

Total megapixels

6 MP

Night vision distance

30 m

Night vision

Yes

Lens viewing angle, vertical

57 - 20°

Progressive scan

Yes

Focal length range

2.8 - 12 mm

Power consumption (Power over Ethernet (PoE))

12 W

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Web browser

Yes

Audio codecs

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Motion detection

Yes

Horizontal rotation angle

0 - 355°

People detection

Yes

Vertical rotation angle

0 - 70°

Lens type

Varifocal

Network interface

RJ-45 10/100

Observe distance (wide)

27 m

Identify distance (wide)

6.8 m

Recognize distance (wide)

13.6 m

Detect distance (wide)

68 m

Degree of protection IK

IK08
