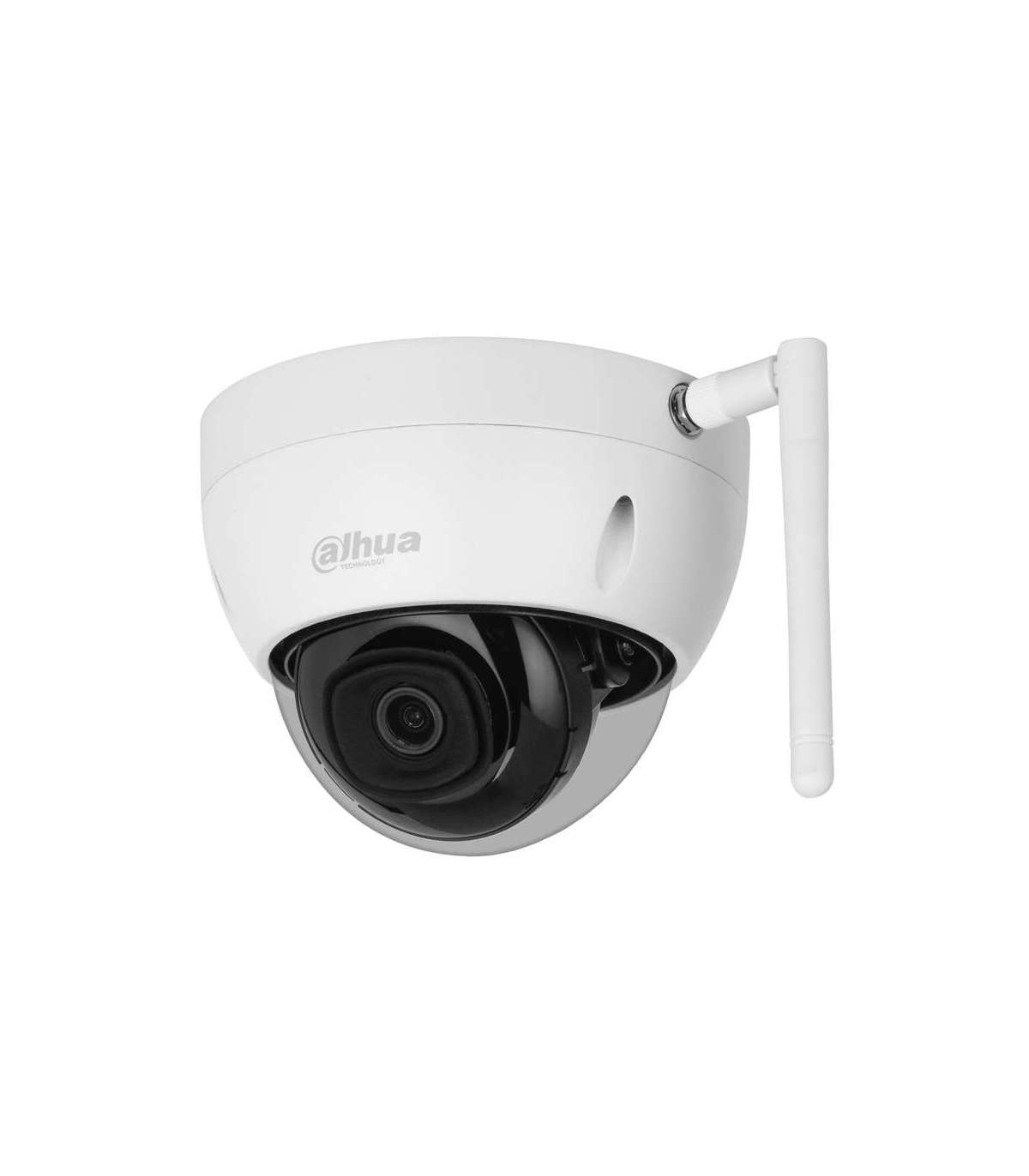

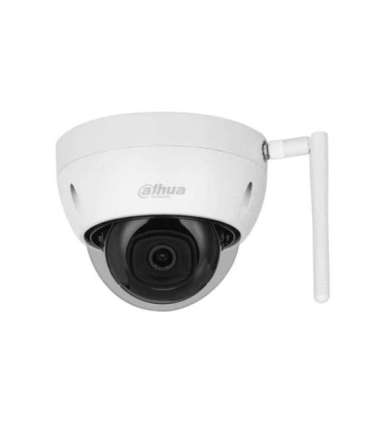

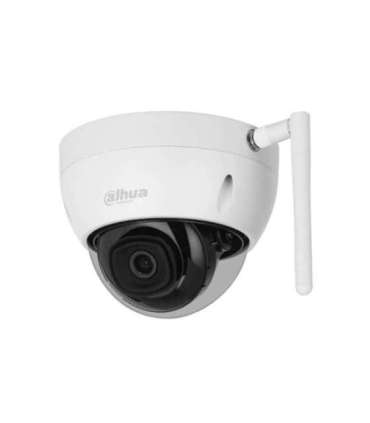

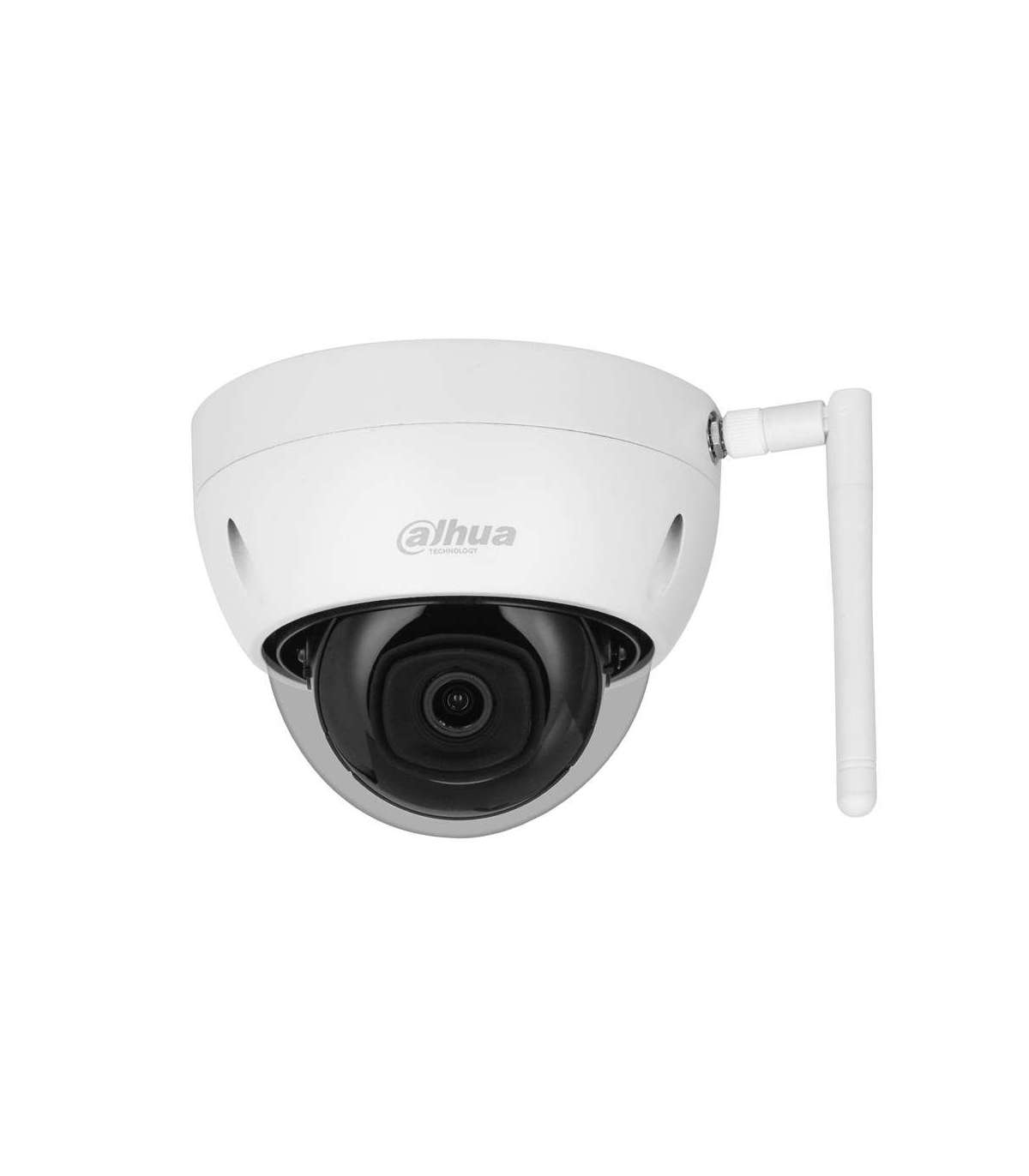

Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW security camera Dome IP security camera Indoor & outdoor 2560 x 1440

Характеристики

Weight

414 g

Height

88.7 mm

Package weight

592 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Wi-Fi standards

802.11b
802.11g
Wi-Fi 4 (802.11n)

Ethernet LAN (RJ-45) ports

1

Antennas quantity

1

Certification

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Housing material

Metal

Antenna type

External

Internal memory

64 MB

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

6 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Dome

Bluetooth

No

Audio system

1-way

DC output voltage

12

Video formats supported

H.264
H.264B
H.265

Maximum memory card size

256 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Auto focus

Yes

Supported video modes

720p
1080p

Sensor type

CMOS

Video compression formats

H.264+
H.264H
H.265+

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

11.1 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 75°

Supported graphics resolutions

1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2304 x 1296
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Video recording

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Intelligent Video Surveillance (IVS) system features

Intrusion

Lens viewing angle, horizontal

90°

Pan range

0 - 355°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Angle of rotation

355°

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate

3 Kbps - 20480 Kbps

Web browser

Yes

Audio codecs

G.711a; G.711Mu; PCM; G.726; G.723

ROM capacity

16 MB

Camera shutter type

Electronic

Smart IR

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

3

Observe distance

27.2 m

Recognize distance

13.6 m

Detect distance

68 m

Identify distance

6.8 m

IK code

IK10

Adjustment shutter speed

Auto/Manual

Highlight Compensation (HLC)

Yes

Audio system full duplex

Yes

Detection distance

80 m

Remote viewing

Yes

Video intelligence analytic

Yes

Fixed focal length (thermal module)

2.8 mm

Digital Wide Dynamic Range (DWDR) (panoramic camera)

Yes
