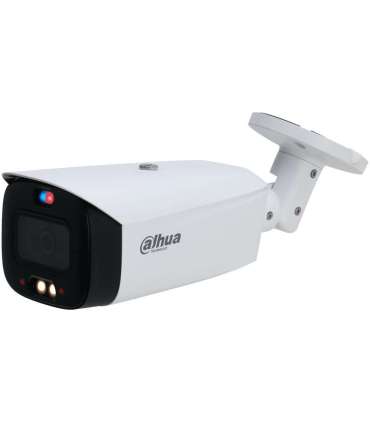

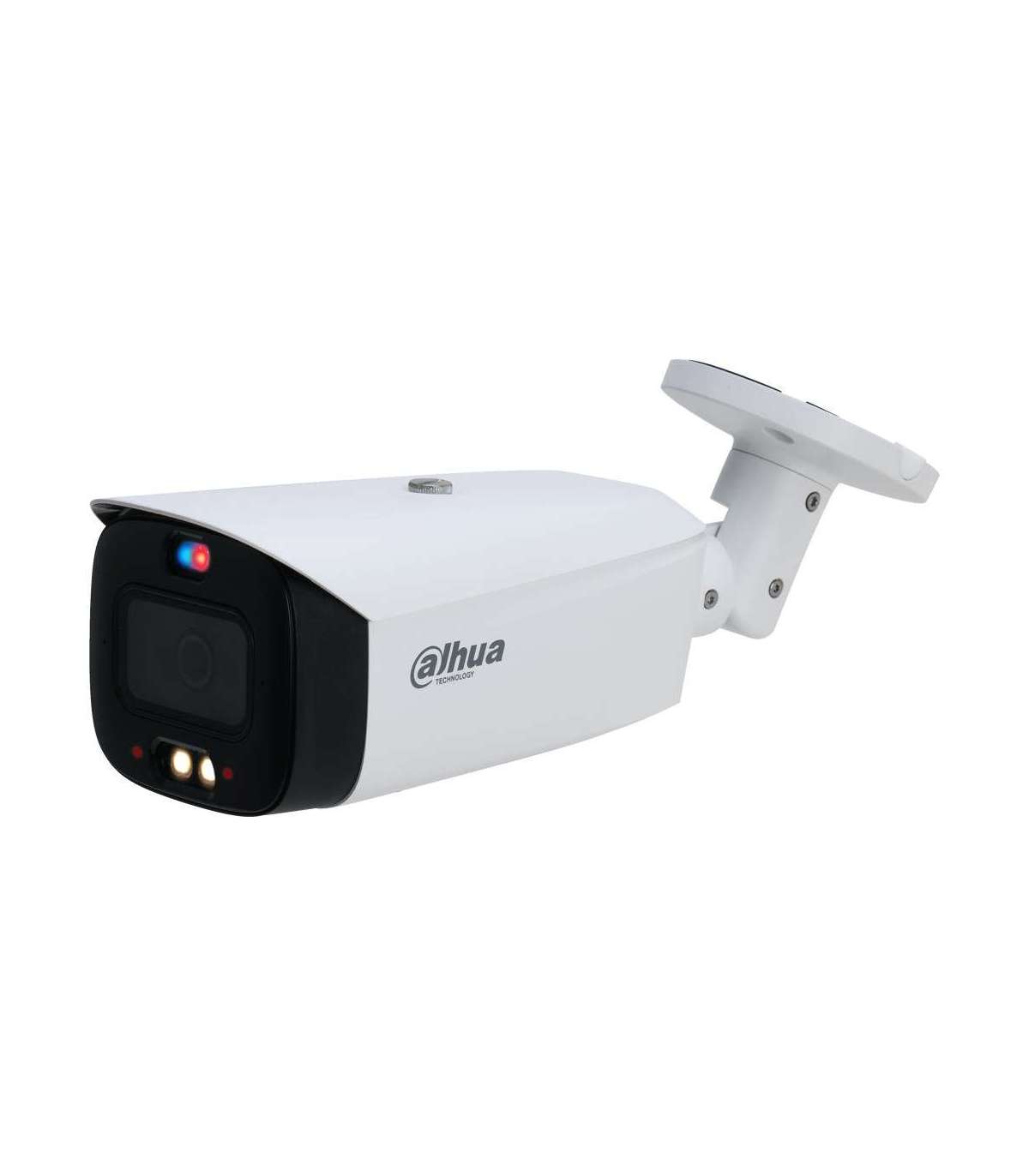

IP CAMERA DAHUA IPC-HFW3849T1-AS-PV-0280B-S4 TIOC 2.0

Характеристики

Depth

84.7 mm

Weight

1 kg

Width

94.4 mm

Package weight

1.23 kg

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

LED indicators

Alarm

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

LVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14 2023-01-18

Housing material

Metal
Plastic

Internal memory

512 MB

Power consumption (typical)

4.5 W

Power consumption (max)

7.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

20 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Bullet

Bluetooth

No

Number of microphones

2

Built-in microphone

Yes

DC output voltage

12

Maximum memory card size

256 GB

Maximum frame rate

30 fps

Speakerphone

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Voice commands

Yes

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Length

288.4 mm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2560 x 1440
2592 x 1944
2688 x 1520
3072 x 1728
3072 x 2048
3840 x 2160

Light effects

Yes

Placement supported

External / Internal

Mounting type

Ceiling/wall

Mirror

Yes

Alarm clock

Yes

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

8 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion
Tripwire

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

125°

Lens viewing angle, horizontal

106°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

1

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

9.1 W

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto/Manual

Privacy masking

Yes

Bit rate

H.264: 32 Kbps–8192 Kbps, H.265: 12 Kbps–8192 Kbps

Streaming method

Multicast

ROM capacity

128 MB

White balance

Auto
Daylight
Manual
Natural
Outdoor
Street lamp

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

4

Closest focusing distance

2 m

Minimum illumination

0.004 lx

Two-way talk

Yes

Voice codecs

G.711Mu
G.711a
G.723
G.726
PCM

Adjustment shutter speed

Auto/Manual

Audio RCA outputs

1

RCA input

1

Observe distance (wide)

36.4 m

Highlight Compensation (HLC)

Yes

Sound effects

Yes

Number of Privacy masking areas (panoramic camera)

8

Identify distance (wide)

9.1 m

Recognize distance (wide)

18.2 m

Detect distance (wide)

91 m
