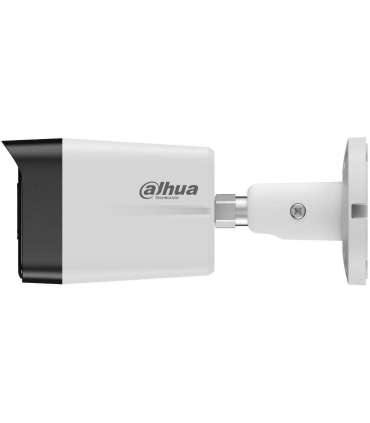

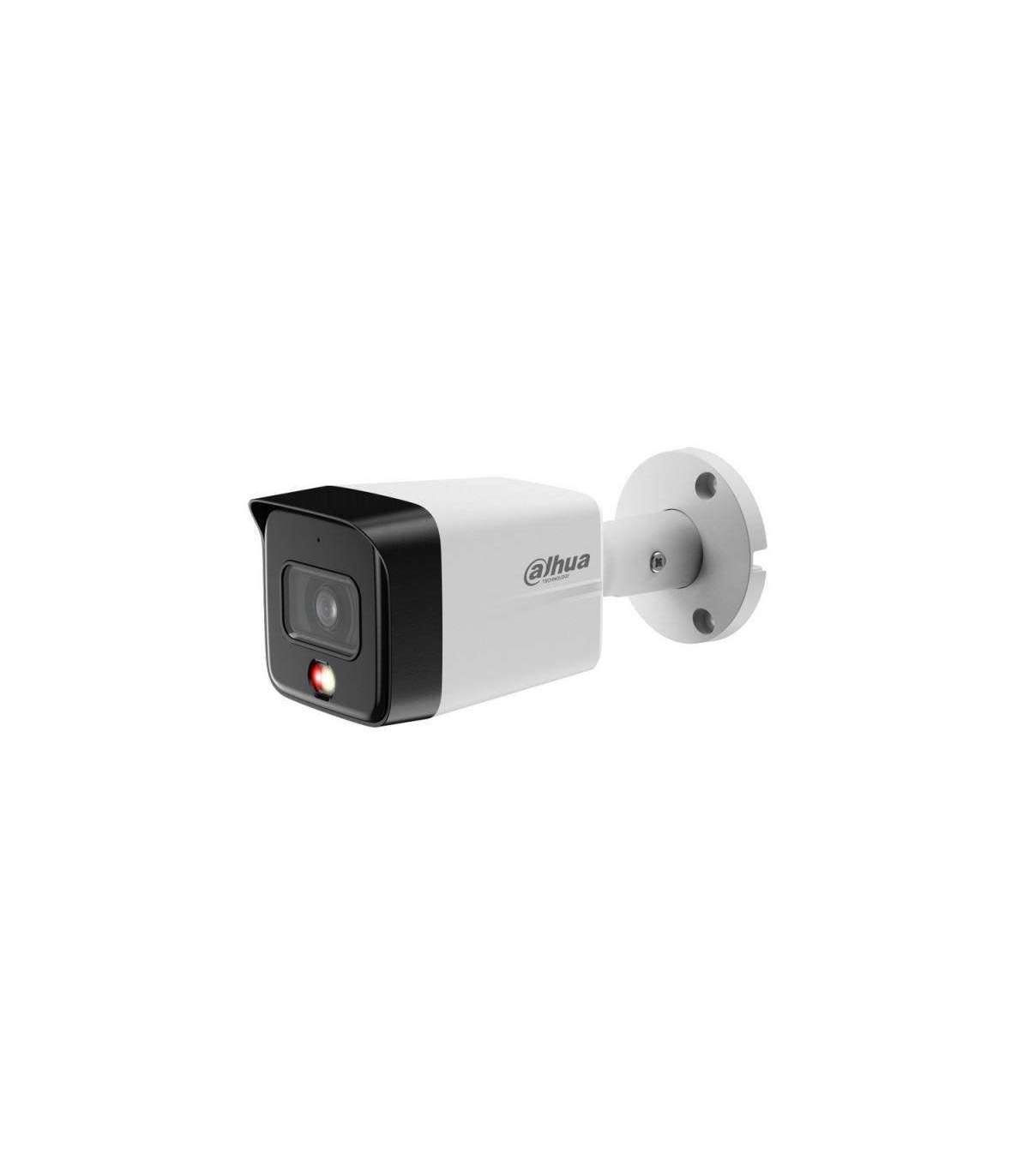

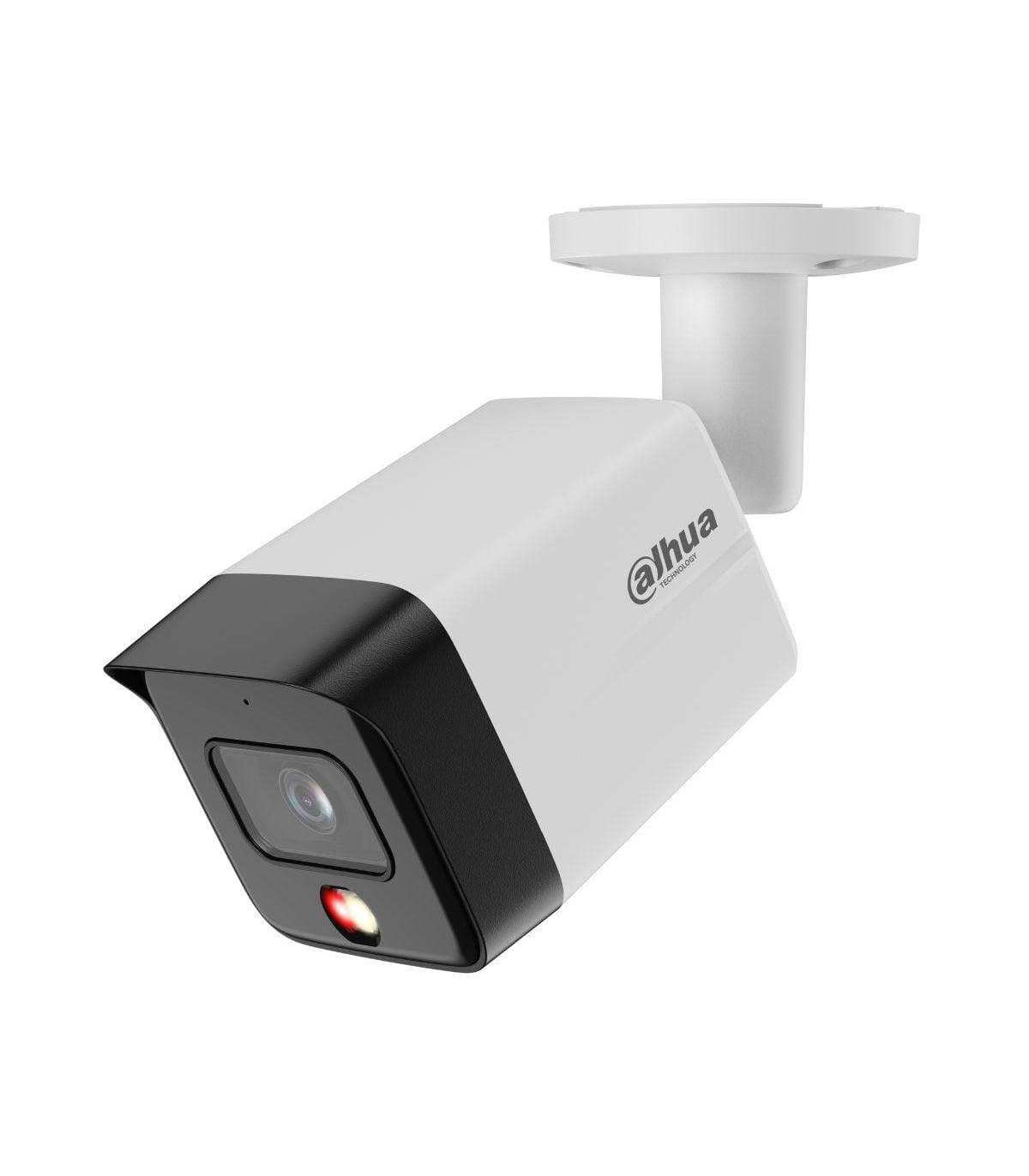

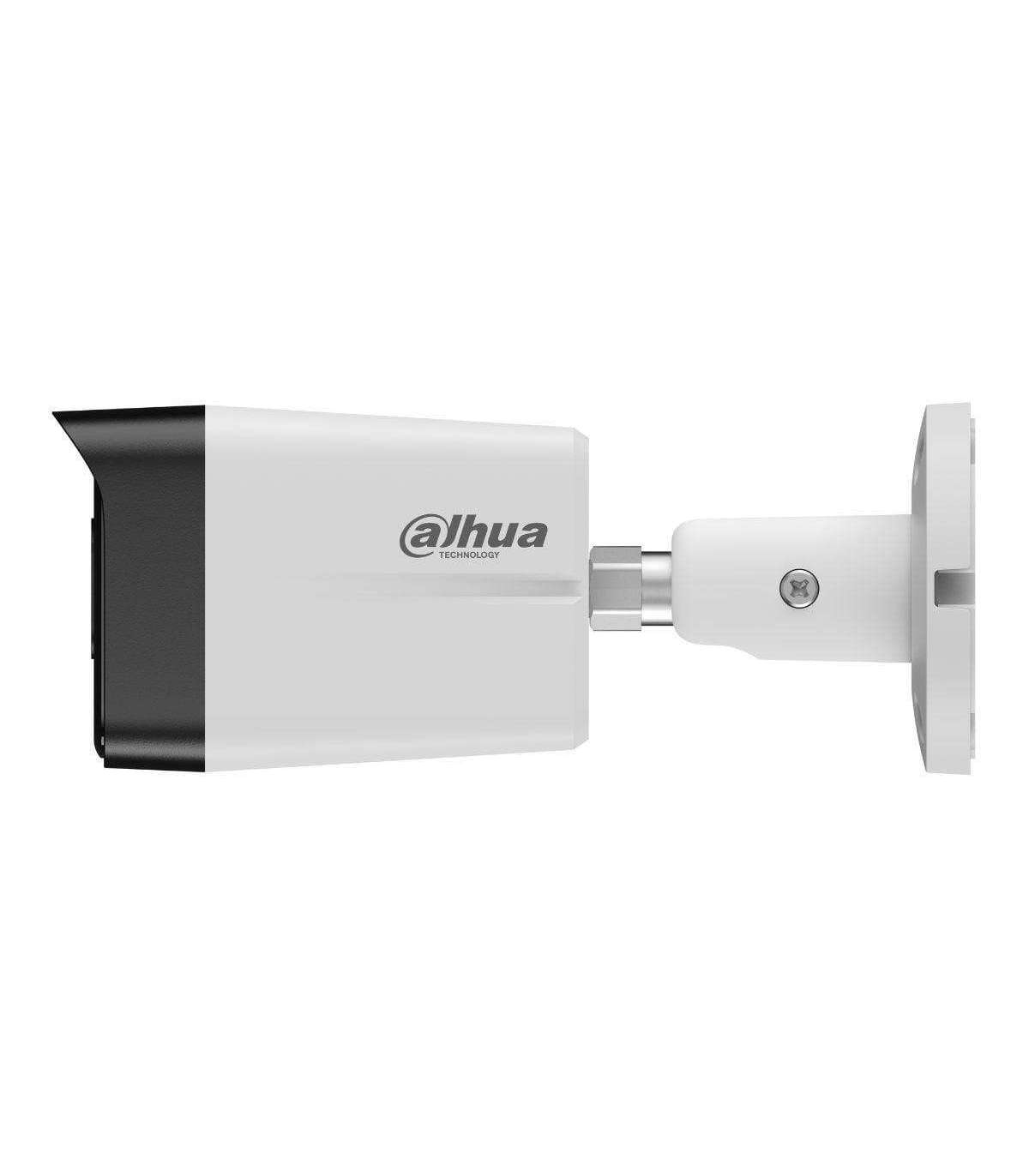

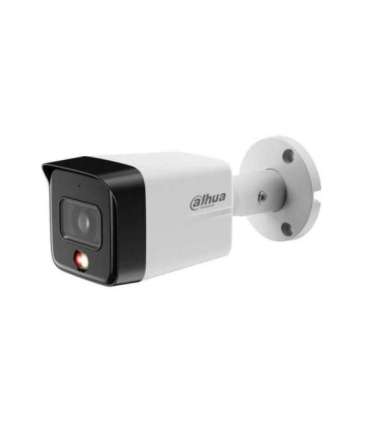

IP Camera DAHUA IPC-HDW1639T-A-IL-0280B-S6 White

Характеристики

Depth

70 mm

Weight

440 g

Height

70 mm

Width

173 mm

Product colour

White

Power source type

DC, PoE

Operating relative humidity (H-H)

0 - 95%

Web-based management

Yes

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Power consumption (typical)

2.9 W

Power consumption (max)

4 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Regulatory Approvals

CE-LVD: EN62368-1; CE-EMC: Dyrektywa Kompatybilności Elektromagnetycznej 2014/30/EU

Form factor

Dome

Built-in microphone

Yes

Sensor type

CMOS

Video compression formats

H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3200 x 1800 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Operating temperature

-40°C ~ +60°C

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2688 x 1520
2880 x 1620
3200 x 1800
3840 x 2160

Placement supported

External / Internal

Mounting type

Ceiling

Signal-to-Noise Ratio (SNR)

56 dB

Viewing angle

110°

Ethernet

One 10/100Mbps RJ45 port

Video motion detection

Yes

Built-in HDD

No

Frame rate

25 / 30 fps

Total megapixels

6 MP

Night vision distance

30 m

LED type

1 IR LED + white light LED

Night vision

Yes

Progressive scan

Yes

Wide Dynamic Range (WDR)

Yes

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D NR

Active tampering alarm

Yes

Web browser

Yes

Observe distance

30 m

Ambient temperature

-40°C ~ +60°C

Audio detection

Yes

Voice codecs

G.711Mu
G.711a
G.726
PCM

RAM

256 MB

ROM

128 MB

Lens

Permanent

Number of Privacy masking areas

4

Adjustment shutter speed

Auto/Manual

Bitrate

H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
