be quiet! System Power 9 500W CM

Характеристики

Depth

140 mm

Weight

1.56 kg

Height

86 mm

Width

150 mm

Package weight

2.22 kg

Product colour

Black

Cables included

PCIe, SATA

Package width

97 mm

Package depth

268 mm

Package height

195 mm

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Warnings

Do not open the case - risk of electric shock.

Sustainability certificates

ENERGY STAR

Manual

Yes

Certification

CE, CB, TÜV, RCM, CU

AC input frequency

50 Hz

AC input voltage

200 - 240 V

Input current

4 A

Package type

Box

Master (outer) case height

556 mm

Master (outer) case width

311 mm

Master (outer) case length

215 mm

Master (outer) case gross weight

14 kg

Products per master (outer) case

6 pc(s)

Cooling type

Active

Screws included

Yes

Efficiency

89%

Purpose

PC

Number of fans

1 fan(s)

Compatible products

Intel C6/C7

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

500 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

Sleeve

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

15 A

Max output current (+3.3V)

24 A

Combined power (+5V)

110 W

Hold time

17 ms

Combined power (+12V)

456 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.51

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

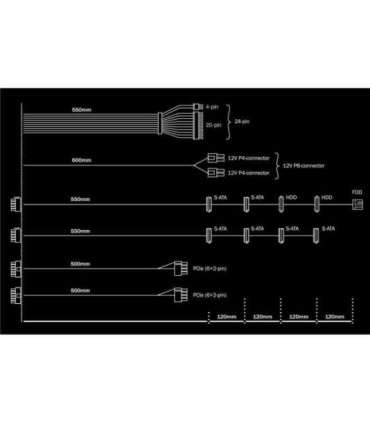

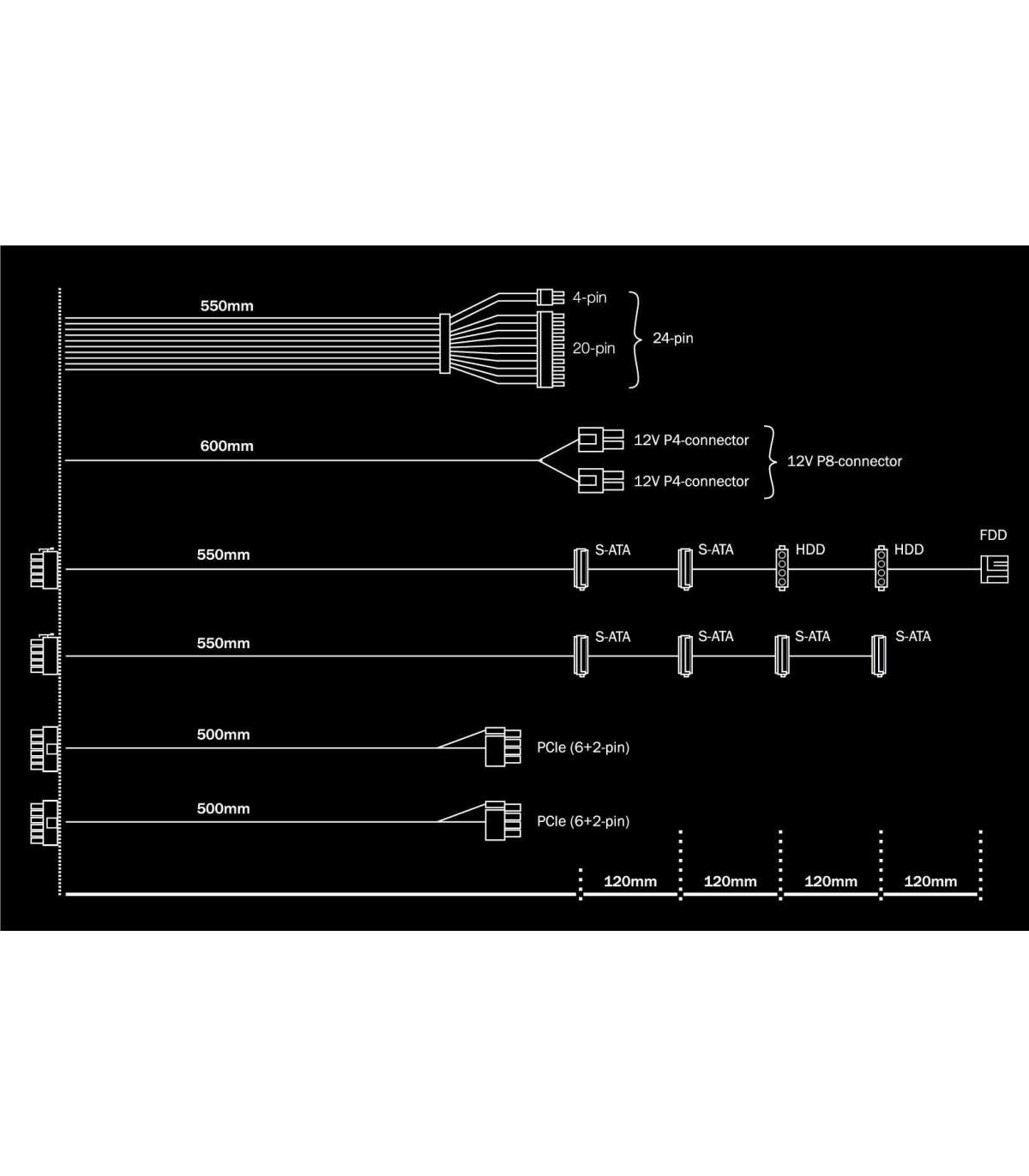

SATA power cable length

550
670

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Semi-Modular

Motherboard power cable length

55 cm

PCI Express power cable length

50 cm

Power factor

0.95

Floppy drive power connector

1

Number of PATA power connectors

2

Max output current (+12V2)

20 A

Max output current (+12V1)

24 A

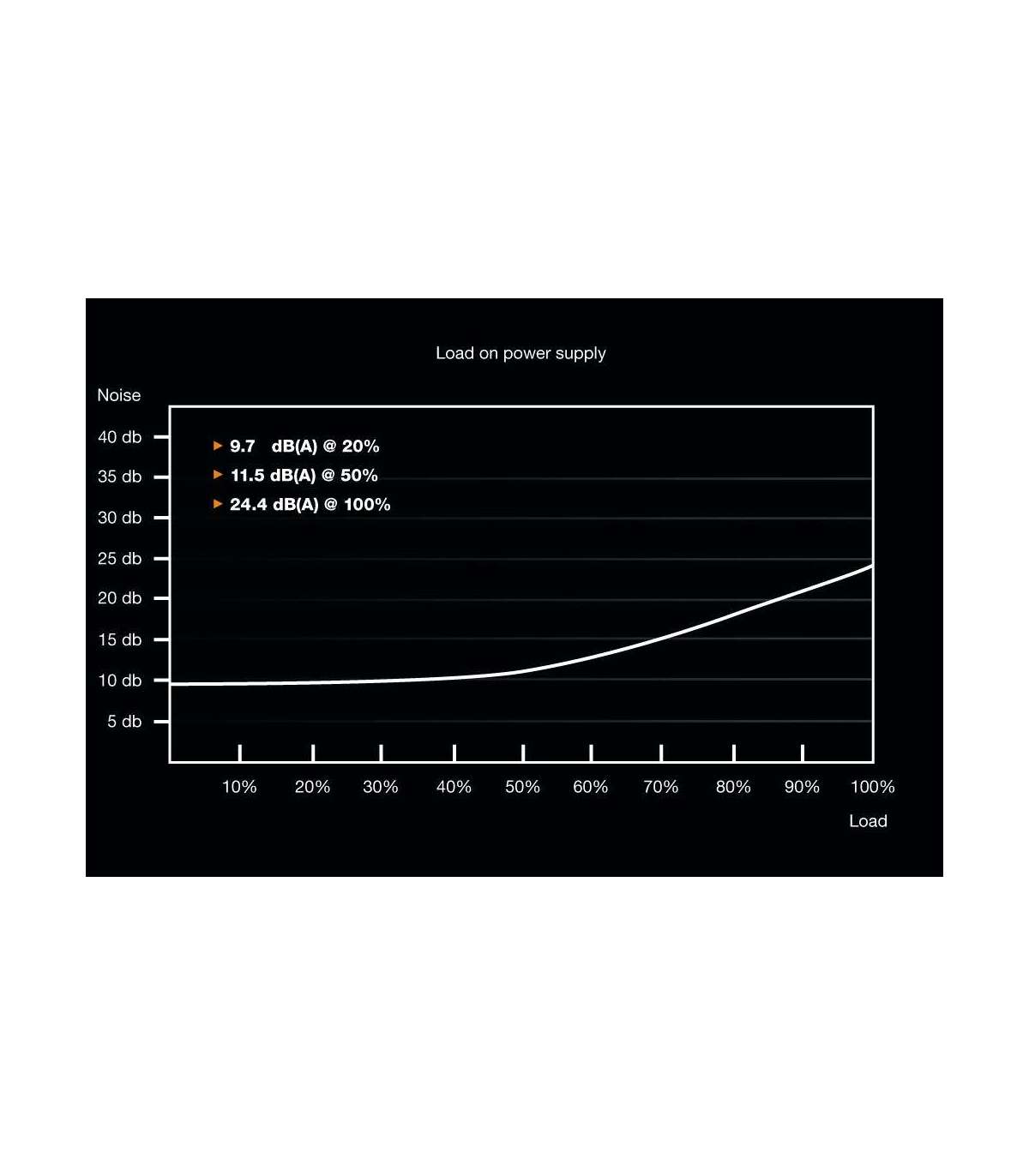

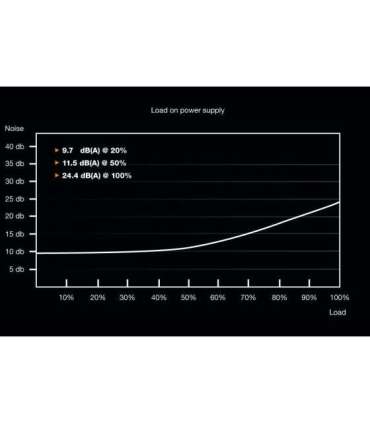

Noise level (full-load mode, 100%)

24.4 dB

Noise level (quiet mode, 50%)

11.5 dB
