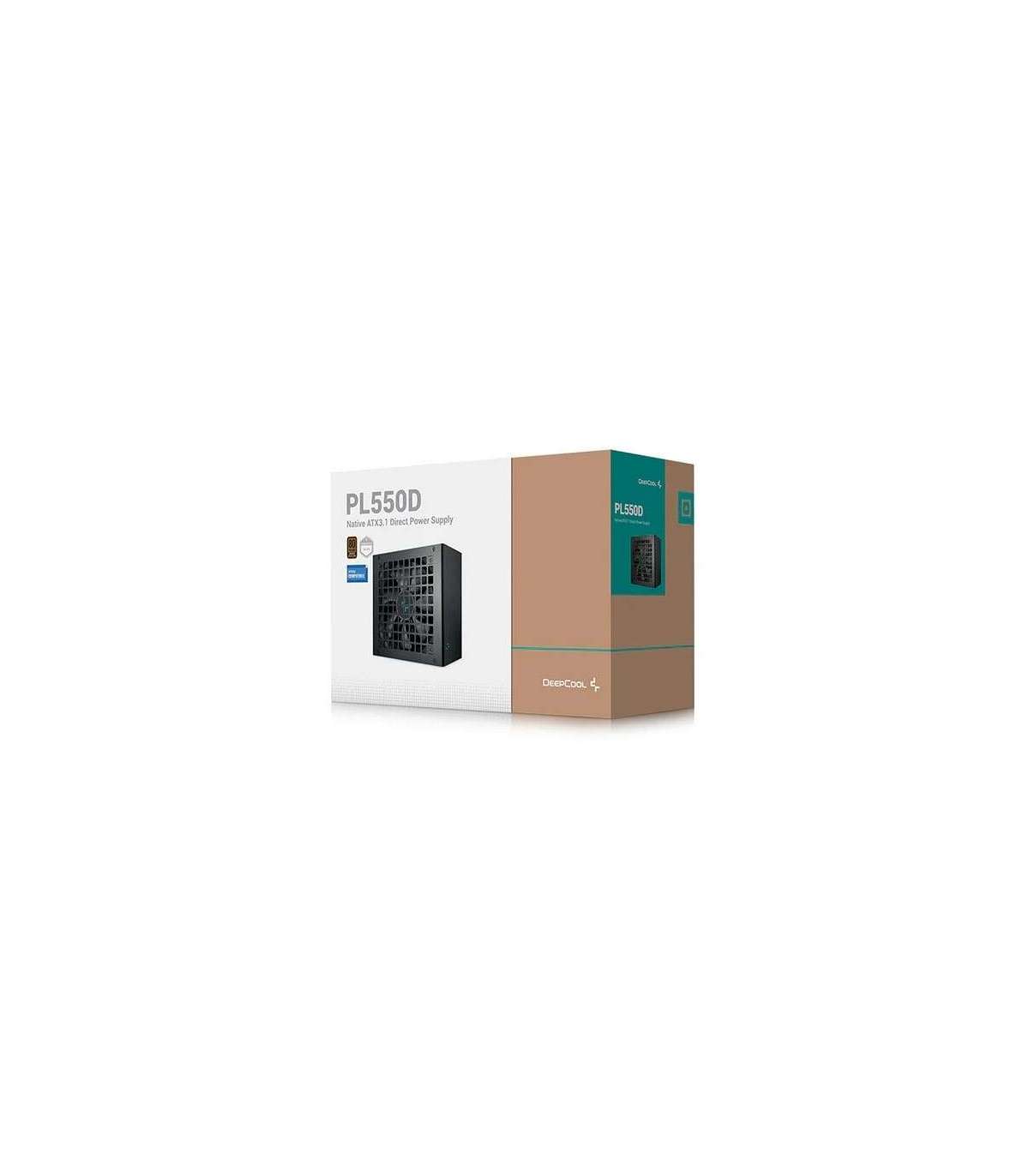

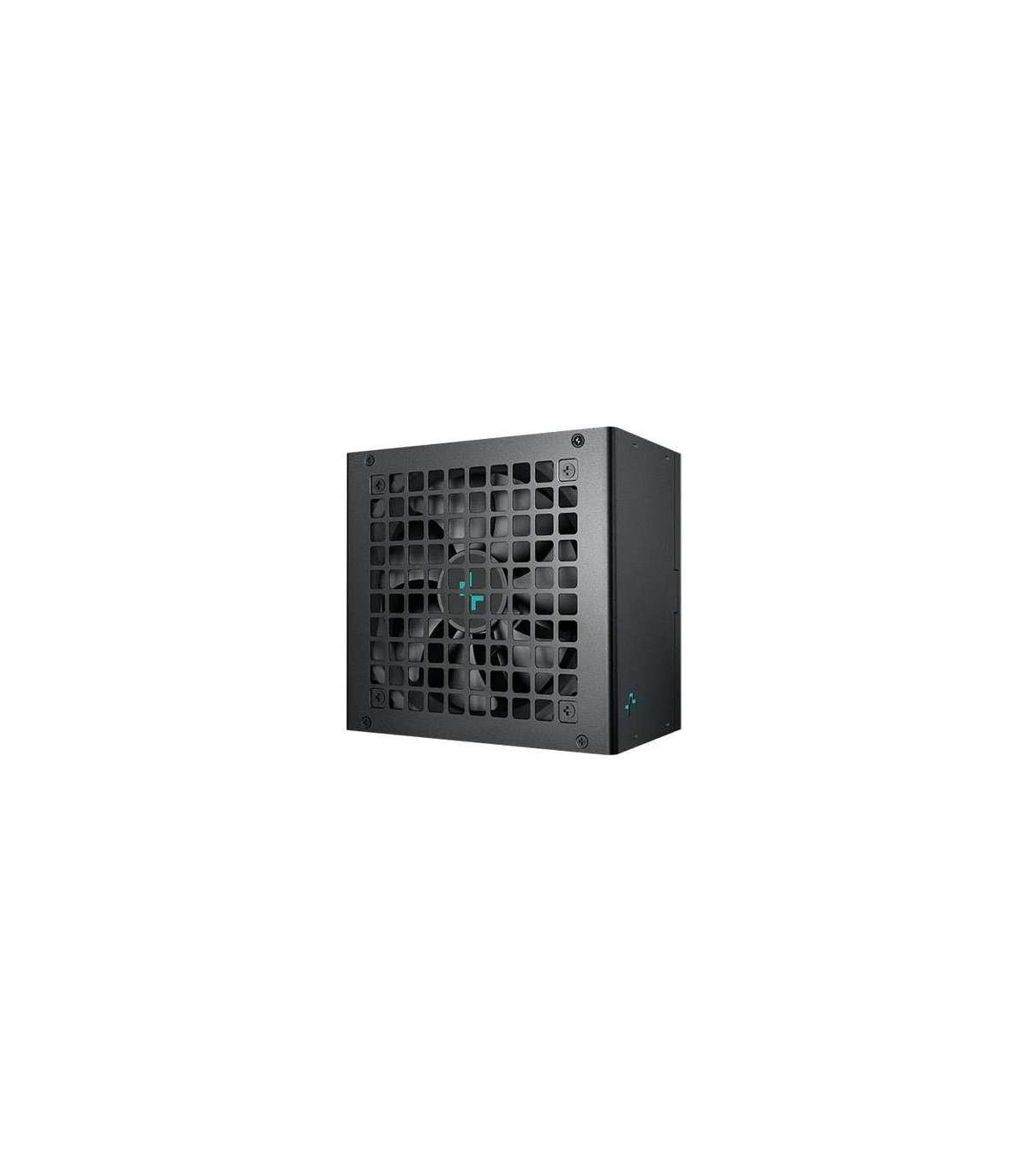

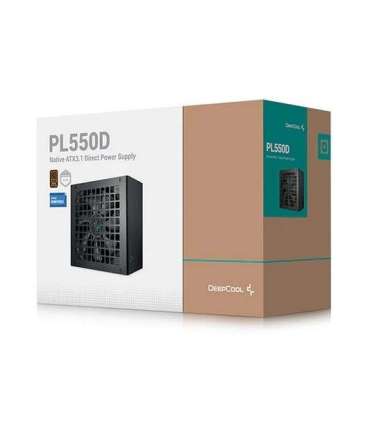

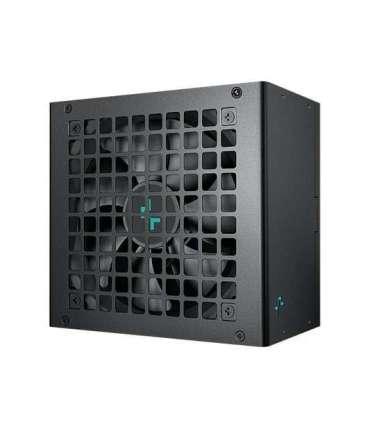

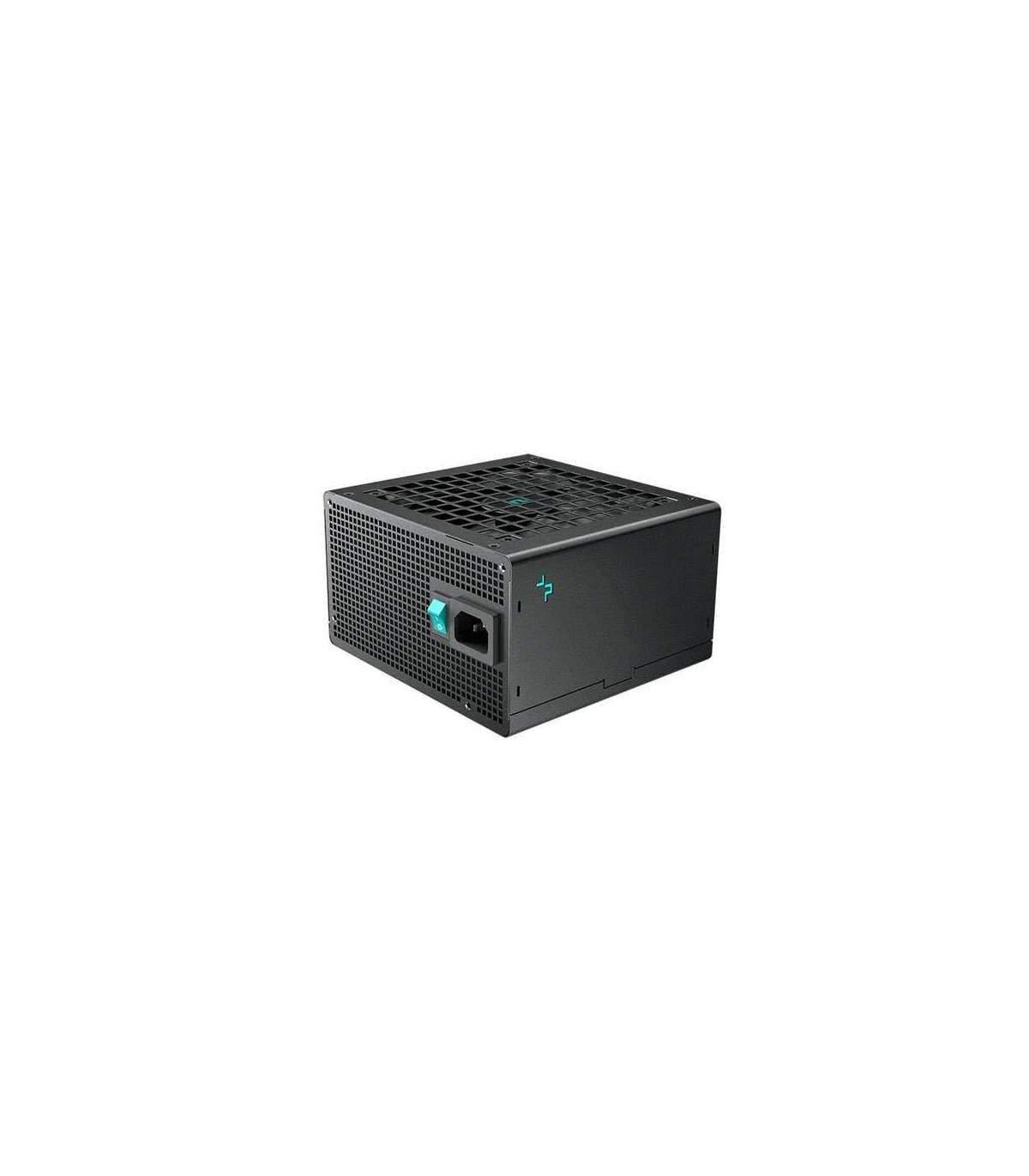

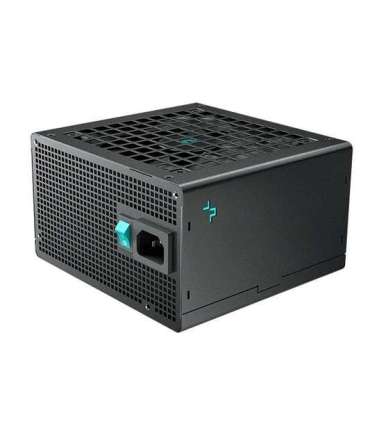

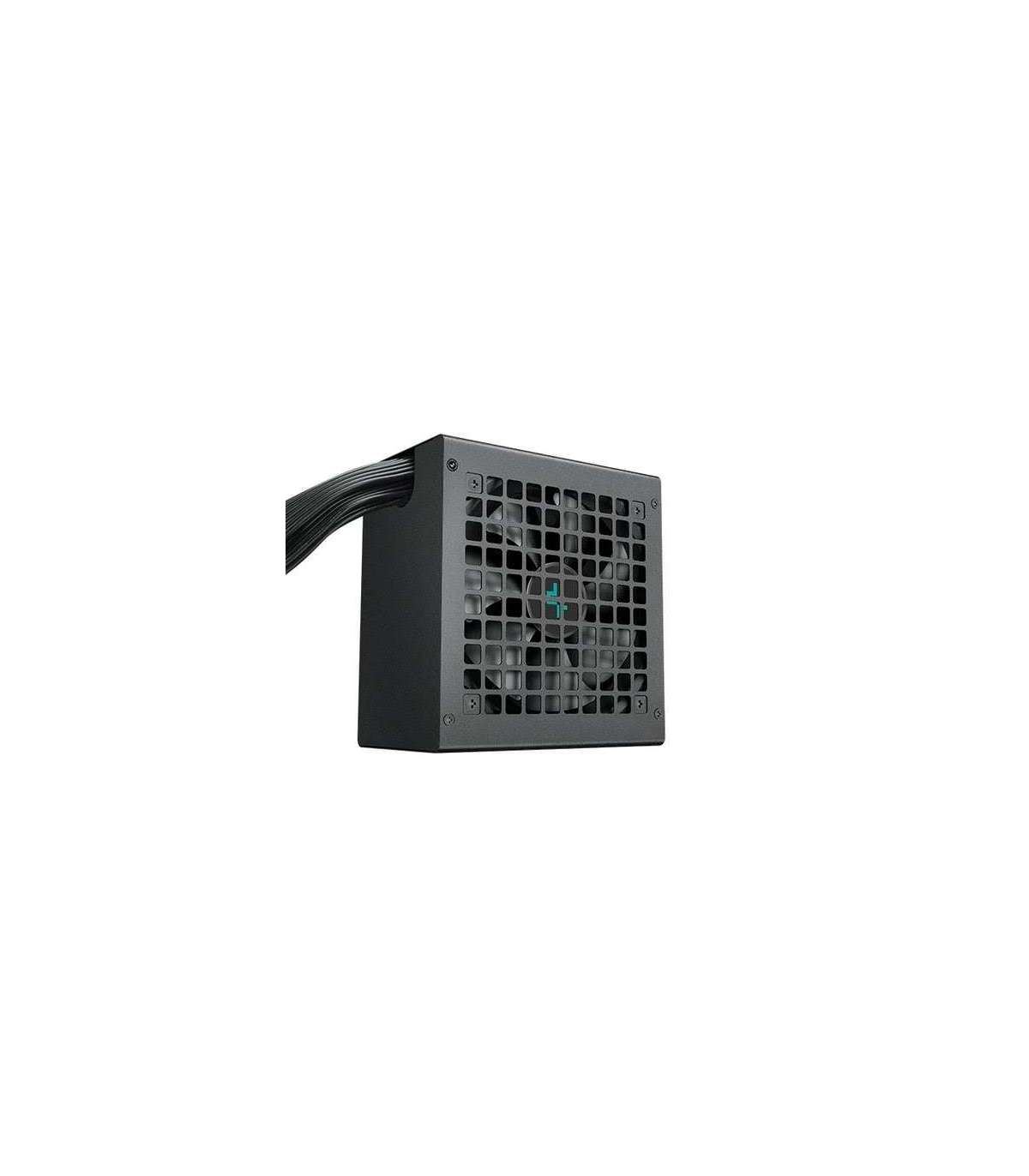

DeepCool PL-550-D power supply

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

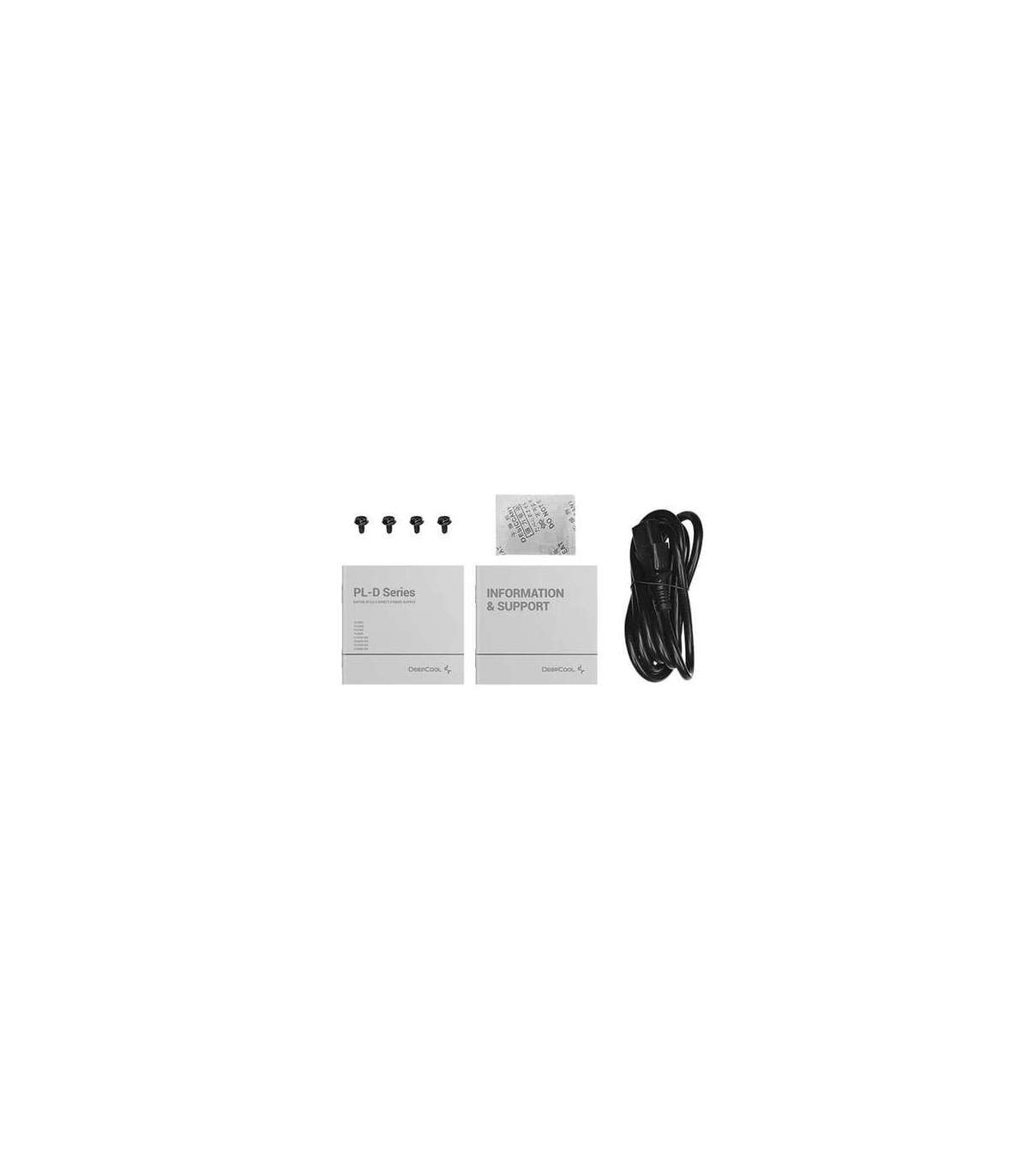

Cables included

AC

Warnings

Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Efficiency

85 %

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

550 W

Power protection features

NLO
OCP (overcurrent protection)
OPP (overload protection)
OTP (overheat protection)
OVP (overvoltage protection)
SCP (short circuit protection)
SIP (surge and shock protection)
UVP (undervoltage protection)

ATX version

3.0

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

CPU power connectors 4+4 (8-pin)

2

Power supply connectors

EPS12V

Number of power connectors 12VHPWR (12V - 2x6 pin)

1
