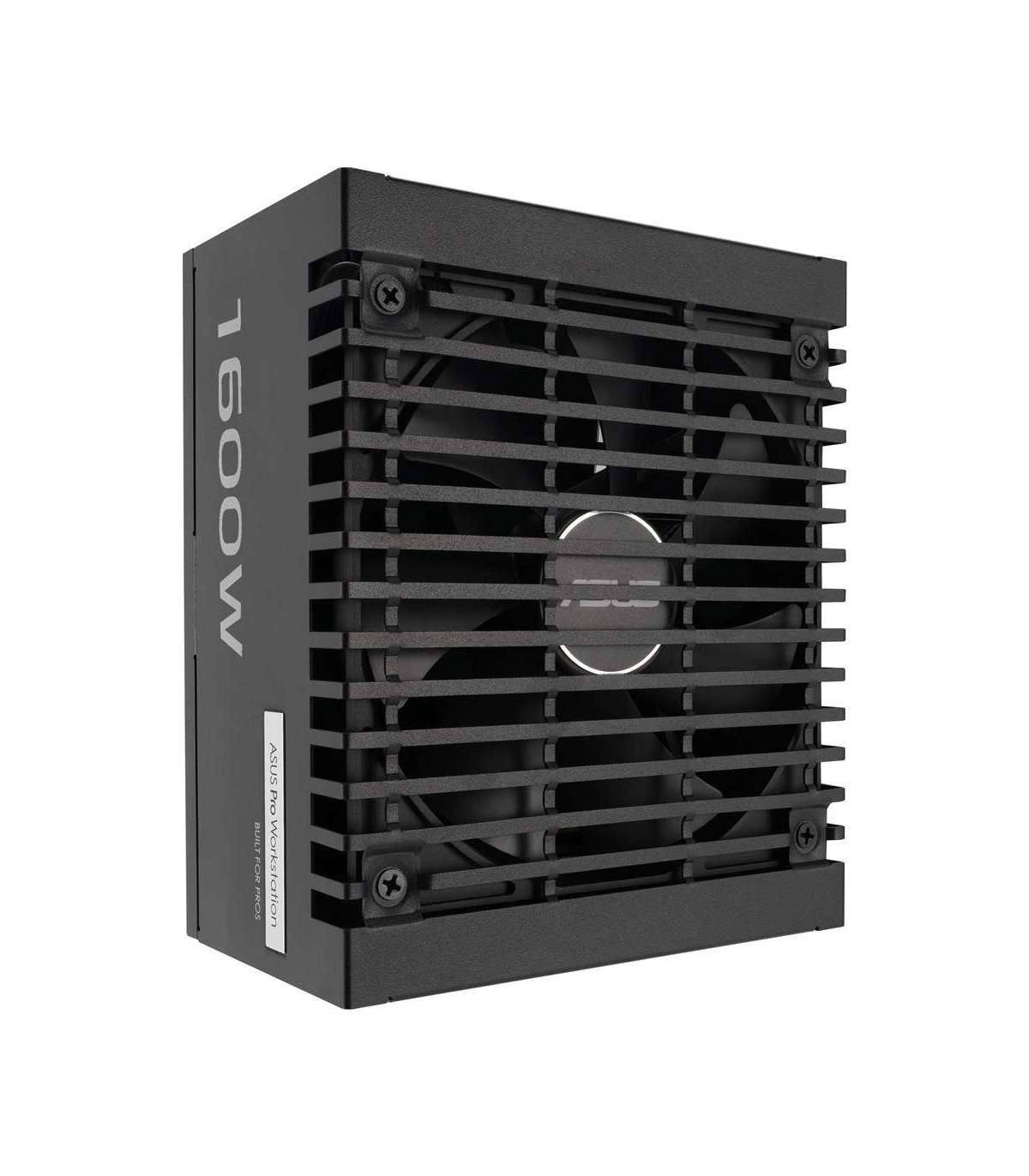

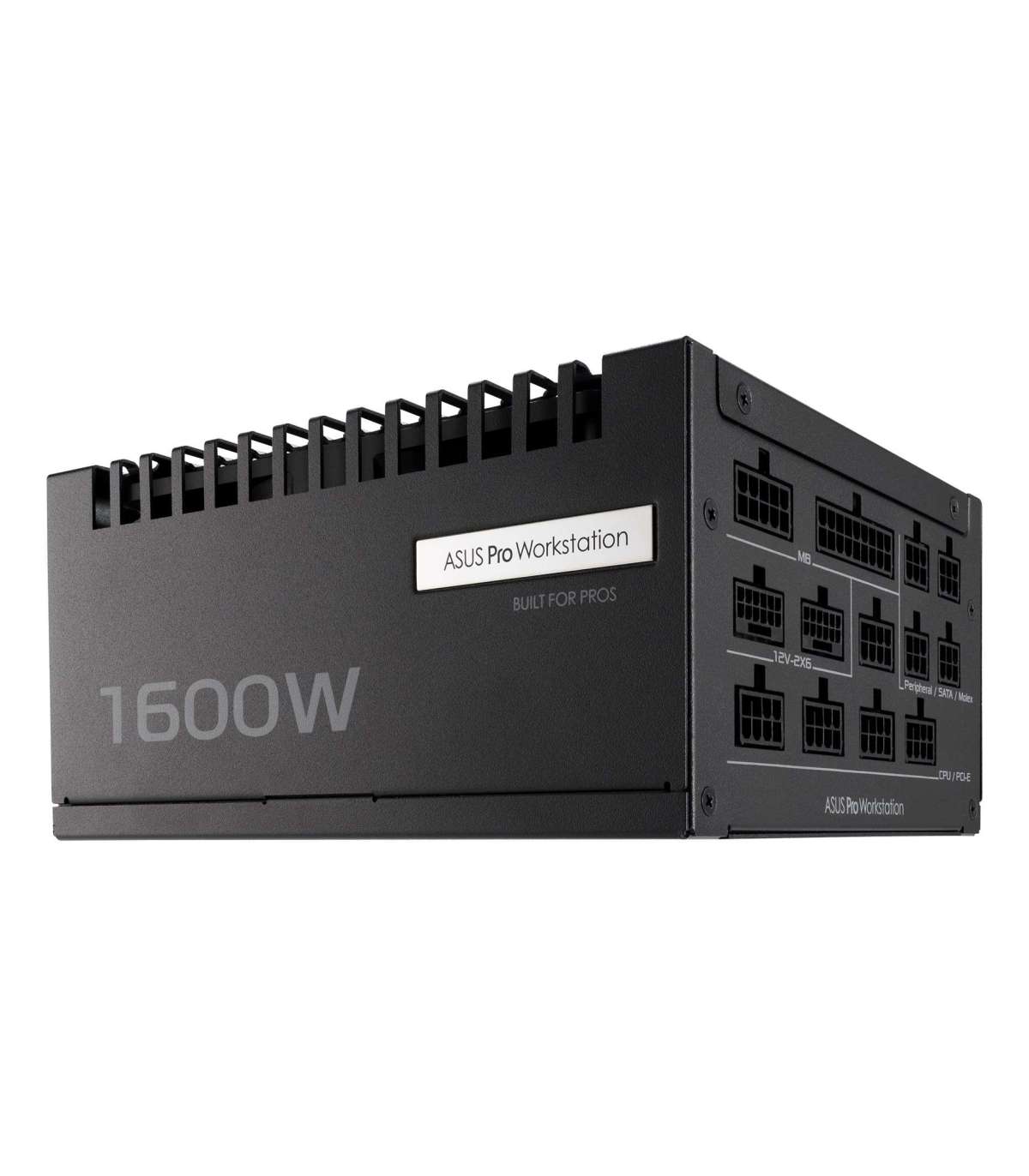

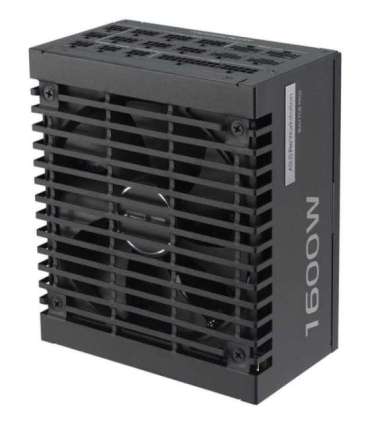

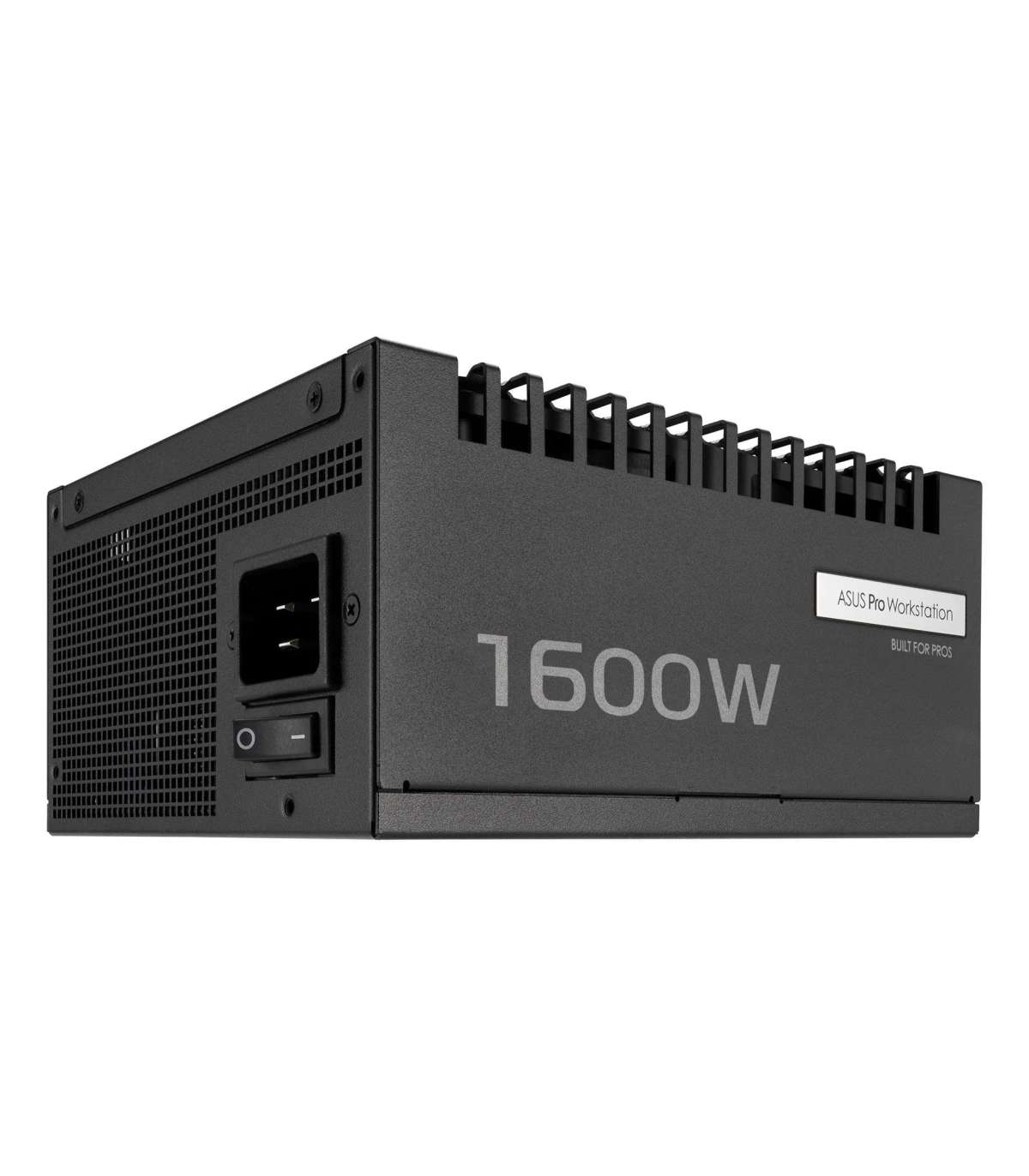

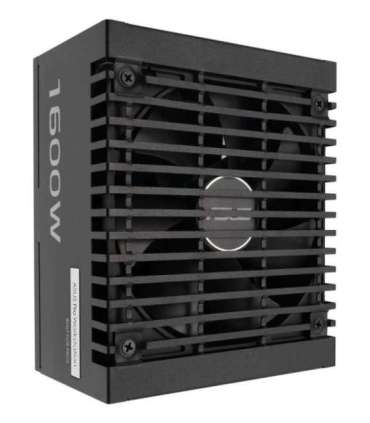

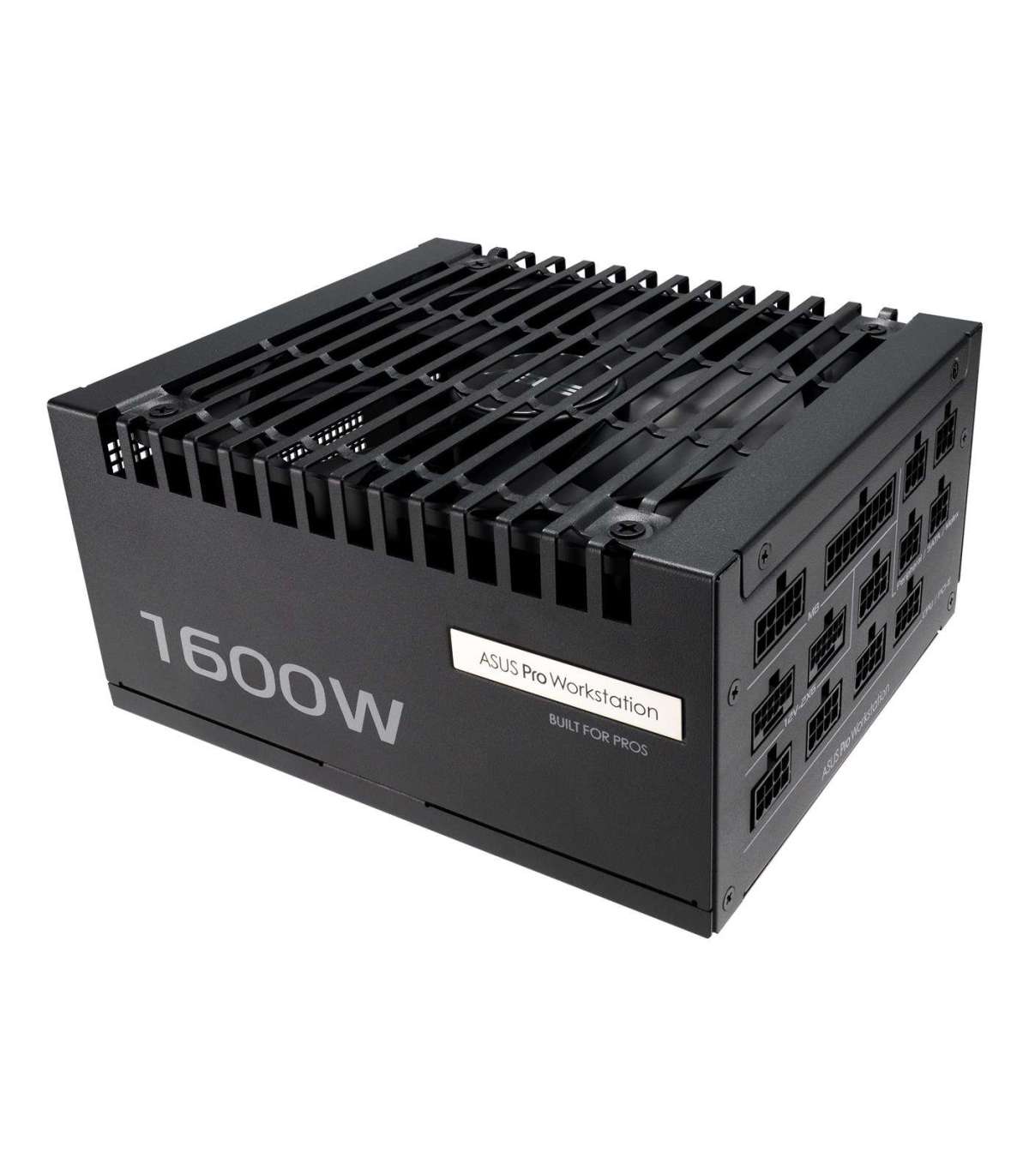

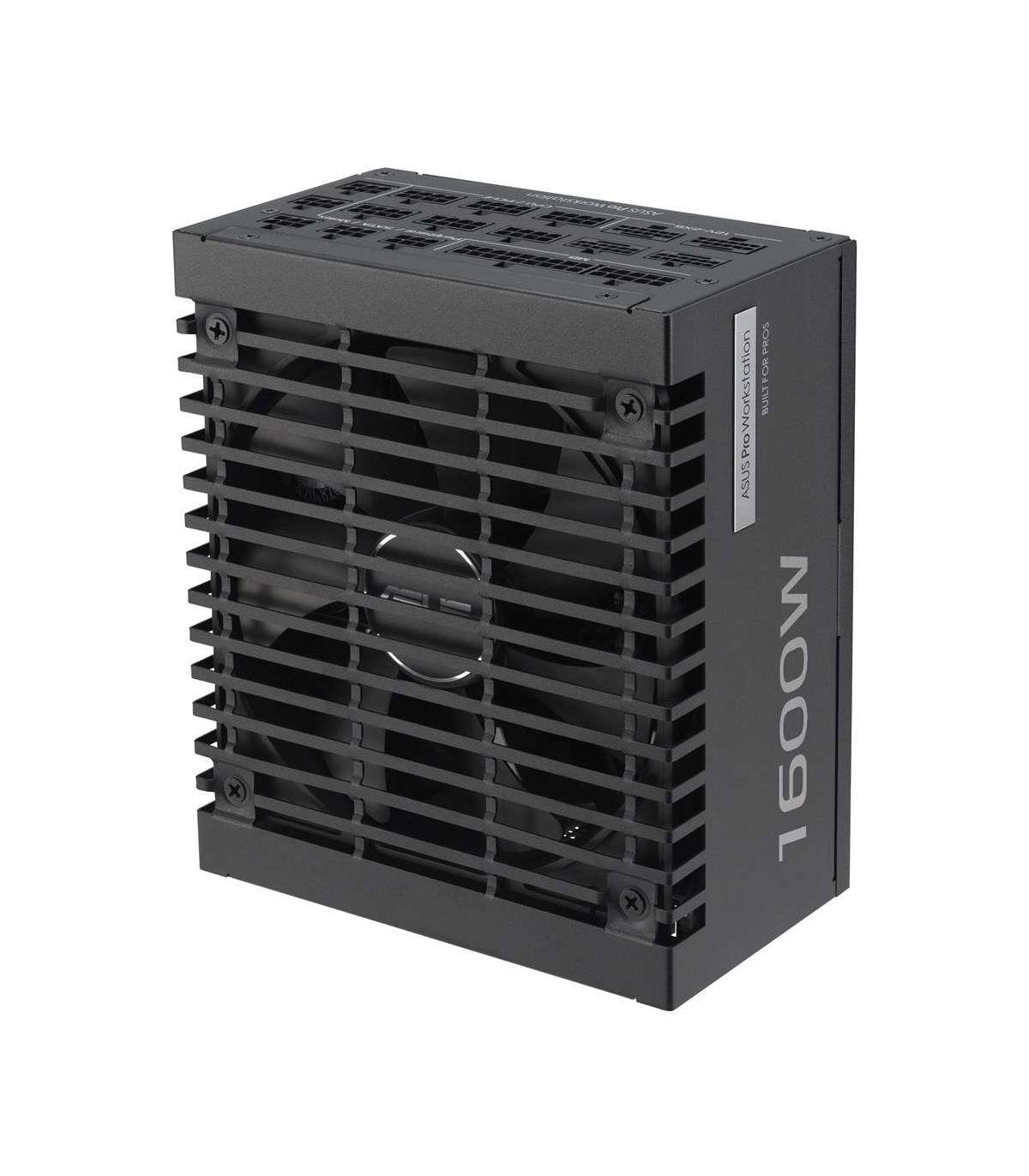

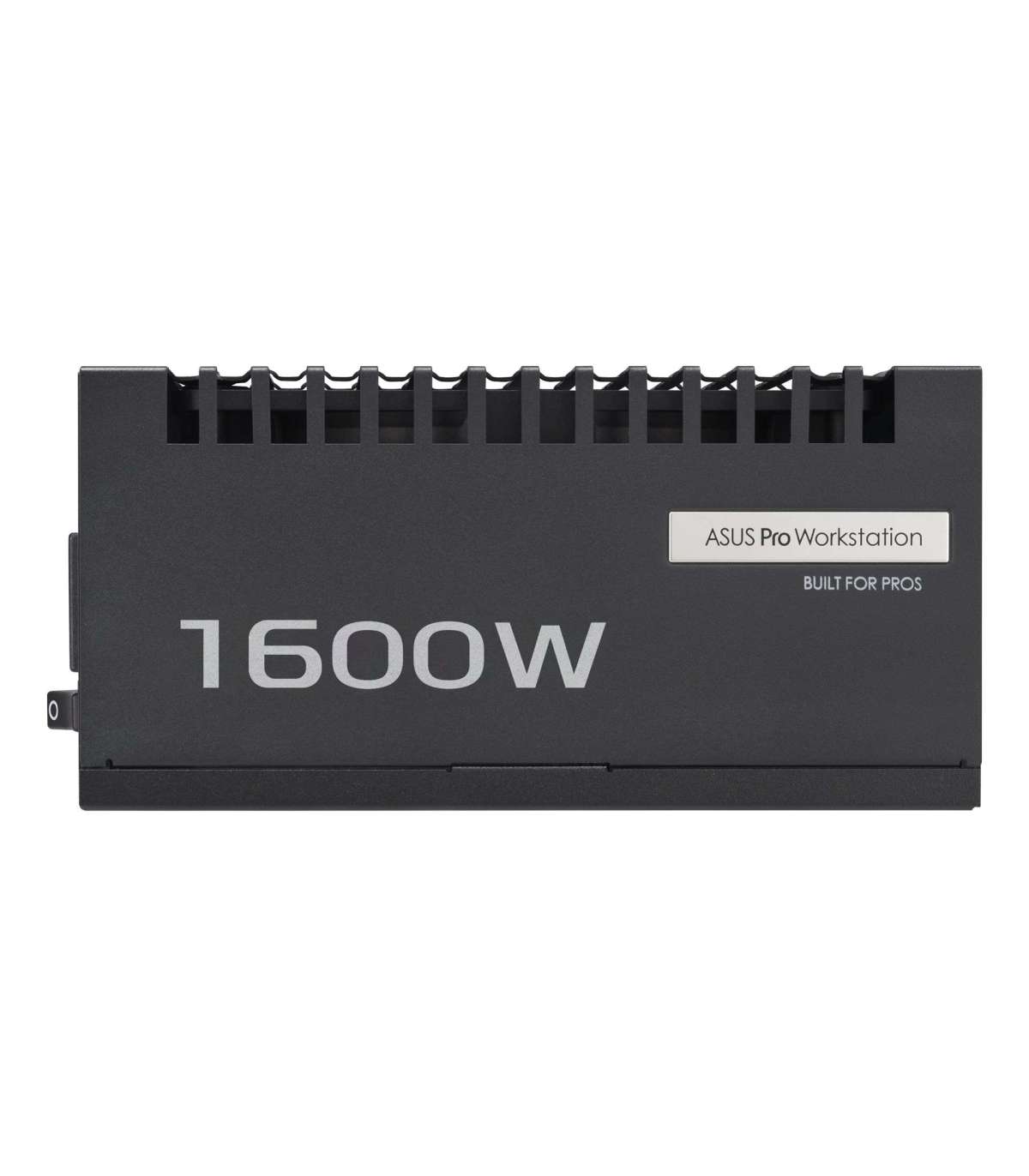

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

Характеристики

Depth

175 mm

Weight

2 kg

Height

86 mm

Width

150 mm

Package weight

4.4 kg

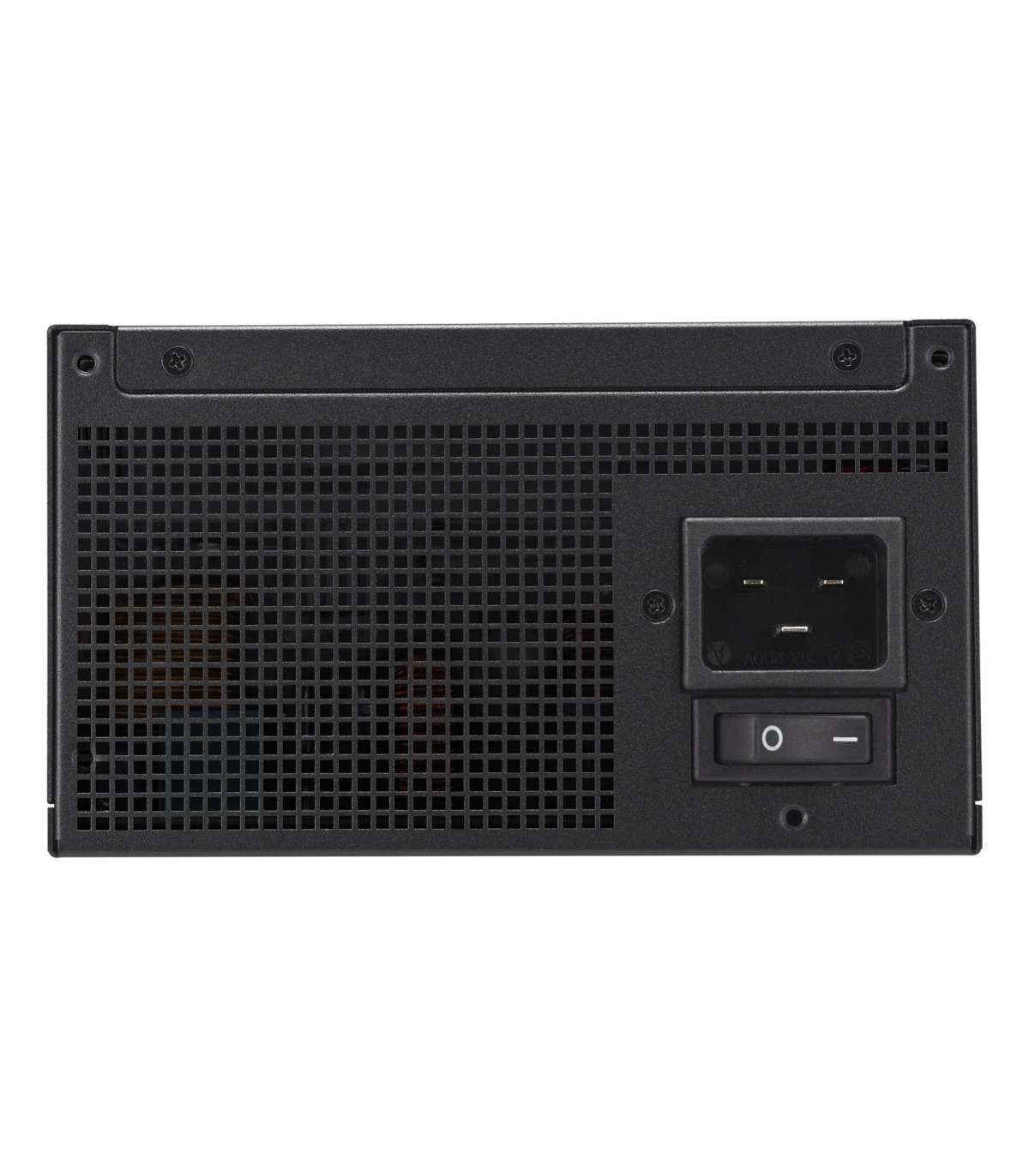

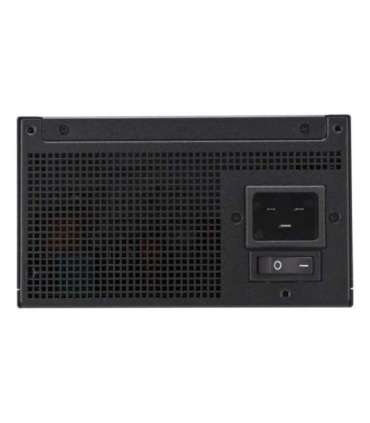

On/off switch

Yes

Product colour

Black

Package width

346 mm

Package depth

208 mm

Package height

144 mm

Compliance certificates

RoHS

AC input voltage

200 - 240 V

Package type

Box

Warranty period

10 year(s)

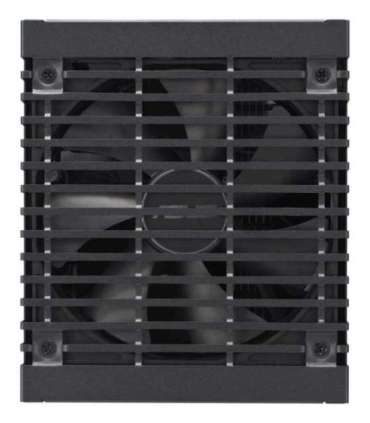

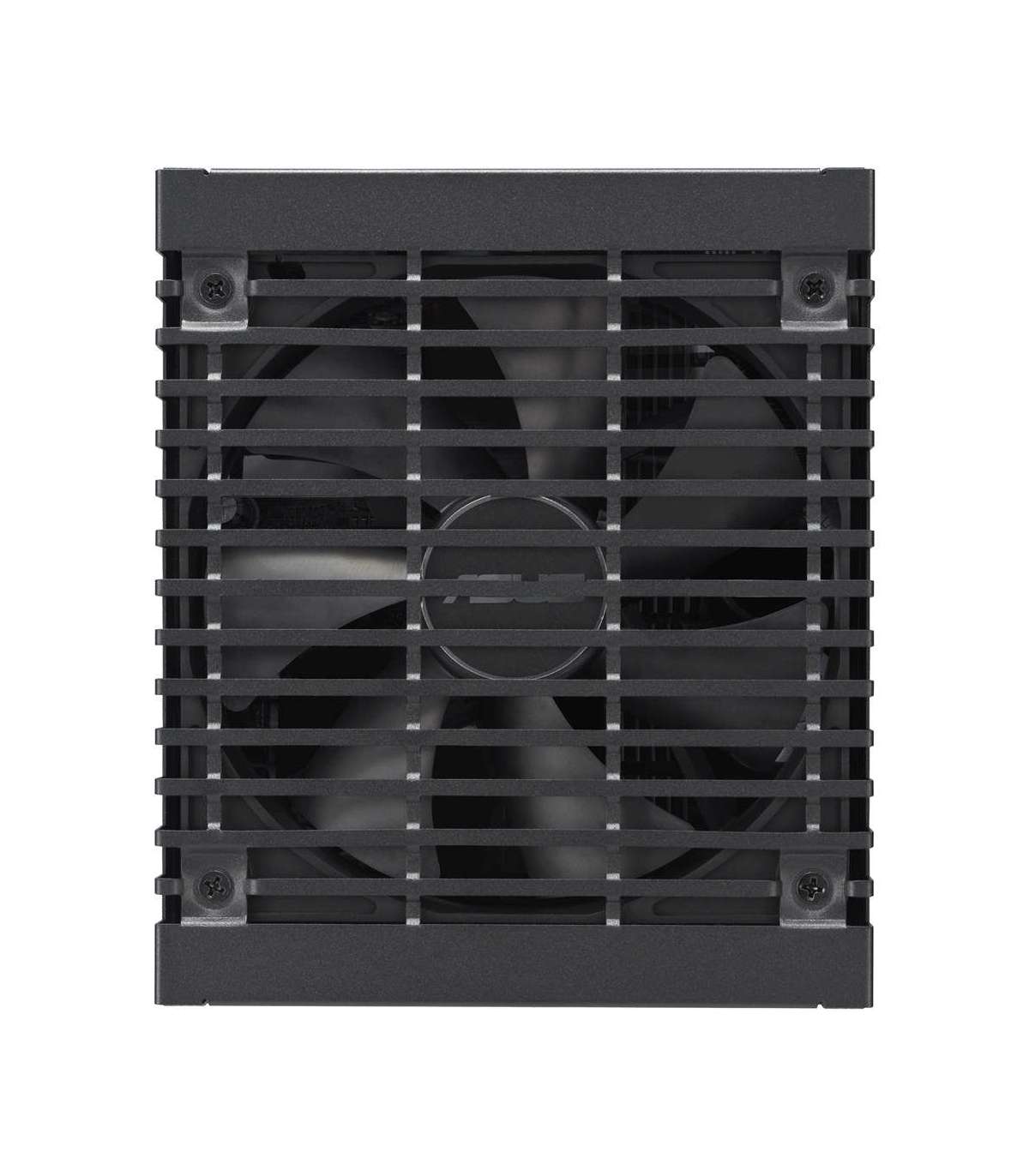

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Efficiency

92%

Purpose

PC

80 PLUS certification

80 PLUS Platinum

Total power

1600 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

Ball bearing

Power Factor Correction (PFC) type

Active

Combined power (-12V)

9.6 W

Max output current (+12V)

133.3 A

Combined power (+3.3V)

130 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

25 A

Max output current (+3.3V)

25 A

Combined power (+5V)

130 W

Combined power (+12V)

1600 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.8 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

9

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

120
400 mm

Peripheral (Molex) power cable length

150
400 mm

CPU power cable length

100 cm

CPU power connector (4+4 pin)

Yes

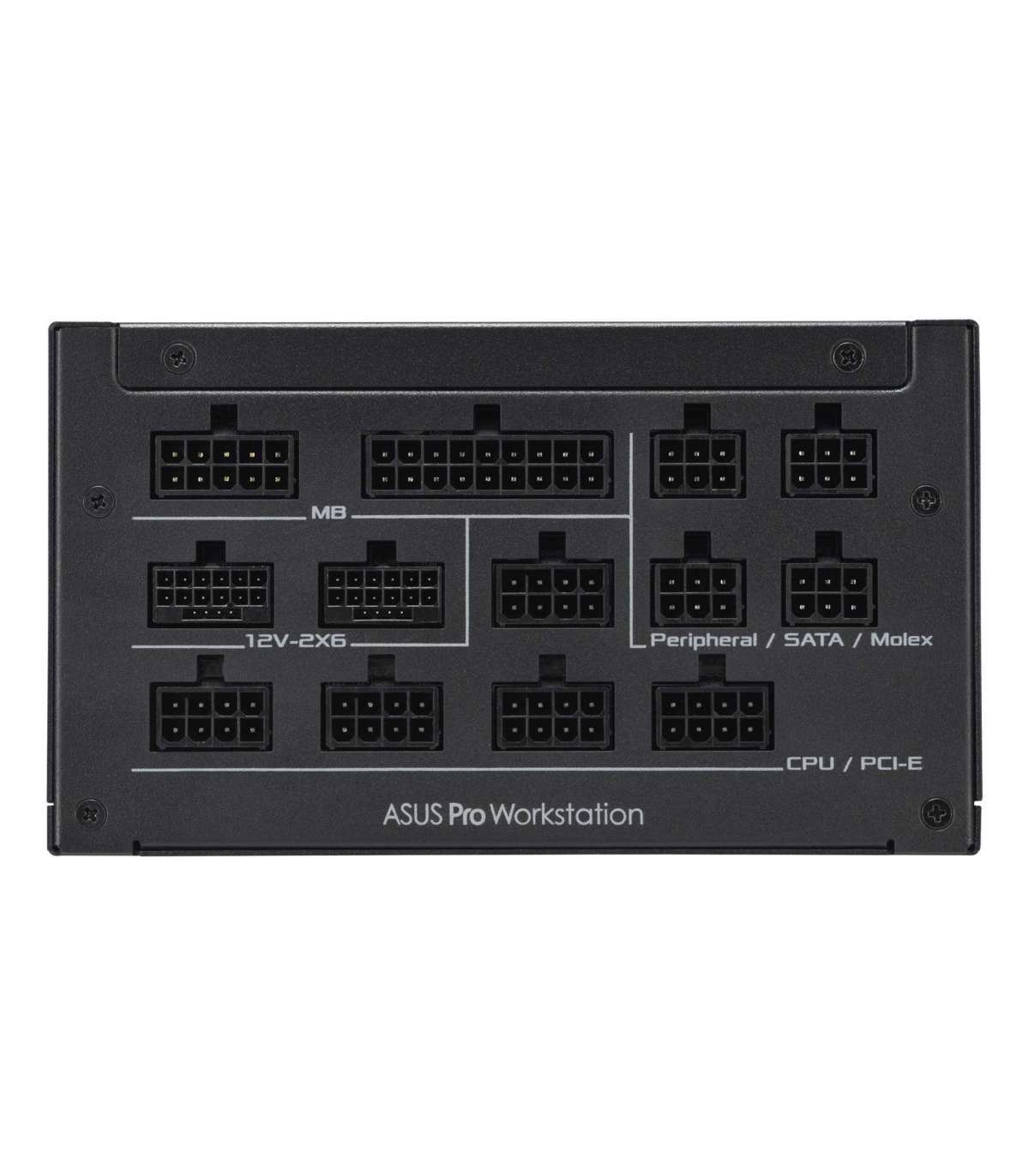

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

61 cm

PCI Express power connectors (16-pin)

2

PCI Express power cable length

75 cm
