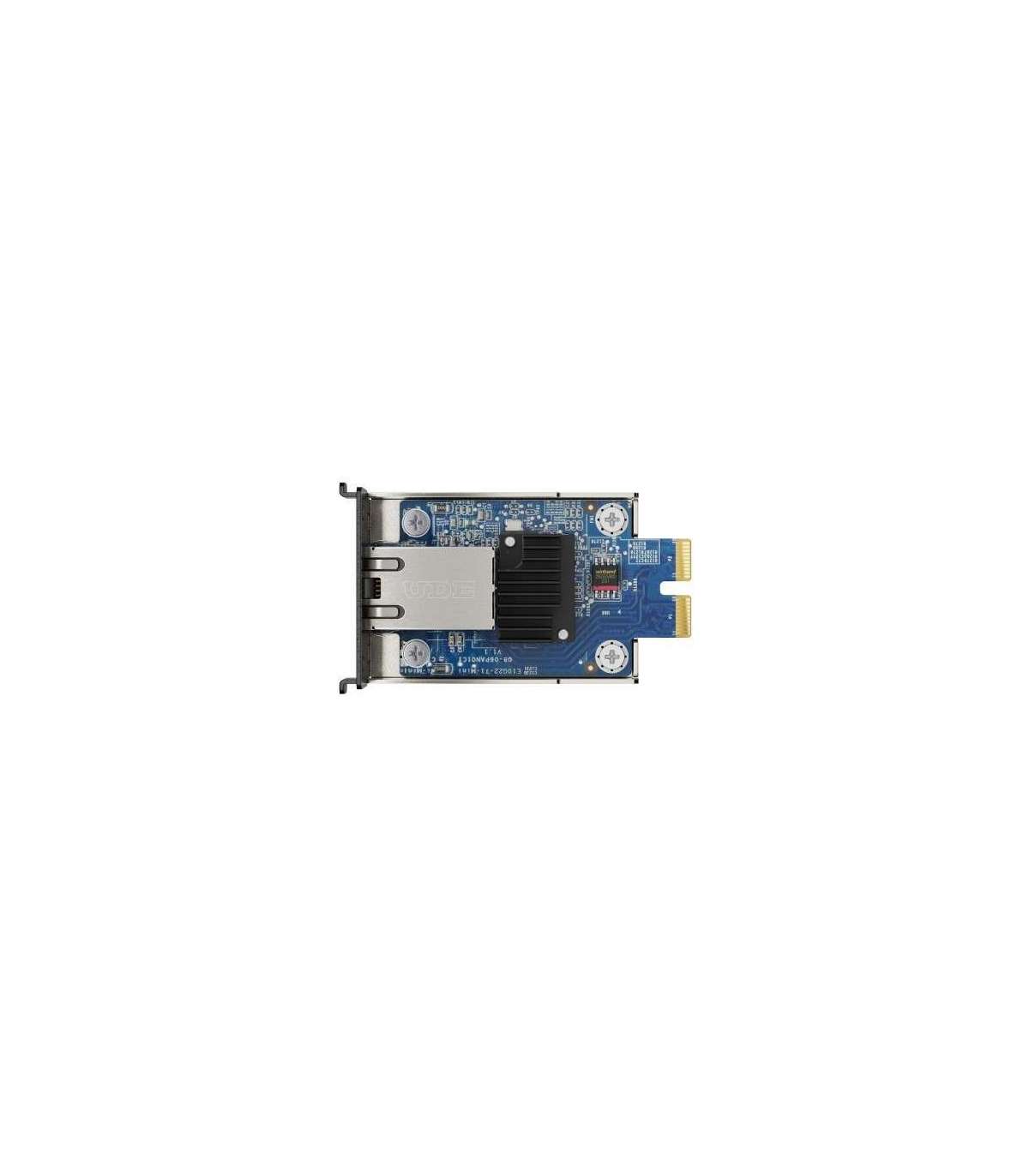

Network expansion module E10G22-T1-Mini 10GbE RJ45

Description:

E10G22-T1-Mini 10GbE RJ4 expansion card

Improved connectivity for bandwidth intensive applications

The E10G22-T1-Mini network expansion module adds 10GbE RJ-45 connectivity to compatible Synology systems, allowing small businesses and home users to maximise the efficiency potential of their deployments with high bandwidth networking.

A cost-effective and compact solution for bandwidth expansion

The E10G22-T1-Mini's compact form factor instantly increases the bandwidth availability of Synology servers, eliminating bandwidth constraints on the network with simple installation and low deployment cost. The E10G22-T1-Mini is also compatible with 5/2.5/1 Gbps networks and can be easily integrated with any RJ-45 device.

High throughput

Enhances system capabilities with 10GbE connectivity for higher resolution video editing, simultaneous backup and more.

Flexible integration

Supports 10/5/2.5/1GbE connections that work with almost any RJ-45 network environment.

For Synology, from Synology

Designed to ensure maximum performance and reliability for Synology systems.

Compatible with:

Seria 22: RS422+, DS1522+

Dimensions:

26,37 × 45,38 × 75,7 mm

Other features:

• Support for 9 KB jumbo frames
• TCP/UDP/IP checksum portability
• Automatic negotiation between 10/5/2.5/1 Gb/s and 100 Mb/s
• High data rate offload (LSO)
• Receive-side scaling (RSS)
• General receiving offload (GRO)
• General segmentation offload (GSO)
• TCP segmentation offload (TSO)
