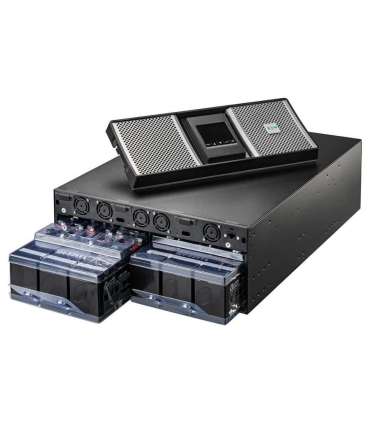

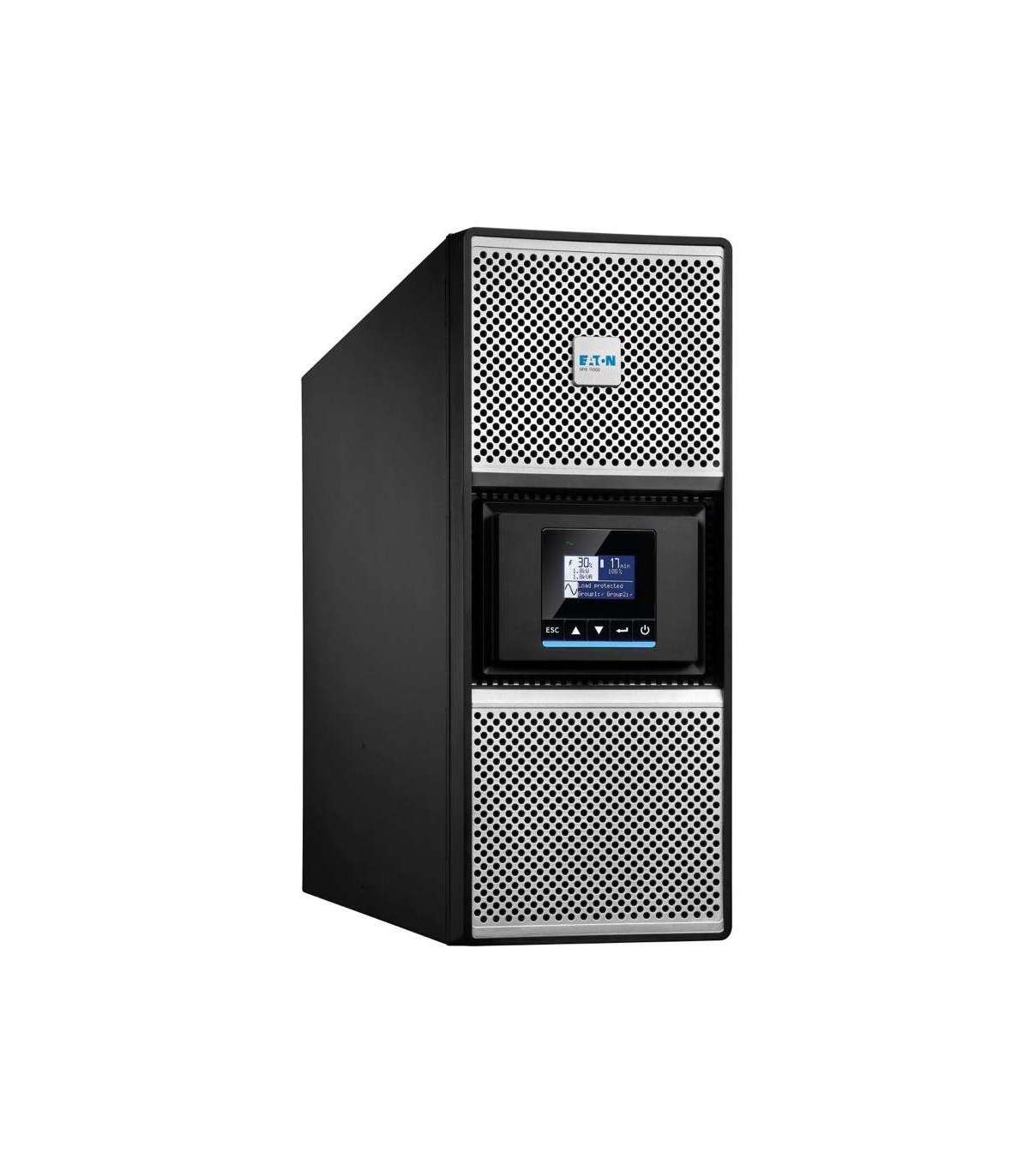

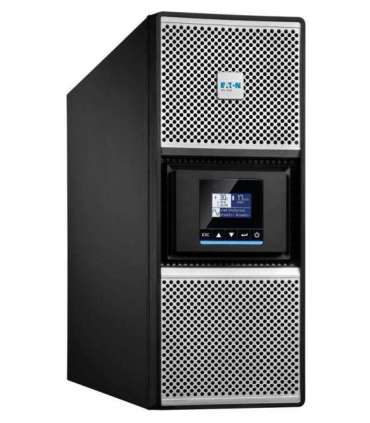

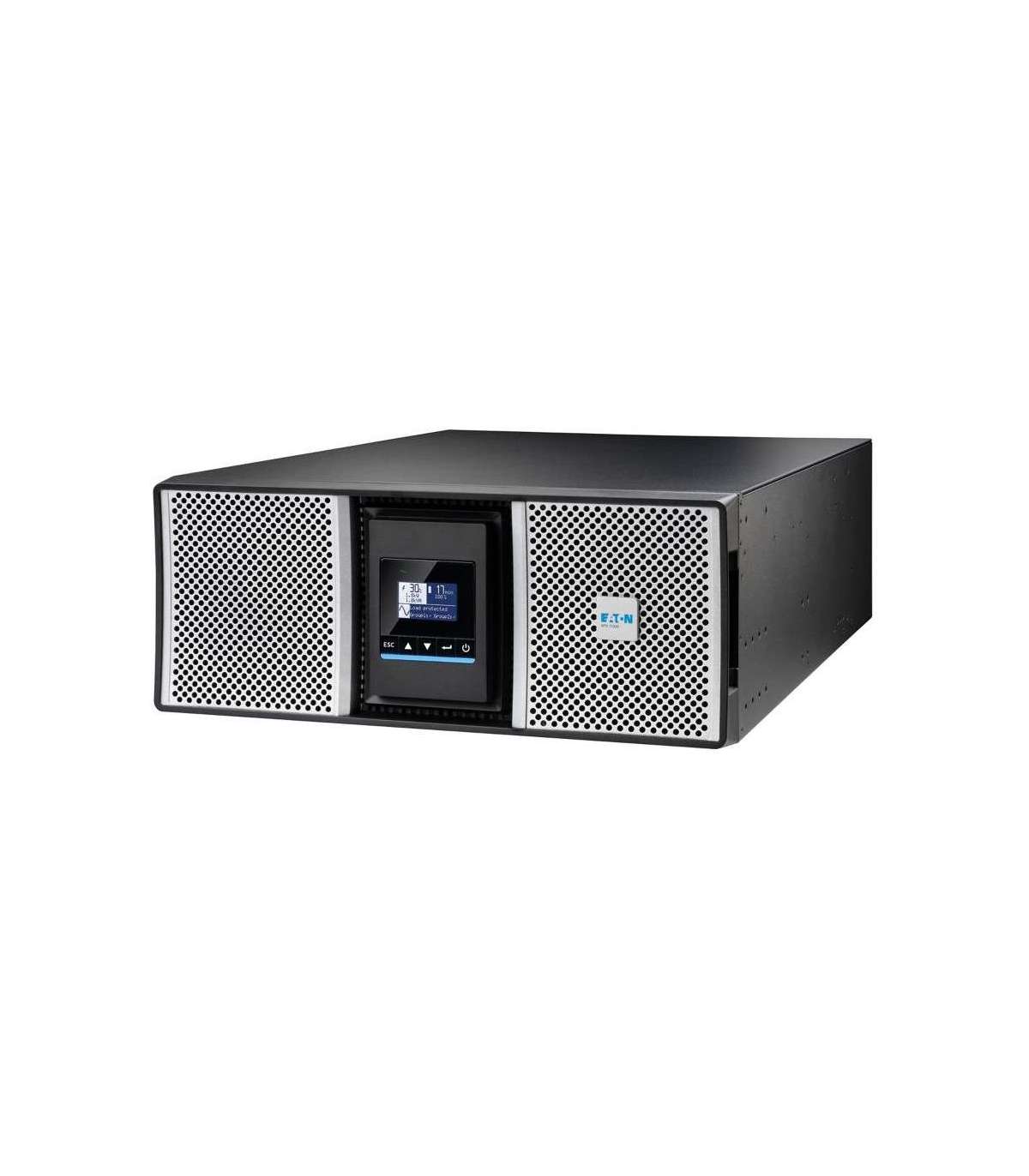

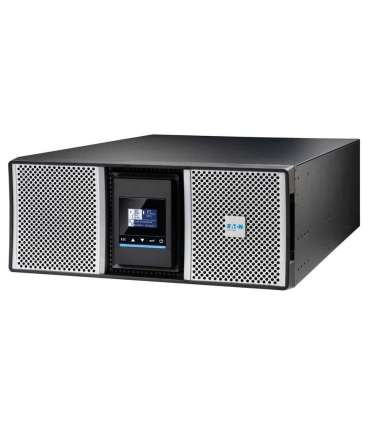

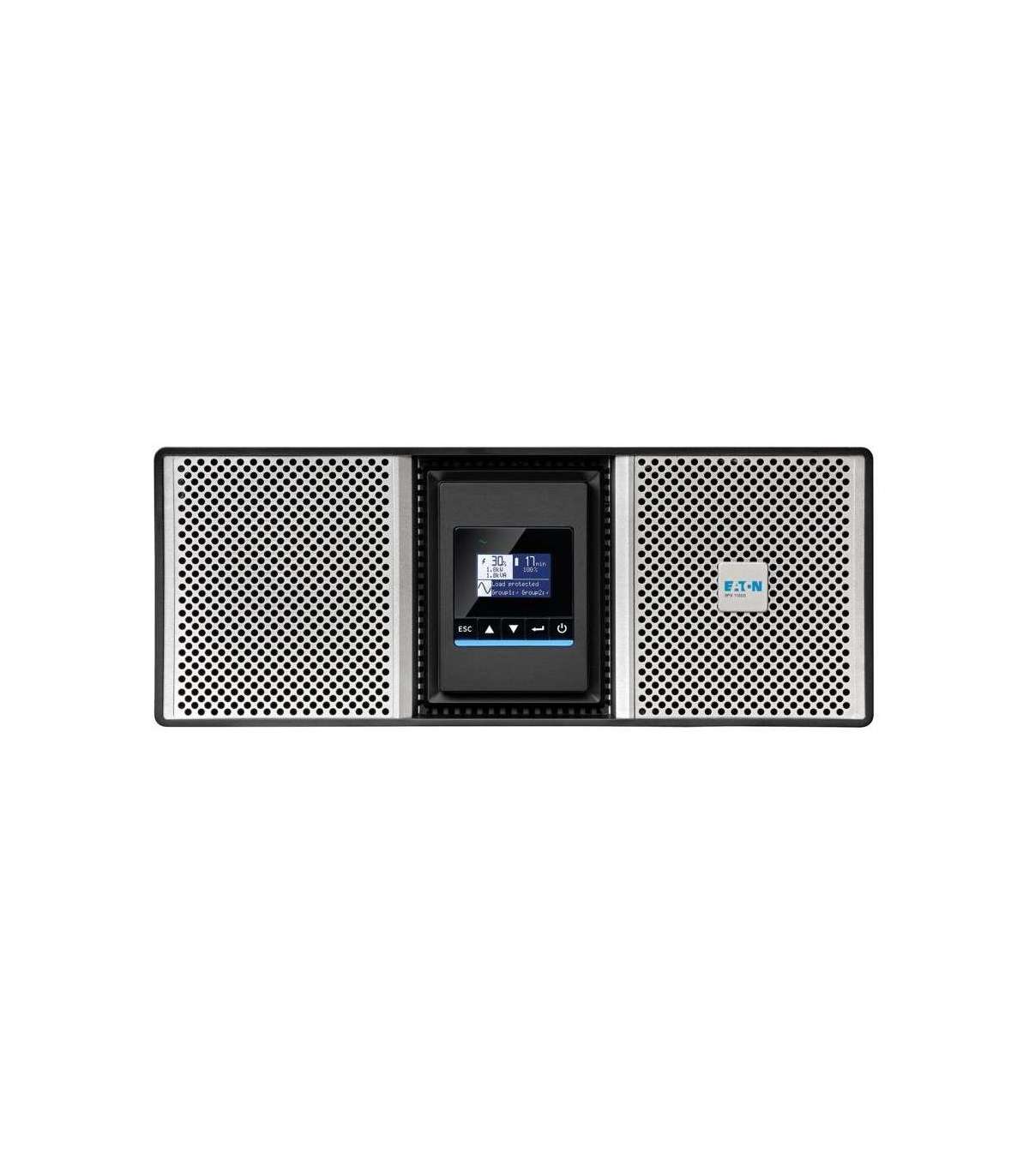

Eaton 9PX11KIRTNG2 uninterruptible power supply (UPS) Double-conversion (Online) 11 kVA 11000 W

Lisainfo

Depth

724 mm

Kaal

78.8 kg

Kõrgus

174 mm

Laius

440 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

USB cable

Quick installation guide

Yes

LED indicators

Yes

Compliance certificates

CE
UKCA
cULus

USB port

Yes

Sustainability certificates

ENERGY STAR

Certification

IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM

Package type

Box

USB 2.0 ports quantity

1

Interface

USB, RS232

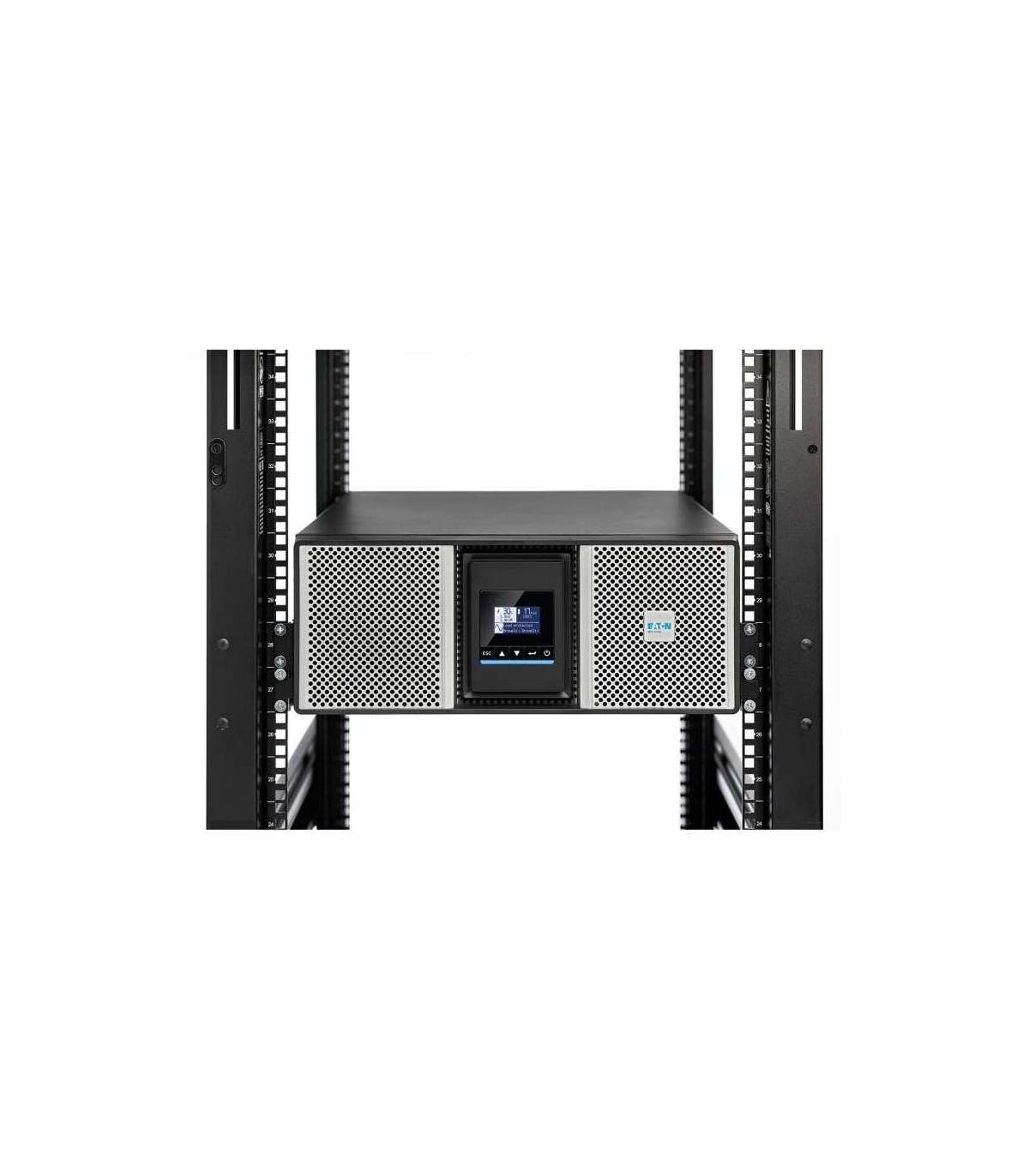

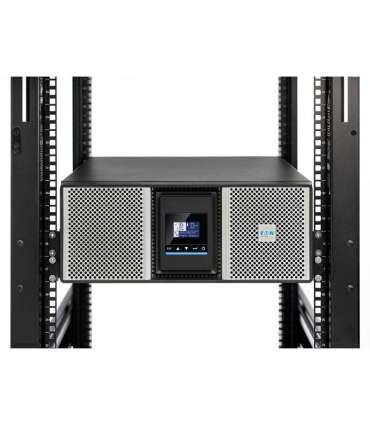

Rack capacity

4U

RS-232 ports

1

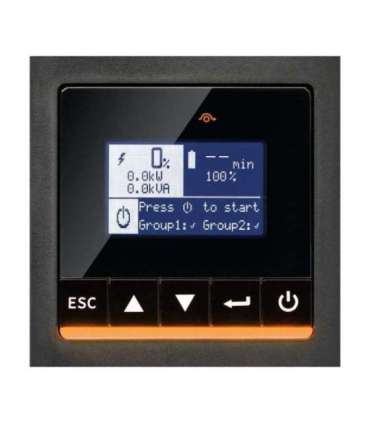

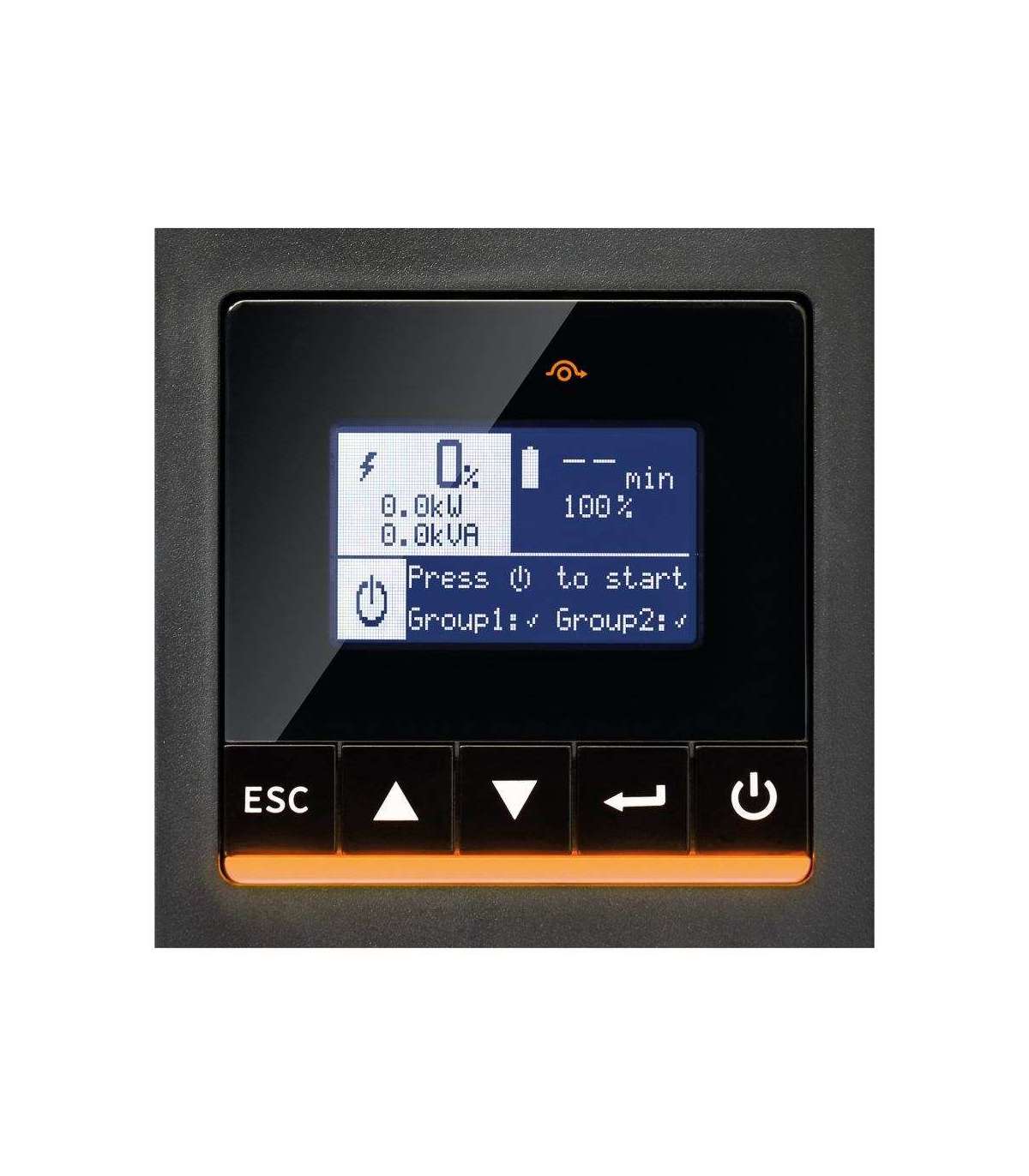

Display type

LCD

Battery capacity

9 Ah

Battery technology

Sealed Lead Acid (VRLA)

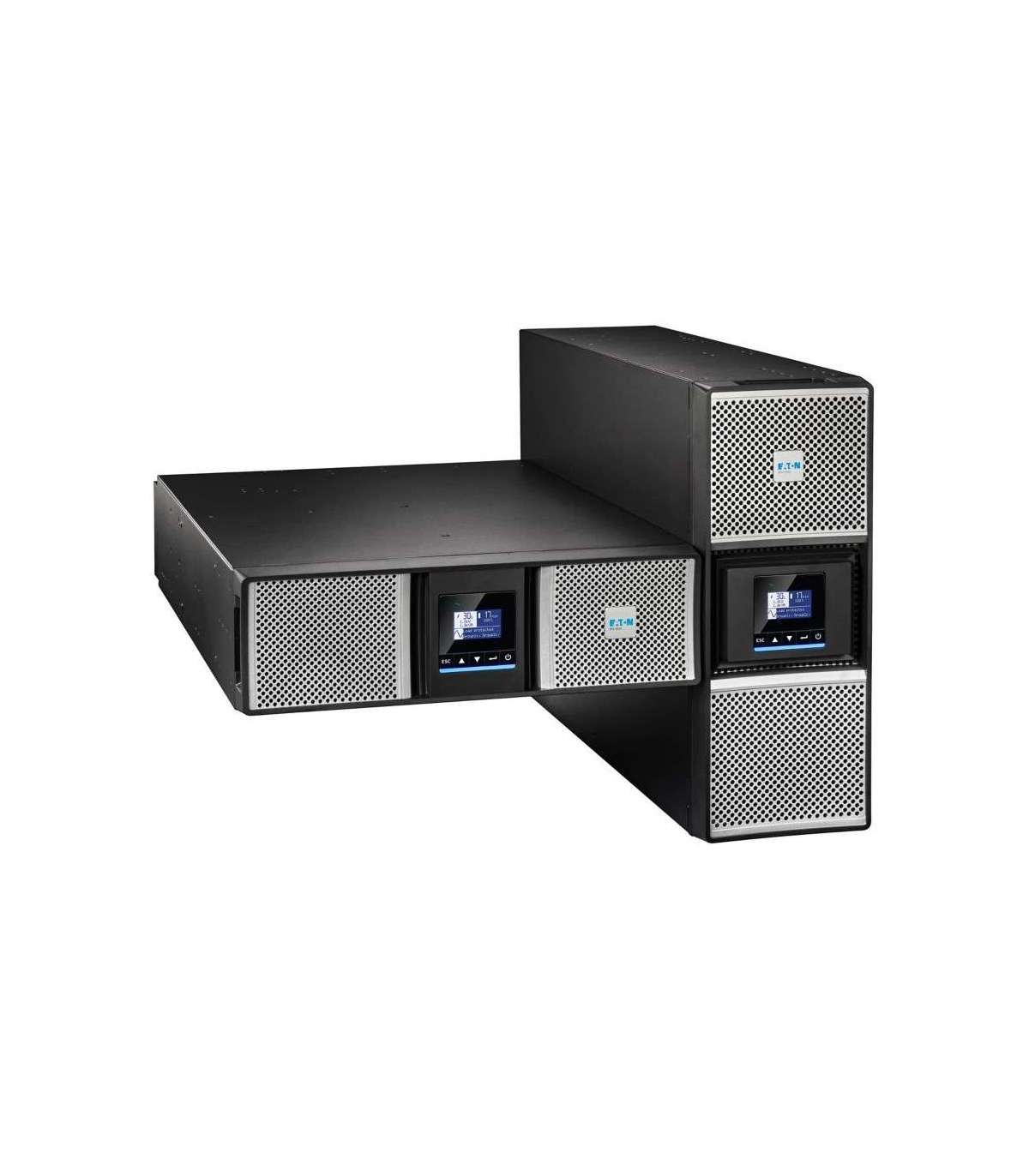

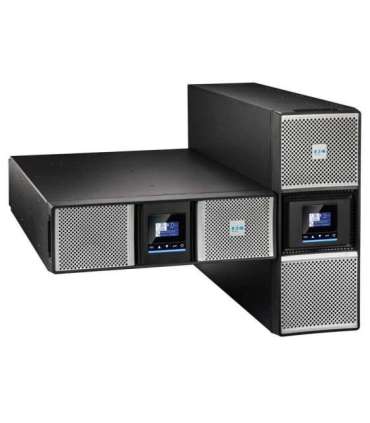

Form factor

Rackmount/Tower

Battery voltage

12 V

Noise level

37 dB

Cable length

1.8 m

Control type

Buttons

Efficiency

0.97%

Output power

11000 W

Input frequency

40/70 Hz

Power plug

Terminal

Rack mount kit

Yes

Power factor

0.99

Hot-swap battery

No

Automatic battery test

Yes

Nominal output voltage

230 V

Output frequency

50/60 Hz

Input operation voltage (max)

276 V

Input operation voltage (min)

176 V

Output power capacity

11 kVA

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

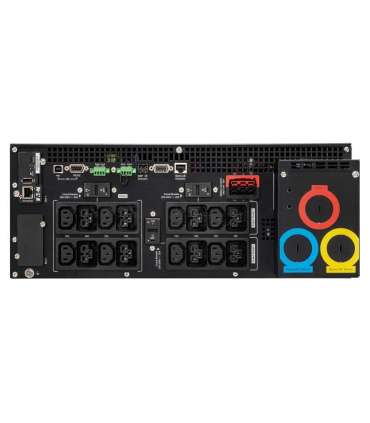

AC outlet types

C13 coupler
Terminal

Number of input phases

1

Nominal input voltage

230 V

Management card included

Yes
