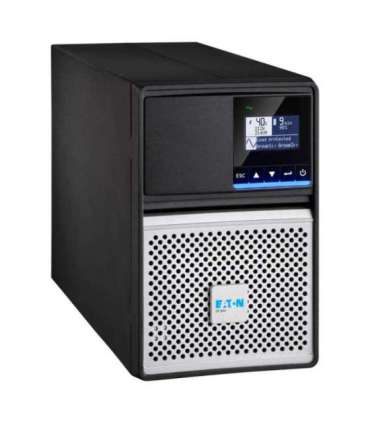

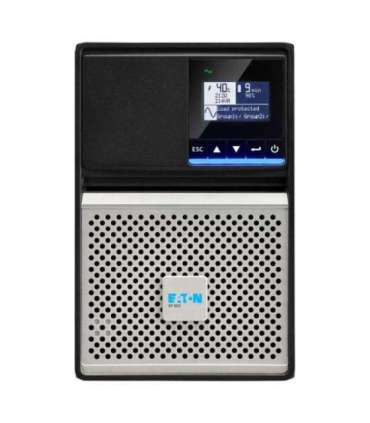

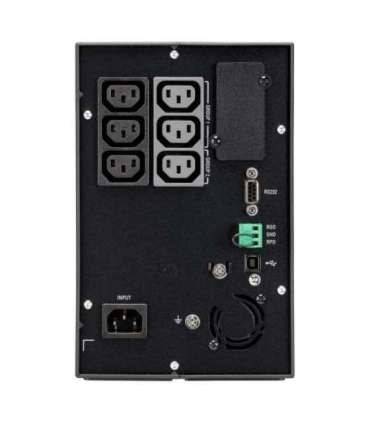

Uninterruptible Power Supply (UPS) EATON 5P 850i G2

Lisainfo

Depth

345 mm

Kaal

10.2 kg

Kõrgus

233 mm

Laius

150 mm

Product colour

Hall
Must

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Certification

IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, cTUVus

Mac compatibility

No

USB 2.0 ports quantity

1

Safety

IEC/EN 62040-1, UL 1778

RS-232 ports

1

Display type

LCD

Battery technology

Sealed Lead Acid (VRLA)

Form factor

Tower

Noise level

35 dB

ECO mode

No

Efficiency

98%

Output power

680 W

Input frequency

40/70 Hz

Power plug

C14 coupler

AC outlets quantity

6 AC outlet(s)

Hot-swap battery

Yes

Automatic battery test

Yes

Nominal output voltage

230 V

Output frequency

50/60 Hz

Input operation voltage (max)

294 V

Input operation voltage (min)

160 V

Output power capacity

0.85 kVA

Output operation voltage (min)

240 V

UPS topology

Line-Interactive

Output operation voltage (max)

200 V

Waveform

Pure sine

AC outlet types

C13 coupler

Number of input phases

1

Number of output phases

1

Typical backup time at half load

13 min

Nominal input voltage

230 V

Typical backup time at full load

4.5 min

Management card included

No

Input connection type

IEC C14
