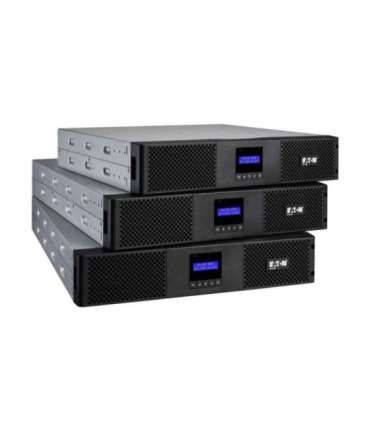

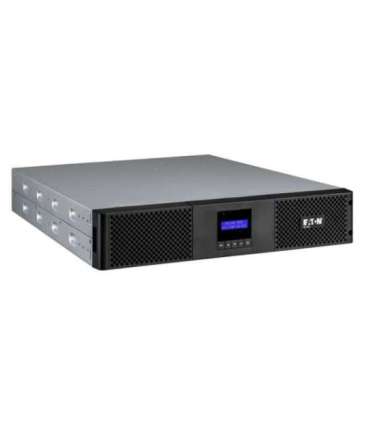

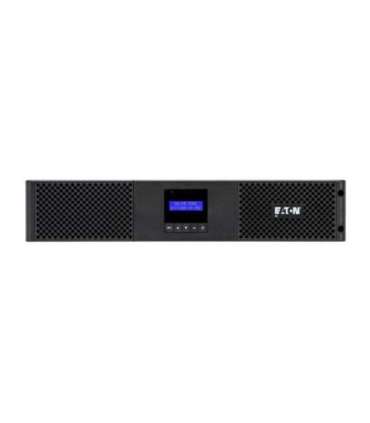

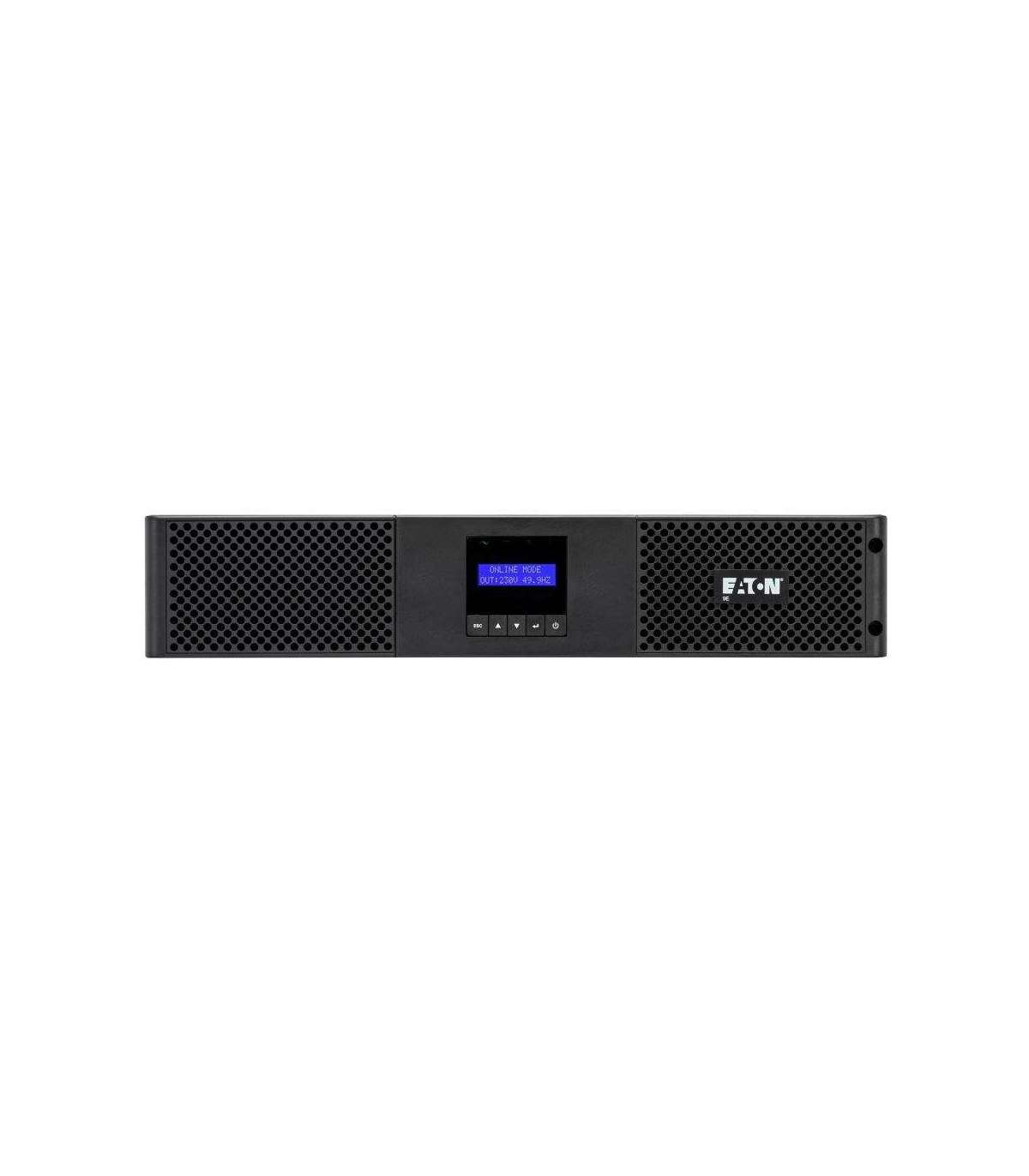

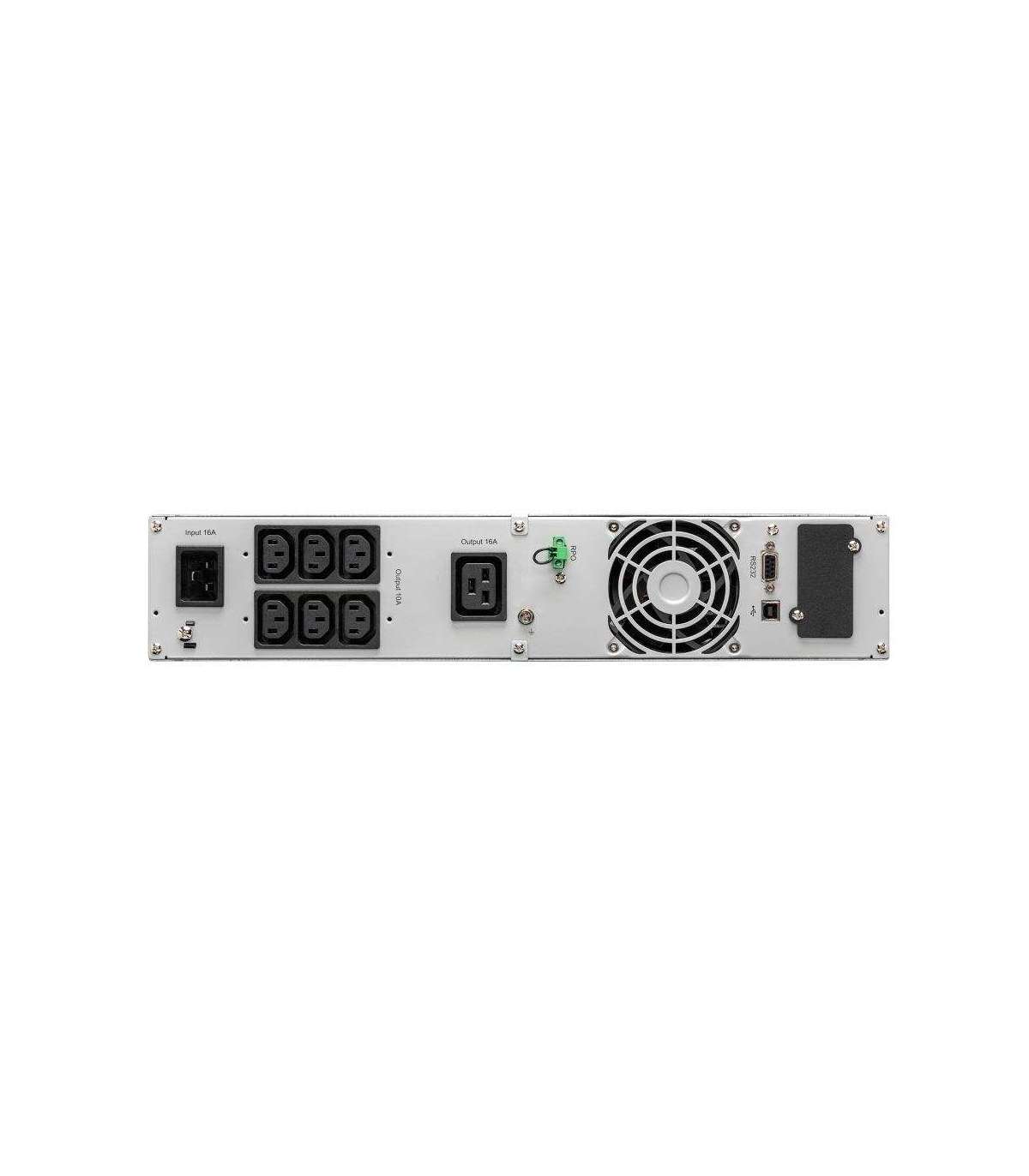

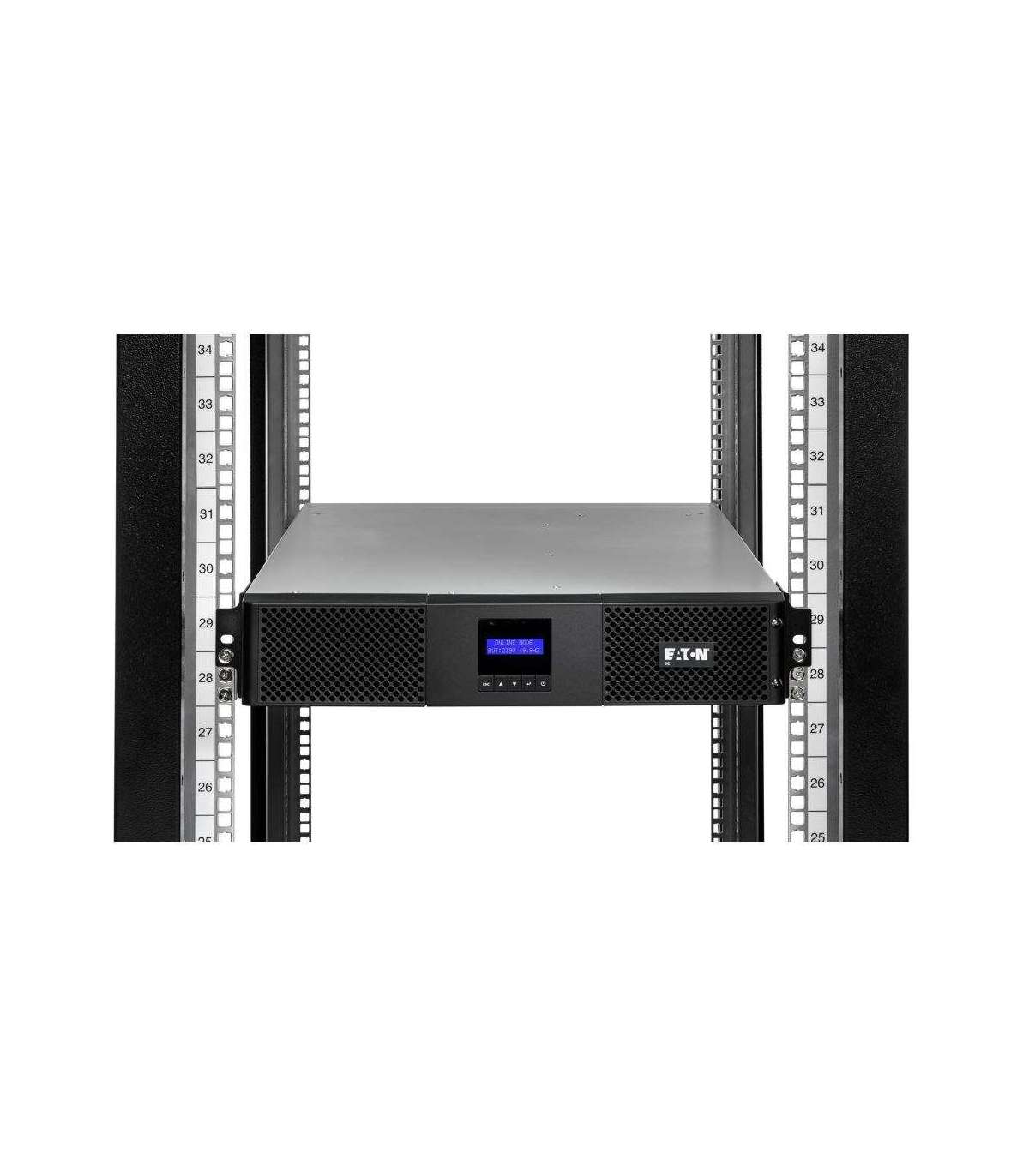

Eaton 9E3000IR uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W

Lisainfo

Depth

608 mm

Kaal

31.3 kg

Kõrgus

86.5 mm

Laius

438 mm

Product colour

Must

Power source type

AC

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 96%

Cables included

Output power cable, USB cable

Quick installation guide

Yes

LED indicators

Yes

USB port

Yes

Sustainability compliance

Yes

Sustainability certificates

CE

Certification

IEC/EN 62040-1IEC/EN 62040-2CE

Rack capacity

2U

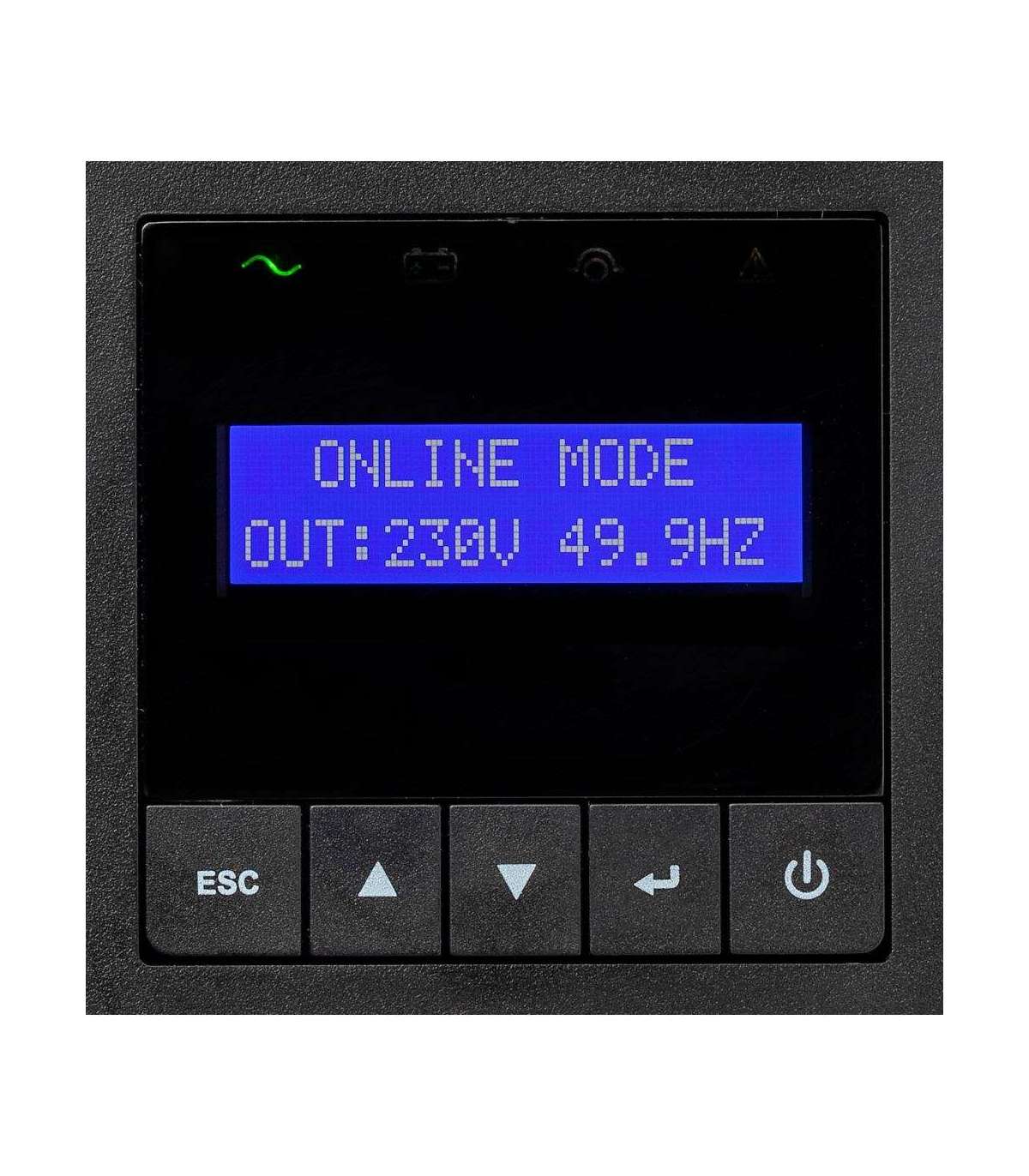

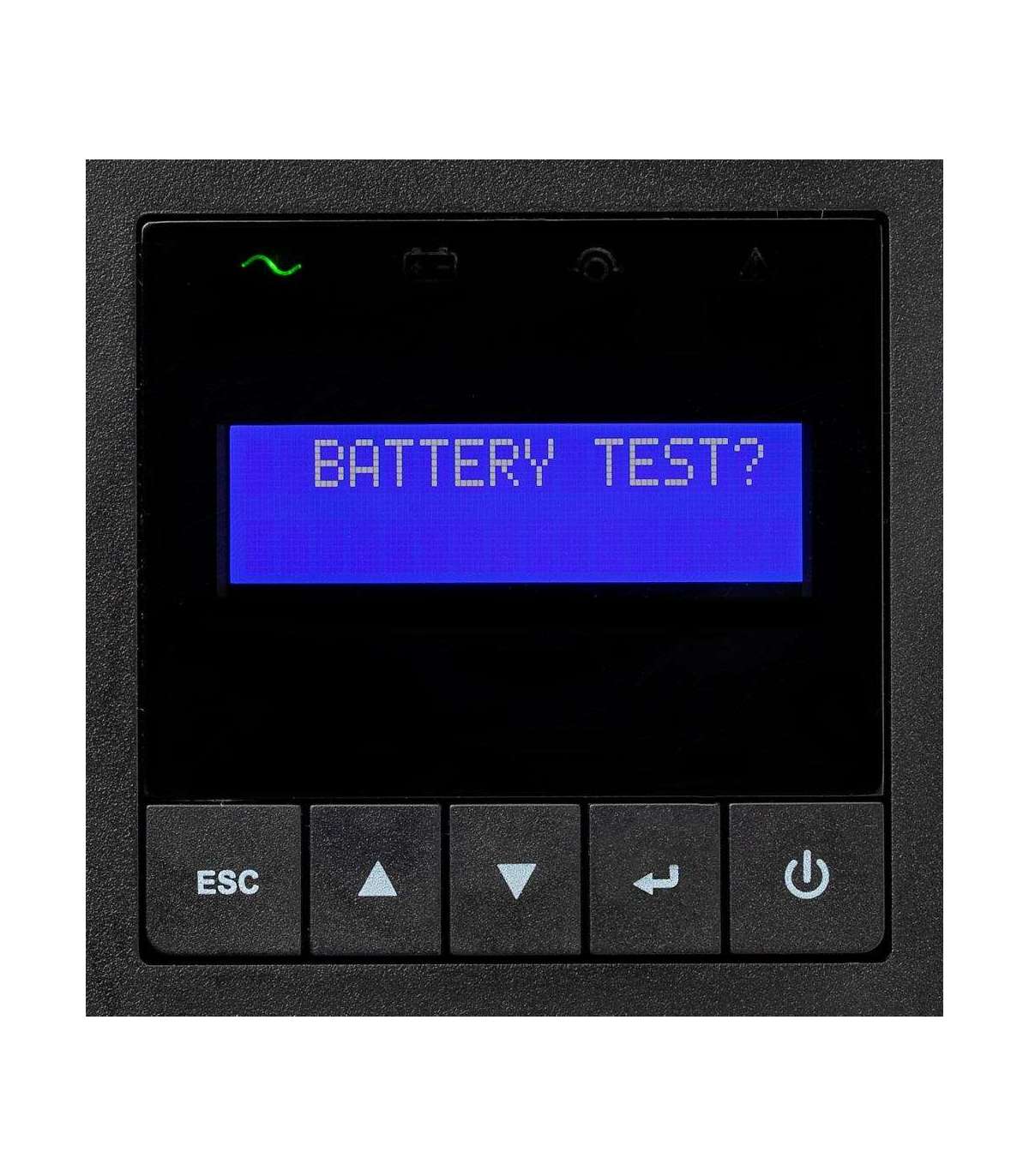

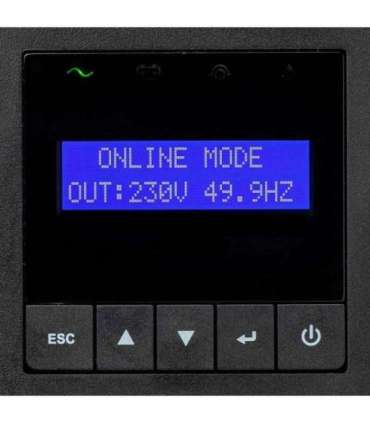

Display type

LCD

Battery capacity

9 Ah

Battery technology

Lead-acid

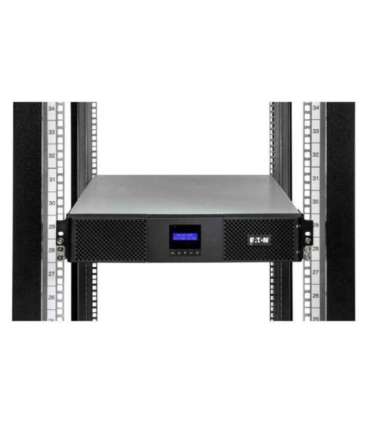

Form factor

Rackmount

Battery voltage

12 V

Noise level

45 dB

Control type

Buttons

Number of batteries supported

6

Efficiency

91%

Output power

2700 W

Input frequency

50 / 60 Hz

Audible alarm(s)

Yes

Serial ports quantity

1

Power plug

C14 coupler

Rack mount kit

Yes

AC outlets quantity

7 AC outlet(s)

Output frequency

50/60 Hz

Input operation voltage (max)

240 V

Input operation voltage (min)

220 V

Output power capacity

3 kVA

Output operation voltage (min)

240 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

220 V

Waveform

Sine

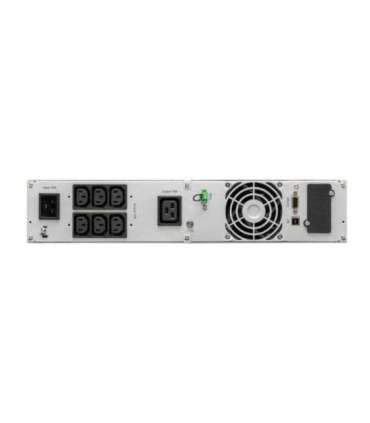

AC outlet types

C13 coupler
C19 coupler

Number of input phases

1

Number of output phases

1

Serial interface

Yes

Output power factor

0.9

Input power factor

0.99

Mini terminal block for remote power-off (RPO)

Y
