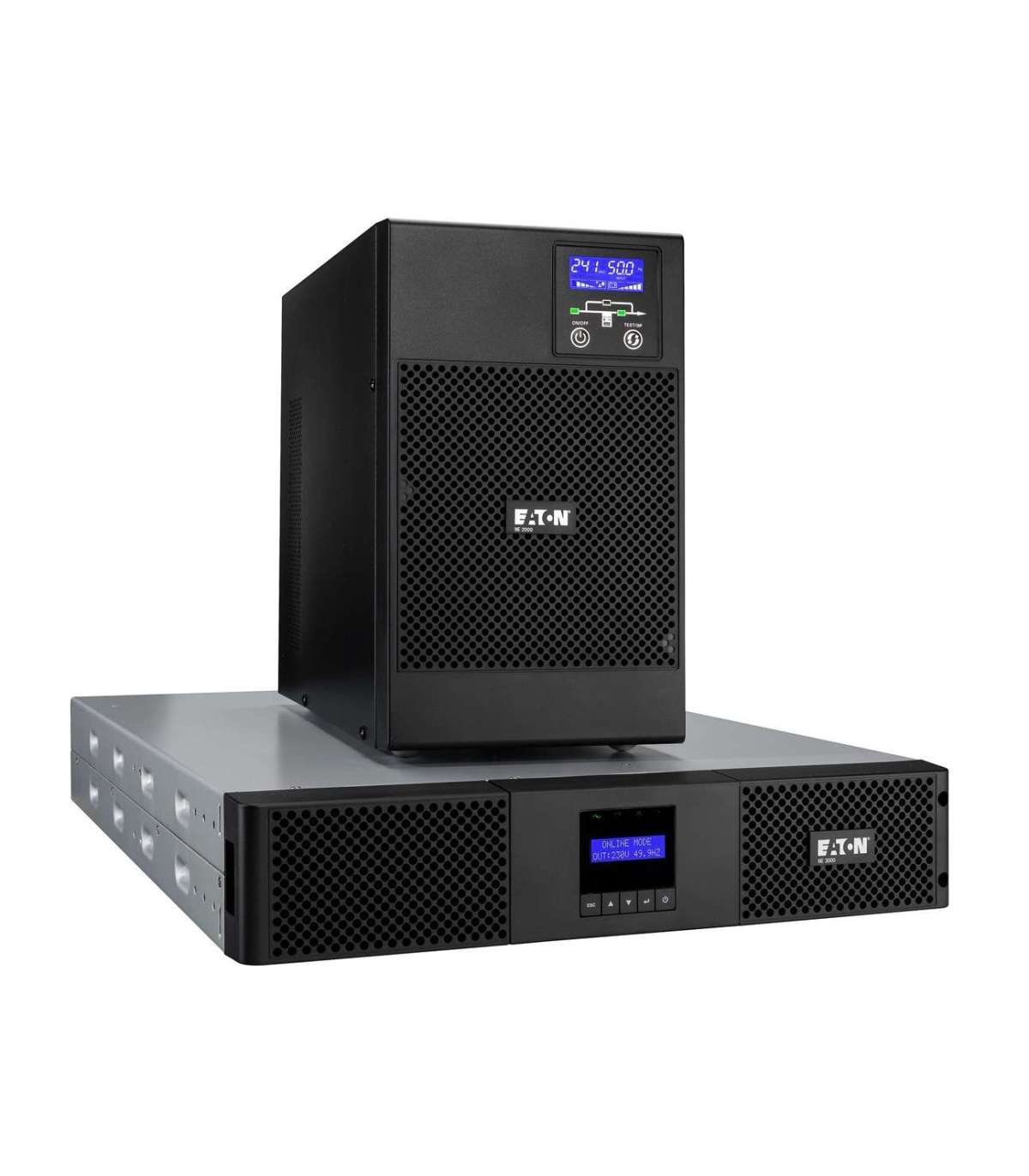

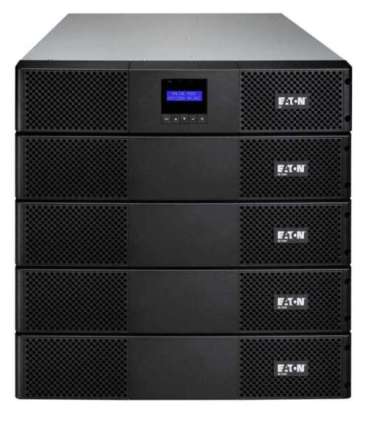

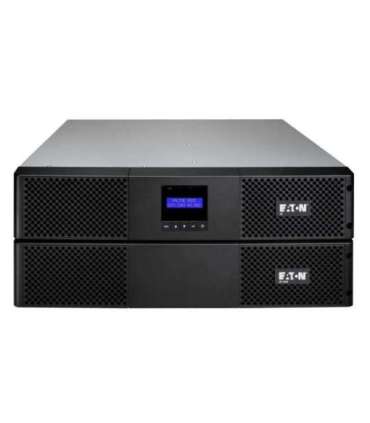

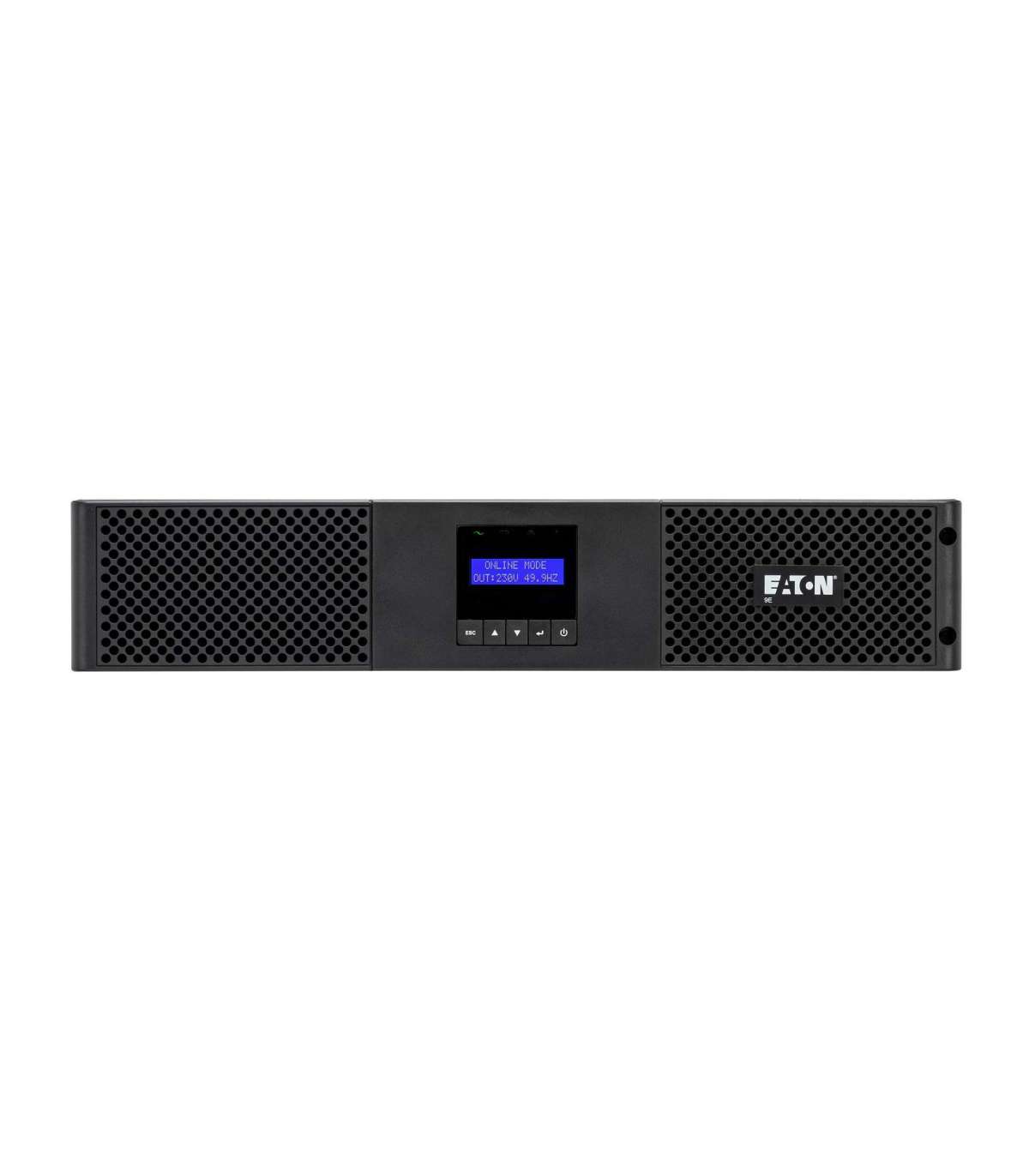

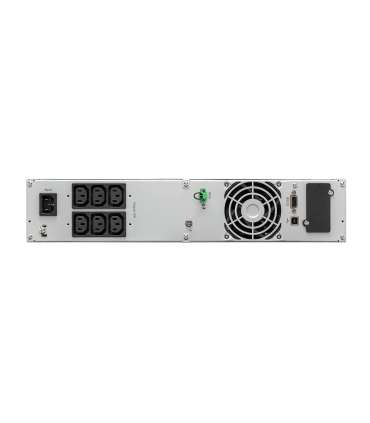

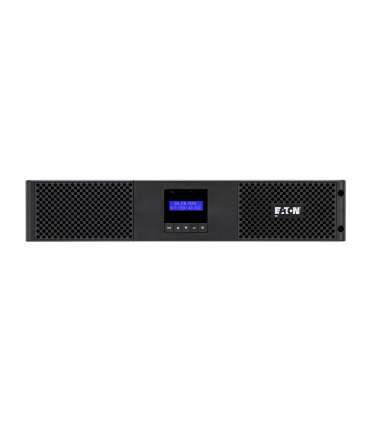

Eaton 9E2000IR uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)

Lisainfo

Depth

608 mm

Kaal

29.9 kg

Kõrgus

86.5 mm

Laius

438 mm

Product colour

Must

Power source type

AC

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 96%

Cables included

Output power cable, USB cable

Quick installation guide

Yes

LED indicators

Yes

USB port

Yes

Sustainability compliance

Yes

Sustainability certificates

CE

Certification

IEC/EN 62040-1
IEC/EN 62040-2
CE

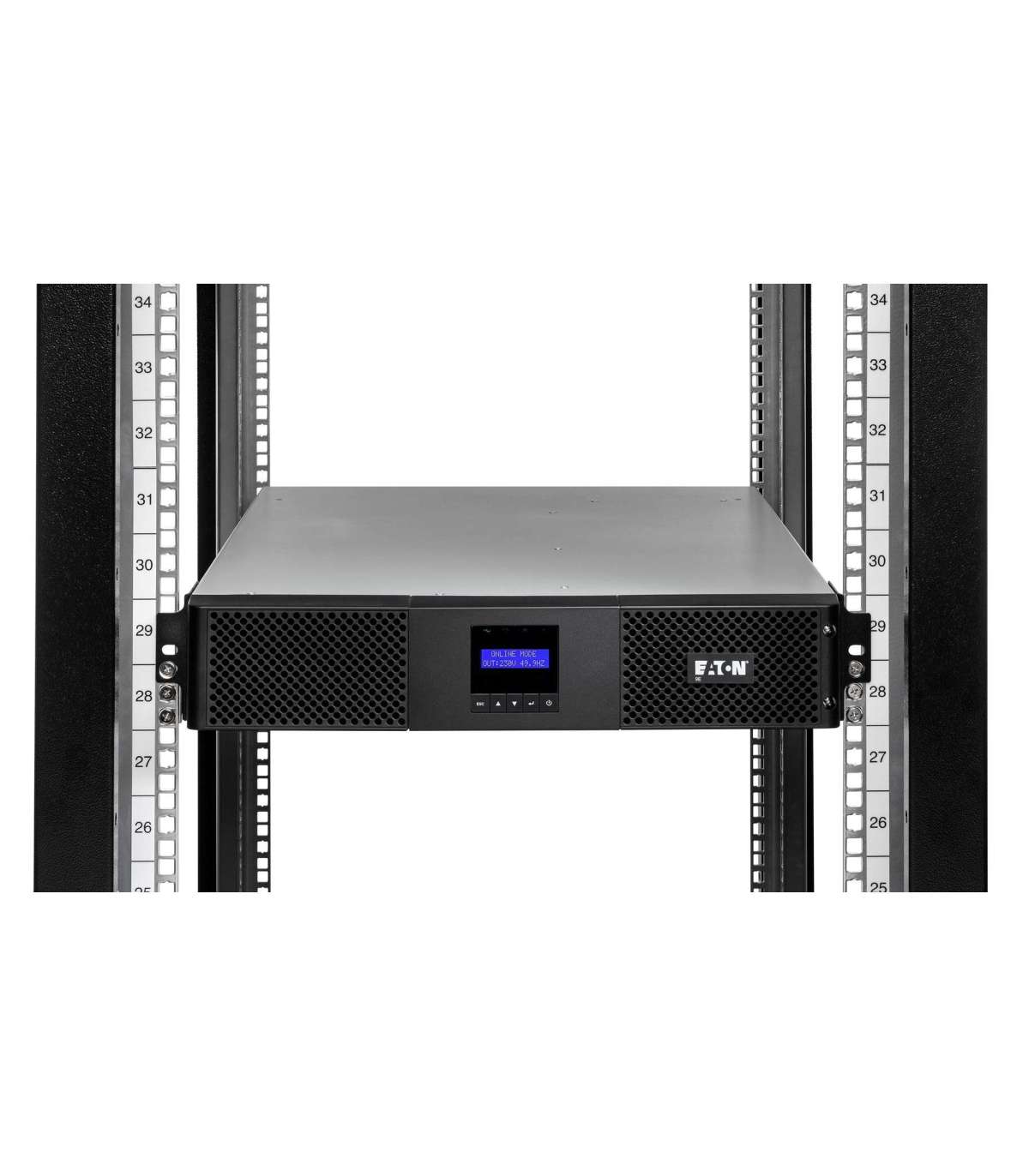

Rack capacity

2U

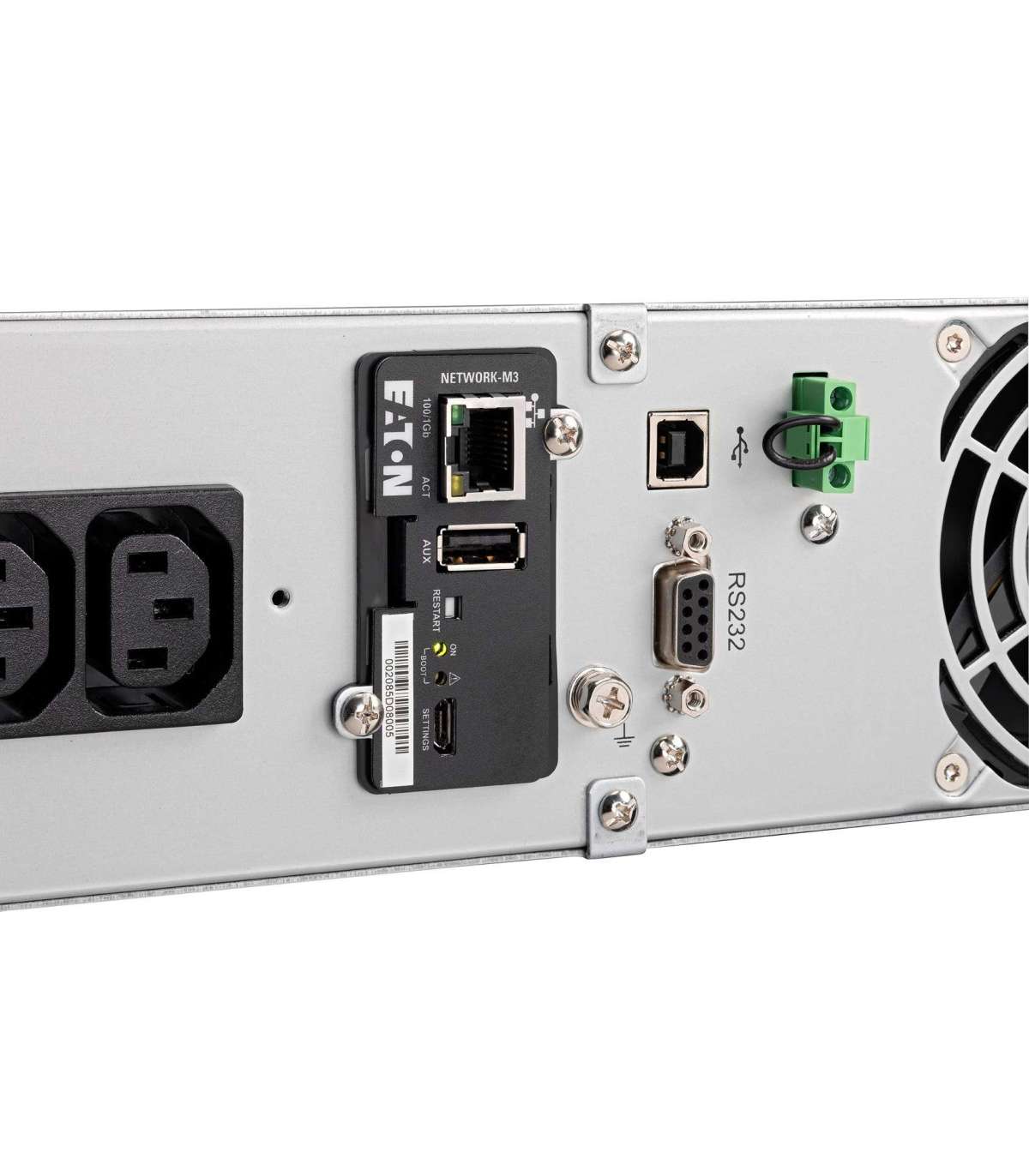

Serial interface type

RS-232

RS-232 ports

1

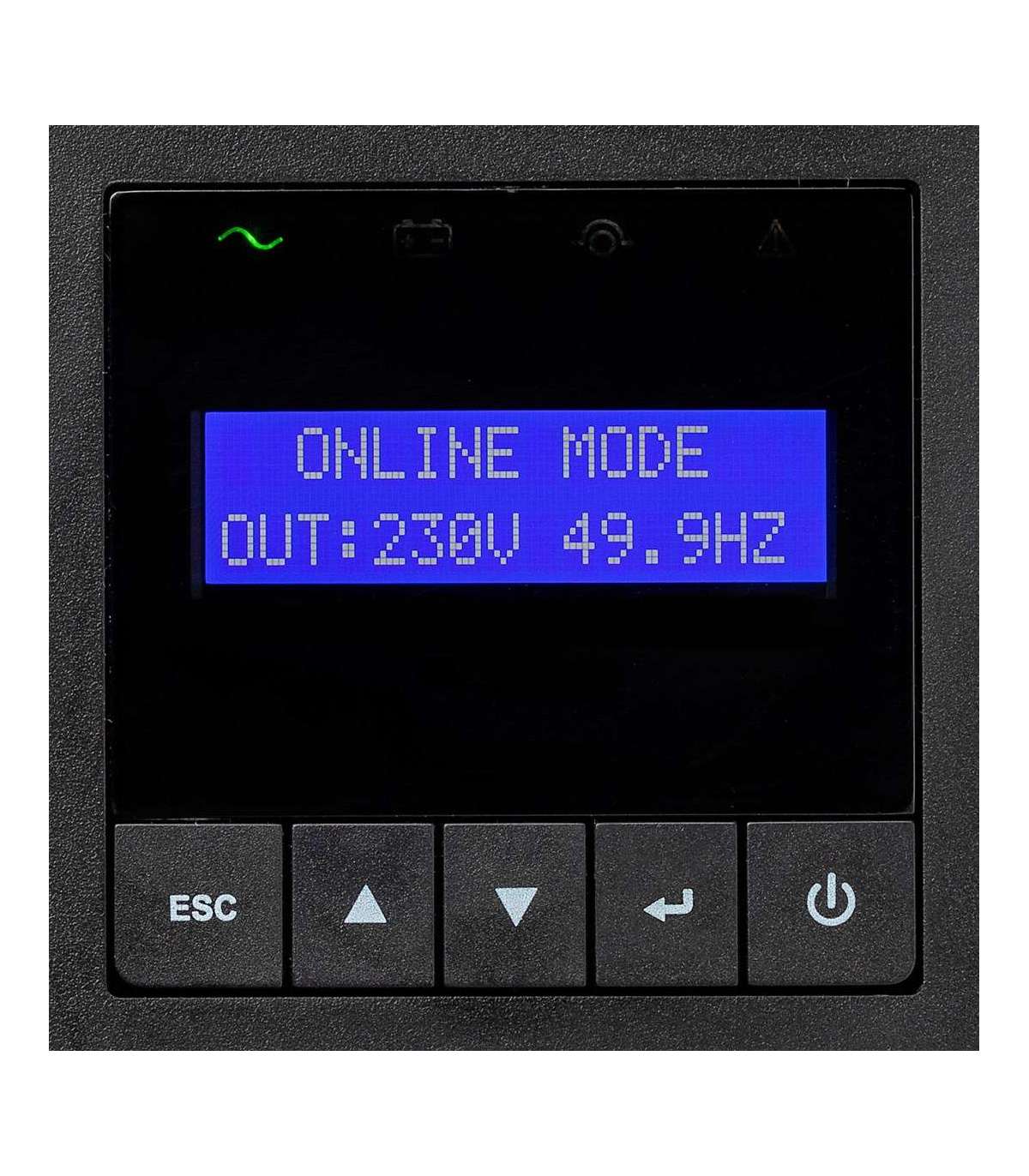

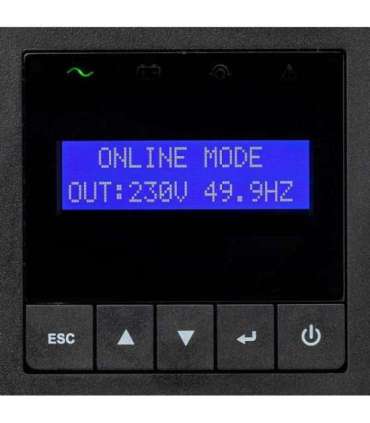

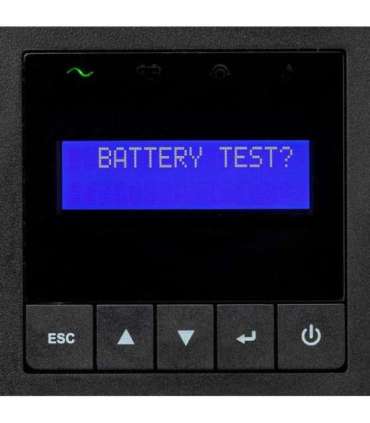

Display type

LCD

Battery capacity

7 Ah

Battery technology

Lead-acid

Form factor

Tower

Battery voltage

12 V

Noise level

45 dB

Control type

Buttons

Number of batteries supported

6

Efficiency

91%

Output power

1800 W

Input frequency

40/70 Hz

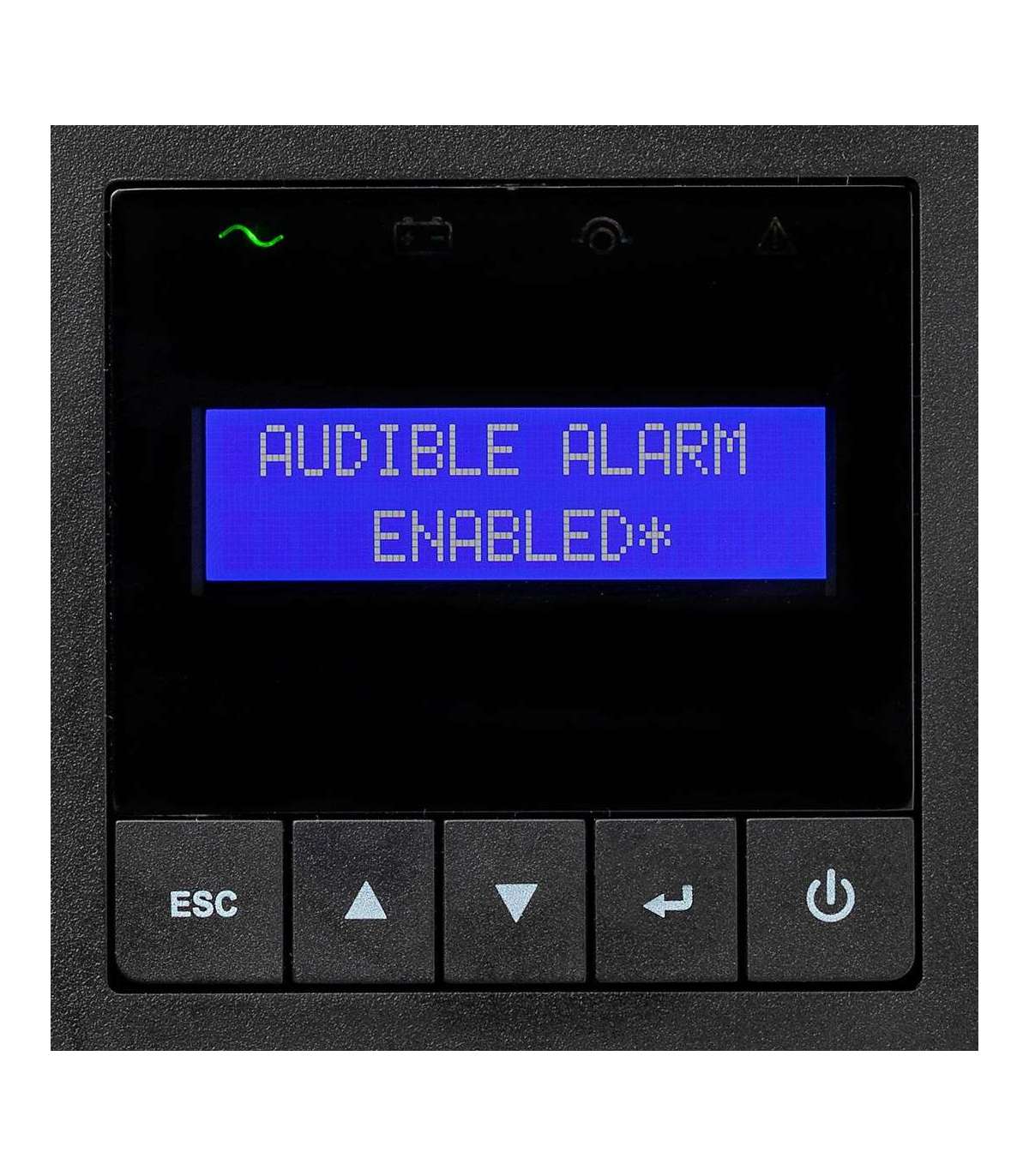

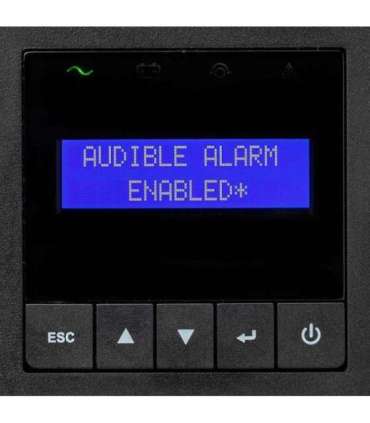

Audible alarm(s)

Yes

Heat dissipation

546 BTU/h

Serial ports quantity

1

Power plug

C13 coupler

Rack mount kit

Yes

AC outlets quantity

6 AC outlet(s)

Output frequency

50/60 Hz

Input operation voltage (max)

276 V

Input operation voltage (min)

140 V

Output power capacity

2 kVA

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Sine

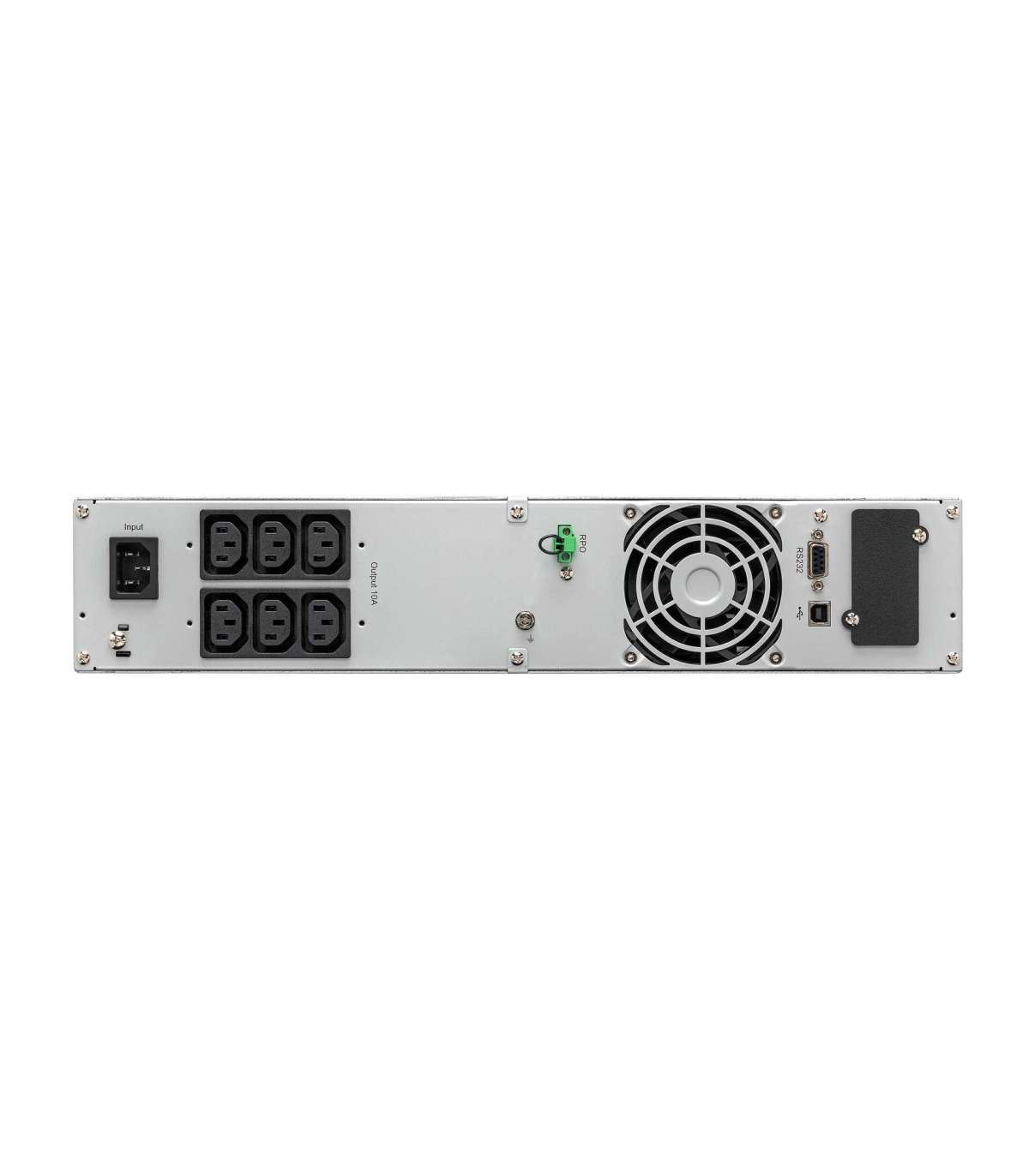

AC outlet types

C13 coupler
C14 coupler

Number of input phases

1

Number of output phases

1

Typical backup time at half load

12 min

Typical backup time at full load

4.5 min

Serial interface

Yes

Output power factor

0.9

Input power factor

99

Efficiency (ECO mode)

96.5%
