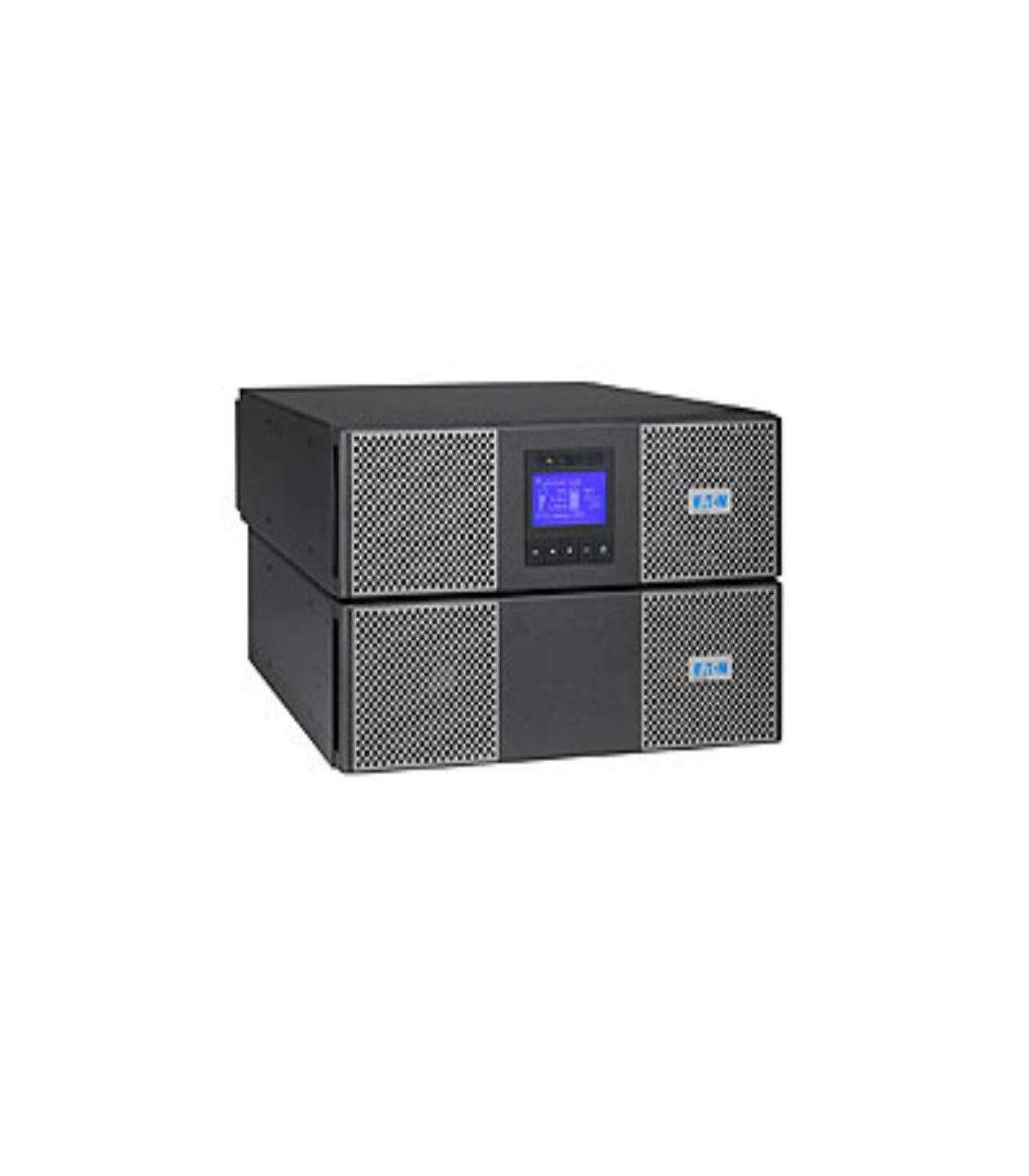

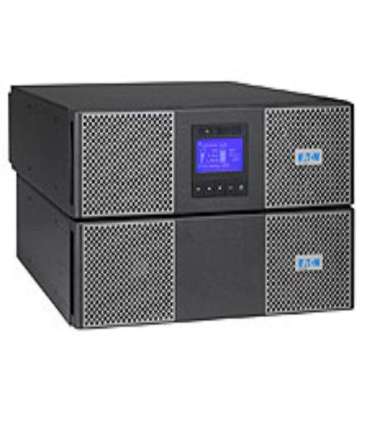

Eaton 9PX Double-conversion (Online) 8 kVA 7200 W 5 AC outlet(s)

Lisainfo

Depth

700 mm

Kaal

88 kg

Kõrgus

260 mm

Laius

440 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

LED indicators

Yes

USB port

Yes

Harmonized System (HS) code

85078000

Sustainability certificates

ENERGY STAR

Certification

IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)

USB 2.0 ports quantity

1

Rack capacity

6U

Safety

IEC/EN 62040-1

RS-232 ports

1

Display type

LCD

Form factor

Rackmount/Tower

Bundled software

Intelligent Power Software suite

Cooling type

Active

Noise level

48 dB

Efficiency

0.95%

Output power

7200 W

Input frequency

40/70 Hz

Built-in fan

Yes

Serial ports quantity

1

Power plug

Terminal

Rack mount kit

Yes

Power factor

0.9

AC outlets quantity

5 AC outlet(s)

Hot-swap battery

Yes

Automatic battery test

Yes

Nominal output voltage

230 V

Output frequency

50/60 Hz

Input operation voltage (max)

480 V

Input operation voltage (min)

305 V

Output power capacity

8 kVA

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C19 coupler
Terminal

Number of input phases

3

Typical backup time at half load

20 min

Nominal input voltage

400 V

Output voltage Total Harmonic Distortion (THD)

2%

Input current Total Harmonic Distortion (THD)

5%

Management card included

Yes
