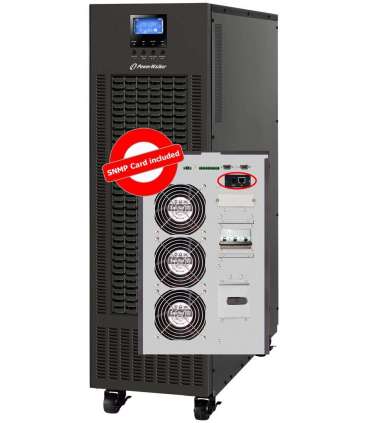

PowerWalker VFI 10K CPG PF1 3/3 BI Double-conversion (Online) 10 kVA 10000 W 1 AC outlet(s)

Lisainfo

Compatibility

ViewPower

Depth

627 mm

Kaal

139 kg

Kõrgus

827 mm

Laius

250 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Quick installation guide

Yes

USB port

Yes

Harmonized System (HS) code

85078000

Manual

Yes

RS-232 ports

1

Display type

LCD

Battery capacity

7 Ah

Form factor

Large tower

Number of battery cells

20

Battery voltage

12 V

Battery recharge time

9 h

Response time

4 ms

Noise level

60 dB

Efficiency

95.5%

Output power

10000 W

Input frequency

46/64 Hz

Charging current

12 A

Maximum current

12 A

Power plug

Terminal

Rack mount kit

Yes

Power factor

1

AC outlets quantity

1 AC outlet(s)

Input operation voltage (max)

520 V

Input operation voltage (min)

305 V

Output power capacity

10 kVA

Output operation voltage (min)

208 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

Terminal

Output voltage regulation

±1%

Output frequency regulation

±0.1 Hz

Output voltage Total Harmonic Distortion (THD)

4%

Emergency Power Off (EPO) connector

No

Efficiency (On-line mode)

94.5%

Input current Total Harmonic Distortion (THD)

6%
