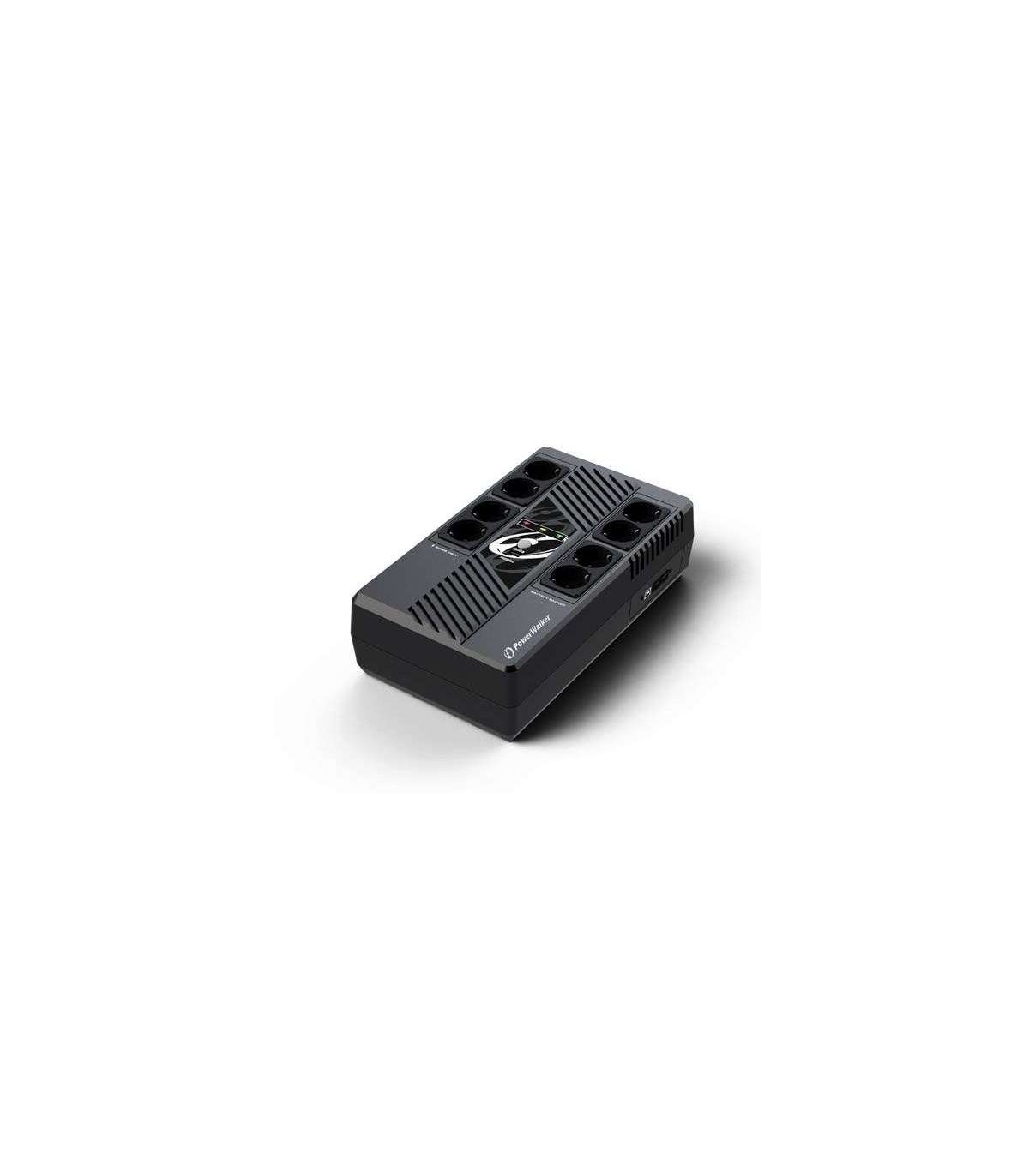

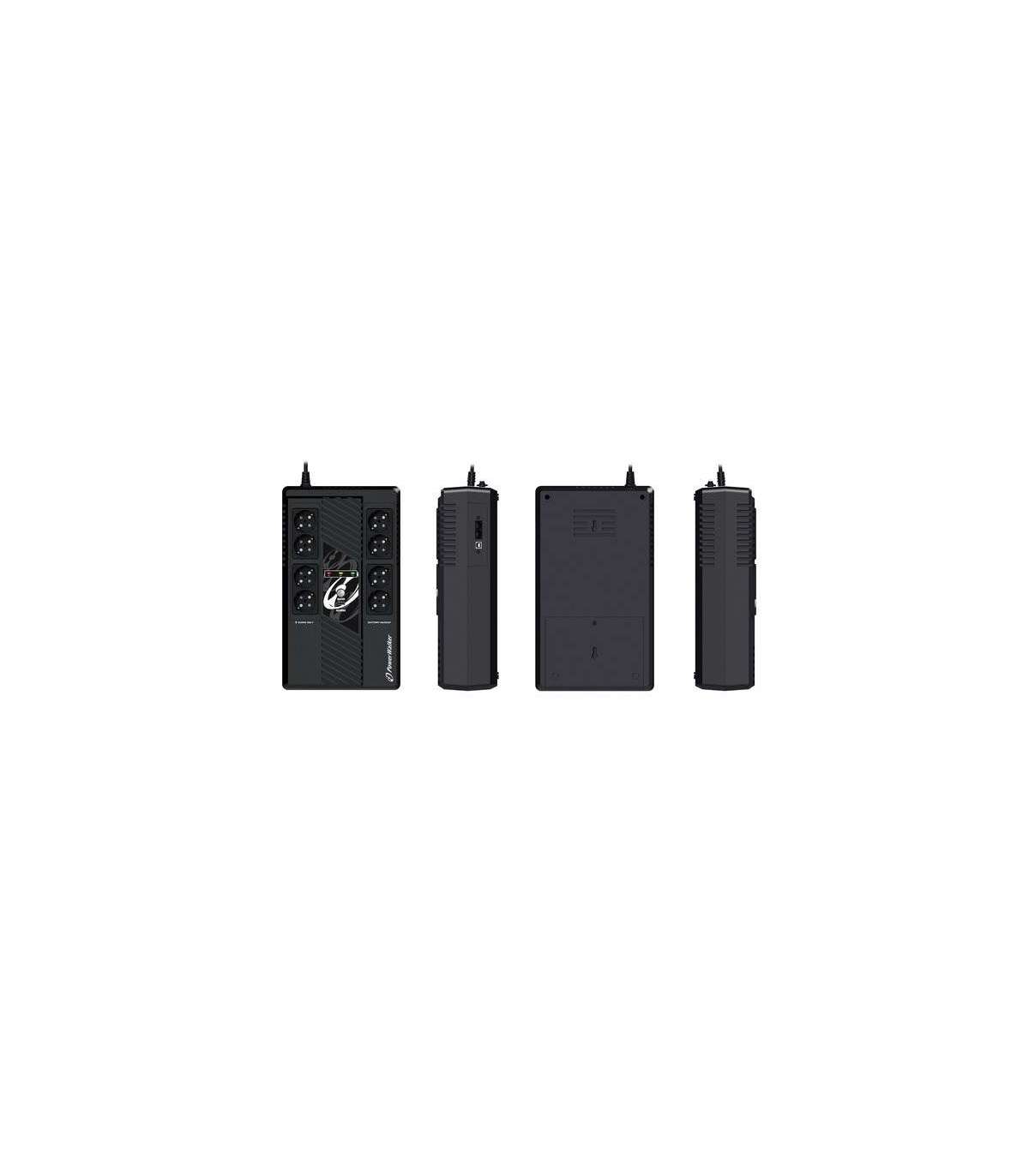

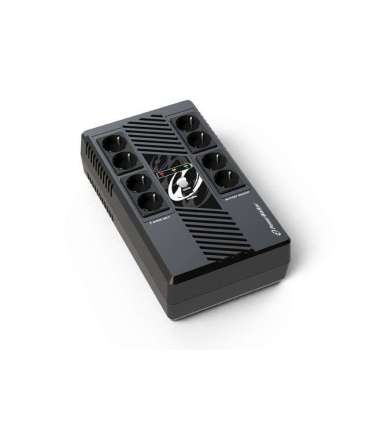

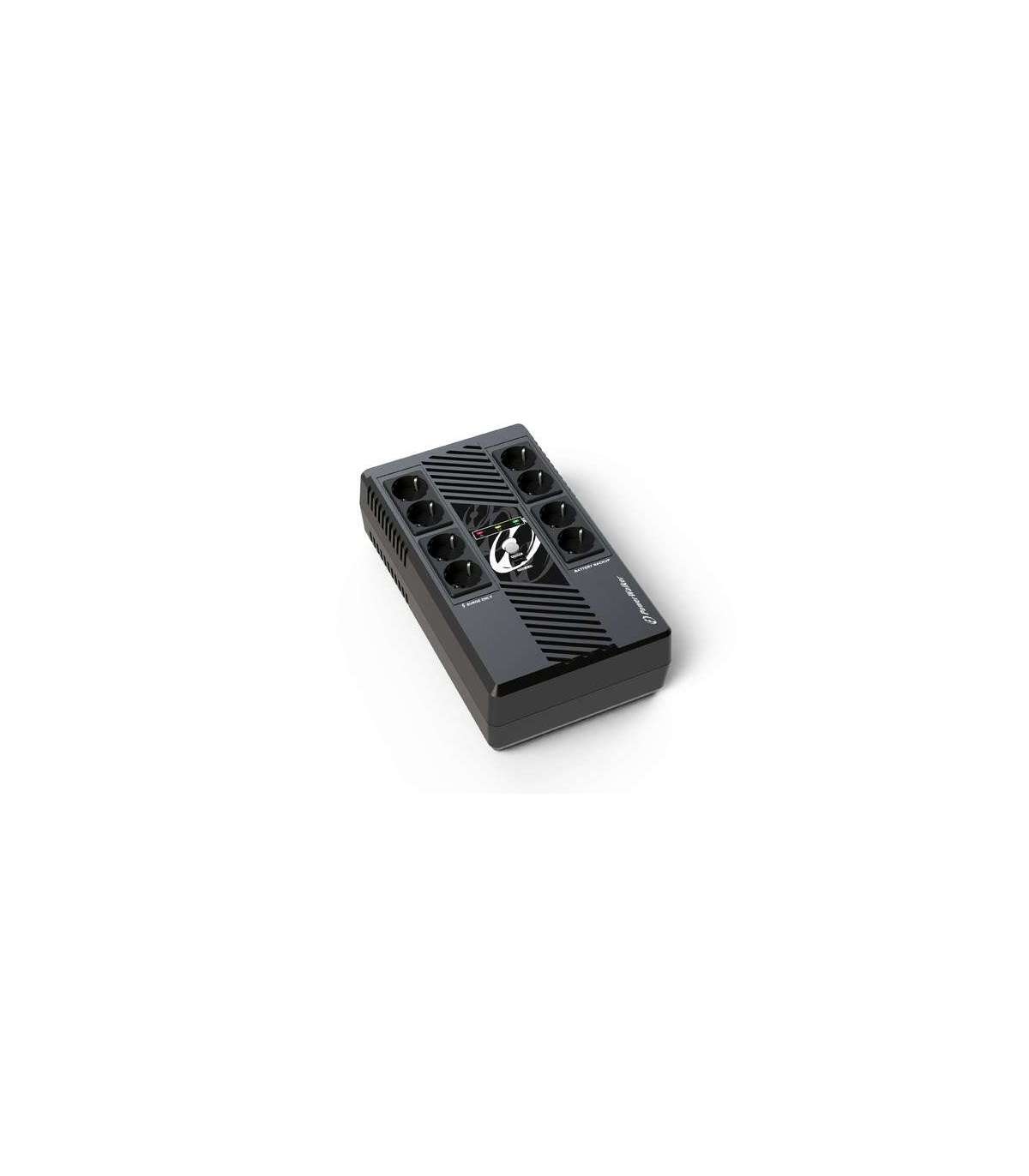

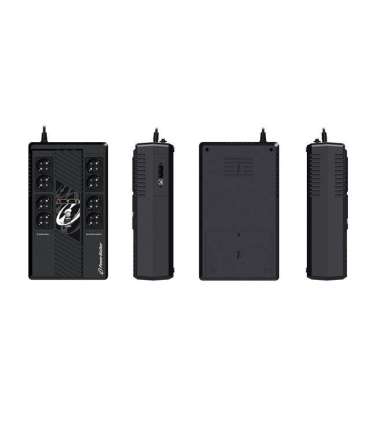

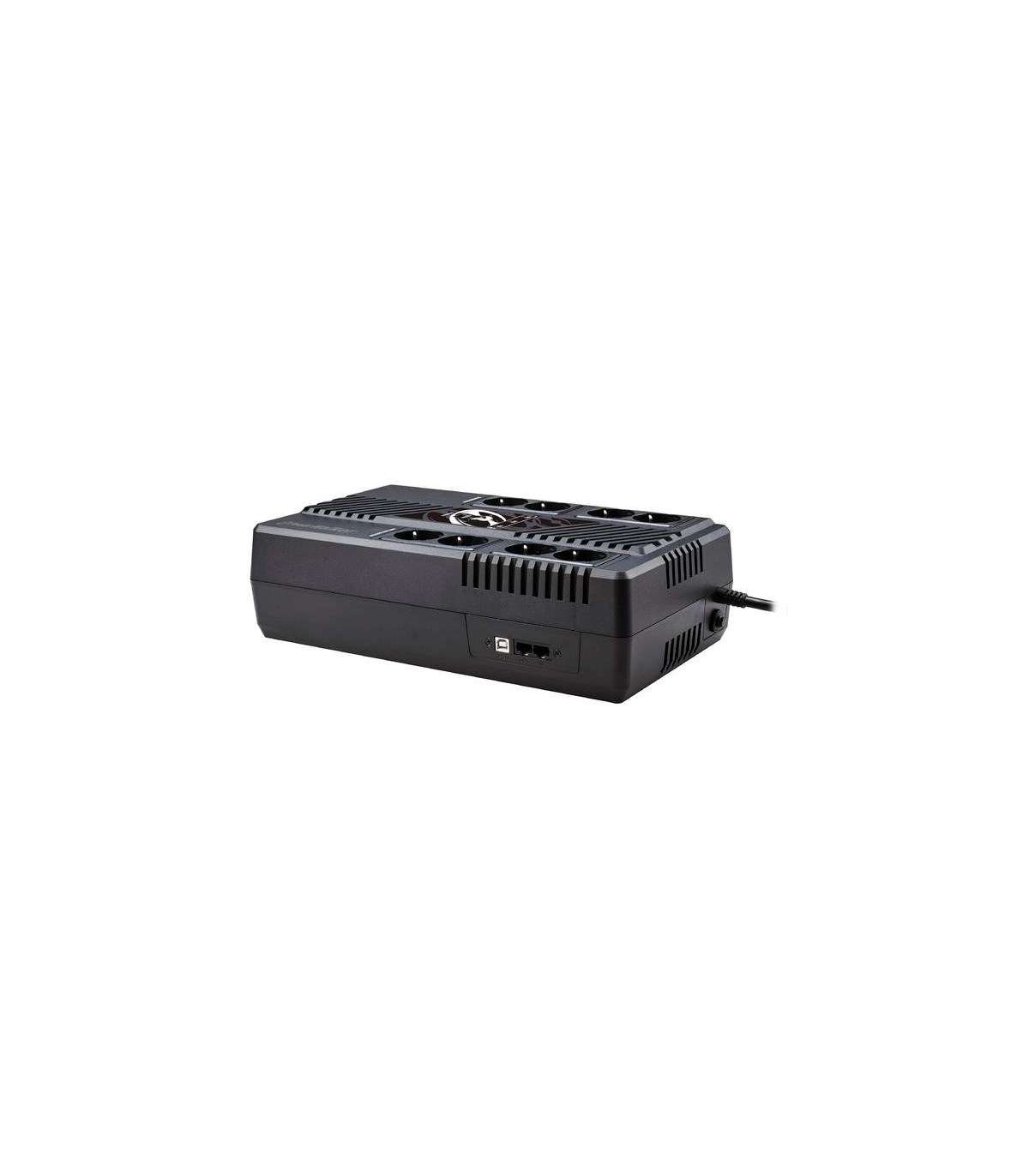

PowerWalker VI 1000 MS FR Line-Interactive 1000 VA 600 W 8 AC outlet(s)

Lisainfo

Depth

345 mm

Kaal

6.4 kg

Kõrgus

100 mm

Laius

200 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Ethernet LAN (RJ-45) ports

2

LED indicators

Yes

Package width

146 mm

Package height

269 mm

USB port

Yes

Serial interface type

RS-232

RS-232 ports

1

Battery capacity

9 Ah

Form factor

Compact

Battery voltage

12 V

Battery recharge time

8 h

Cooling type

Passive

Noise level

40 dB

Number of batteries supported

1

Output power

600 W

Input frequency

50/60 Hz

Charging current

2.1 A

Surge energy rating

156 J

Built-in fan

No

Automatic Voltage Regulation (AVR)

Yes

Power factor

0.6

AC outlets quantity

8 AC outlet(s)

Surge protection

Yes

Input operation voltage (max)

280 V

Input operation voltage (min)

170 V

Output power capacity

1000 kVA

Output operation voltage (min)

230 V

UPS topology

Line-Interactive

Output operation voltage (max)

230 V

Waveform

Sine

AC outlet types

Type E (FR)

Surge protection features

Fax
Modem
Network
Telephone

Typical backup time at half load

1.2 min

Typical backup time at full load

0.1 min

Output voltage regulation

10%

Number of type F outputs

8

Serial interface

Yes

Output power factor

0.6
