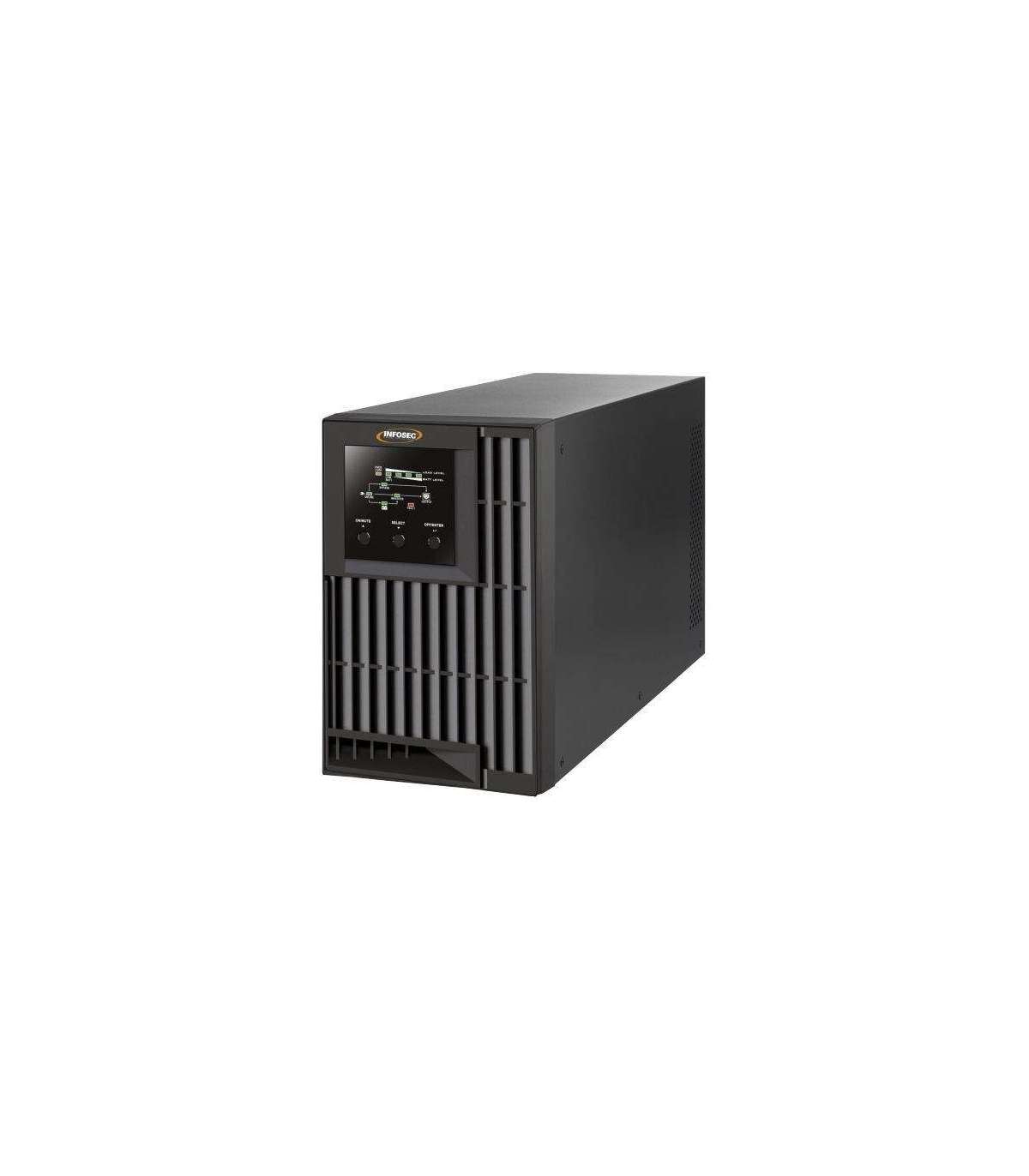

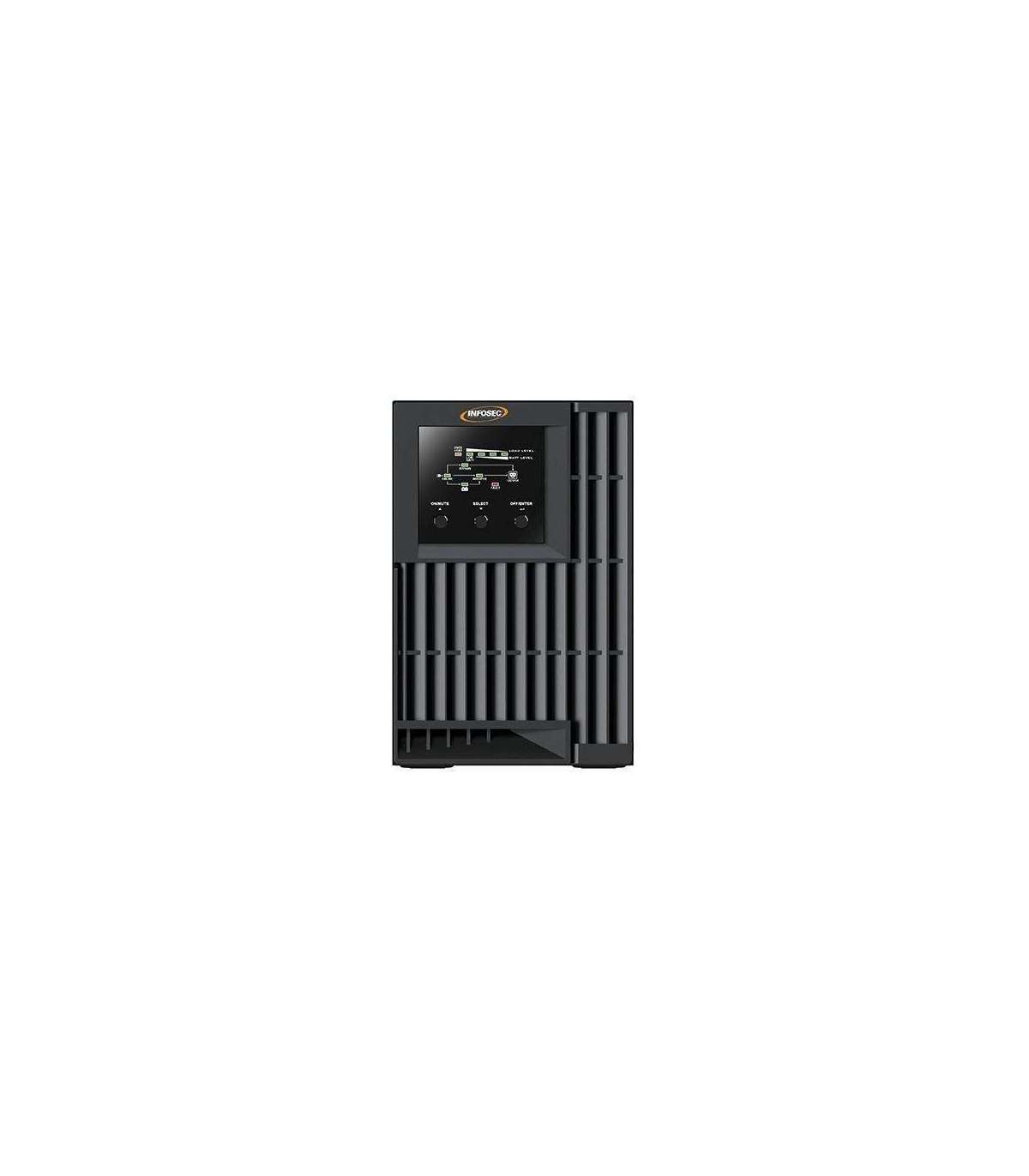

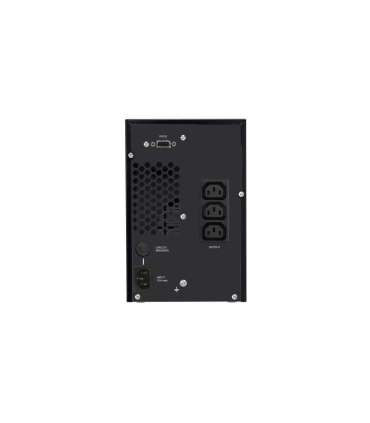

Infosec E4 Value 1000 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 3 AC outlet(s)

Lisainfo

Depth

220 mm

Kaal

8.6 kg

Kõrgus

282 mm

Laius

145 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Cables included

Output power cable, RS-232, Input power cable

Compliance certificates

RoHS

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Store away from sources of heat and open flame.
Use the appliance in well-ventilated areas to avoid overheating.

Manual

Yes

Certification

CE

Serial interface type

RS-232

Display type

LED

Battery capacity

9 Ah

Battery technology

Sealed Lead Acid (VRLA)

Form factor

Tower

Battery voltage

12 V

Battery recharge time

4 h

Response time

4 ms

Noise level

50 dB

ECO mode

Yes

Efficiency

88%

Input frequency

47 - 63 Hz

Charging current

1 A

Audible alarm(s)

Yes

Maximum current

10 A

Serial ports quantity

1

Power factor

0.8

AC outlets quantity

3 AC outlet(s)

Cold start

Yes

Output frequency

47/63 Hz

Input operation voltage (max)

240 V

Input operation voltage (min)

100 V

Output power capacity

1 kVA

Output operation voltage (min)

100 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Audible alarm modes

Alarm when on battery, Fault, Overload alarm, Low battery alarm

Number of input phases

1

Number of output phases

1

Typical backup time at half load

9 min

Typical backup time at full load

30 min

Output voltage regulation

-1 - 1%

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

6%

Crest factor

3:1

Input power factor

0.99
