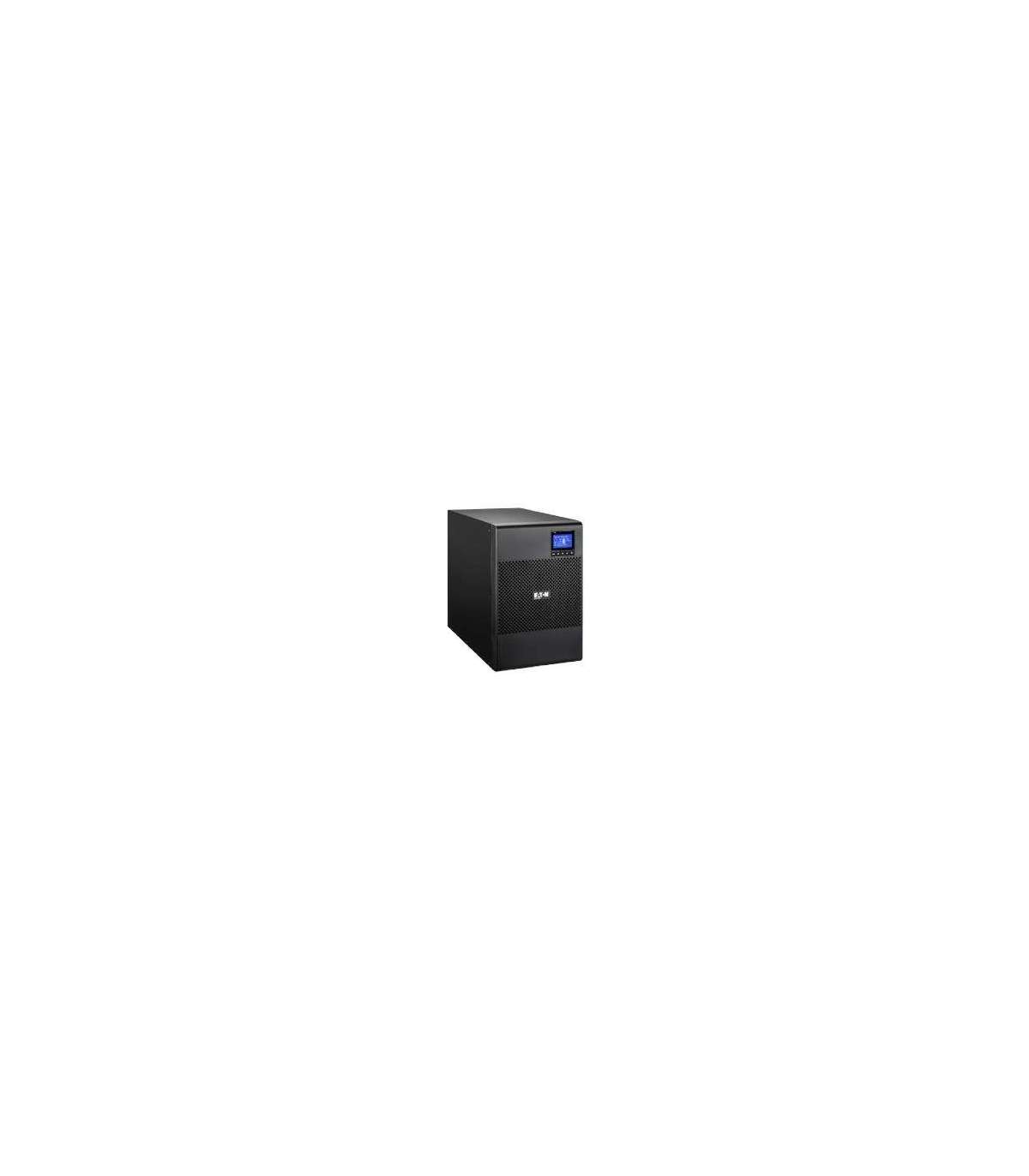

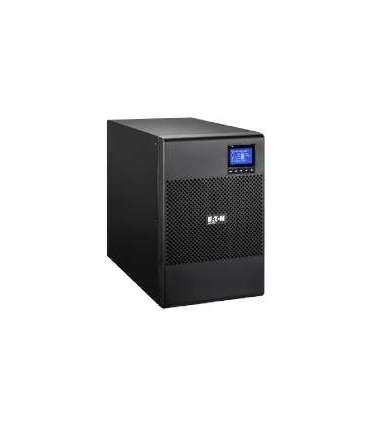

Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)

Lisainfo

Depth

412 mm

Kaal

33.4 kg

Kõrgus

346 mm

Laius

214 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Harmonized System (HS) code

85078000

Certification

IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC

USB 2.0 ports quantity

1

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Serial interface type

RS-232

RS-232 ports

1

Display type

LCD

Battery technology

Sealed Lead Acid (VRLA)

Form factor

Tower

Bundled software

Intelligent Power Software suite

Noise level

45 dB

ECO mode

No

Output power

2700 W

Input frequency

40/70 Hz

Power plug

C20 coupler

Power factor

0.9

AC outlets quantity

9 AC outlet(s)

Hot-swap battery

Yes

Automatic battery test

Yes

Nominal output voltage

230 V

Output frequency

50/60 Hz

Input operation voltage (max)

276 V

Input operation voltage (min)

200 V

Output power capacity

3 kVA

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler
C19 coupler

Number of input phases

1

Number of output phases

1

Typical backup time at half load

15.5 min

Nominal input voltage

230 V

Serial interface

Yes

Management card included

No

Input connection type

IEC C20
