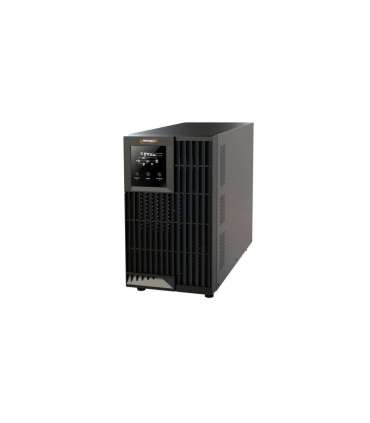

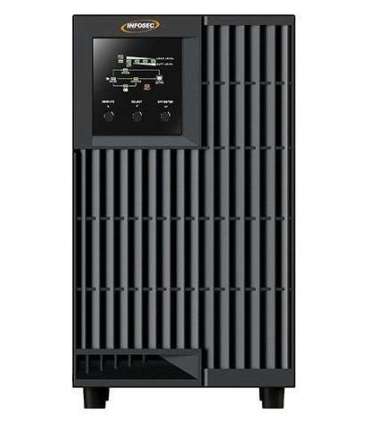

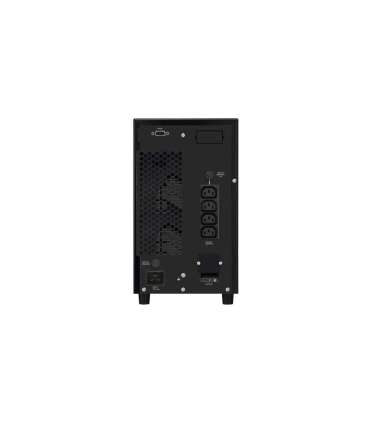

Infosec E4 Value 3000 uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 4 AC outlet(s)

Lisainfo

Depth

335 mm

Kaal

25.2 kg

Kõrgus

421 mm

Laius

190 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Cables included

Input power cable, Output power cable, RS-232

Compliance certificates

RoHS

Manual

Yes

Certification

CE

Serial interface type

RS-232

Display type

LED

Battery capacity

9 Ah

Battery technology

Sealed Lead Acid (VRLA)

Form factor

Tower

Battery voltage

12 V

Battery recharge time

4 h

Response time

4 ms

Noise level

50 dB

ECO mode

Yes

Efficiency

90%

Output power

2400 W

Input frequency

40/70 Hz

Charging current

1 A

Audible alarm(s)

Yes

Maximum current

10 A

Serial ports quantity

1

Power factor

0.8

AC outlets quantity

4 AC outlet(s)

Output frequency

47/63 Hz

Input operation voltage (max)

240 V

Input operation voltage (min)

100 V

Output power capacity

3 kVA

Output operation voltage (min)

100 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Audible alarm modes

Alarm when on battery, Fault, Overload alarm, Low battery alarm

Number of input phases

1

Typical backup time at half load

10 min

Typical backup time at full load

30 min

Output voltage regulation

-1 - 1%

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

6%

Crest factor

3:1

Input power factor

0.99
