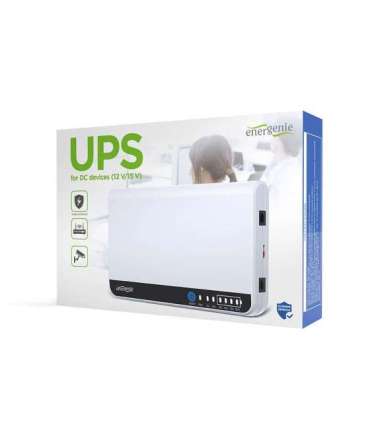

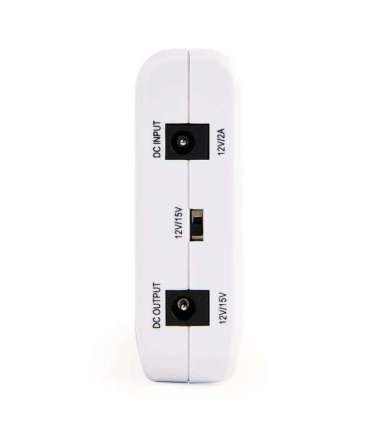

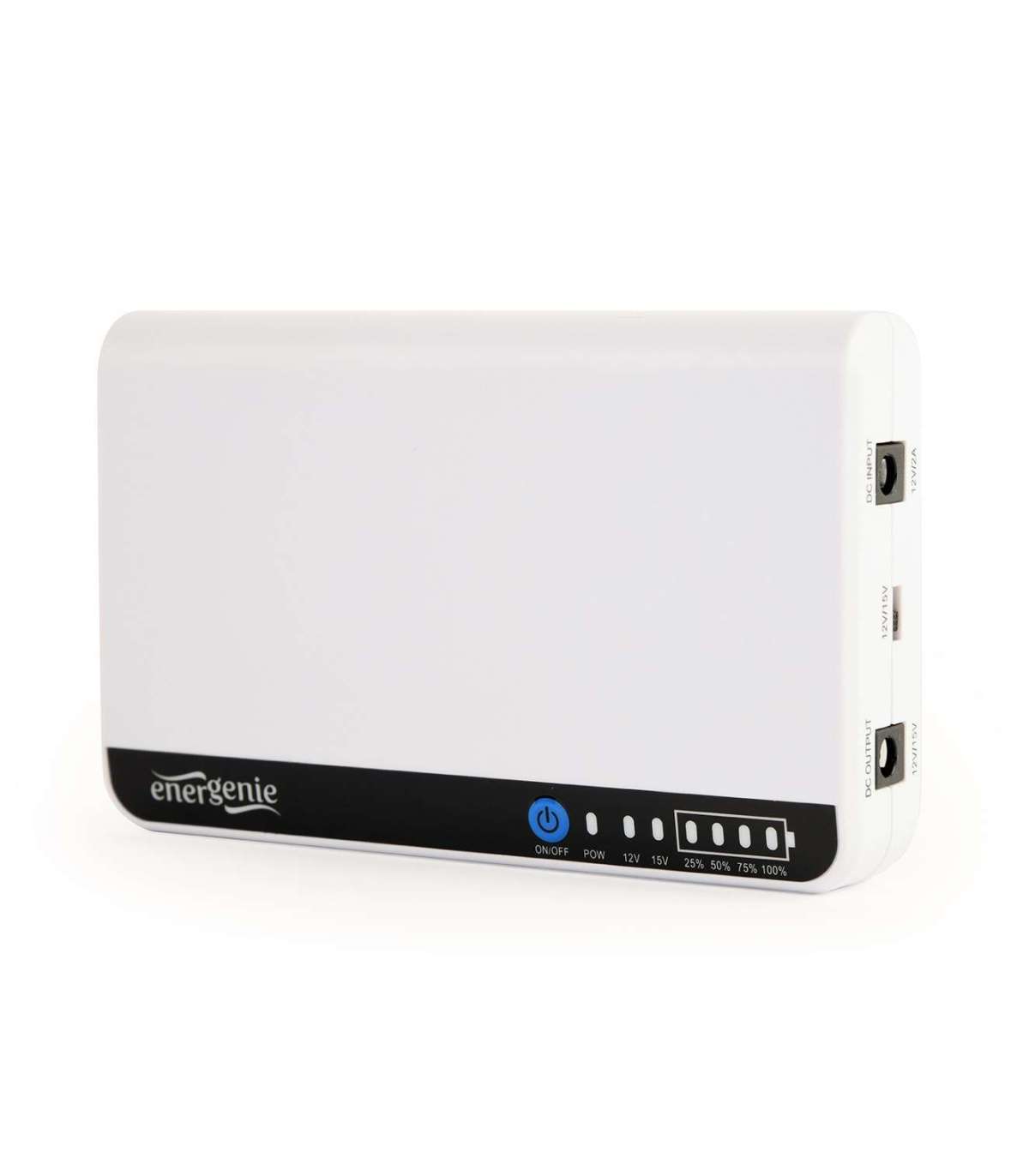

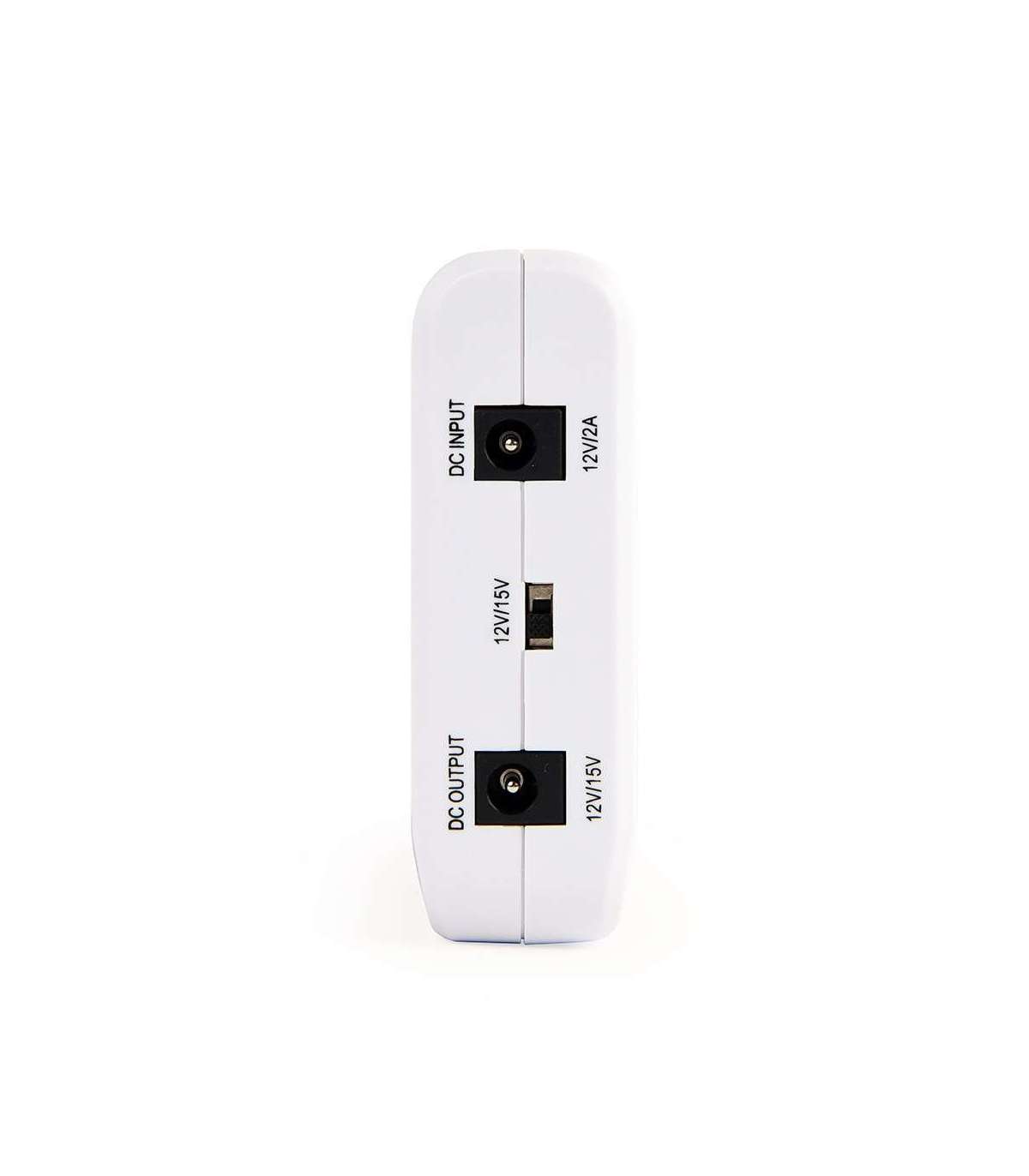

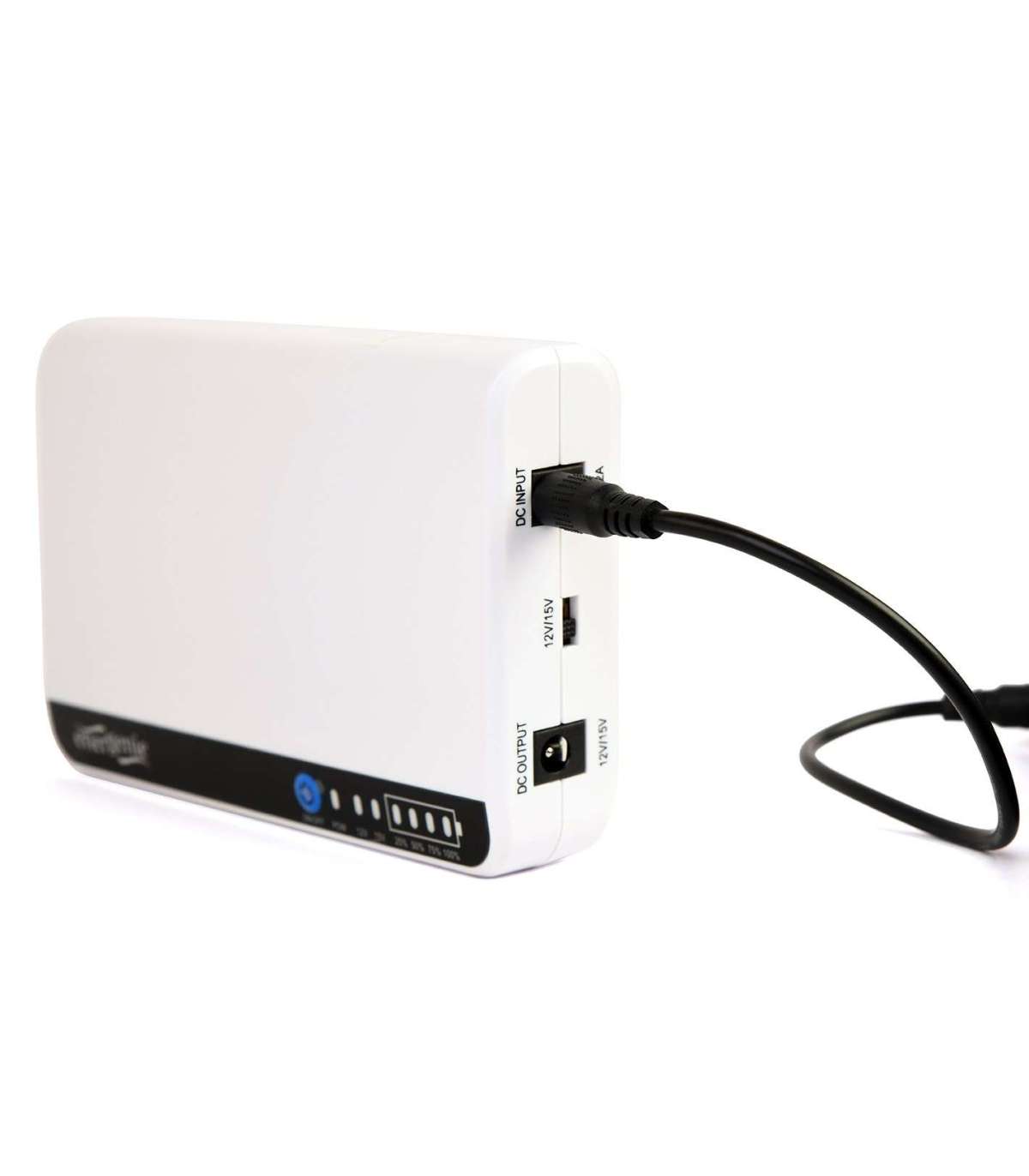

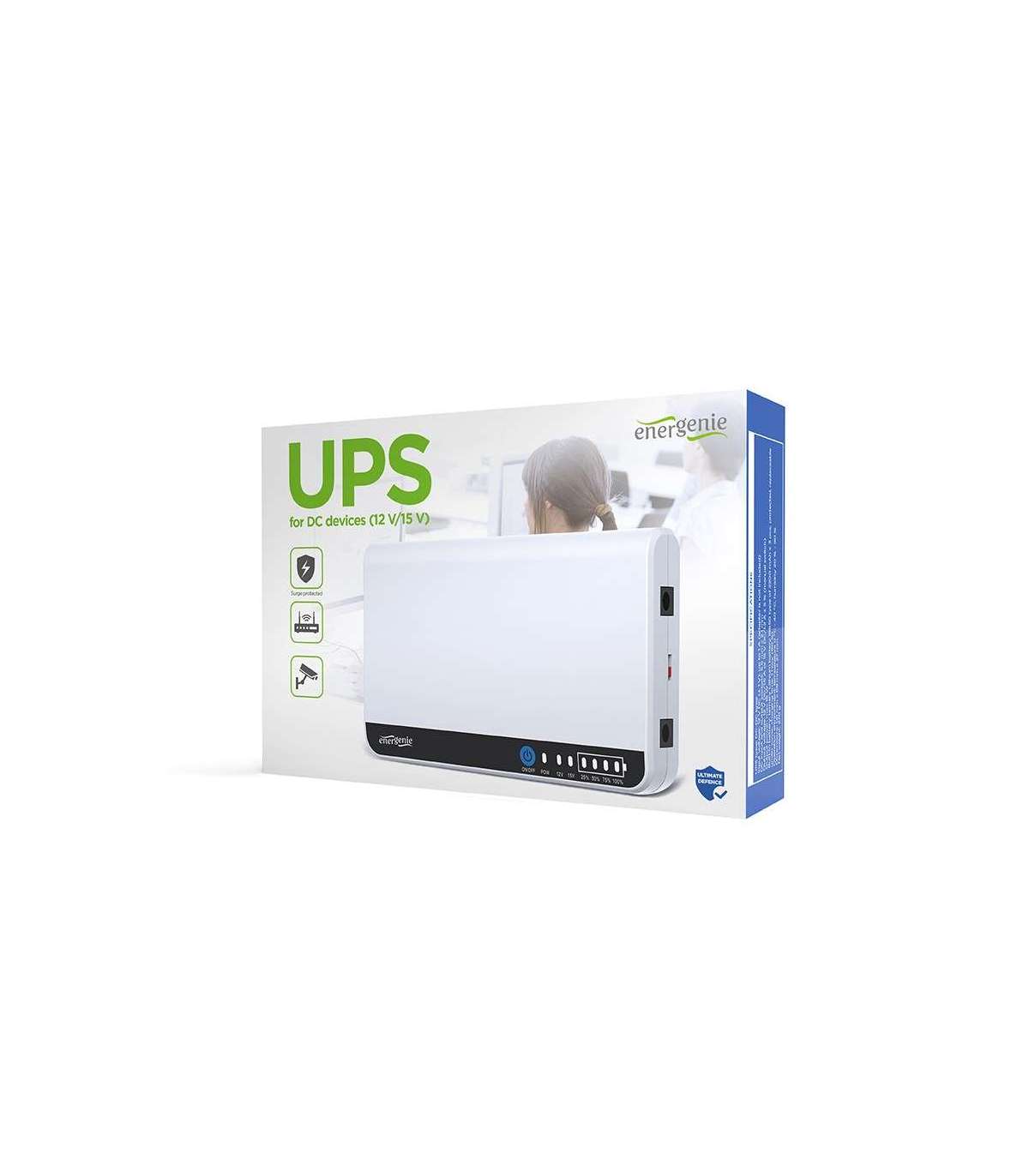

Gembird EG-UPS-DC18 uninterruptible power supply (UPS) 18 W

Lisainfo

Depth

141 mm

Kaal

275 g

Kõrgus

27 mm

Laius

88 mm

Product colour

Valge

Power source type

DC

Output voltage

12 V
15 V

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Cables included

Power load cable

LED indicators

Yes

Package width

30 mm

Package height

100 mm

Compliance certificates

CE
RoHS

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.

Manual

Yes

Package type

Box

Input voltage

12 V

Battery capacity

2200 Ah

Battery technology

Lithium-Ion (Li-Ion)

Form factor

Compact

Battery voltage

12 V

Battery recharge time

1 h

Cooling type

Passive

Number of batteries supported

3

Output power

18 W

Maximum current

1.5 A

Automatic Voltage Regulation (AVR)

No

Input operation voltage (max)

12 V

Input operation voltage (min)

12 V

Output operation voltage (min)

12 V

Output operation voltage (max)

15 V

Number of input phases

2

Number of output phases

2

Typical backup time at full load

70 min

Output voltage regulation

+-5%
