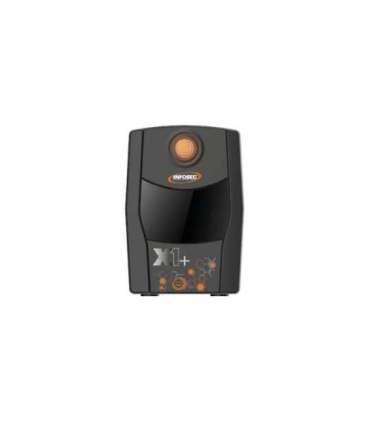

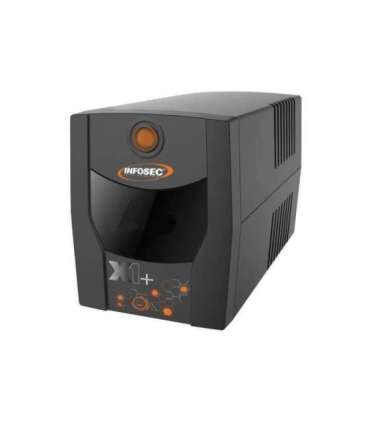

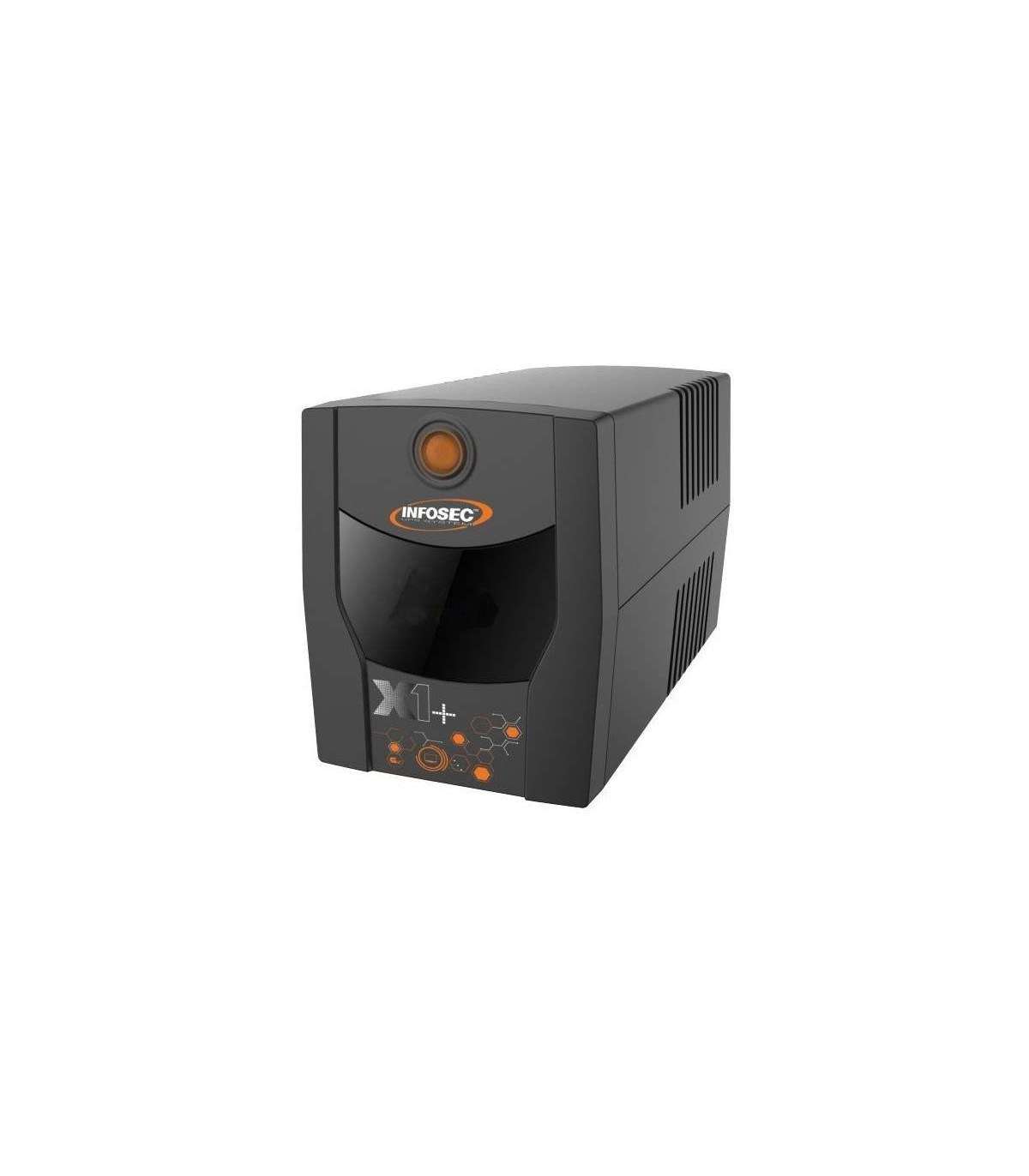

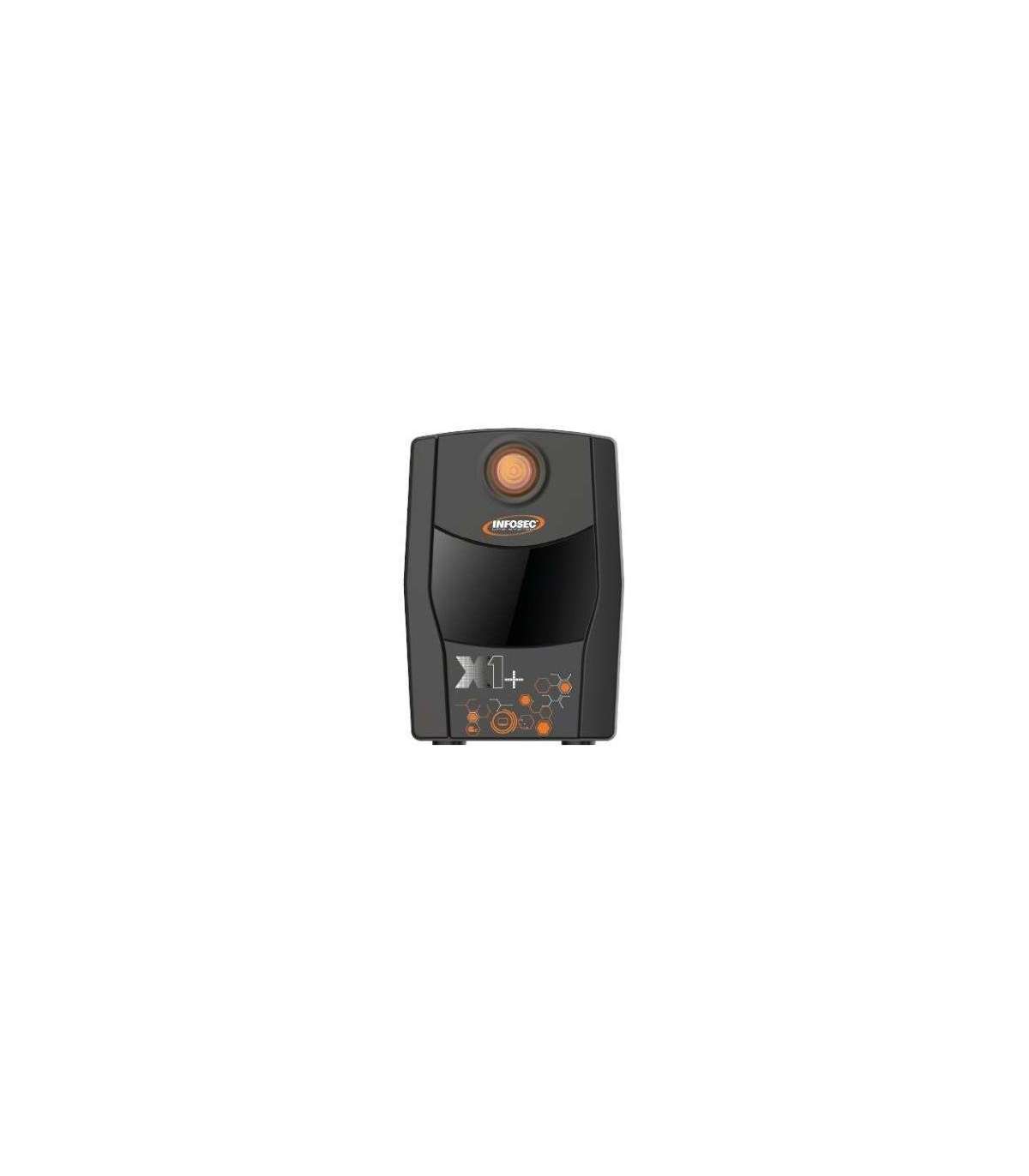

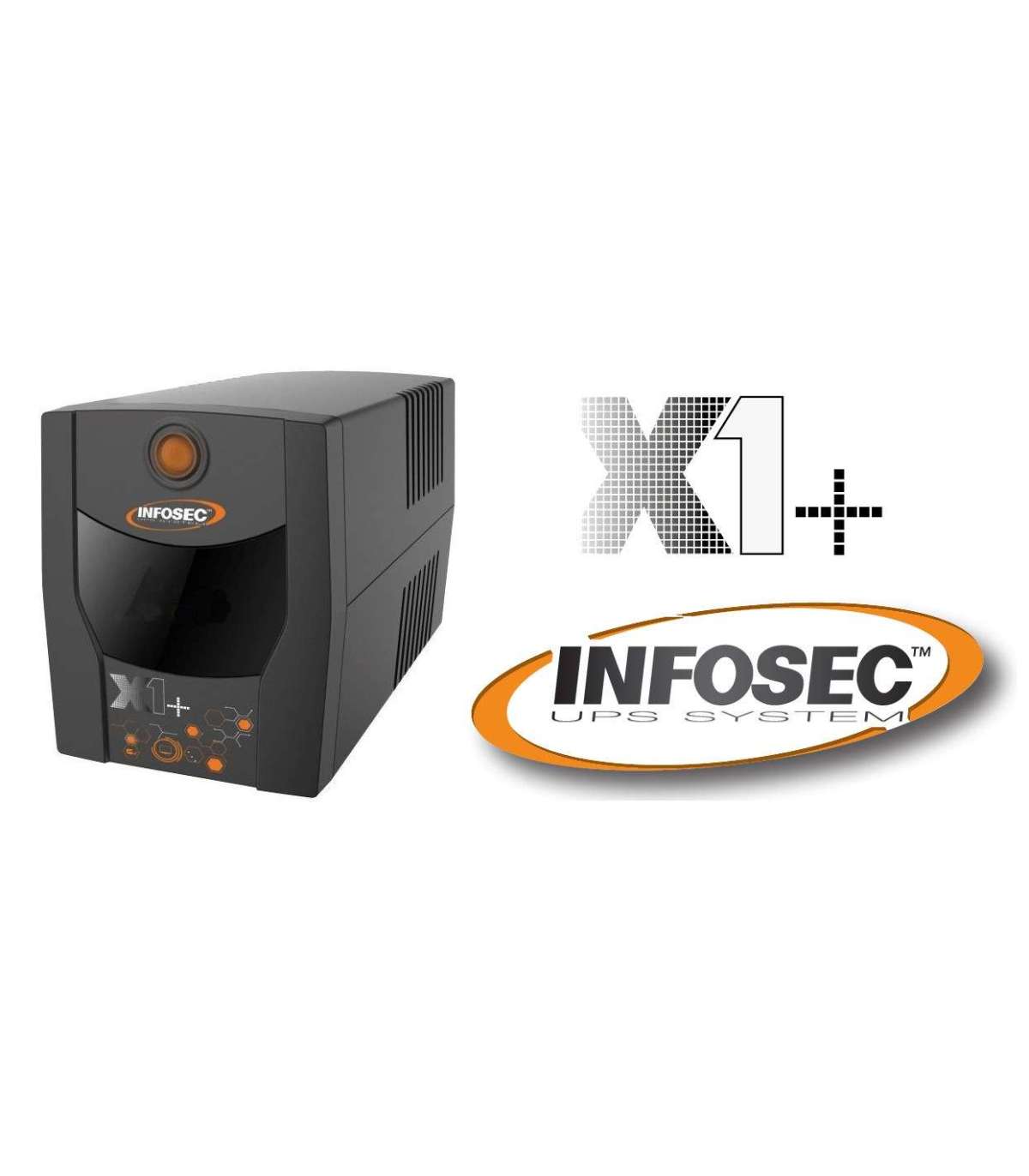

Infosec UPS X1+ 1000 Backup Power Supply 1000VA, 500W, 2× FR/Schuko

Lisainfo

Depth

286 mm

Kaal

4.8 kg

Kõrgus

138 mm

Laius

96 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Cables included

AC

USB port

Yes

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.

Manual

Yes

USB 2.0 ports quantity

1

Battery capacity

9 Ah

Battery technology

Sealed Lead Acid (VRLA)

USB port type

USB Type-B

Form factor

Tower

Battery voltage

12 V

Battery recharge time

8 h

Noise level

40 dB

Output power

500 W

Input frequency

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Power protection features

Overcharge
Overdischarge
Over power
Overvoltage protection

AC outlets quantity

2 AC outlet(s)

Cold start

Yes

Output frequency

50/60 Hz

Input operation voltage (max)

290 V

Input operation voltage (min)

162 V

Output power capacity

1 kVA

UPS topology

Line-Interactive

Output operation voltage (max)

220 V

Waveform

Pseudo sine

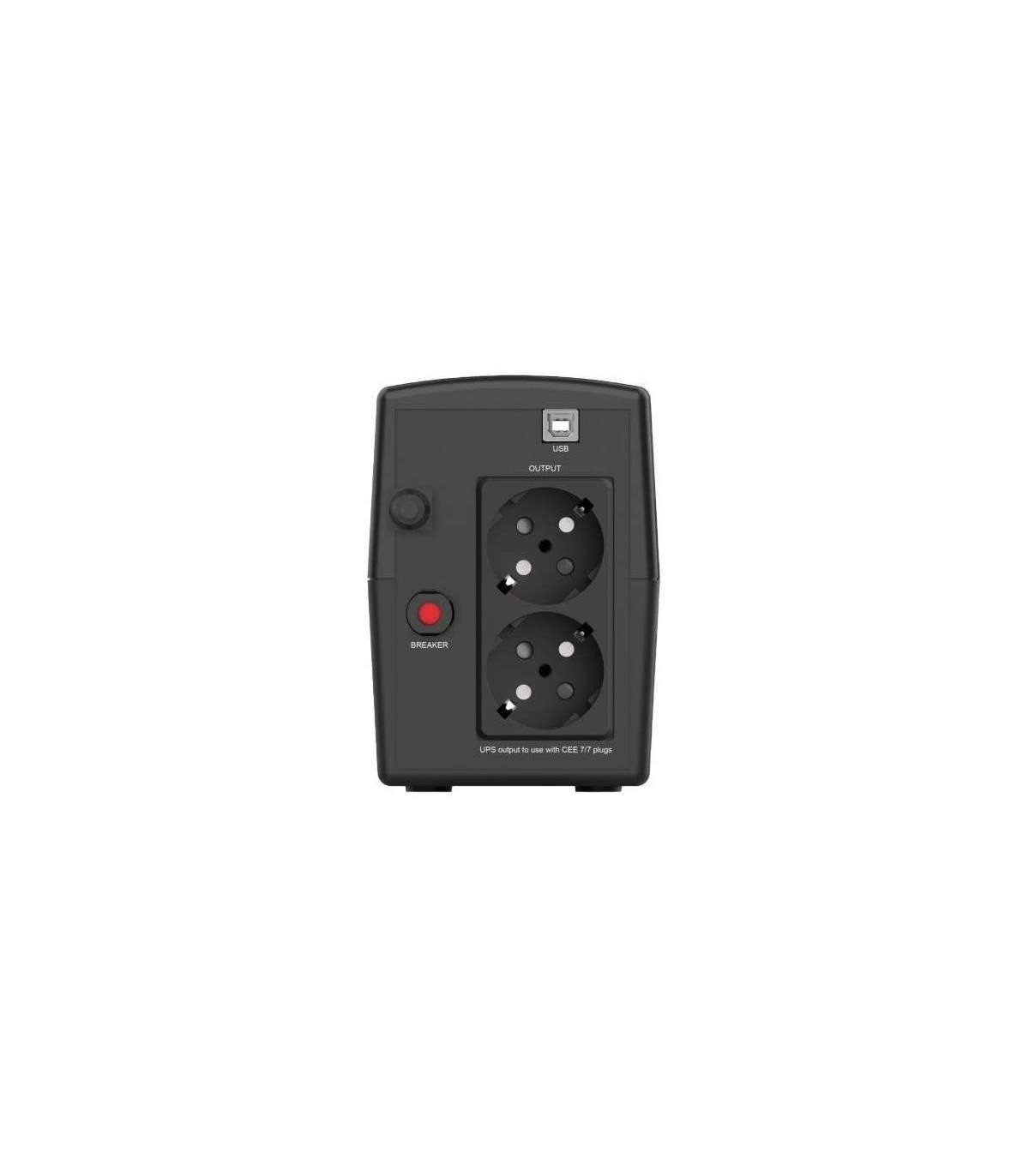

AC outlet types

2 x FR
Schuko

Number of input phases

1

Auto-restart

Yes

Number of output phases

1

Typical backup time at half load

31 min

Typical backup time at full load

10 min

Output voltage regulation

-10 - 10%
