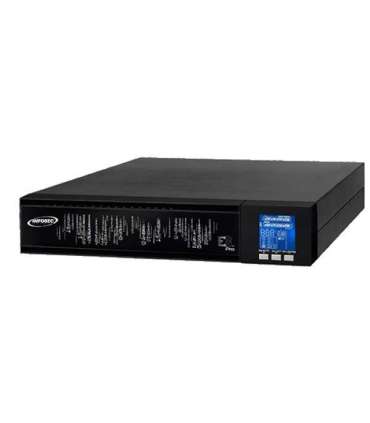

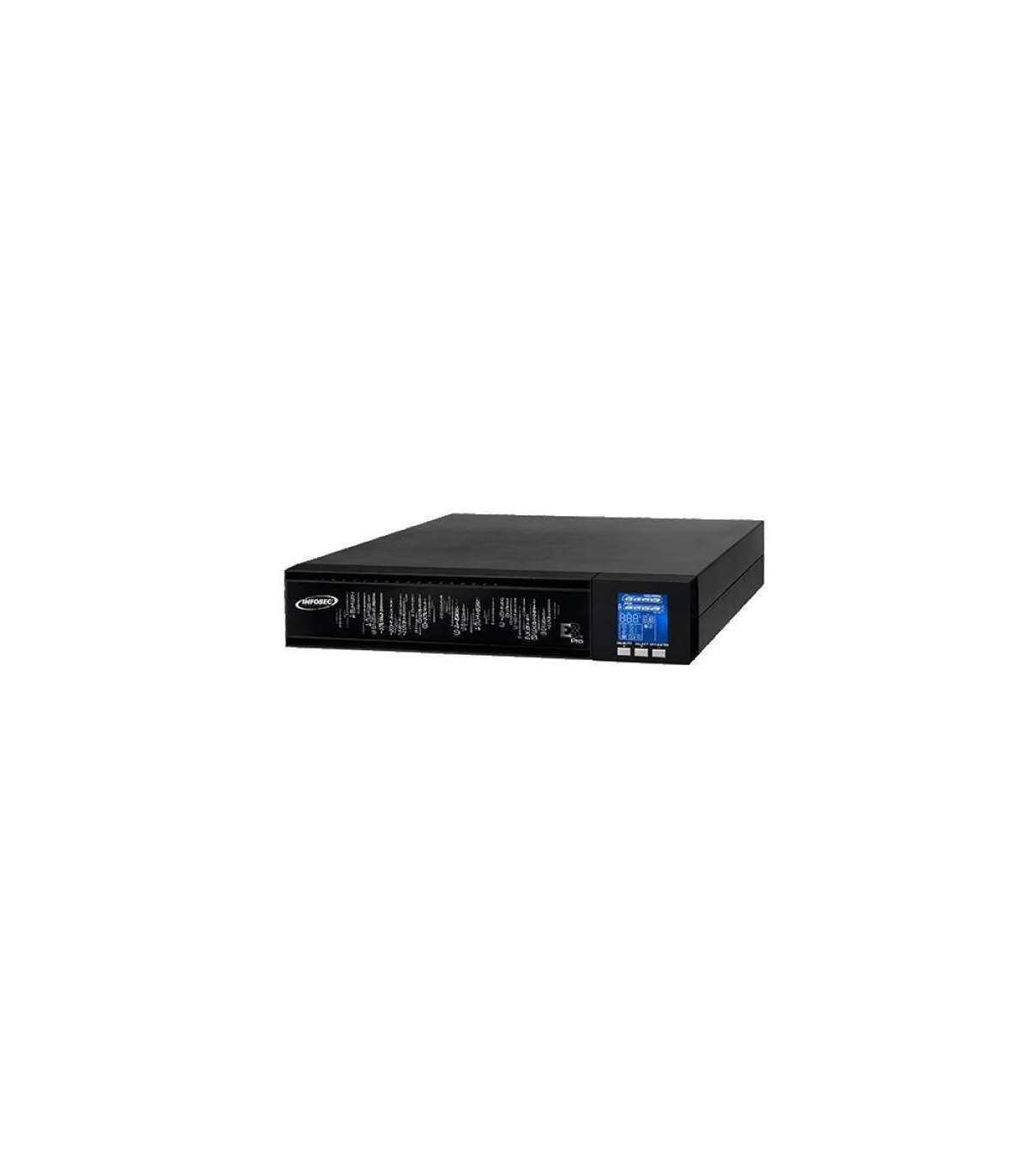

Infosec E3 Pro 1000 RT uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 3 AC outlet(s)

Lisainfo

Depth

310 mm

Kaal

12.7 kg

Kõrgus

88 mm

Laius

438 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Compliance certificates

RoHS

USB port

Yes

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.

Certification

EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014
(EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004)
CE

Rack capacity

2U

RS-232 ports

1

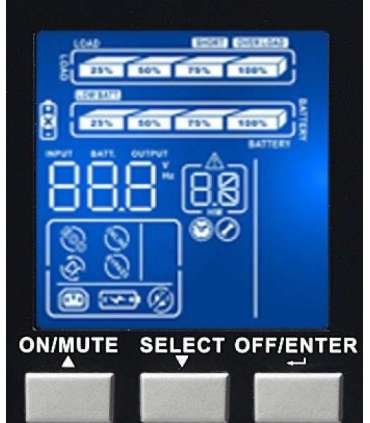

Display type

LCD

Form factor

Tower/Rack

Operating altitude

0 - 1000 m

Battery recharge time

4 h

Response time

0 ms

Cooling type

Active

Output power

900 W

Input frequency

40/70 Hz

Audible alarm(s)

Yes

Automatic Voltage Regulation (AVR)

Yes

Power protection features

Input fuse
Overdischarge
Over power
Overvoltage protection

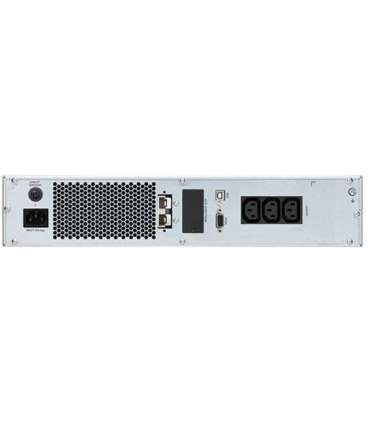

AC outlets quantity

3 AC outlet(s)

Cold start

Yes

Output frequency

57/63 Hz

Input operation voltage (max)

180 V

Input operation voltage (min)

120 V

Output power capacity

1 kVA

Output operation voltage (min)

240 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

208 V

Waveform

Pure sine wave

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Number of input phases

1

Auto-restart

Yes

Number of output phases

1

Output voltage regulation

1%

Serial interface

Yes

Output power factor

0.9

Emergency Power Off (EPO) connector

Yes
