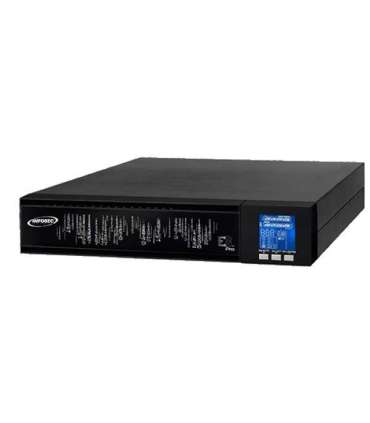

Infosec E3 Pro 2000 RT uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 4 AC outlet(s)

Lisainfo

Depth

410 mm

Kaal

19 kg

Kõrgus

88 mm

Laius

438 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Compliance certificates

RoHS

USB port

Yes

Certification

EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014
(EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004)
CE

Rack capacity

2U

RS-232 ports

1

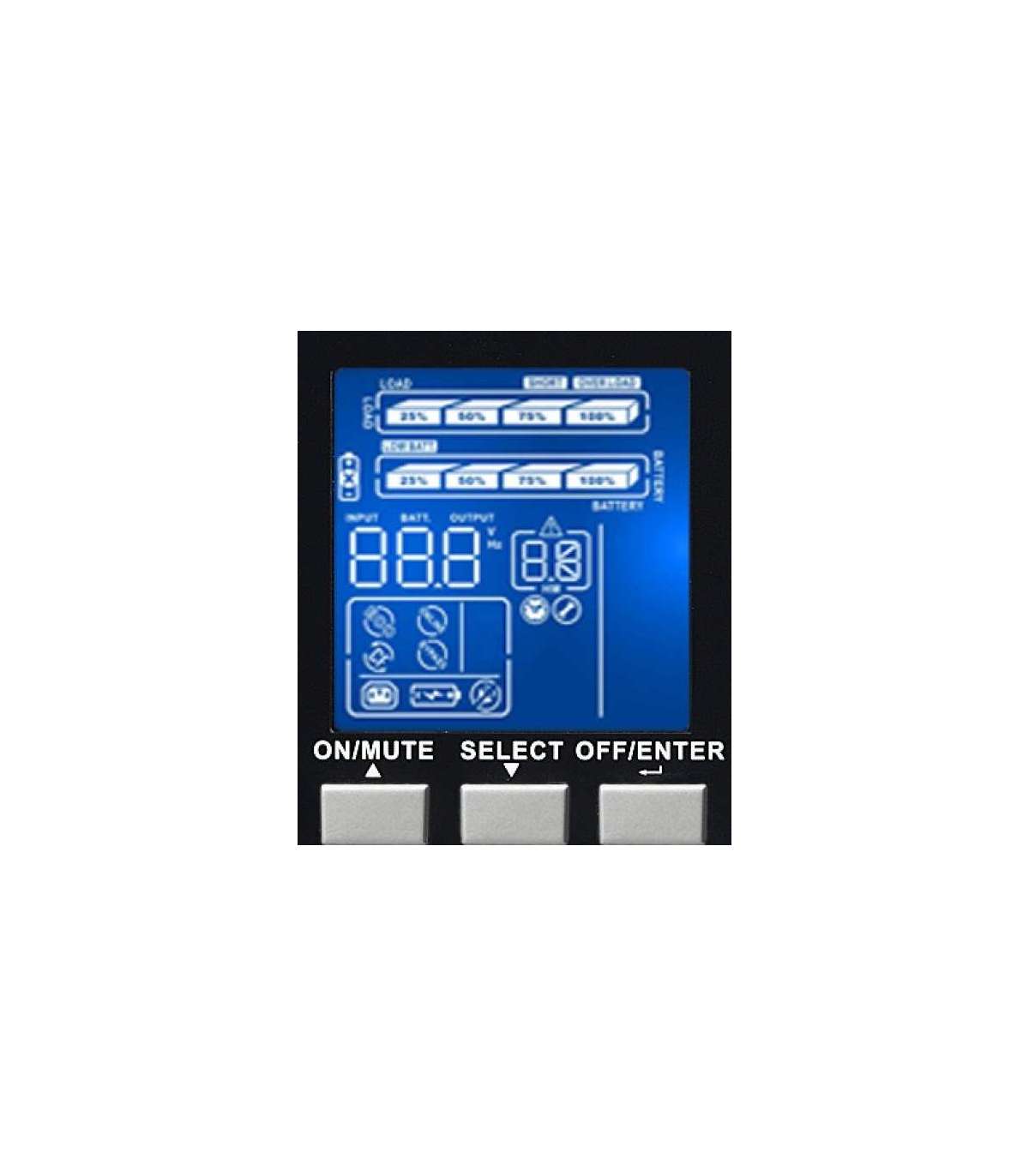

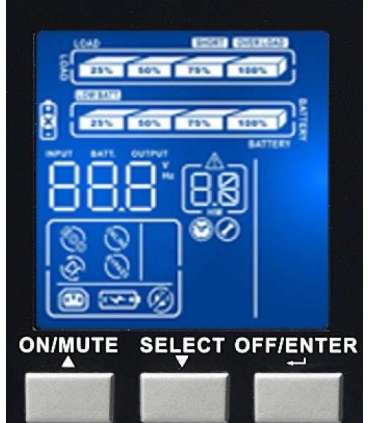

Display type

LCD

Form factor

Rackmount/Tower

Operating altitude

0 - 1000 m

Battery recharge time

4 h

Response time

0 ms

Cooling type

Active

Noise level

50 dB

Efficiency

89%

Output power

1800 W

Input frequency

40/70 Hz

Audible alarm(s)

Yes

Maximum current

10 A

Automatic Voltage Regulation (AVR)

Yes

Power protection features

Overcharge
Overdischarge
Overload

AC outlets quantity

4 AC outlet(s)

Cold start

Yes

Output frequency

47/63 Hz

Input operation voltage (max)

300 V

Output power capacity

2 kVA

Output operation voltage (min)

110 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Sine

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Number of input phases

1

Auto-restart

Yes

Number of output phases

1

Emergency Power Off (EPO)

Yes

Output voltage regulation

1%

Serial interface

Yes

Output power factor

0.9

Output voltage Total Harmonic Distortion (THD)

3%

Emergency Power Off (EPO) connector

Yes

Crest factor

3:1
