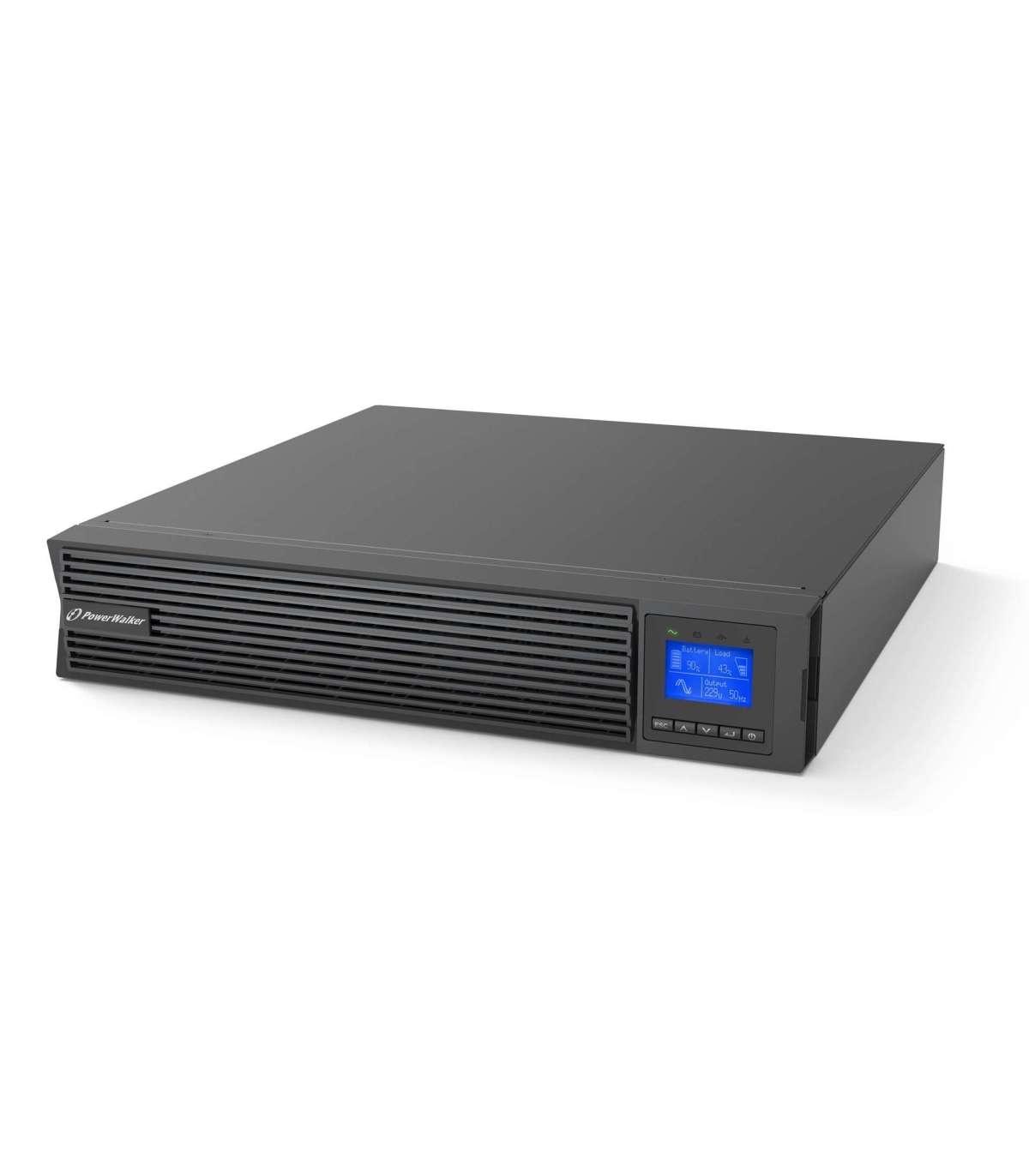

PowerWalker VFI 1000 ICR IoT Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)

Lisainfo

Depth

445 mm

Kaal

14.3 kg

Kõrgus

85.5 mm

Laius

438 mm

Product colour

Must

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

Input power cable, Output power cable, USB cable

LED indicators

Yes

Package width

498 mm

Package height

240 mm

USB port

Yes

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.

Manual

Yes

Rack capacity

2U

Serial interface type

RS-232

Display type

LCD

Battery capacity

7 Ah

Form factor

Rackmount/Tower

Battery voltage

12 V

Battery recharge time

3 h

Cooling type

Active

Noise level

45 dB

Number of batteries supported

3

ECO mode

Yes

Output power

1000 W

Input frequency

40/70 Hz

Charging current

1.5 A

Built-in fan

Yes

Serial ports quantity

1

Power plug

C14 coupler

Power protection features

Overload

Rack mount kit

Yes

AC outlets quantity

8 AC outlet(s)

Input operation voltage (max)

300 V

Input operation voltage (min)

160 V

Output power capacity

1 kVA

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Emergency Power Off (EPO)

Yes

Output voltage regulation

1%

Serial interface

Yes

Output power factor

1

Output voltage Total Harmonic Distortion (THD)

1%

Emergency Power Off (EPO) connector

Yes

Crest factor

3:1

Input power factor

0.99

Efficiency (On-line mode)

89%

Input current Total Harmonic Distortion (THD)

5%
