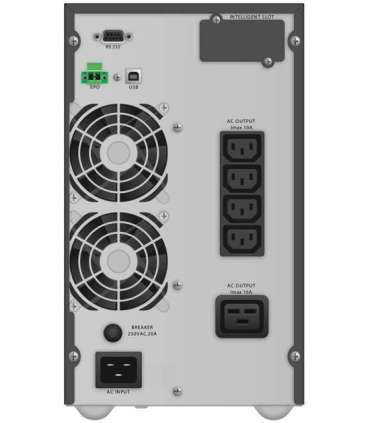

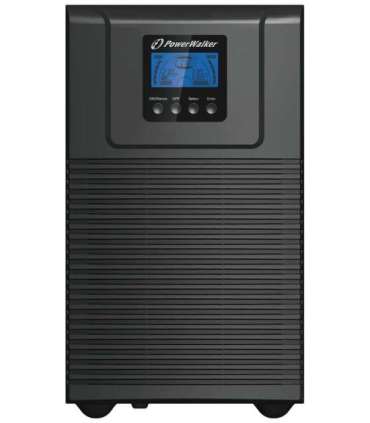

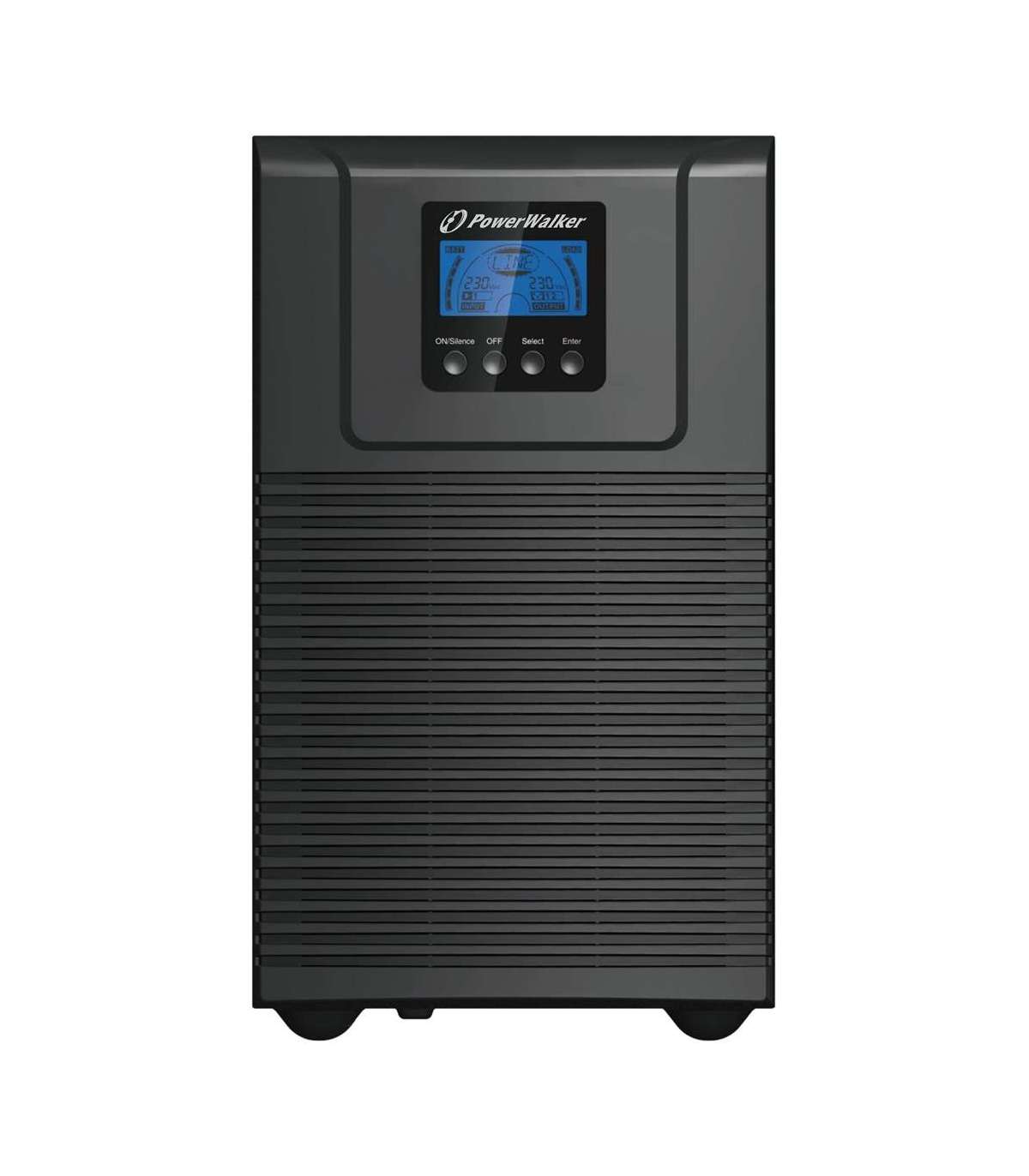

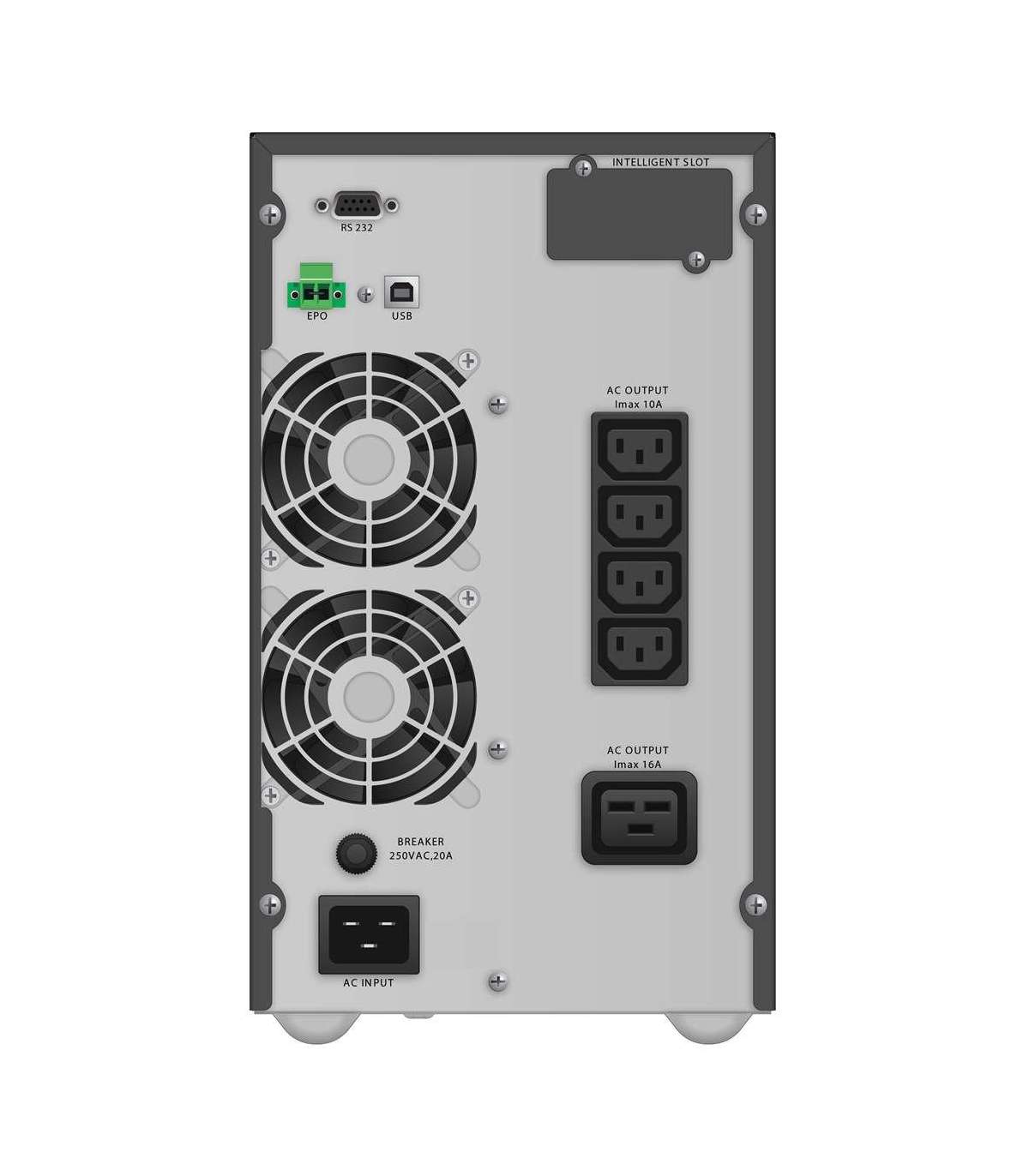

PowerWalker VFI 3000 TG Double-conversion (Online) 3 kVA 2700 W 5 AC outlet(s)

Lisainfo

Depth

399 mm

Kaal

22.2 kg

Kõrgus

328 mm

Laius

190 mm

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

Input power cable, USB cable

LED indicators

Yes

Package width

500 mm

Package height

324 mm

Harmonized System (HS) code

85078000

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.

Manual

Yes

USB 2.0 ports quantity

1

RS-232 ports

1

Display type

LCD

Battery capacity

9 Ah

Form factor

Tower

Battery voltage

12 V

Battery recharge time

4 h

Response time

4 ms

Cooling type

Active

Noise level

50 dB

Number of batteries supported

6

Efficiency

90%

Output power

2700 W

Input frequency

40 - 70 Hz

Charging current

1.5 A

Power plug

C20 coupler

AC outlets quantity

5 AC outlet(s)

Resource CD

Yes

Input operation voltage (max)

300 V

Input operation voltage (min)

80 V

Output power capacity

3 kVA

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

AC outlet types

C13 coupler
C19 coupler

Emergency Power Off (EPO)

Yes

Typical backup time at full load

4.5 min

Output voltage regulation

-2 - 2%

Output power factor

0.9

Output frequency regulation

-0.05 - 0.05 Hz

Emergency Power Off (EPO) connector

Yes

Crest factor

3:1

Input power factor

0.99
