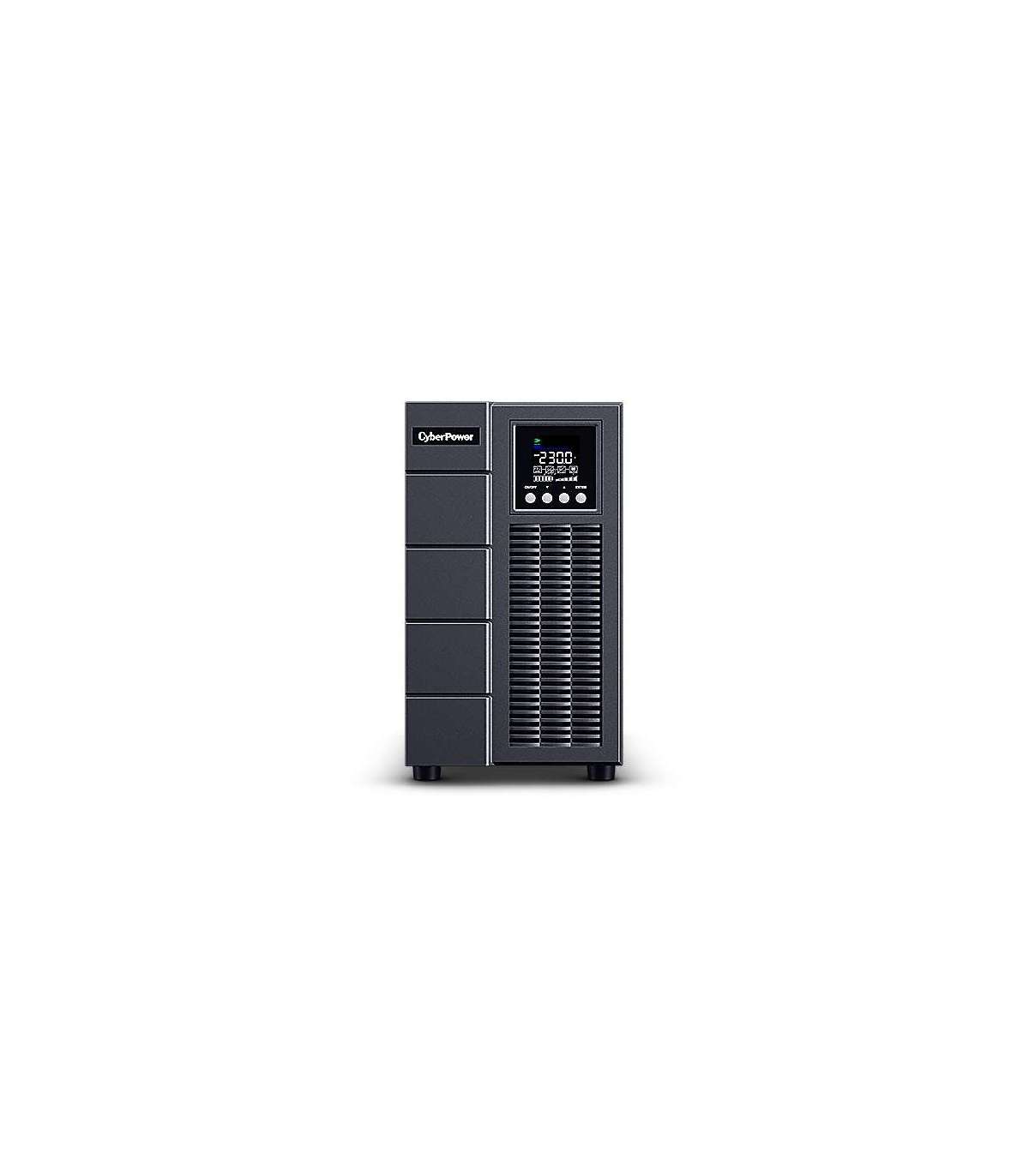

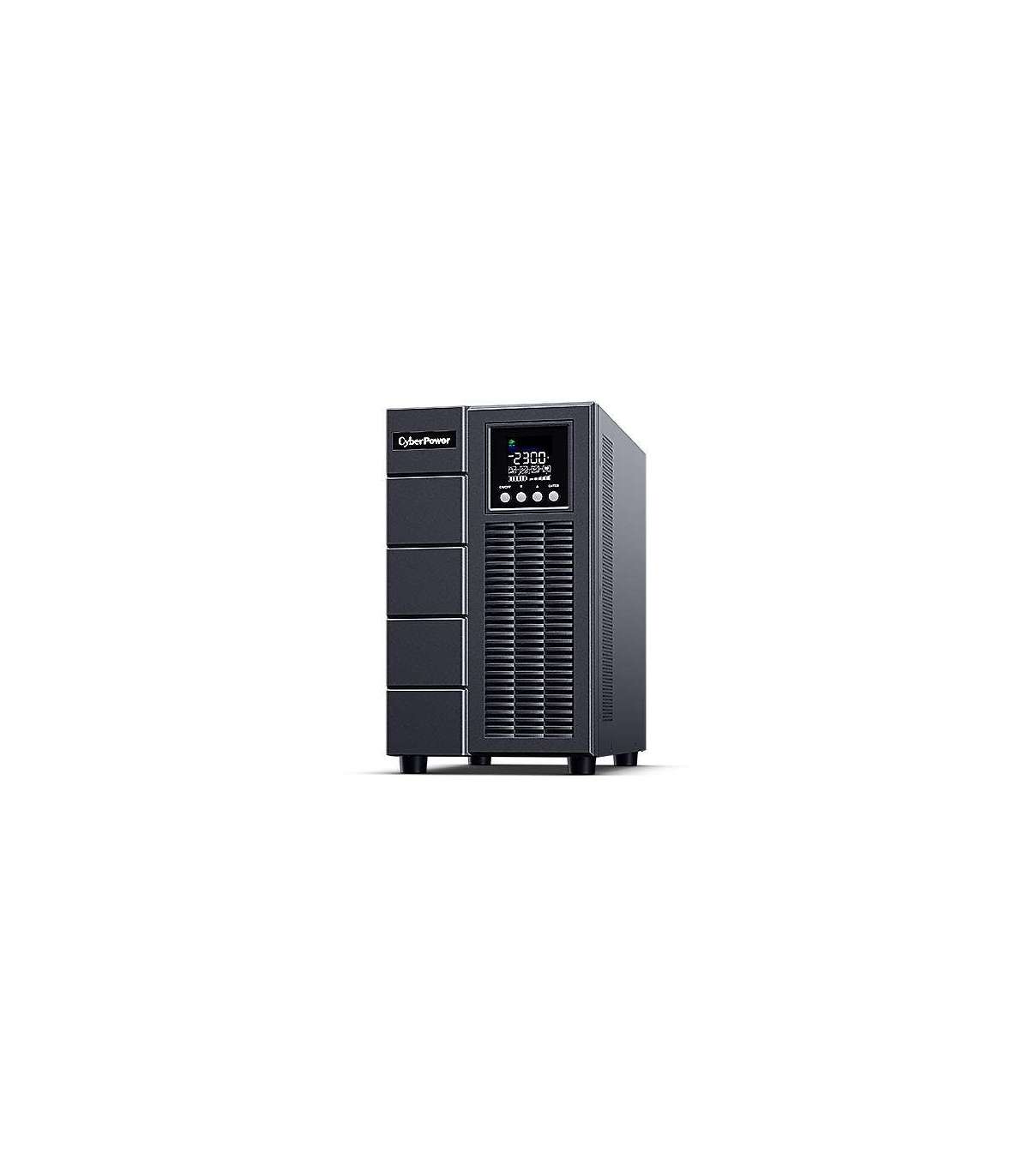

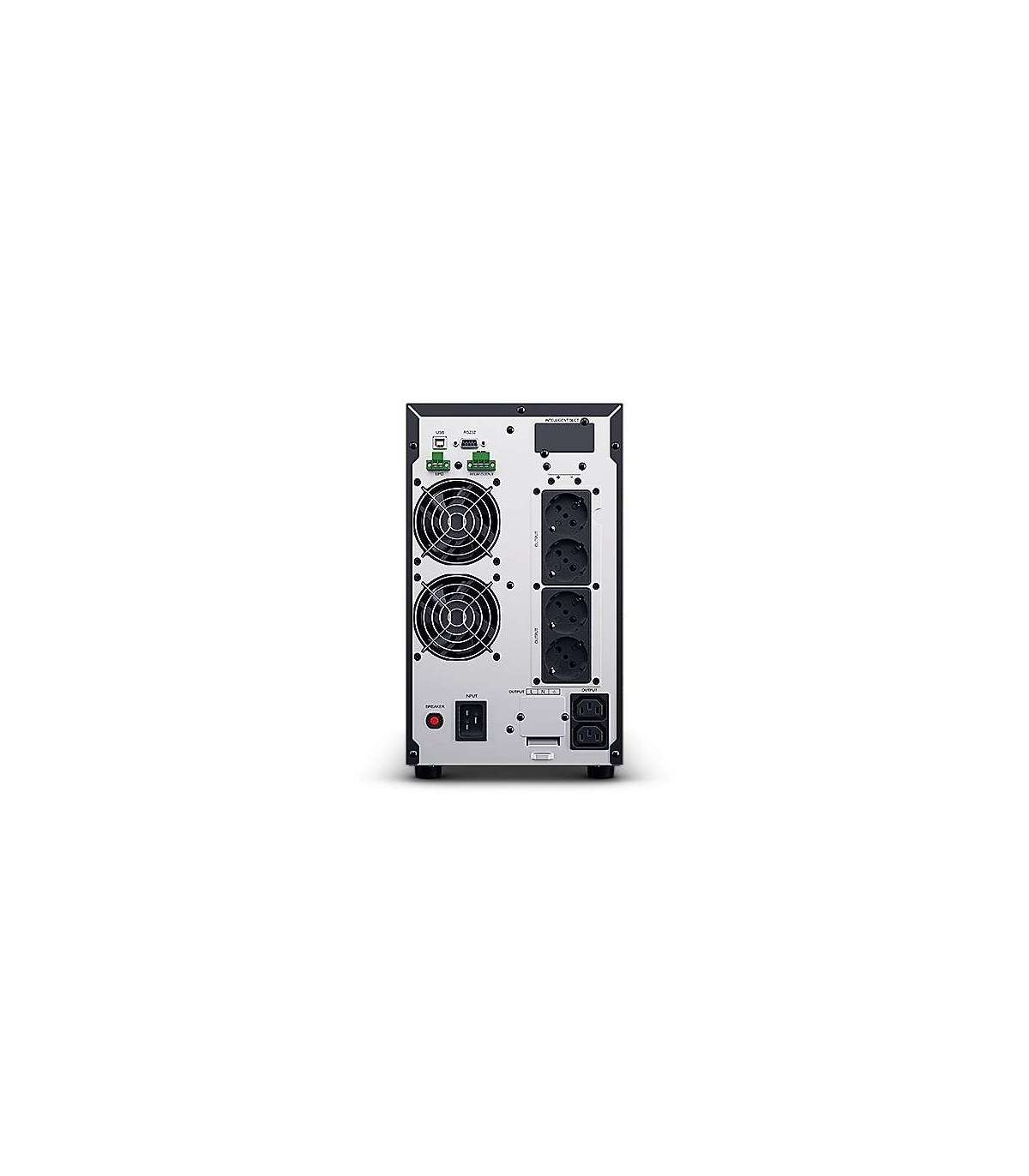

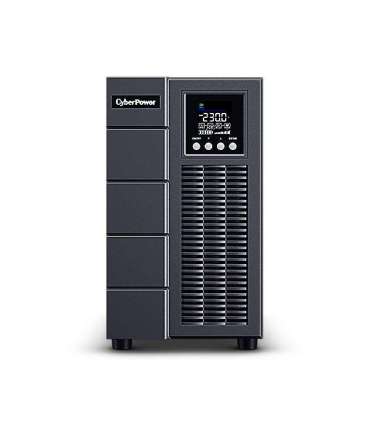

CyberPower OLS3000EA-DE uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)

Lisainfo

Depth

416 mm

Kaal

21.3 kg

Kõrgus

337 mm

Laius

196 mm

Product colour

Must

Storage temperature (T-T)

-20 - 50 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

10 - 90%

Cables included

Power load cable, USB cable

LED indicators

Fault
Operation
Power
Status

Package width

295 mm

Package height

458 mm

USB port

Yes

Harmonized System (HS) code

8504408590

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Keep away from sources of fire and water.
Use the appliance in well-ventilated areas to avoid overheating.

Housing material

Metal

Display type

LCD

Battery technology

Sealed Lead Acid (VRLA)

Form factor

Tower

Non-operating altitude

0 - 1500 m

Operating altitude

0 - 1500 m

Battery recharge time

4 h

Response time

0 ms

Cable length

1.5 m

Number of batteries supported

3

Output power

2700 W

Input frequency

50/60 Hz

Charging current

1.5 A

Surge energy rating

370 J

Audible alarm(s)

Yes

Maximum current

13.04 A

Built-in fan

Yes

Power protection features

Overload

Power factor

0.9

AC outlets quantity

7 AC outlet(s)

Output frequency

50/60 Hz

Surge protection

Yes

Input operation voltage (max)

230 V

Input operation voltage (min)

190 V

Output power capacity

3 kVA

Output operation voltage (min)

208 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

EMI/RFI noise filtering

Yes

Audible alarm modes

Battery replacement, Fault, Low battery alarm, Overload alarm

Typical backup time at half load

13.1 min

Typical backup time at full load

4.2 min

Output voltage Total Harmonic Distortion (THD)

5%

Crest factor

3:1

Input power factor

0.98

Efficiency (ECO mode)

95%
