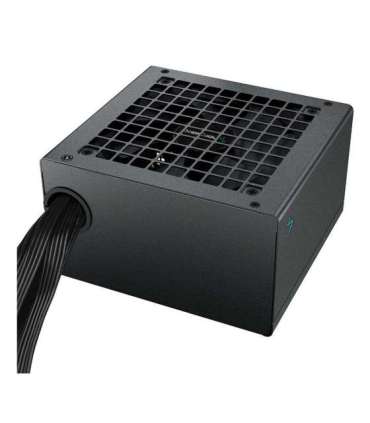

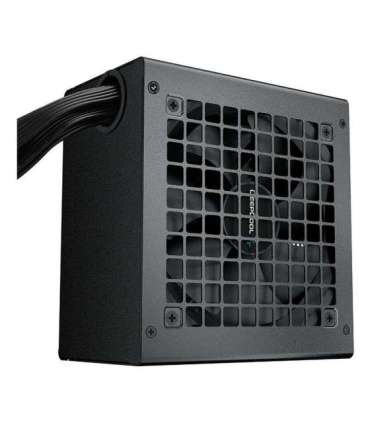

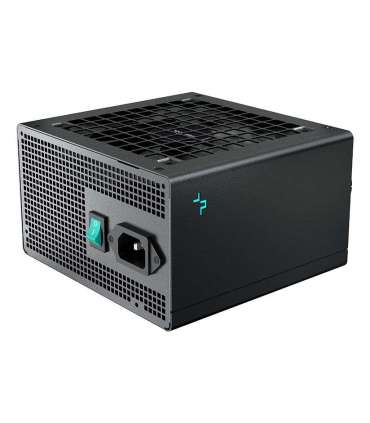

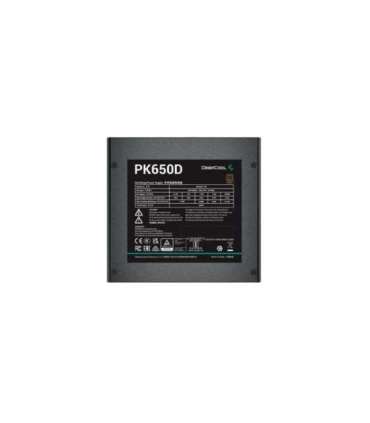

DeepCool PK650D power supply unit 650 W 20+4 pin ATX Black

Lisainfo

Depth

140 mm

Kõrgus

86 mm

Laius

150 mm

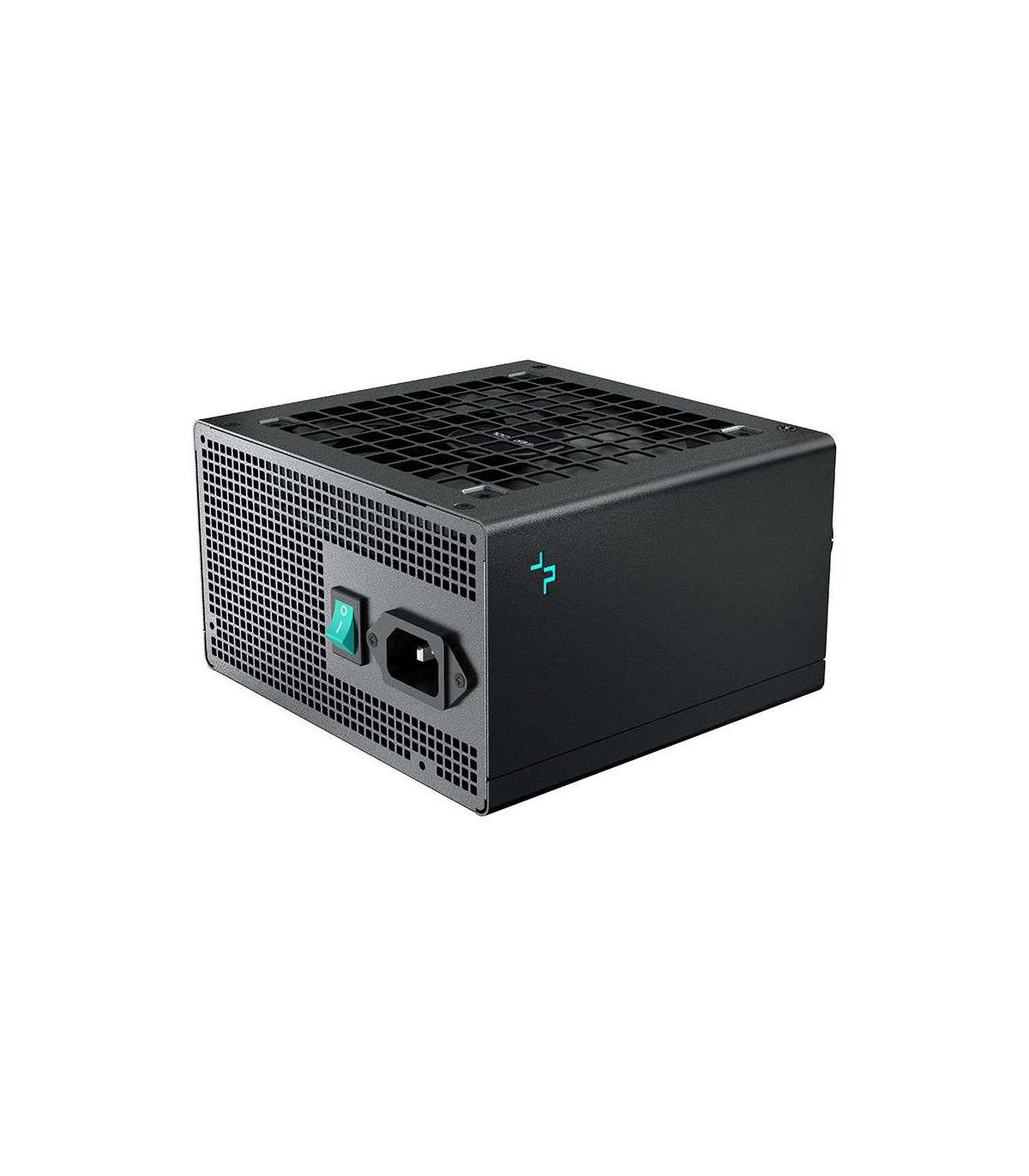

On/off switch

Yes

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

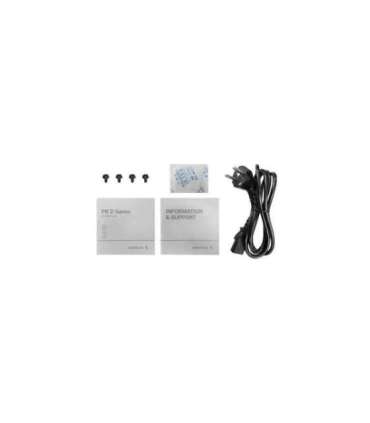

Cables included

AC

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Package type

Box

Mean time between failures (MTBF)

100000 h

Peripheral (Molex) power connectors (4-pin)

1

Efficiency

85%

Purpose

PC

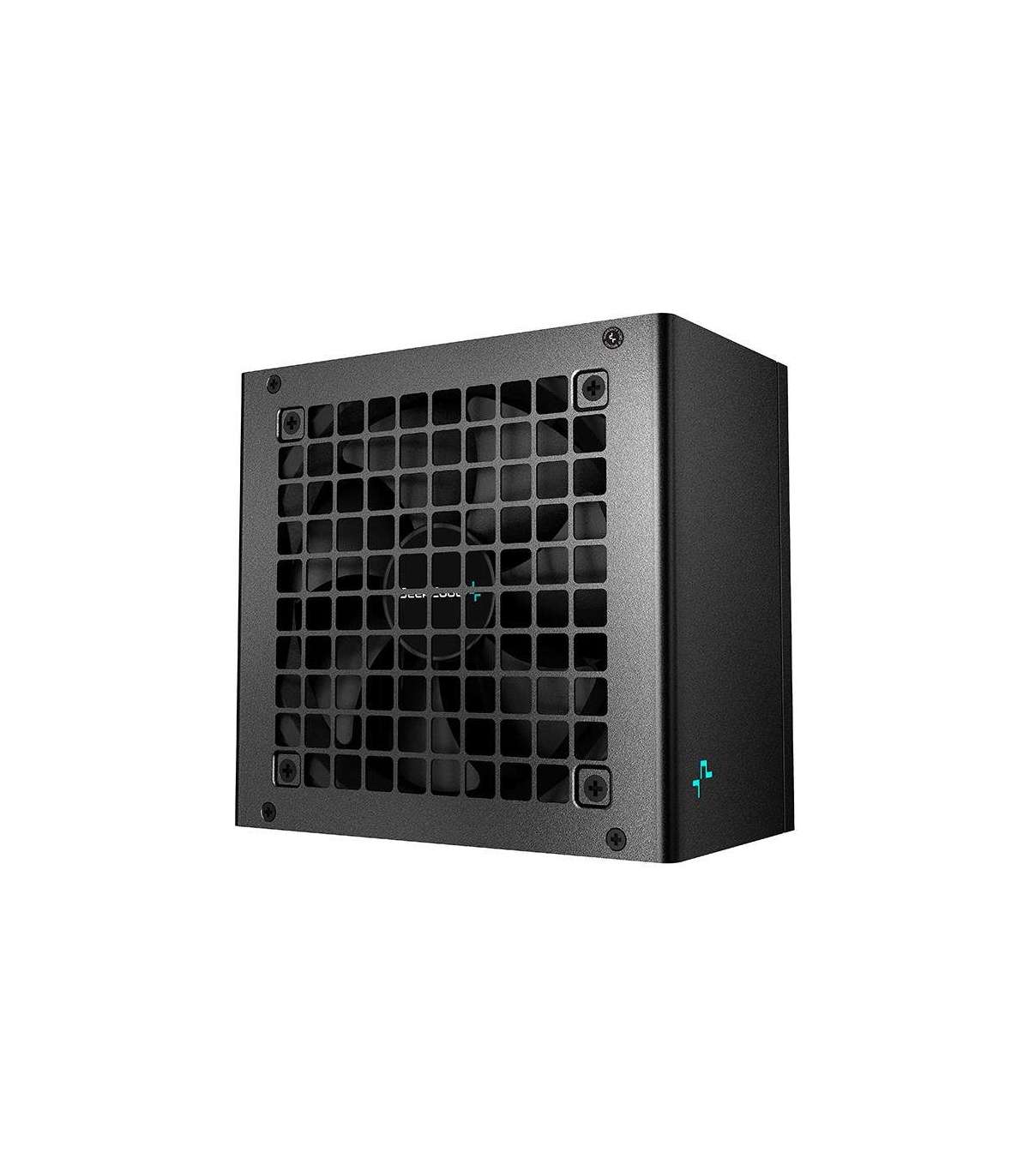

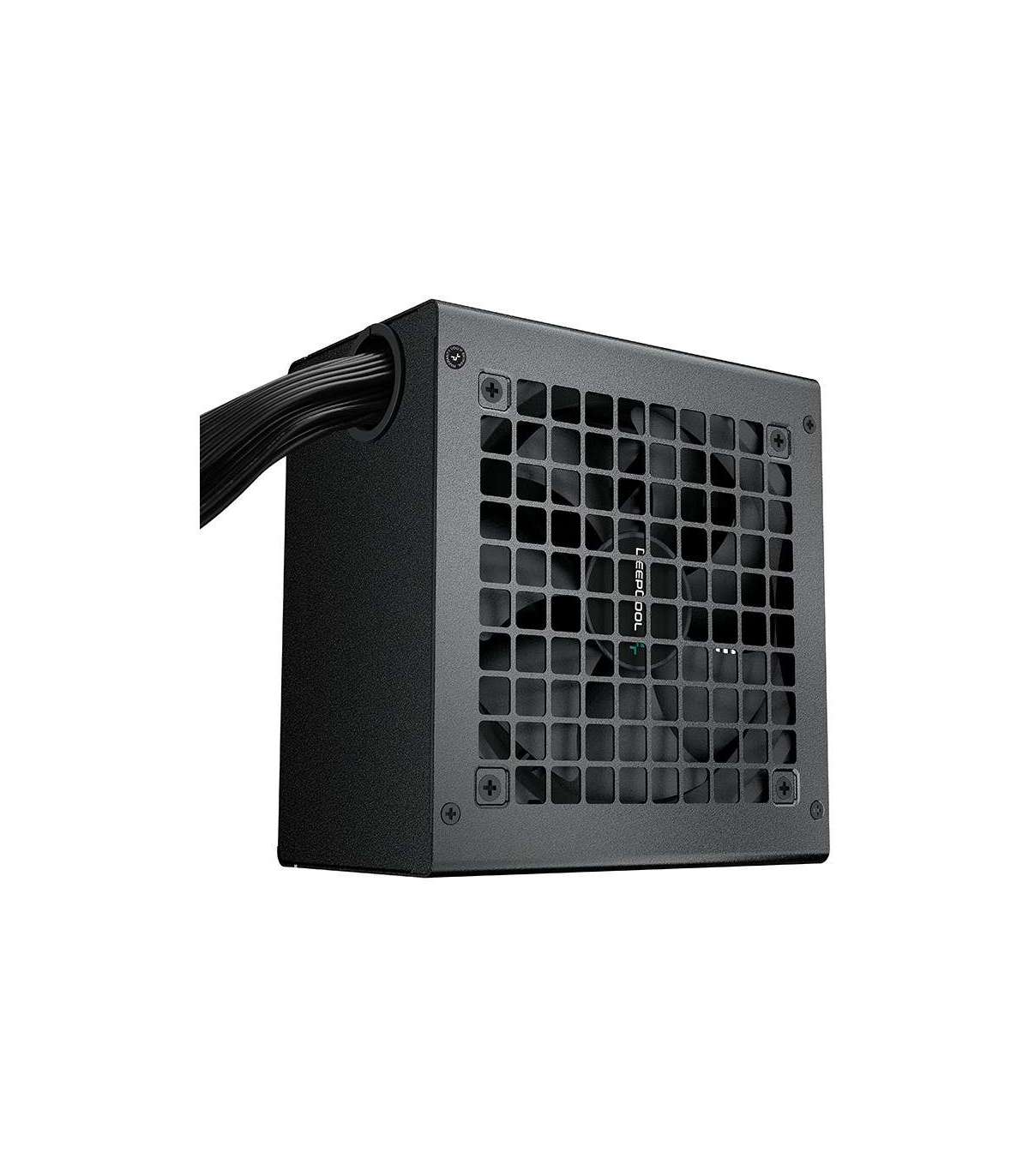

Number of fans

1 fan(s)

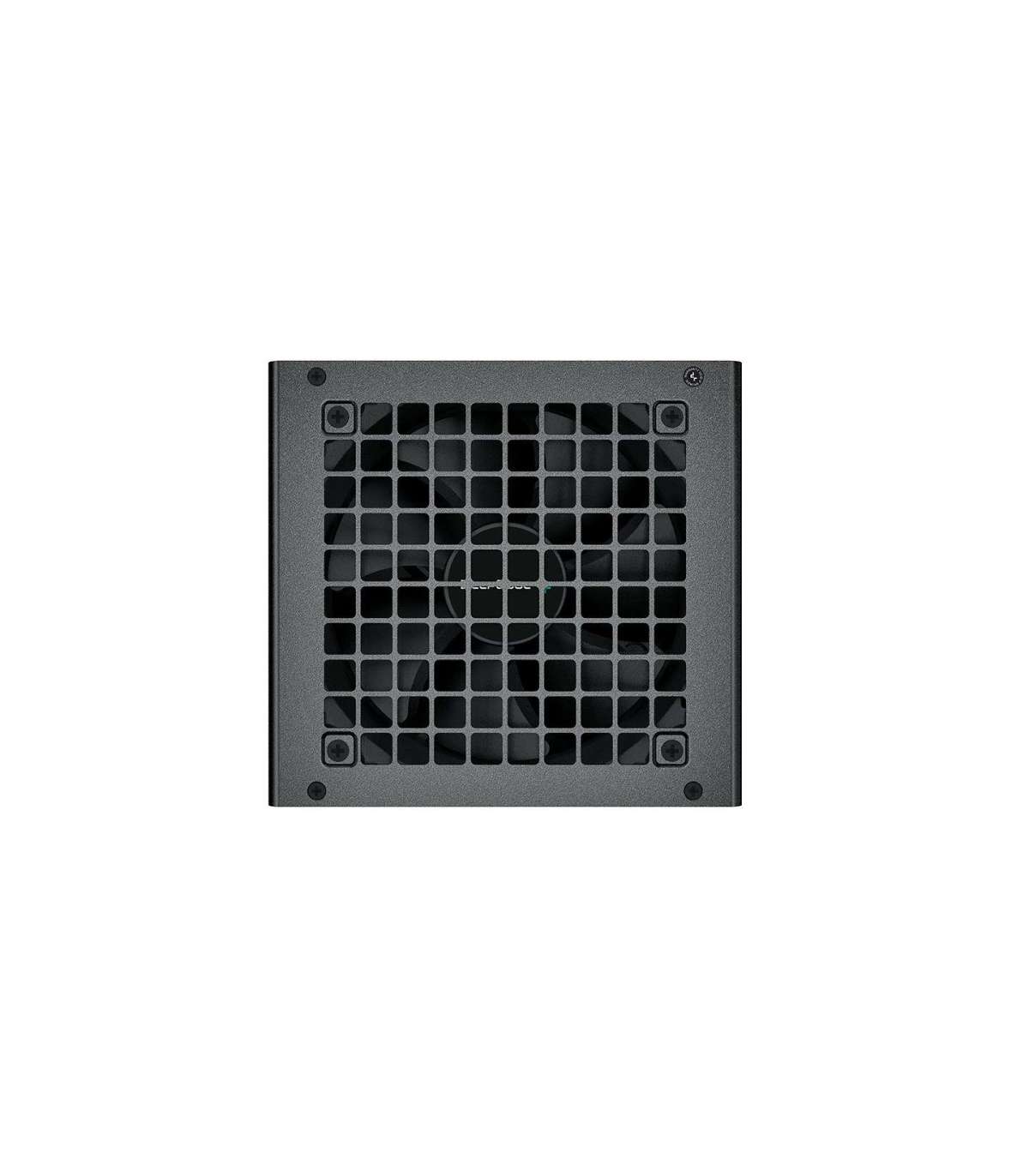

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

650 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

HDB

Combined power (-12V)

3.6 W

Max output current (+12V)

54 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Hold time

16 ms

Combined power (+12V)

648 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Number of SATA power connectors

1

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

400 mm
500 mm
600 mm

Peripheral (Molex) power cable length

400 mm
500 mm
600 mm
700 mm

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

50 cm

EPS power connector (4+4 pin)

Yes

PCI Express power cable length

62 cm
