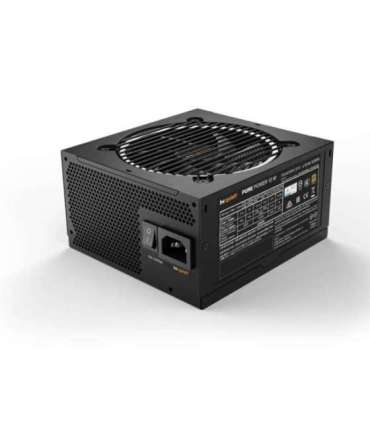

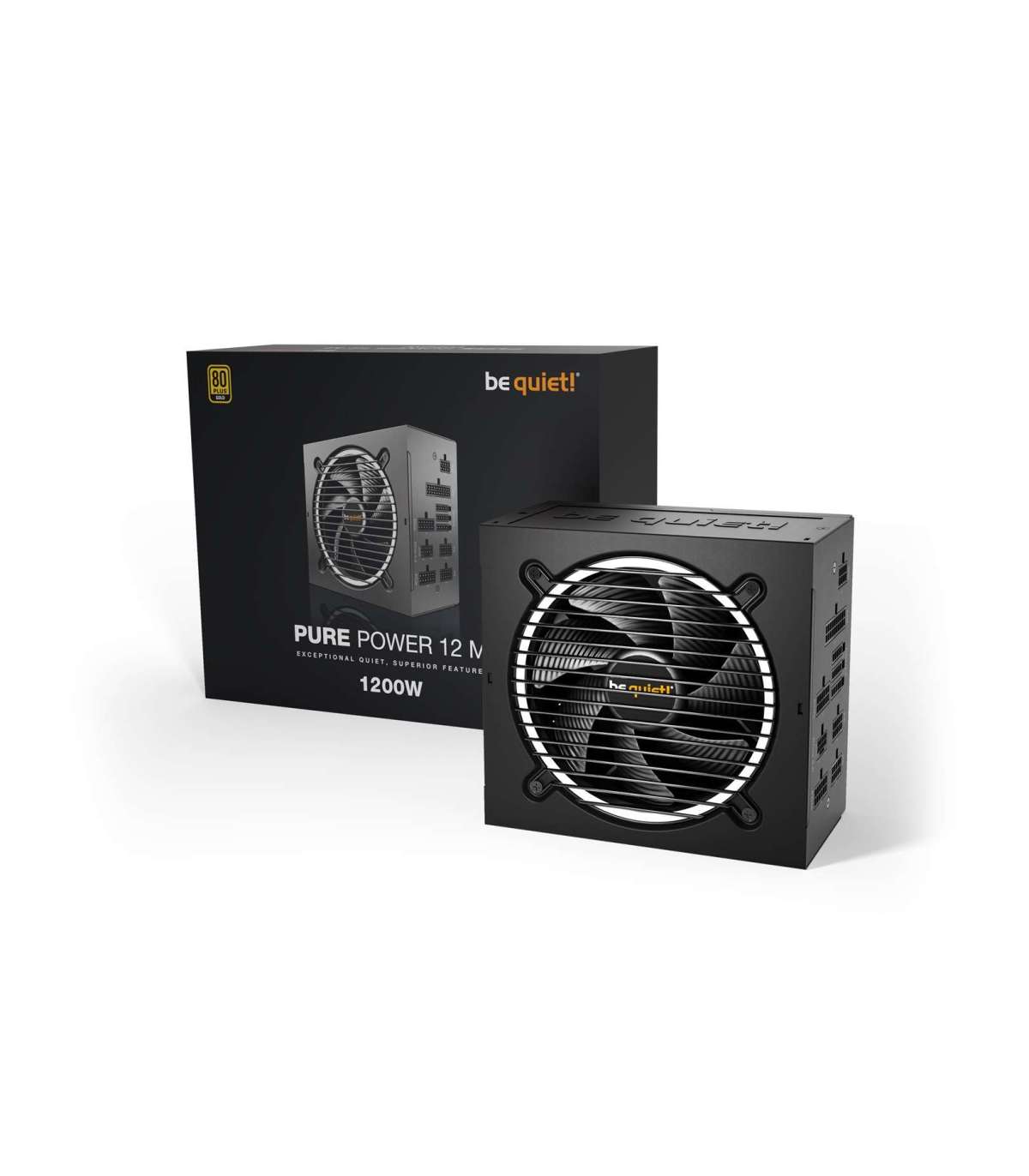

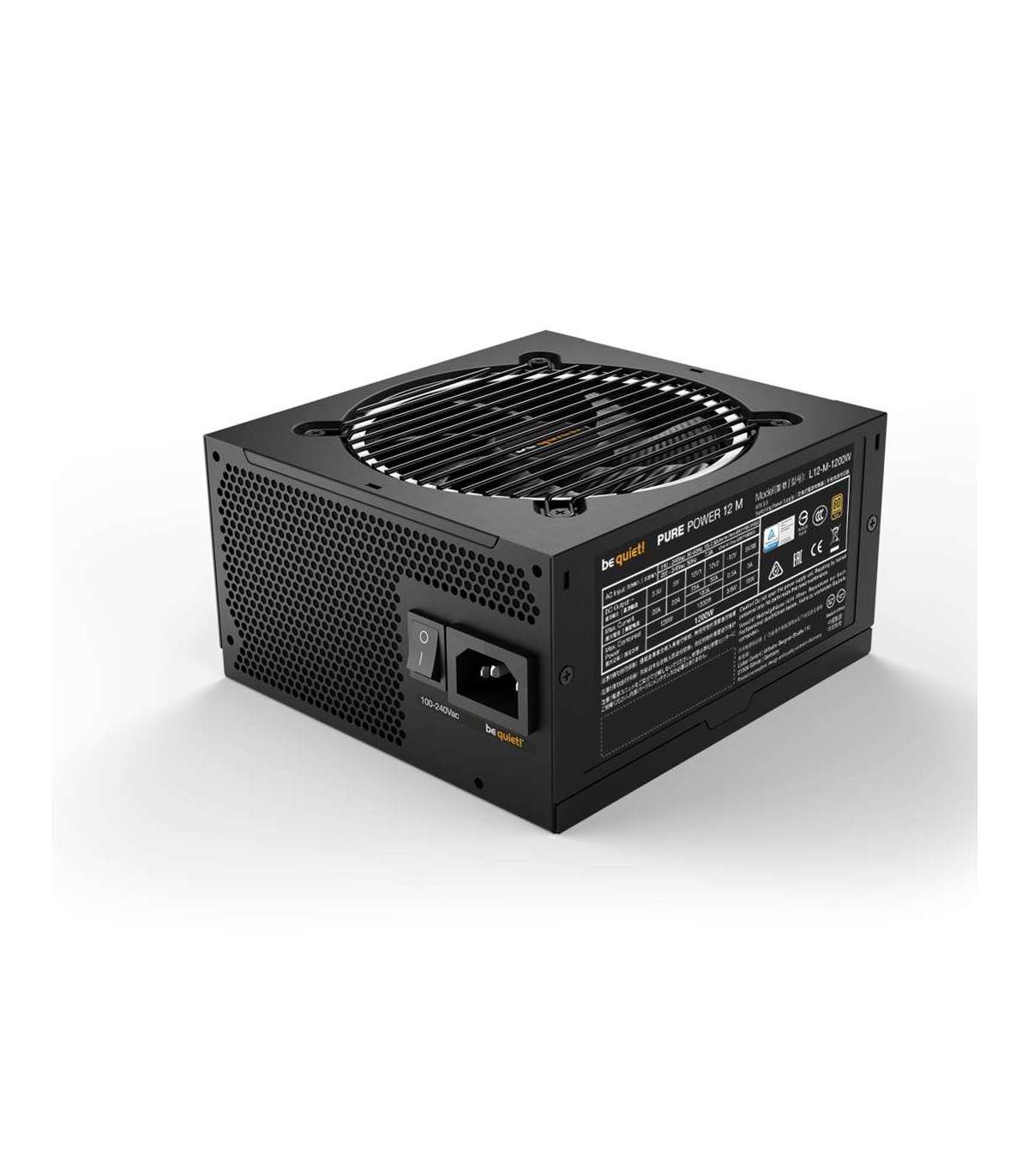

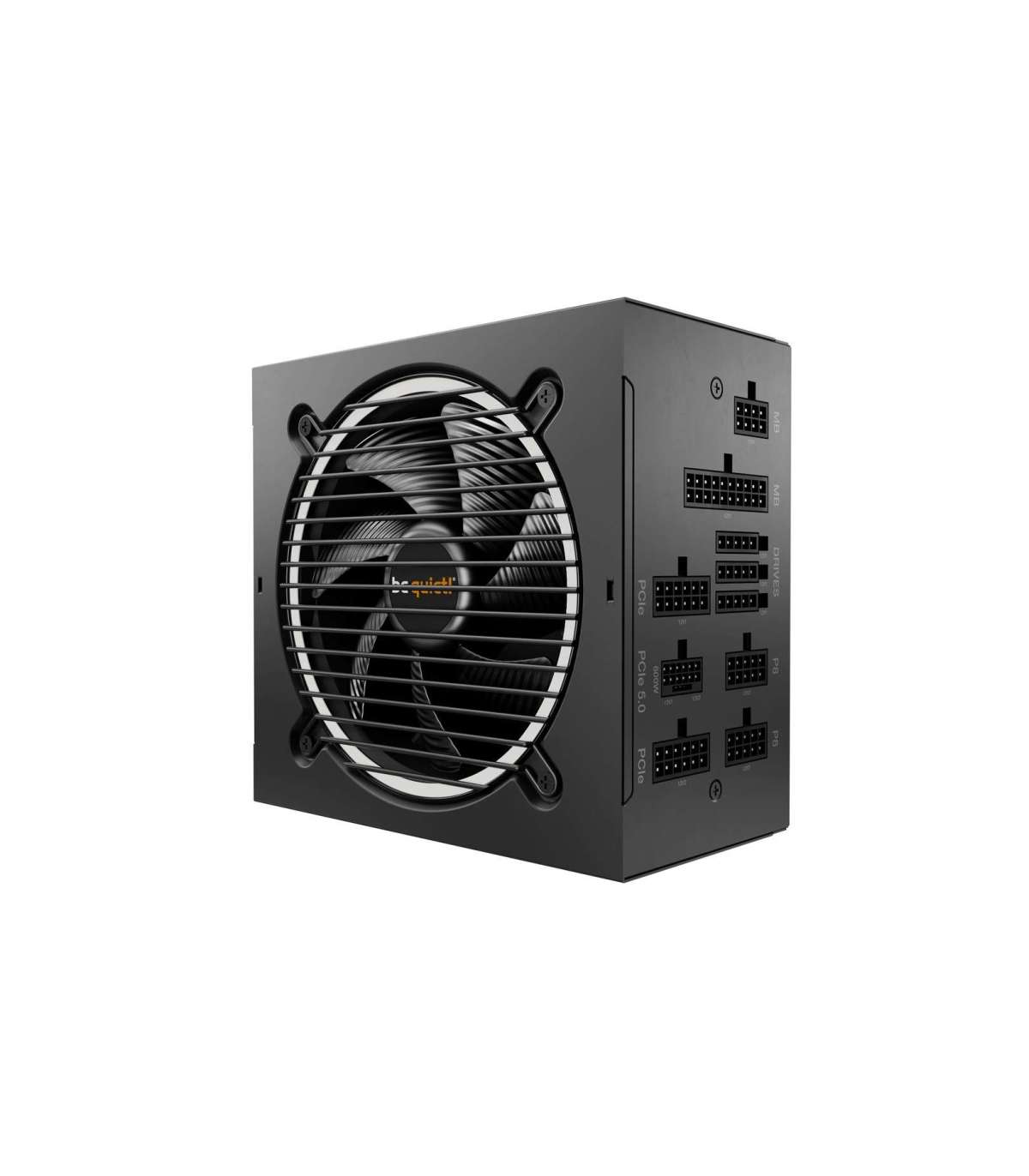

be quiet! PURE POWER 12 M 1200W power supply unit 20+4 pin ATX ATX Black

Lisainfo

Depth

160 mm

Kaal

1.92 kg

Kõrgus

86 mm

Laius

150 mm

Package weight

3.19 kg

On/off switch

Yes

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

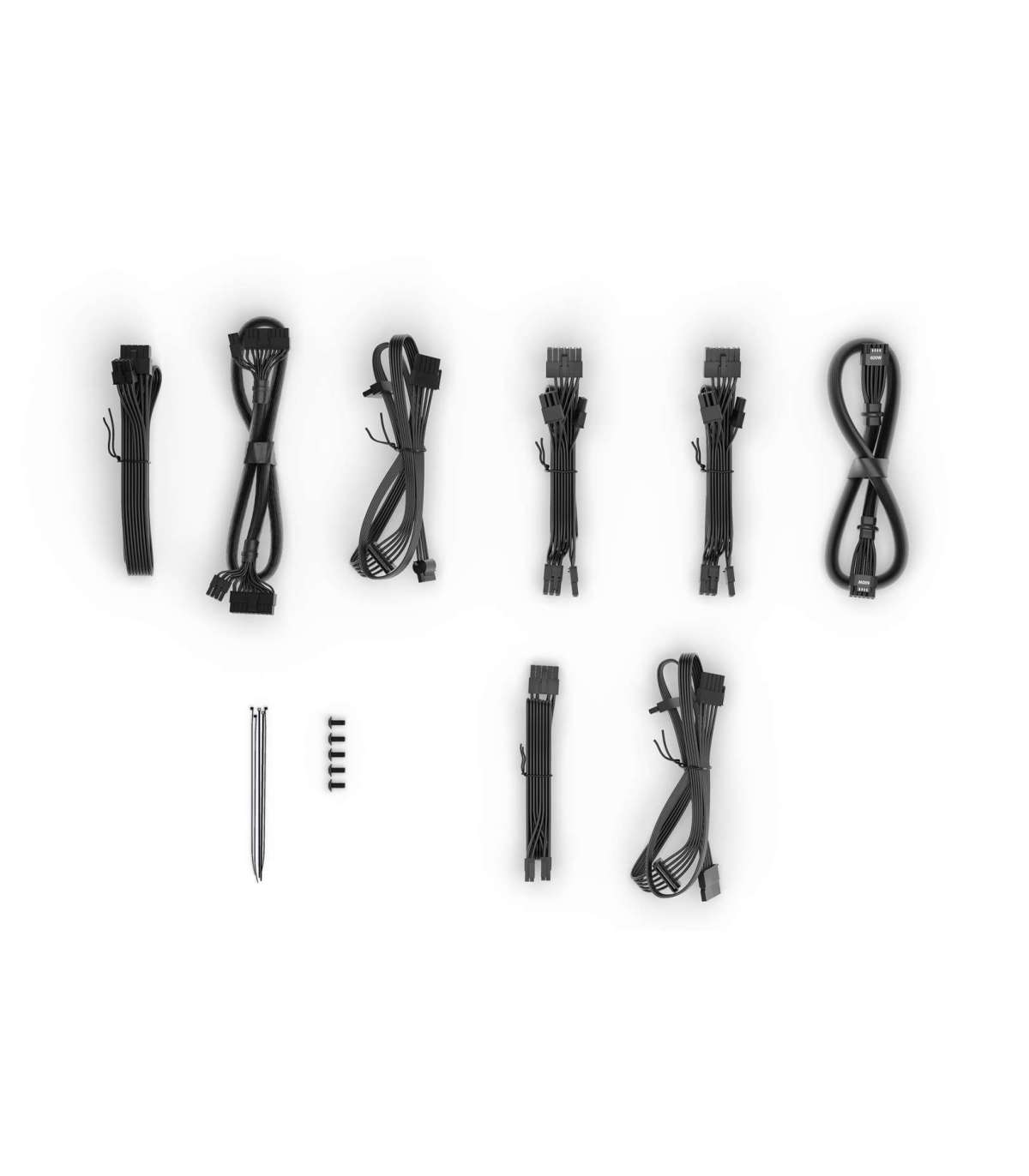

Cables included

AC, CPU, PATA, PCIe, SATA

Package width

220 mm

Package depth

284 mm

Package height

100 mm

Compliance certificates

BSMI
CB
CCC
CE
Federal Communications Commission (FCC)
RoHS
UKCA
WEEE
cTUVus

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR
ErP
Triman

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

15 - 7.5 A

Package type

Box

Mean time between failures (MTBF)

100000 h

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

4 pc(s)

Cooling type

Active

Noise level

34.3 dB

Efficiency

91.5%

Silent mode

Yes

Purpose

PC

Shipping (inner) case length

29.8 cm

Shipping (inner) case width

42.6 cm

Shipping (inner) case height

24.3 cm

Number of fans

1 fan(s)

Fan diameter

12 cm

Peak power

1250 W

80 PLUS certification

80 PLUS Gold

Total power

1200 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under power
Under voltage

Bearing technology

Rifle

Supported motherboard form factors

ATX

Fan speed

0 - 2700 RPM

Combined power (+3.3V)

120 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Combined power (+5V)

120 W

Hold time

19 ms

Combined power (+12V)

1200 W

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

500 mm
650
800 mm
950 mm

Peripheral (Molex) power cable length

800
950 mm

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

55 cm

PCI Express power cable length

60 cm

Power factor

0.98

PCI Express connector

Yes

Number of PATA power connectors

2

Max output current (+12V2)

50 A

Max output current (+12V1)

55 A

EPS version

2.92

Shipping (inner) case net weight

12.7 kg
